| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Transmission rangeUp to 300 m | Connection typeWireless | Scanner resolution640(H)x480(V)Px |
| Scanning coverage angle40º(h)x32º(v) | Barcode SensitivityTilt ± 65° / 360° Rotation / Deviation ± 60 ° | Minimum barcode contrast20% |

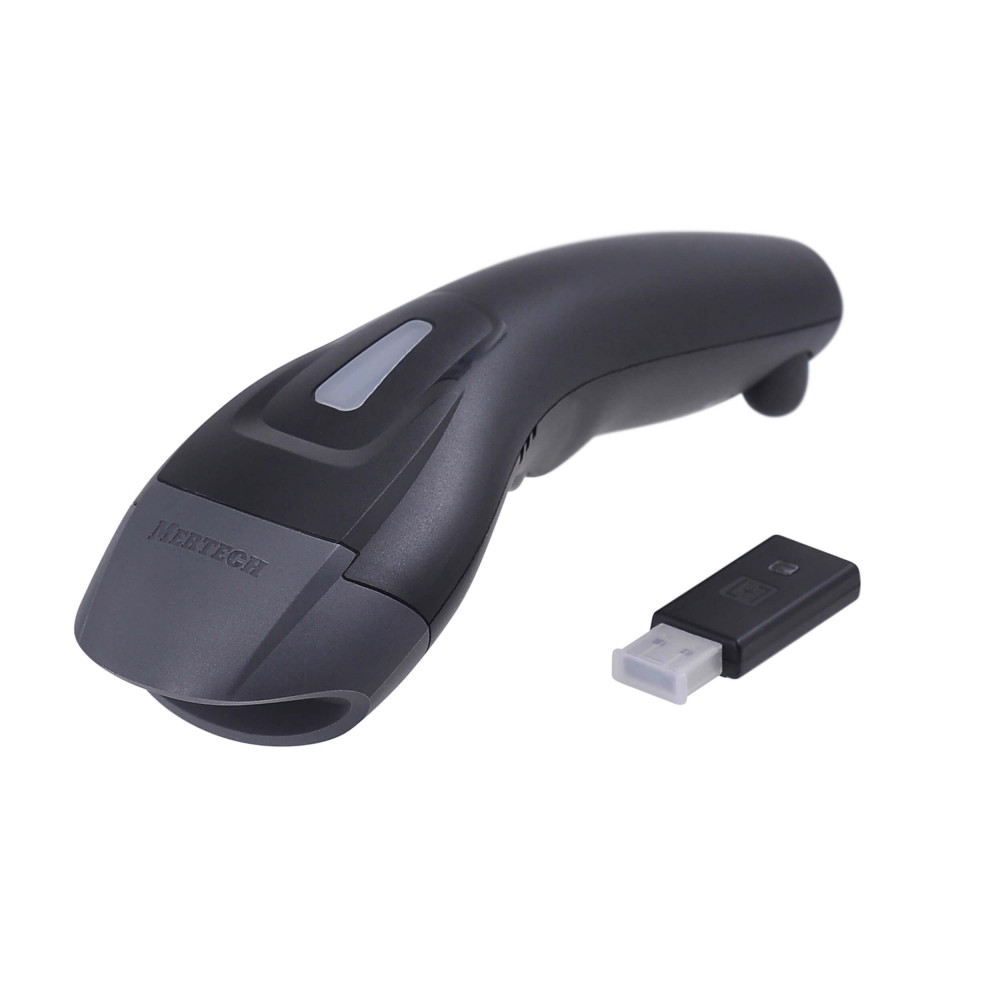

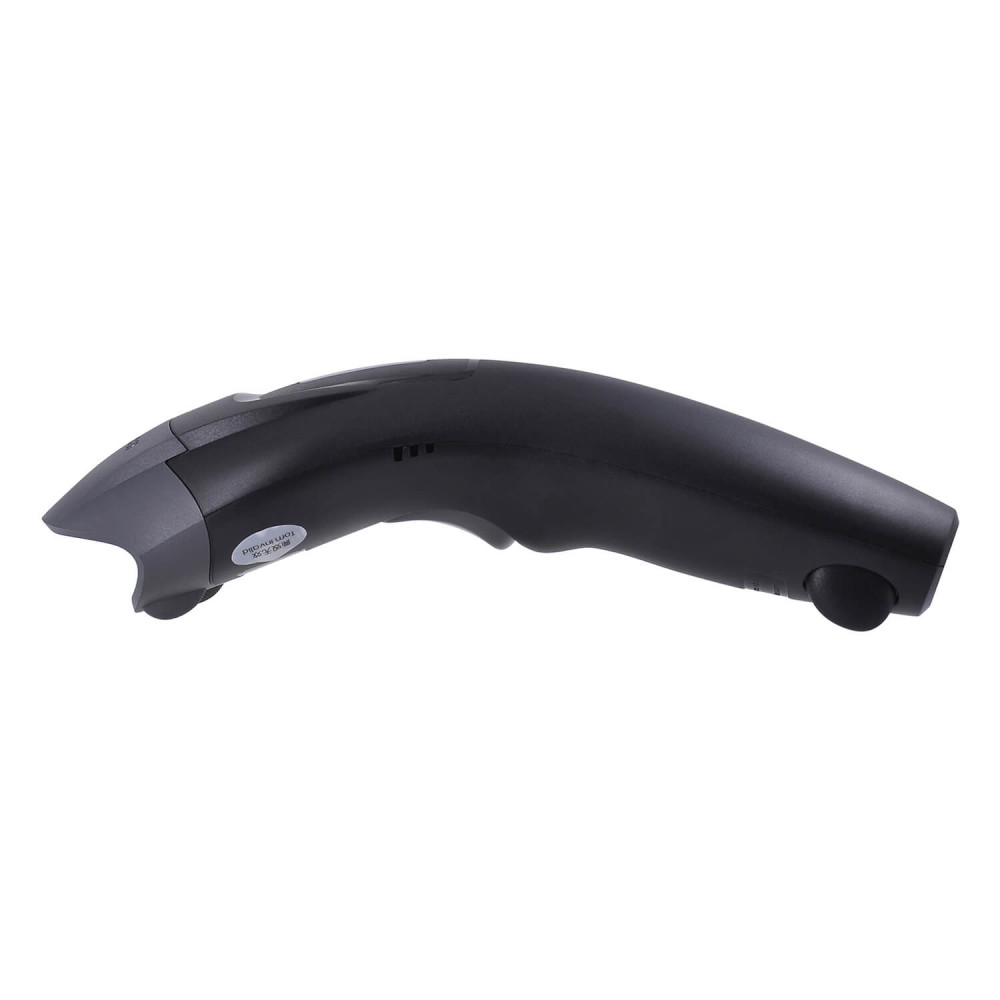

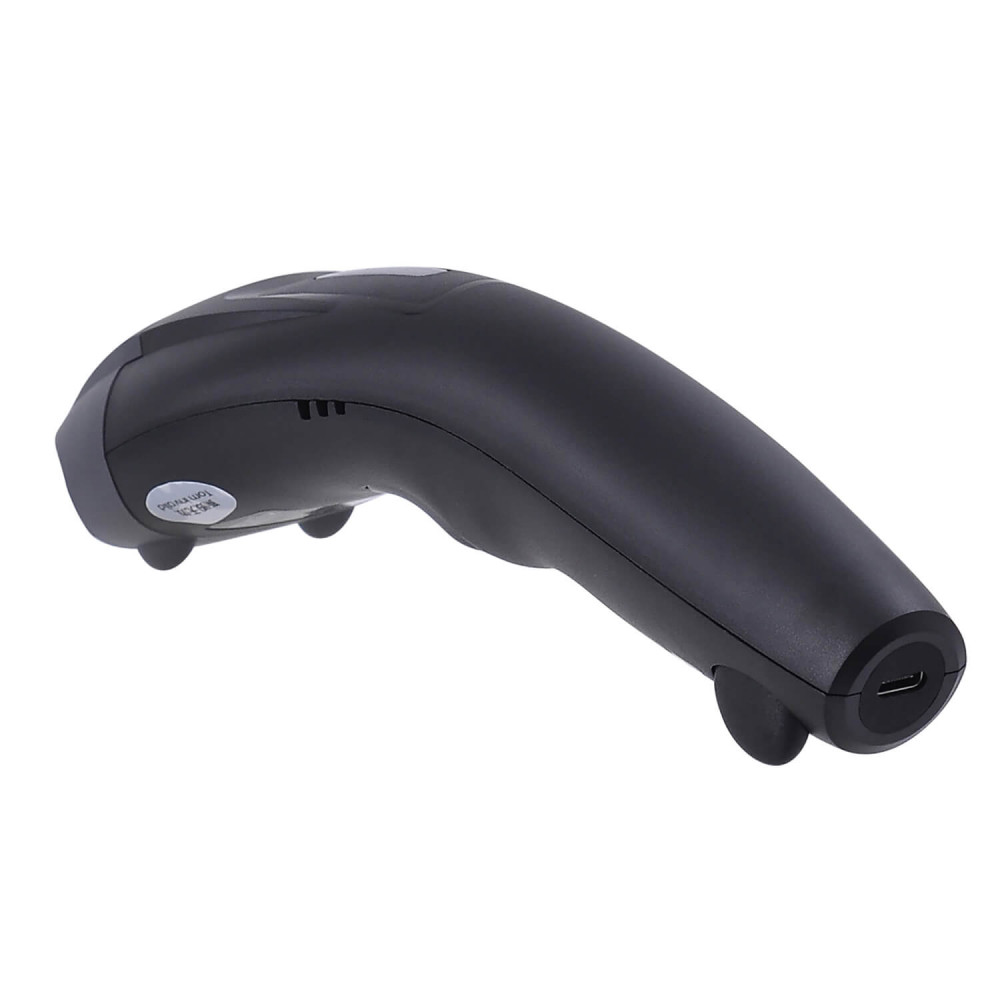

The MERTECH CL-610 BLE Dongle is a new generation wireless handheld scanner. The model implements the improved SUPERLEAD scanning technology. For remote reading, a BLE 5.0 connection is used. A key for data transfer is included.
Advantages of the model
We have implemented 6 important improvements in the new line of barcode readers.:
- Antireflect® backlight technology filters glare during scanning.
- The bright contrast sight speeds up aiming at the label. The sight is clearly visible at any lighting level.
- The advanced SUPERLEAD technology allows you to recognize large and small barcodes.
- Operation at a wide angle of inclination. The angle of coverage of the CL-610 model is 40 °(h) x 32 °(V).
- Increased reading distance. The CL-610 has a scanning distance of 37 cm.
- The Vibrocheck® system sends a vibration response when the code is successfully read. The vibration response duplicates the sound indication, which is convenient when working in noisy rooms.
The new generation of scanners can easily read damaged and blurred images. They recognize labels that are covered with a transparent film or pasted on glass. It is possible to read codes from the displays of electronic devices.
Technical specifications
The handheld reader is made of polycarbonate and plastic. The case and electronics can withstand drops from 1.5-1.8 m. The impact resistance of the case is confirmed by the results of drop tests. Enclosure protection class: IP 54.
BLE technology provides energy savings when working wirelessly. Connection distance to the database: up to 300 m. If the signal is lost, the data is stored in the built-in memory. Device memory capacity: 512 KB (4000 USAIS codes).
Installed battery capacity: 2600 mAh. One battery charge is enough for a full shift.
How to place an order
On the MERTECH website, you can buy barcode scanners at the manufacturer's price. We quickly deliver equipment to any region of Russia. Leave a request on the website, and we will prepare a favorable offer for you.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Transmission range | Up to 300 m |
| Connection type | Wireless |
| Scanner resolution | 640(H)x480(V)Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt ± 65° / 360° Rotation / Deviation ± 60 ° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Number of triggers without failures | 5 million |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| EGAIS support | Yes |
| Built-in memory | Yes |
| Built-in memory capacity | 512 KB (more than 4,000 USAIS codes) |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Antireflected, 3500K LED |
|---|
| 5 MIL | 30-90 mm |
|---|---|
| 13 MIL | 40-170 mm |
| Minimum scanning resolution | 3,9 MIL |
| Guarantee | 3 years old |
|---|---|
| Resistance to external influences | IP54 |
| Analogues of manufacturers | Datalogic, Zebra, Mindeo, Sunlux, Newland |
| Storage temperature | -40°C ~ +70°C |
| Permissible humidity | 0% ~ 95% |
| Receiver power supply | 5V/100mA |
| Scanner power supply | 5V/1000mA |
| Application areas | For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ |
| Operating temperature | 0°C ~ +50°C |
| Drop test | It can withstand 30 falls from a height of 1.8 m on a concrete surface or multiple falls from a height of 1.5 m. |
| Interface | USB-HID; USB-COM emulation; Bluetooth - BLE 5.0 |
|---|
| Battery capacity | 2600 mAh |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 190*65*55 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 125 gr. |
| Quantity in masterbox, pcs | 50 pcs |
|---|---|
| Gross weight, g | 260 |
| Box dimensions, mm | 215*75*100 |

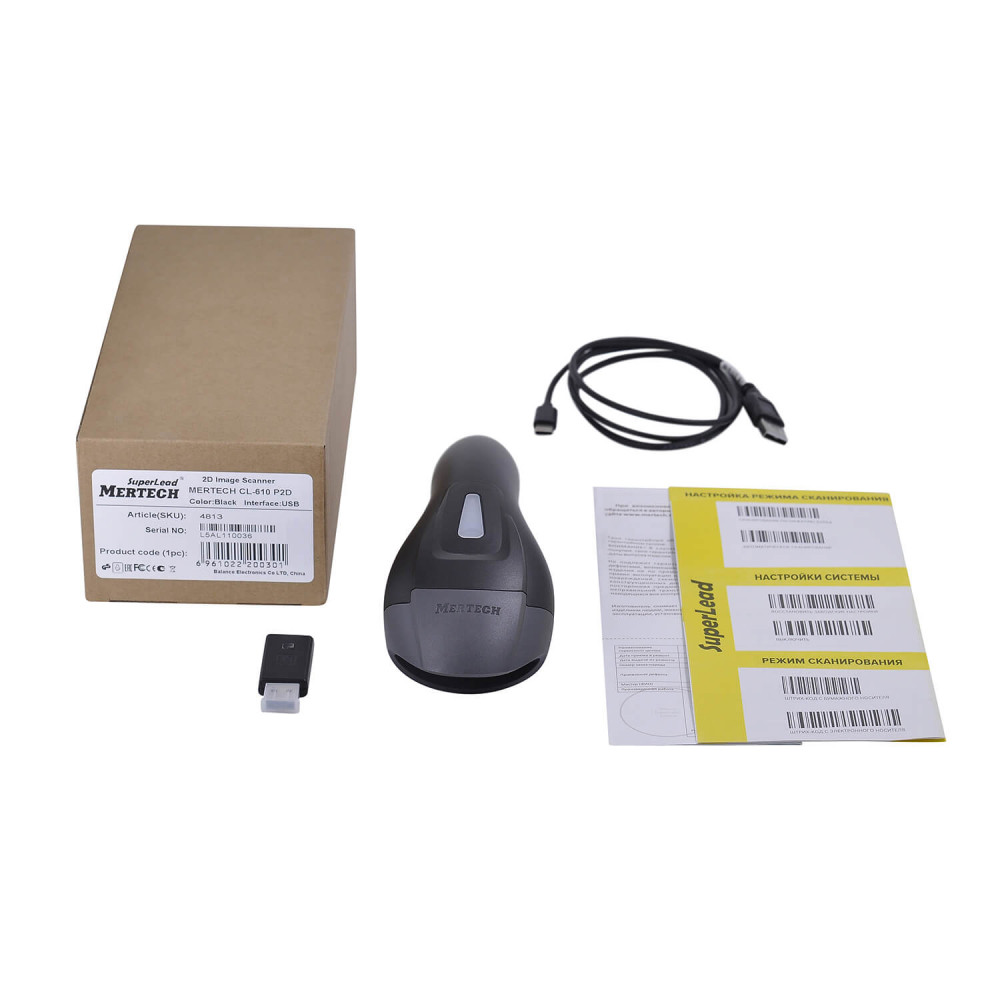

| Equipment | Scanner, USB Receiver, USB type A - USB type C cable (105 cm), Instructions, Warranty card, Packaging |
-
