| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Transmission rangeUp to 300 m | Connection typeWireless | Scanner resolution640(h)х480(v)Px |
| Scanning coverage angle40º(h)x32º(v) | Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast20% |

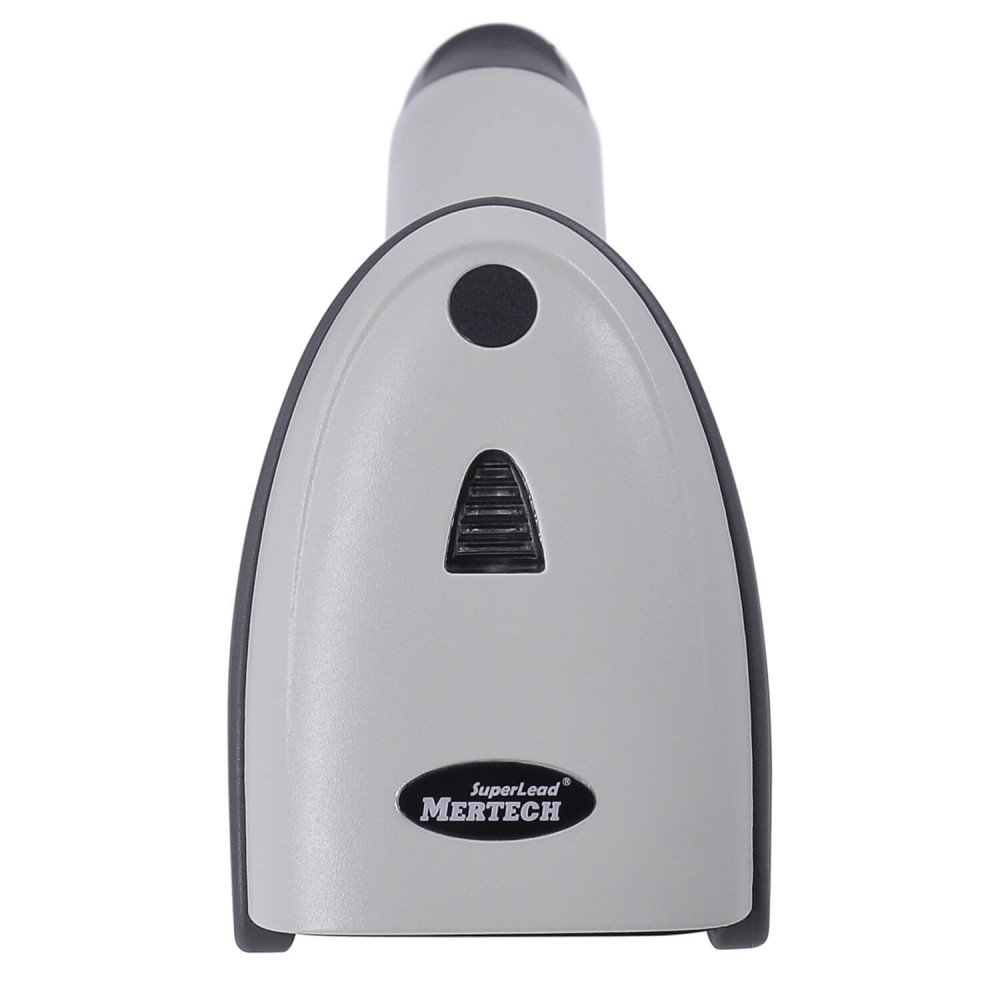

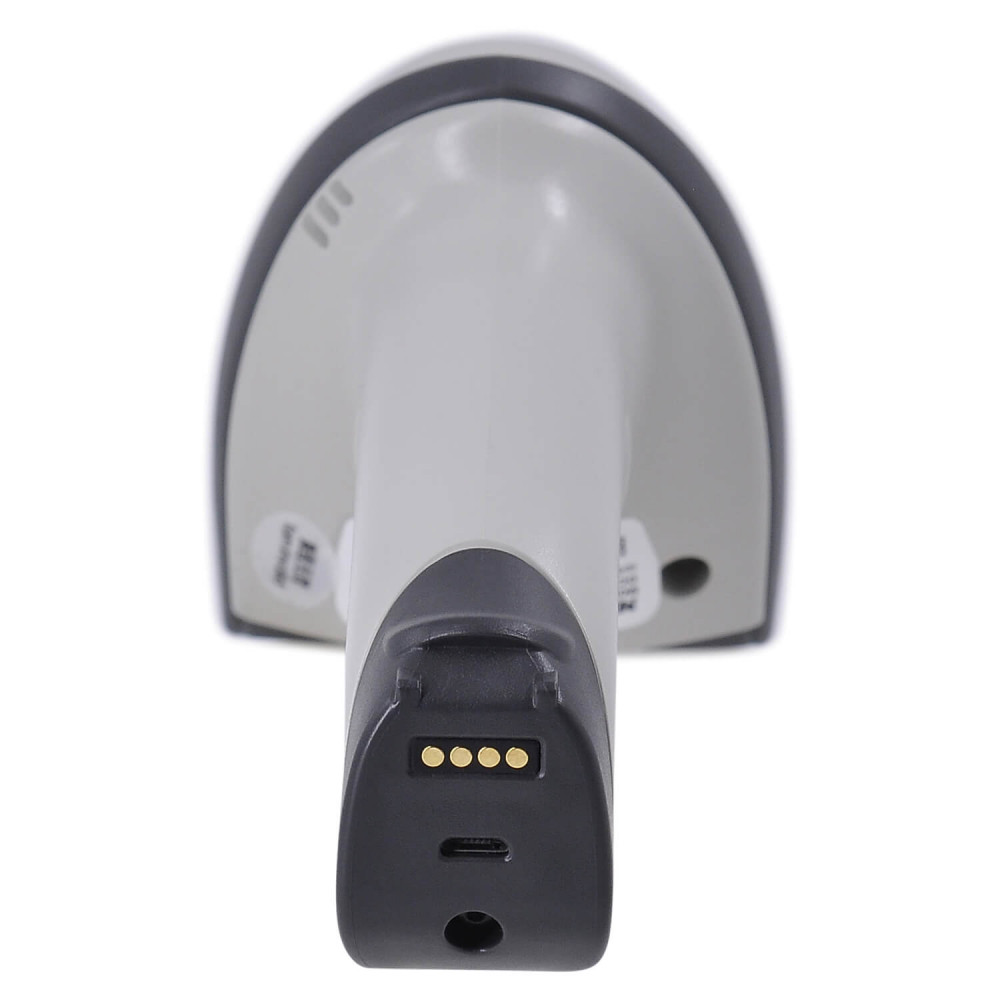

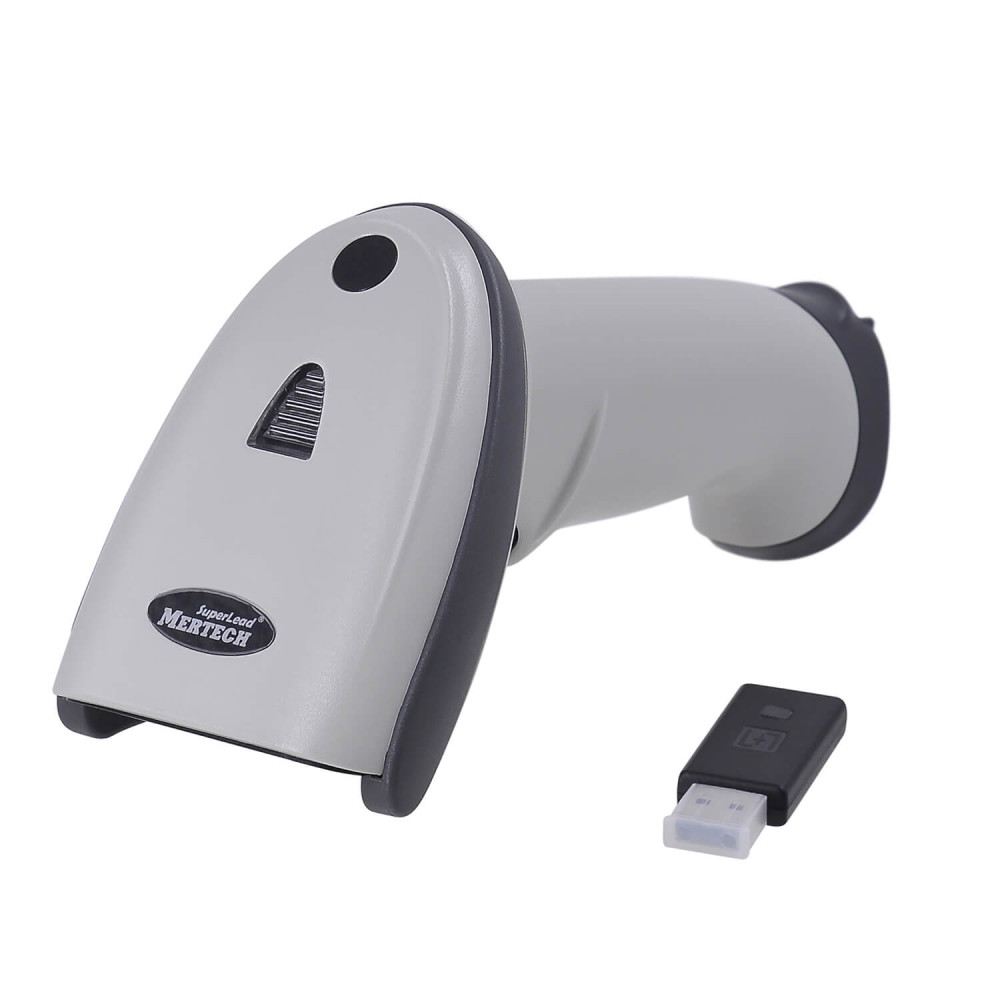

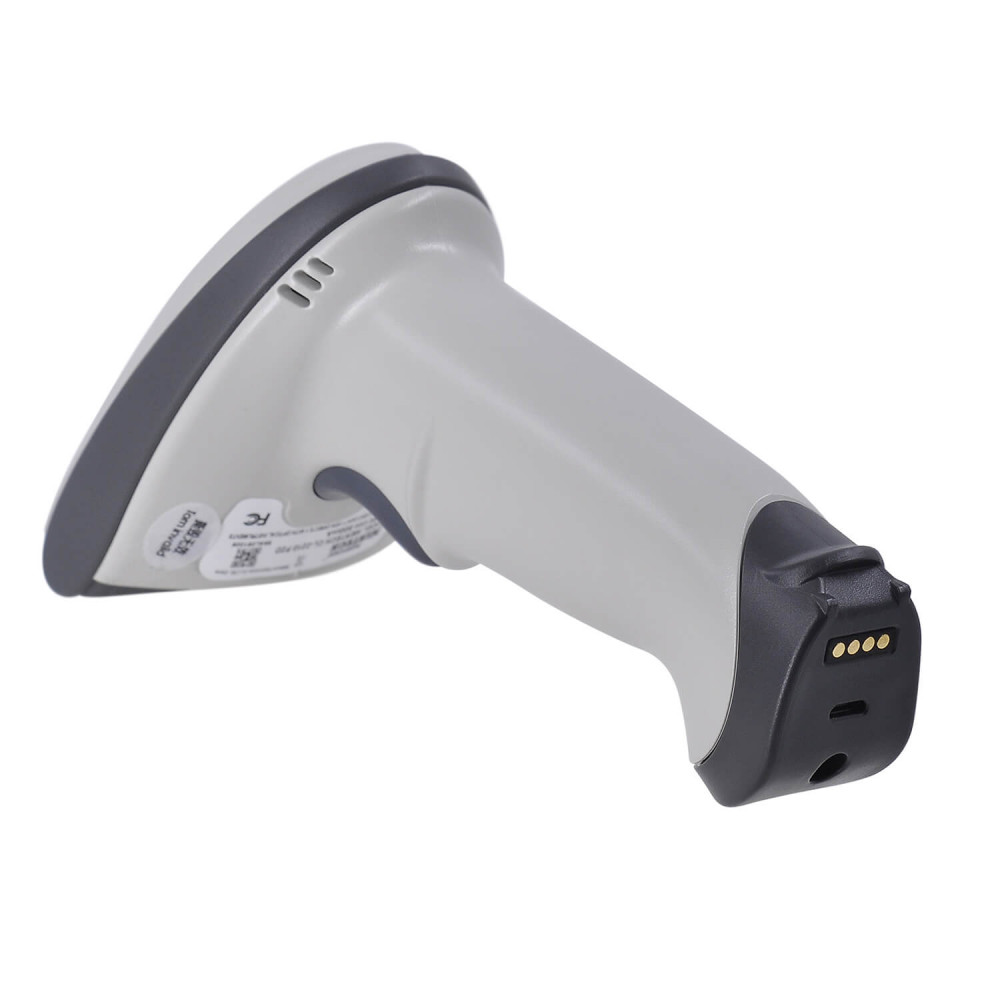

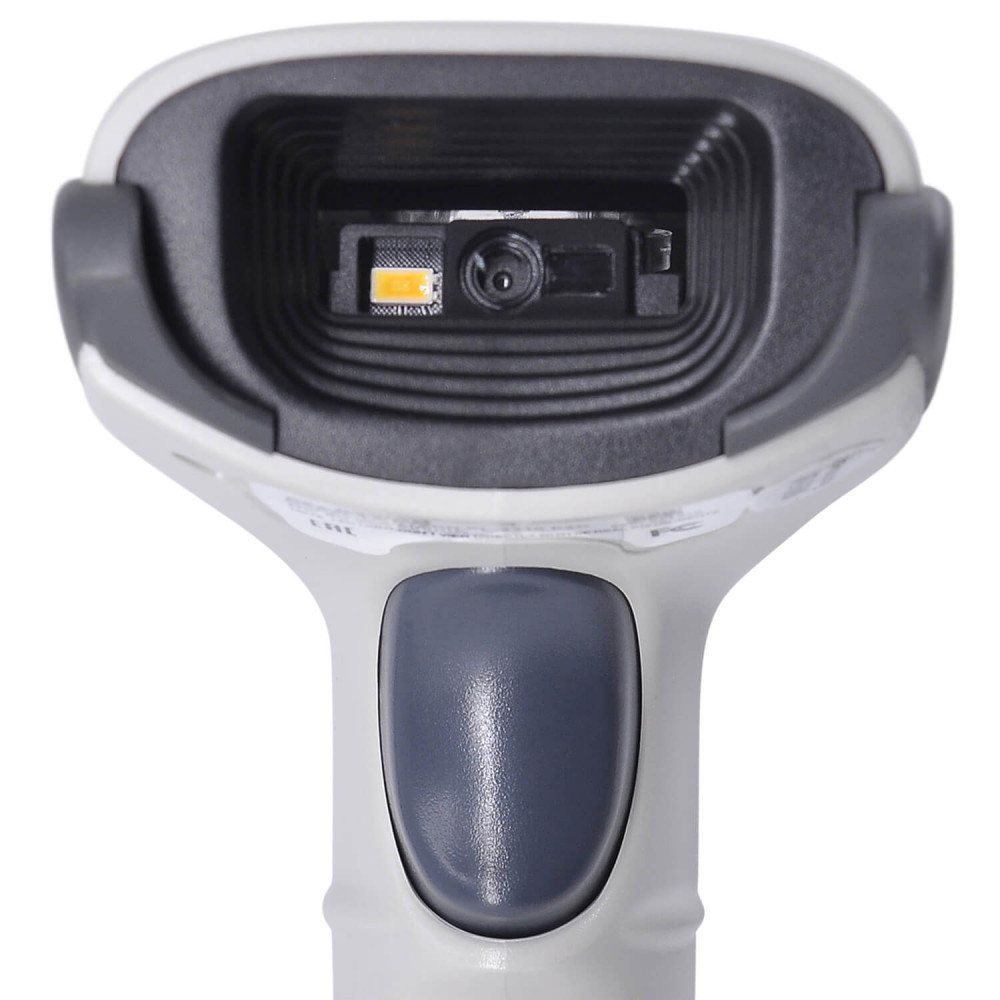

MERTECH CL-2210 is a wireless barcode scanner. The presented model belongs to the new MARK2 generation. The body color of the device is white. The package includes a USB receiver for data transmission.
MERTECH CL-2210 — Next Generation Scanner
The MARK2 generation readers feature enhanced SUPERLEAD technology. The devices are equipped with the Antireflect glare suppression system. For operation in noisy environments, a vibration feedback system, Vibrocheck, has been added.
Advantages of the MARK2 generation:
- Antireflect backlight technology for glare protection.
- Increased distance for recognizing labels.
- Expanded scanning module coverage angle.
- Recognition of non-standard barcode formats.
- Bright and contrasting target for camera alignment.
- Audible, visual, and vibration feedback during operation.
The new models can read barcodes of any size, including those on complex surfaces. They can recognize labels even through two layers of glossy transparent film.
All models of the MARK2 generation were created in accordance with the requirements of FGIS/SEUAP and CRPT. The scanners are suitable for accounting any marked goods and alcoholic products. MARK2 models are already on the list of recommended devices from the company 1C.
CL-2210 Model Description

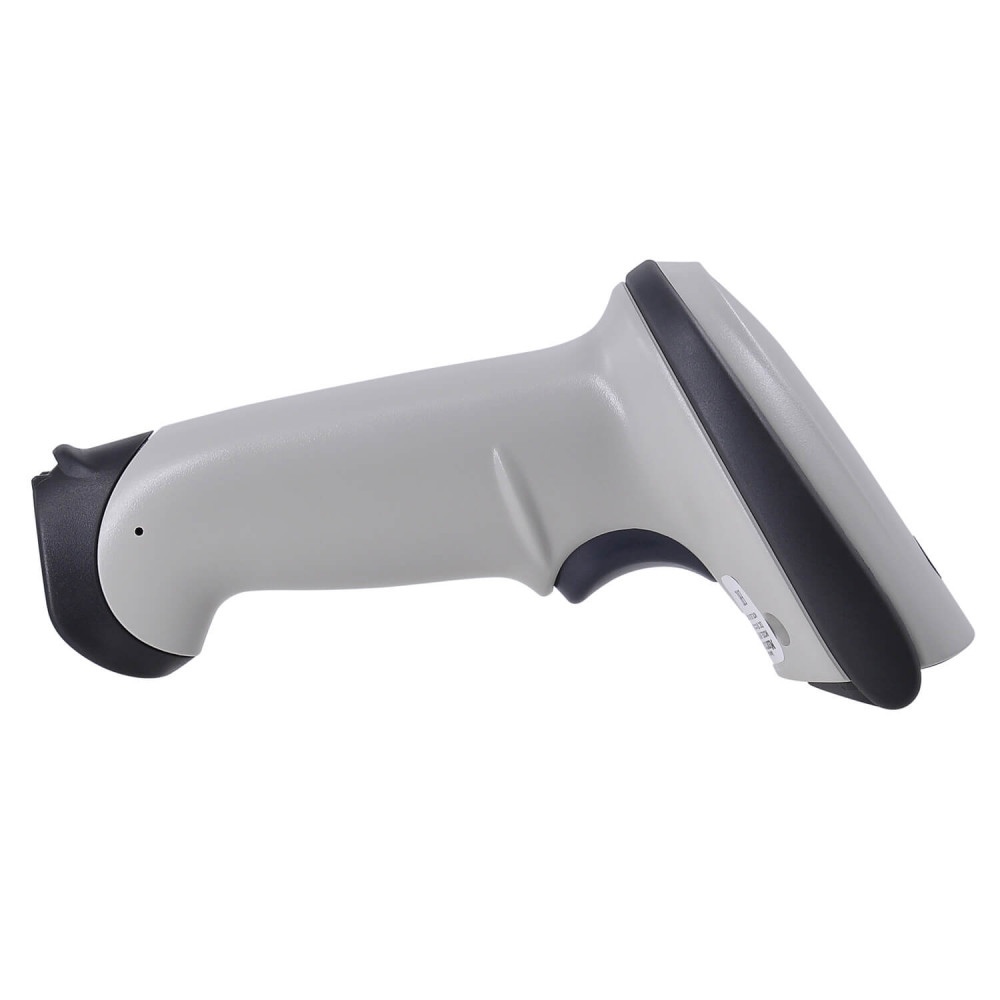

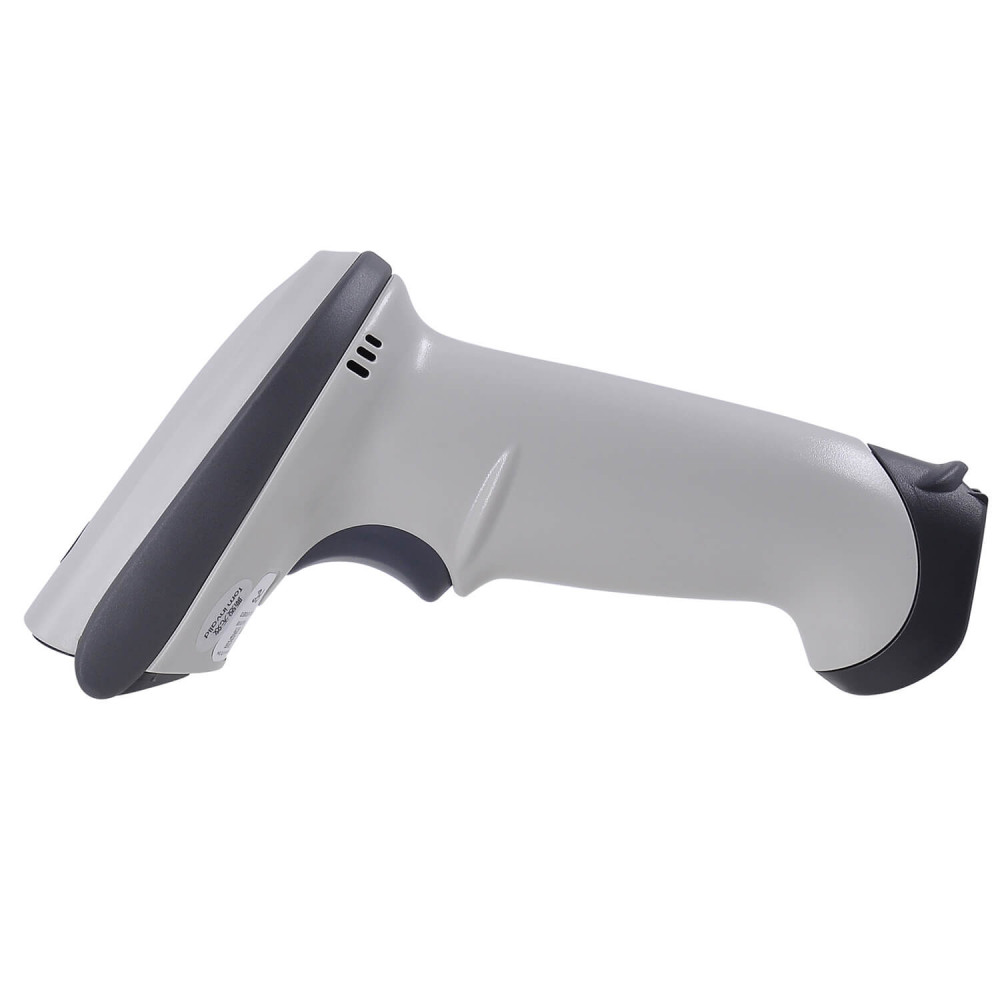

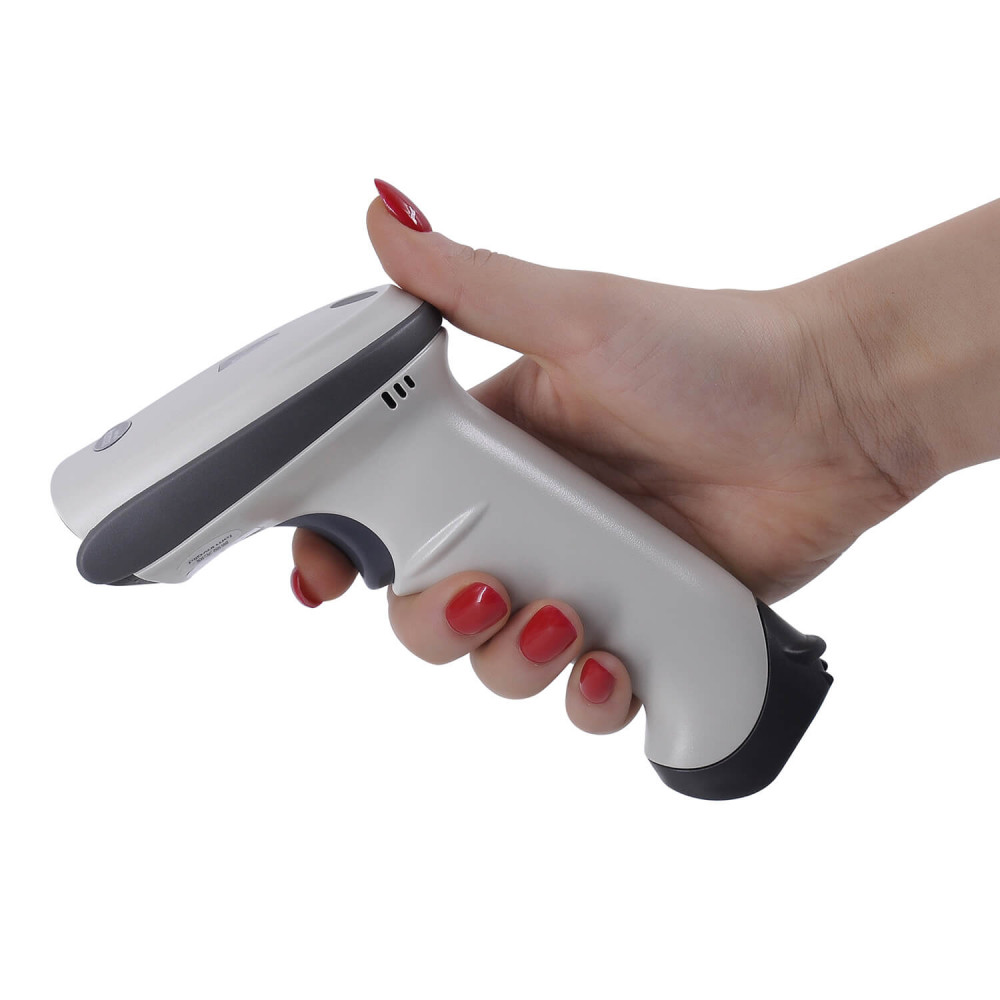

The housing is made from durable materials: polycarbonate and plastic. The ergonomic handle fits comfortably in the palm. The reliable body protects the electronics from multiple drops from a height of up to 150 cm.
Main characteristics:
- Distance: up to 370 mm.
- Speed: 100 scans/sec.
- Backlight: 3500K LED with glare suppression.
- Resolution: 640*480 pixels.
- Memory capacity: 512 kilobytes.
- Interfaces: BLE 5.0, USB-HID, USB-COM emulation, and RS-232.
- Synchronization range when wirelessly connected: 300 m.
- Battery capacity: 2600 mAh.
- Protection level of the housing: IP 54.
You can additionally purchase a Cradle stand. The Cradle is a charging and communication device. The Cradle stand accelerates battery charging. It can be used in "Hands-Free" mode, allowing codes within the coverage area to be recognized automatically.
Buy Wireless Scanner
You can order MERTECH CL-2210 scanners at the lowest price on the manufacturer's website. Your purchase will be delivered to any location in Azerbaijan. Leave a request on the website, and we will prepare a favorable offer for you.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Transmission range | Up to 300 m |
| Connection type | Wireless |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Number of triggers without failures | 5 million |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Built-in memory | Yes |
| Built-in memory capacity | 512 Kb (more than 4,000 SEUAP codes) |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Antireflective, 3500K LED |
|---|
| 5 MIL | 30-90 mm |
|---|---|
| 13 MIL | 40-200 mm |
| Minimum scanning resolution | 3.9 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°С ~ +70°С |
| Receiver power supply | 5V/100mA |
| Scanner power supply | 5V/1000mA |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For SEUAP, For warehouse, For store, For marking, For Honest Sign, Industrial, Medical |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. |
| Interface | USB-HID; USB-COM - emulation; RS-232 - emulation; Bluetooth - BLE 5.0 |
|---|
| Battery capacity | 2600 mAh |
|---|
| Color | White |
|---|---|
| Overall dimensions (WxDxH), mm | 170*95*70 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 162 gr |
| Gross weight, g | 290 |
|---|---|
| Box dimensions, mm | 215*75*100 |

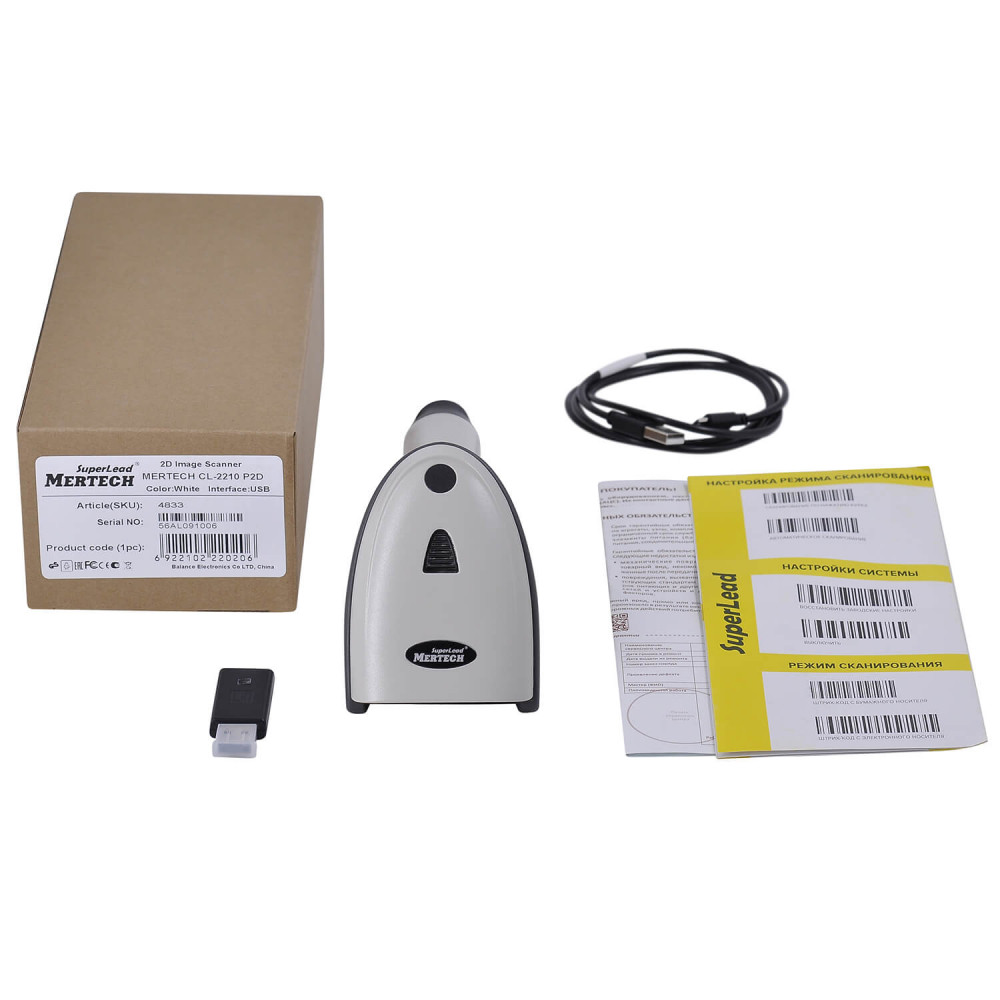

| Equipment | Scanner, USB receiver, USB type A - micro USB cable (105 cm), Brief instructions, Warranty card, Packaging |
-
