| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Transmission rangeUp to 300 m | Connection typeWireless | Scanner resolution640(h)х480(v)Px |
| Scanning coverage angle40º(h)x32º(v) | Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast20% |

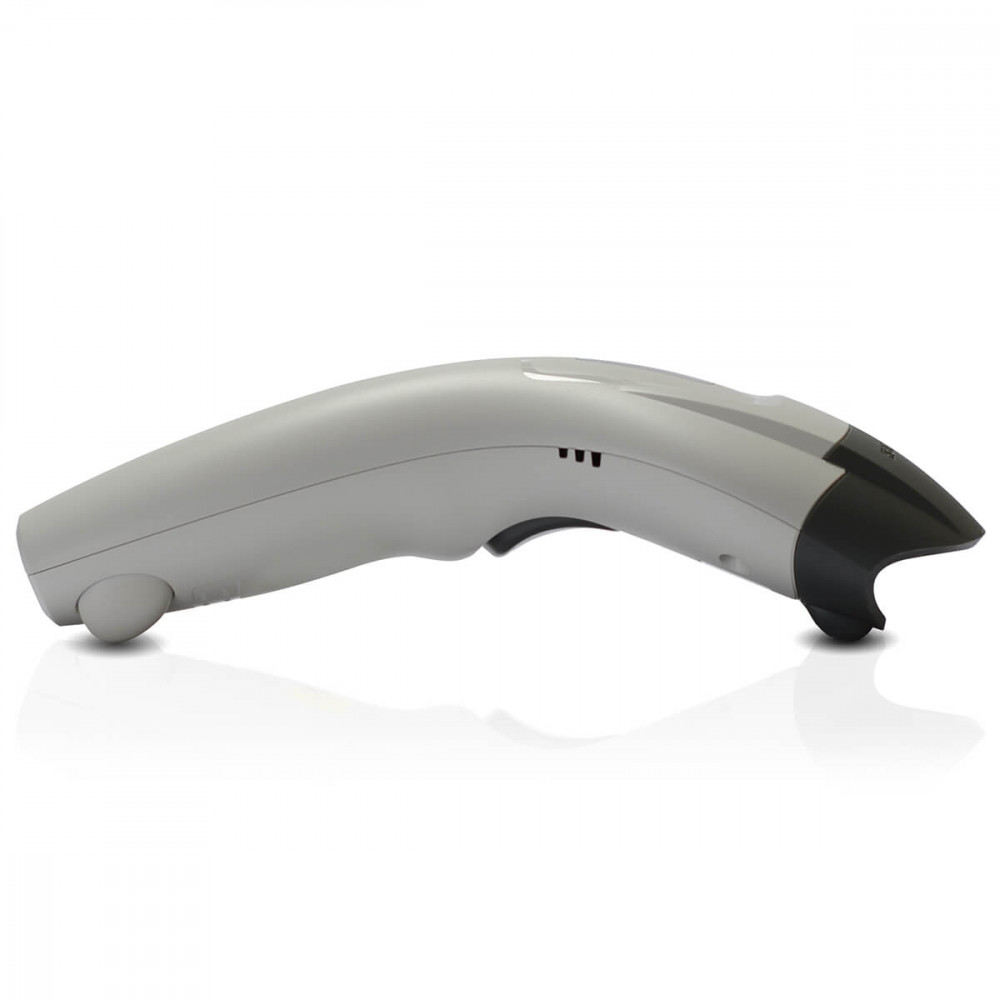

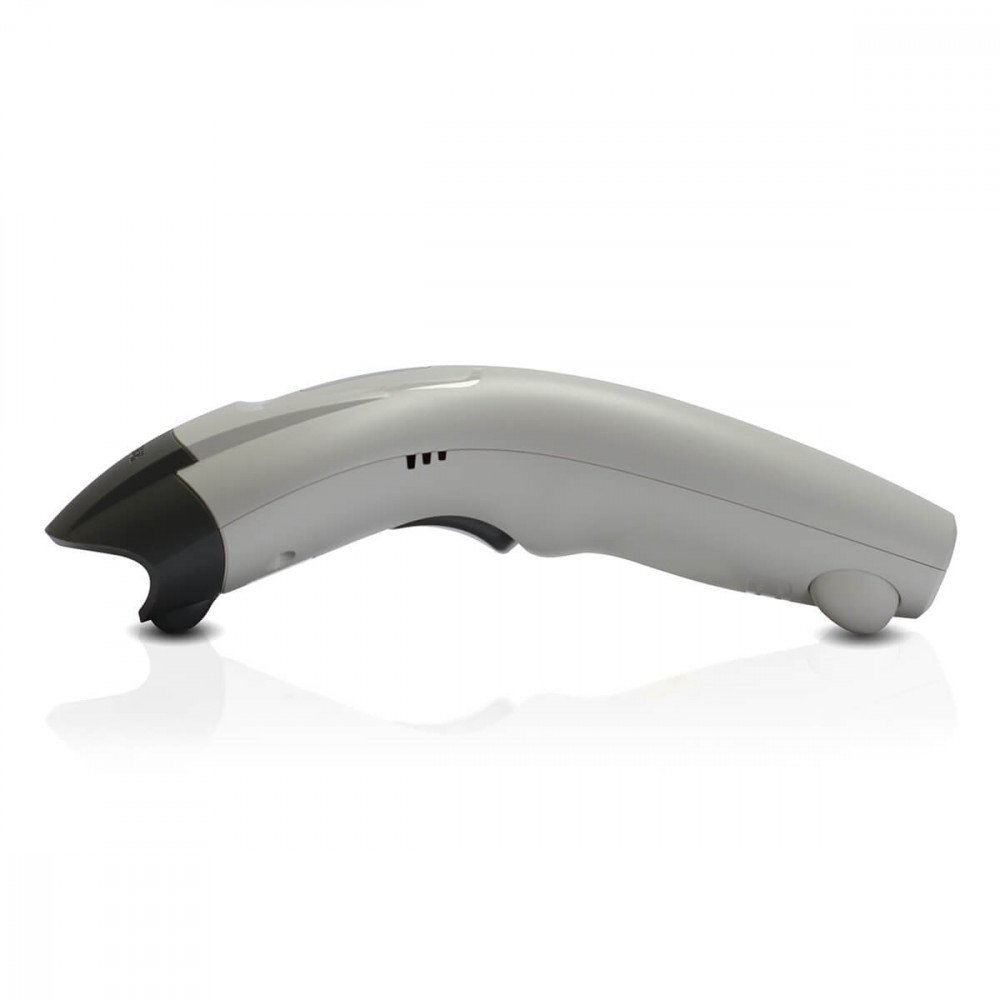

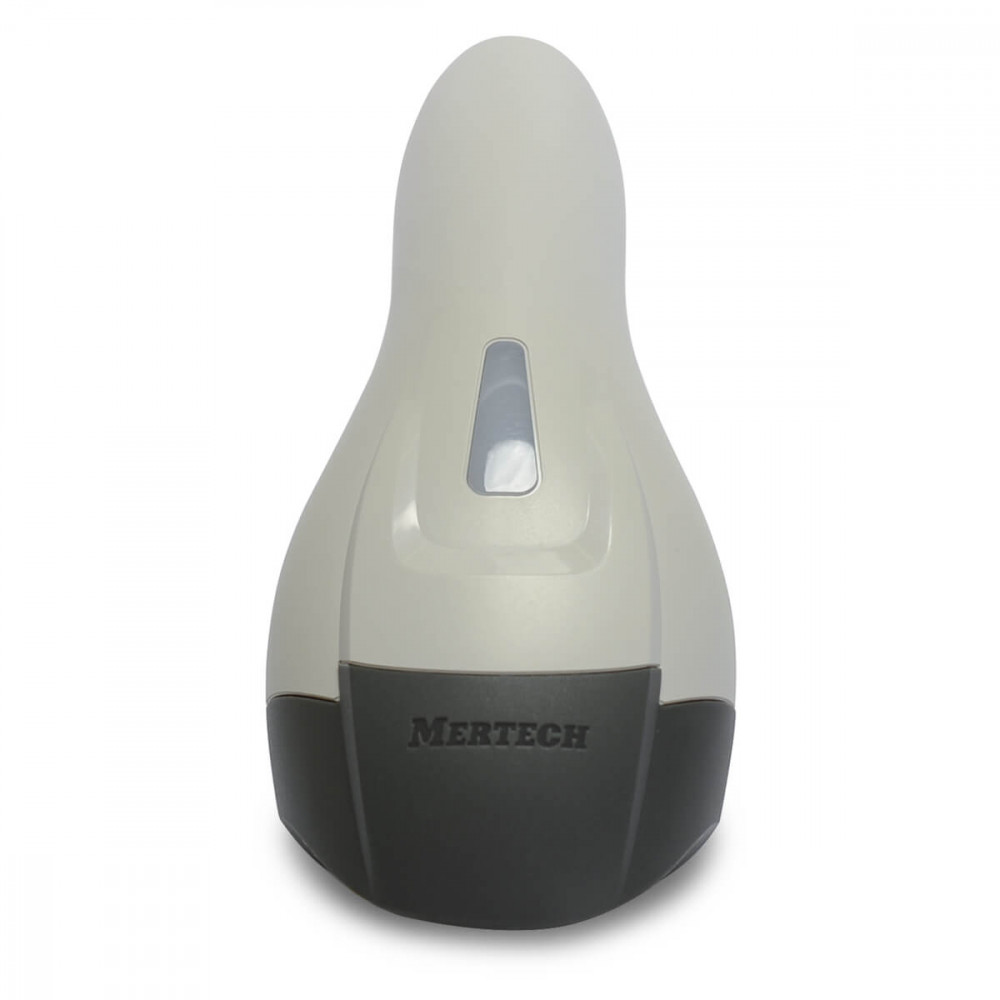

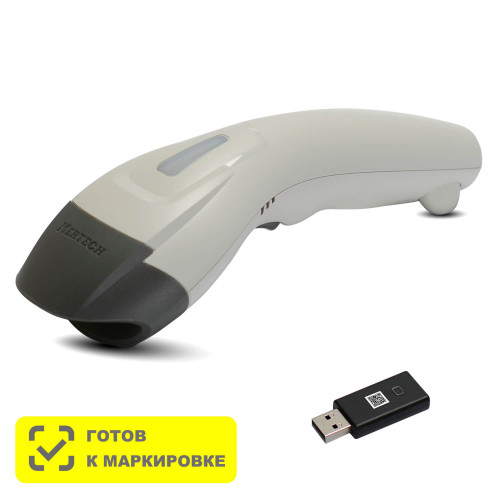

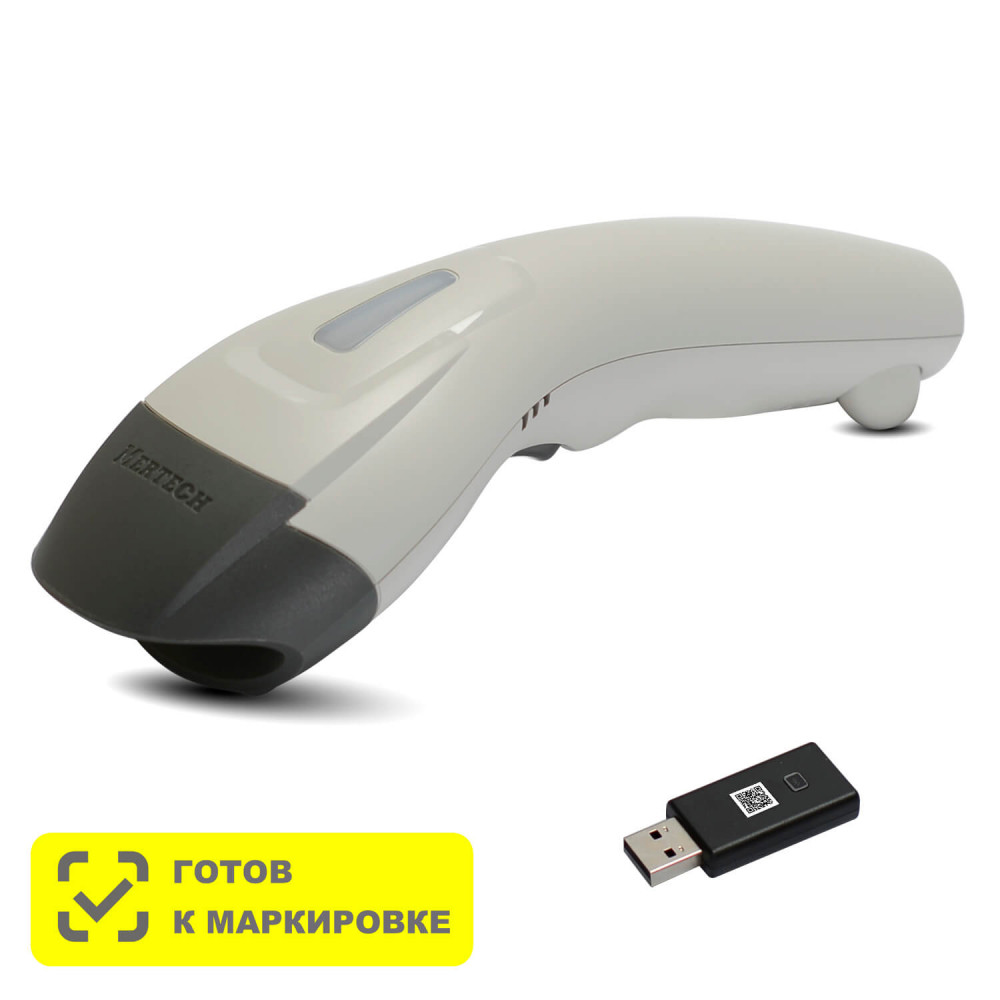

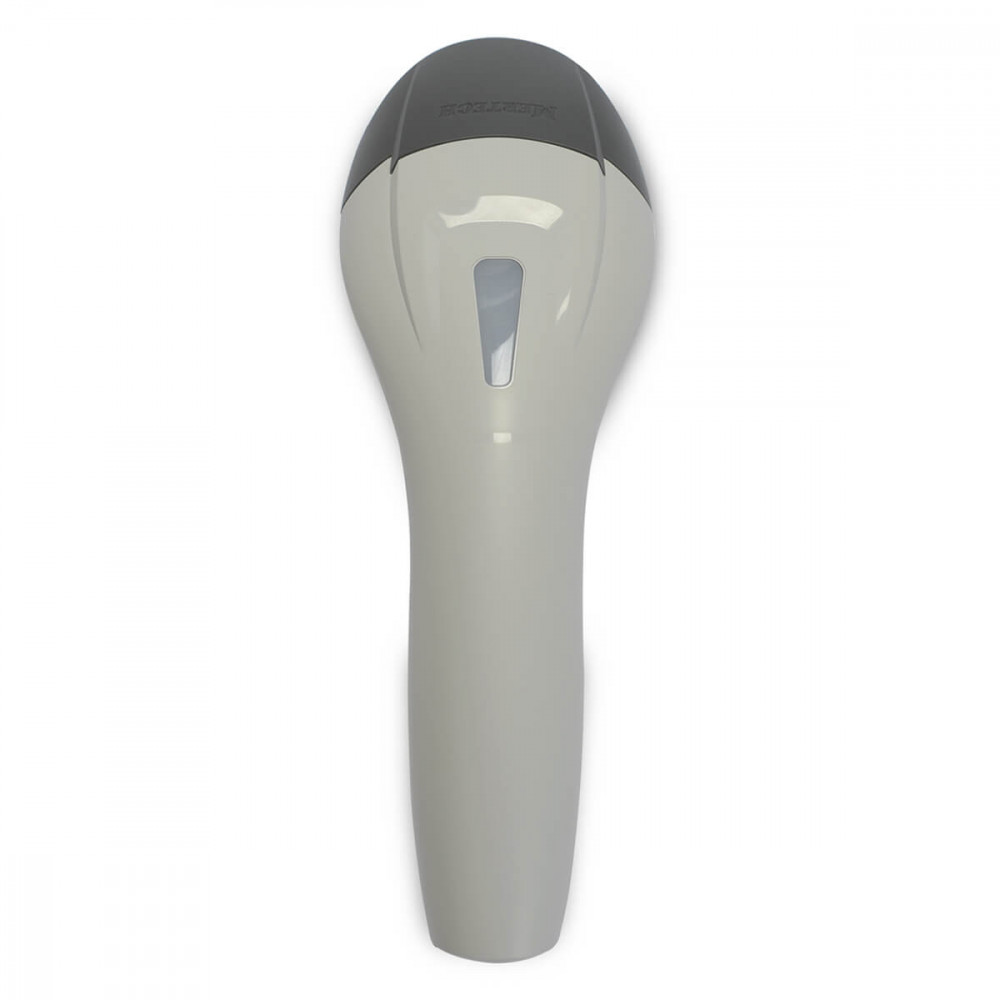

MERTECH CL-610 is a wireless barcode scanner. The model belongs to the new generation of MARK2 readers. The color of the device's body is white. The package includes a USB receiver for data transmission from the scanner during wireless connectivity.
MERTECH CL-610 — a new generation scanner
In the MARK2 generation, we enhanced the SUPERLEAD technology and implemented Antireflect and Vibrocheck technologies. The new models read barcodes from any surfaces excellently. They recognize both large and small barcodes, and they can identify labels through two layers of reflective film.
Advantages of the new generation models:
- Glare suppression by the Antireflect system.
- Increased distance and extended coverage angle.
- Scanning codes of non-standard sizes.
- Bright and contrasting targeting for aiming.
- Vibro-response Vibrocheck for use in noisy halls.
The new scanners are suitable for tracking alcohol and any marked products. They have already received recommendations from the 1C company.
Description of the CL-610 model

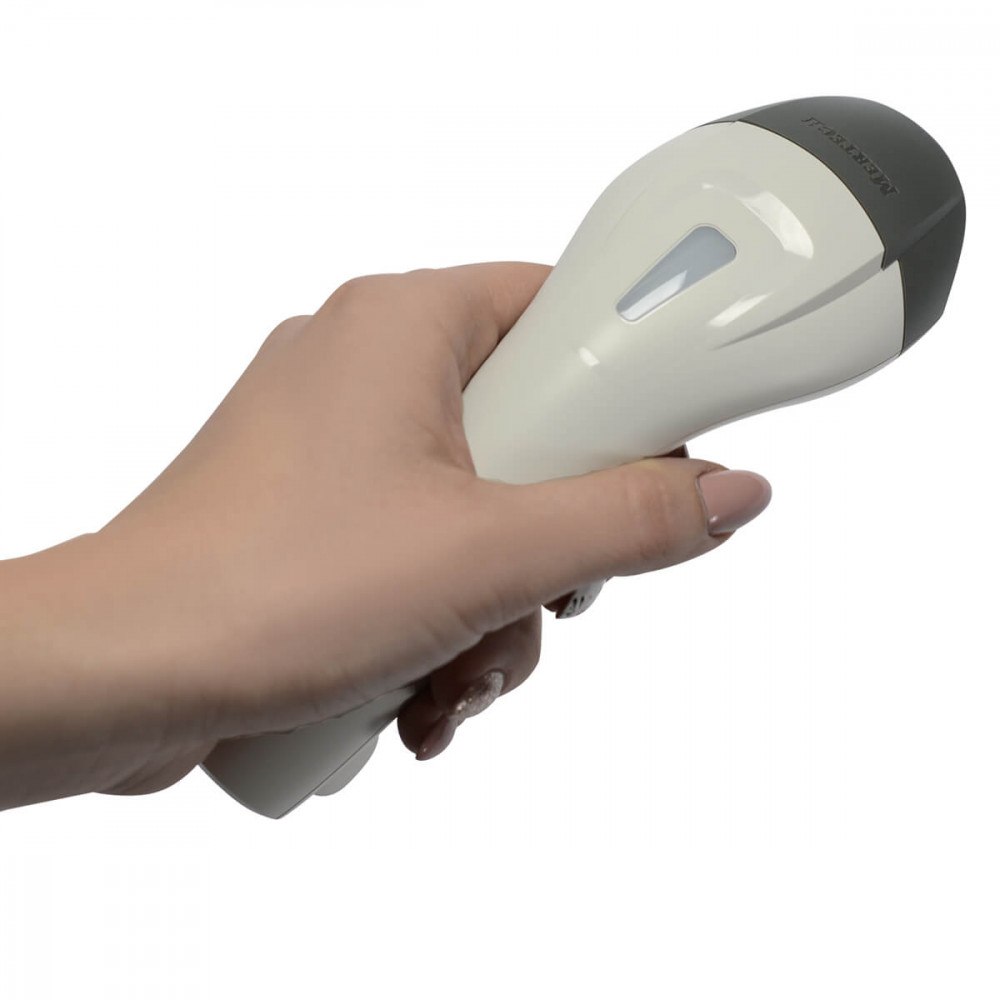

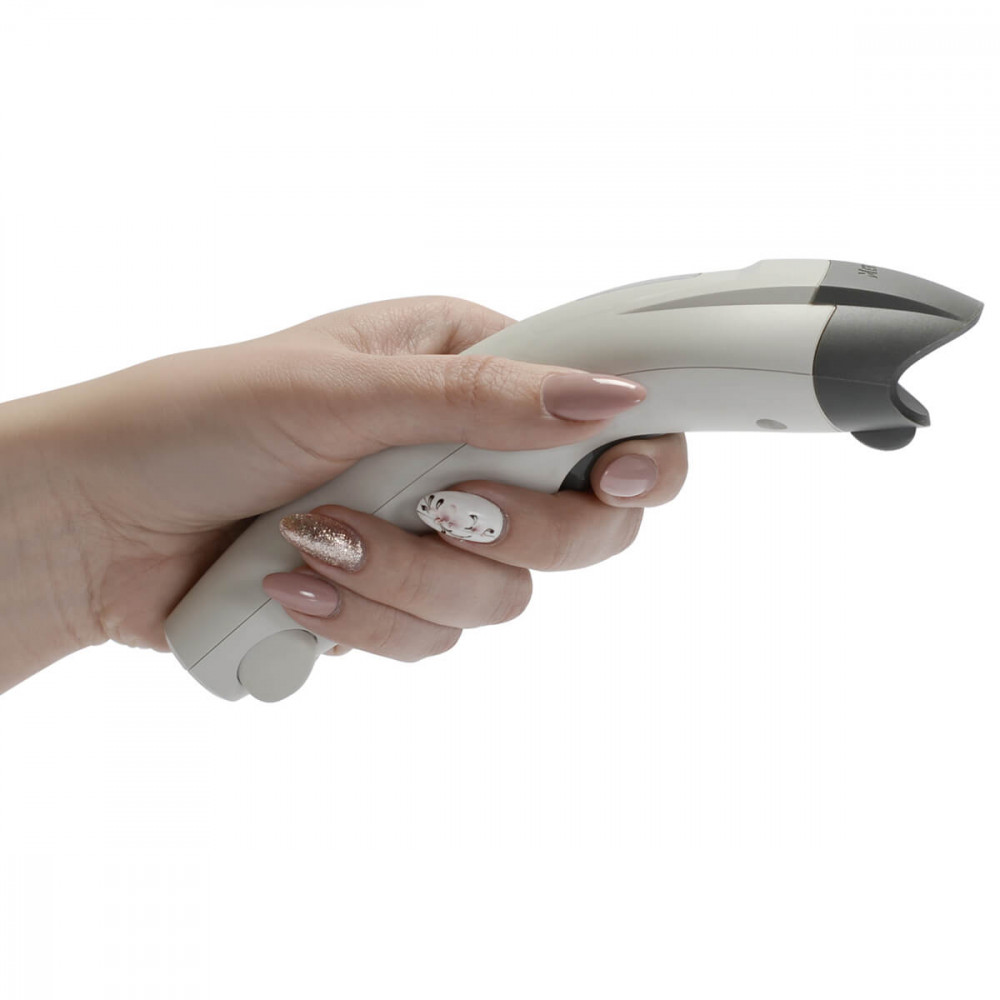

The device's body is made of durable plastic and polycarbonate. The ergonomic handle fits comfortably in the palm. The mechanism withstands multiple drops from a height of up to 150 cm.
Main characteristics of the model:
- Distance: up to 370 mm.
- Speed: 100 scans/sec.
- Backlight: 3500K LED with glare suppression.
- Resolution: 640*480 pixels.
- Memory capacity: 512 kilobytes.
- Interfaces: Bluetooth Low Energy 5.0, USB-HID, USB-COM emulation.
- Synchronization range for wireless connection: 300 m.
- Battery capacity: 2600 mAh.
- Body protection level: IP 54.
You can purchase a stand for stationary mode. When mounted on the holder, the device operates on a "Hands-Free" principle. In this mode, scanning occurs automatically when the label is within the coverage area.
Buy a wireless scanner
You can buy the MERTECH CL-610 scanners at the lowest price on the manufacturer's website. Delivery of scanning devices is made throughout Azerbaijan. Place an order on the MERTECH company website to purchase equipment at a favorable price.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Transmission range | Up to 300 m |
| Connection type | Wireless |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Number of triggers without failures | 5 million |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Built-in memory | Yes |
| Built-in memory capacity | 512 Kb (more than 4,000 SEUAP codes) |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Antireflective, 3500K LED |
|---|
| 5 MIL | 30-90 mm |
|---|---|
| 13 MIL | 40-170 mm |
| Minimum scanning resolution | 3.9 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°С ~ +70°С |
| Permissible humidity | 0% ~ 95% |
| Receiver power supply | 5V/100mA |
| Scanner power supply | 5V/1000mA |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For SEUAP, For warehouse, For store, For marking, For Honest Sign, Industrial, Medical |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. |
| Interface | USB-HID; USB-COM - emulation; Bluetooth - BLE 5.0 |
|---|
| Battery capacity | 2600 mAh |
|---|
| Color | White |
|---|---|
| Overall dimensions (WxDxH), mm | 190*65*55 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 125 gr. |
| Gross weight, g | 260 |
|---|---|
| Box dimensions, mm | 215*75*100 |
| Equipment | Scanner, USB receiver, USB type A - USB type C cable (105 cm), Manual, Warranty card, Packaging |
-
