| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Transmission rangeUp to 300 m | Connection typeWireless | Scanner resolution640(h)х480(v)Px |
| Scanning coverage angle40º(h)x32º(v) | Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast20% |

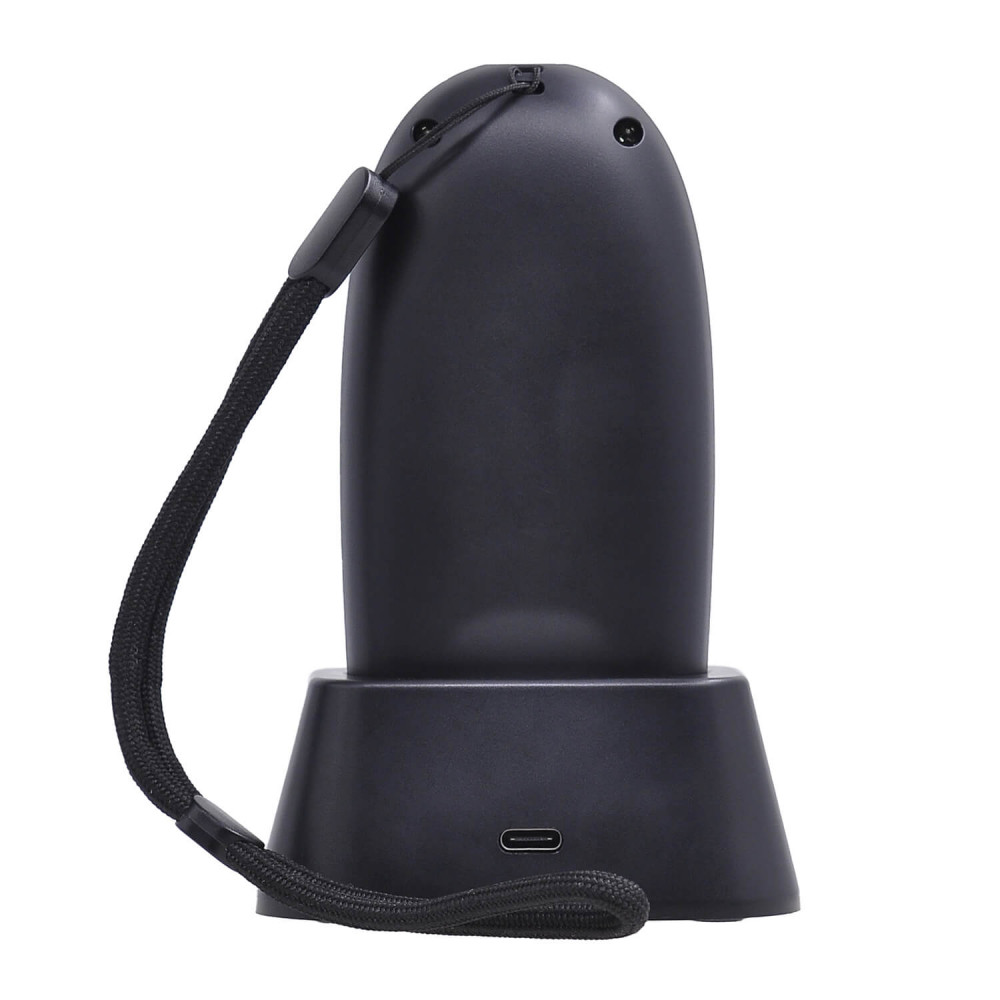

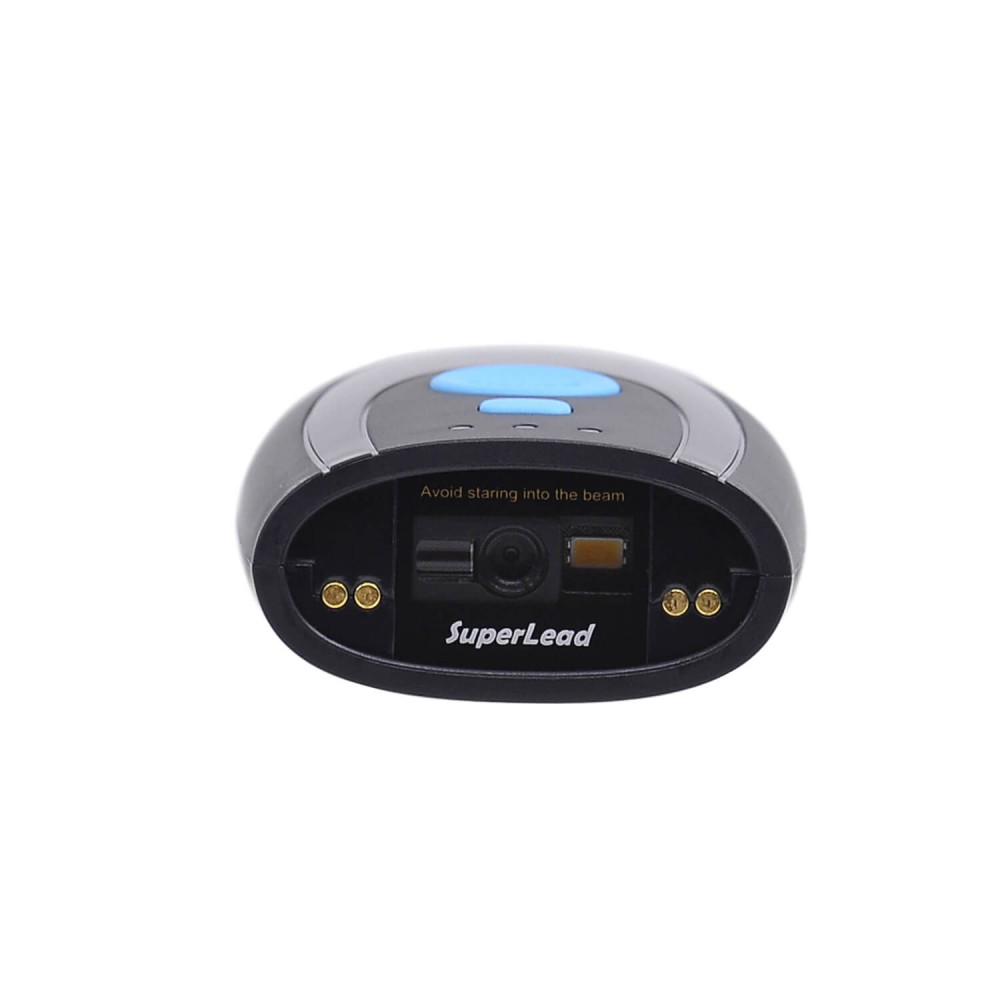

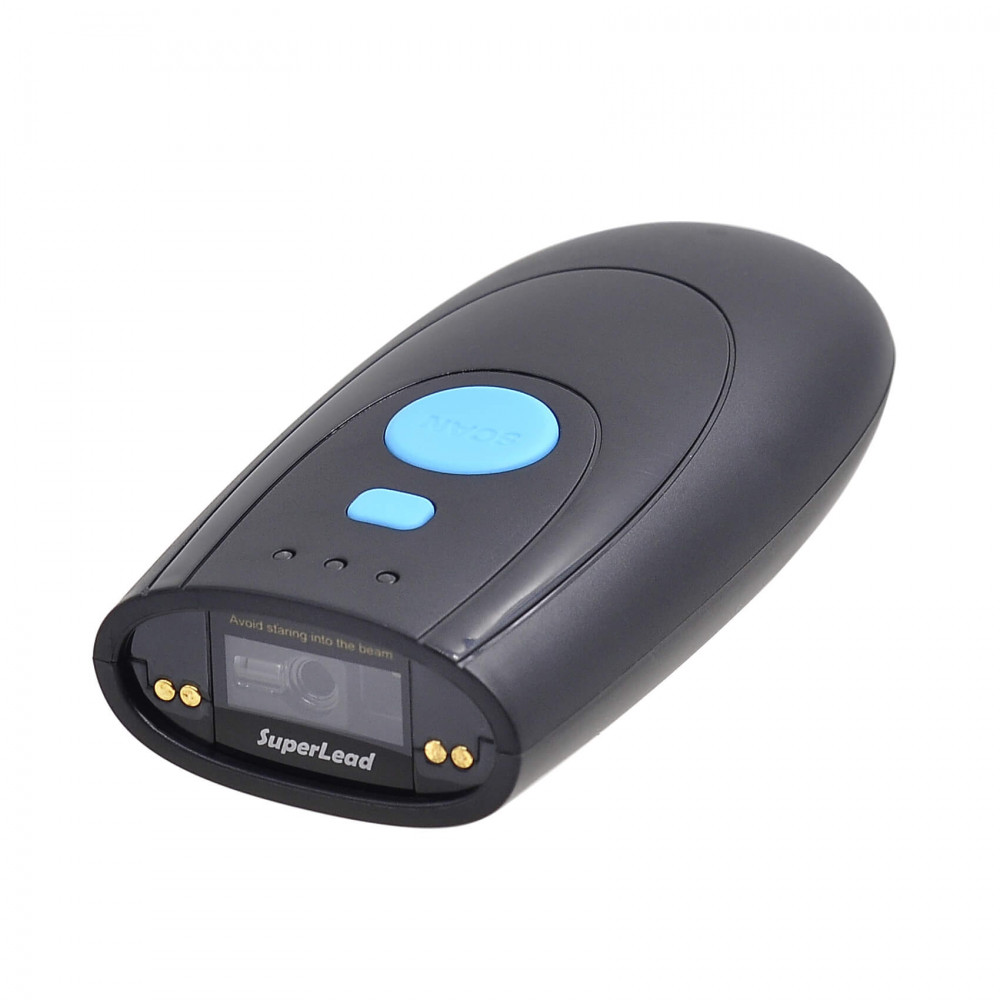

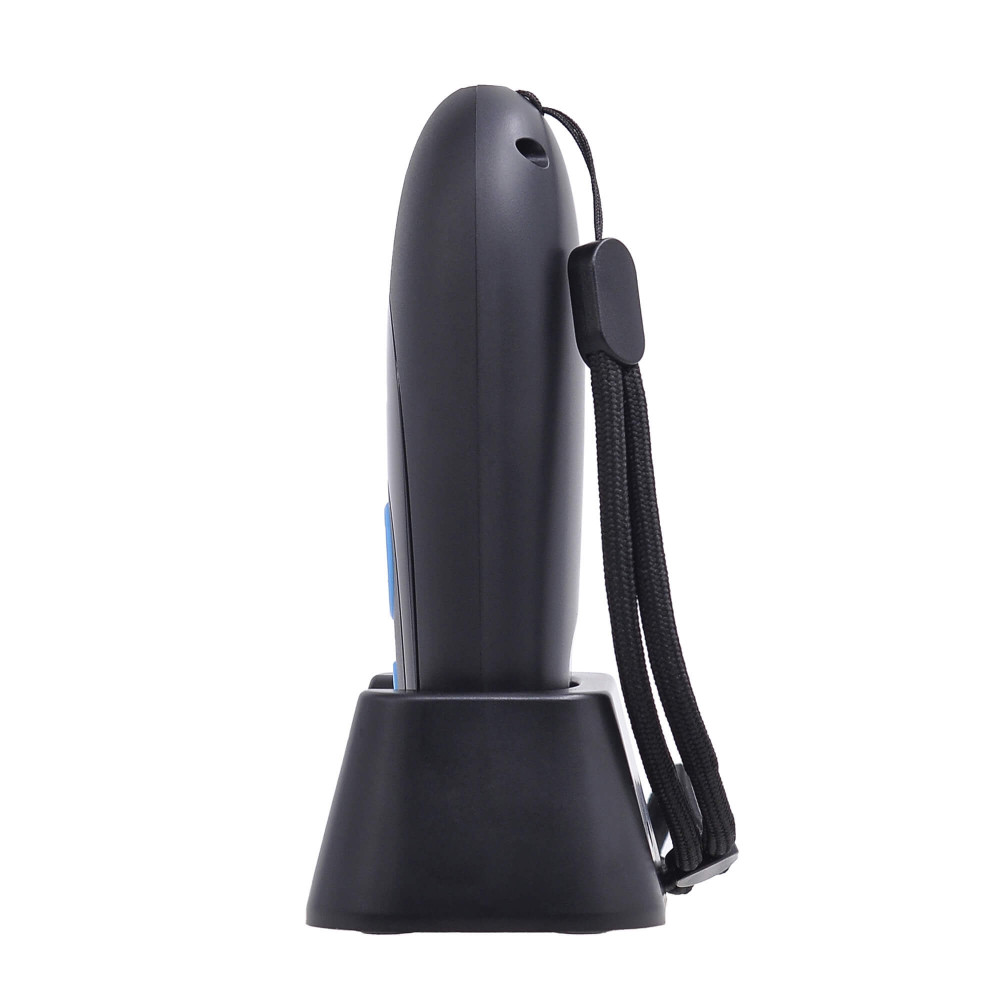

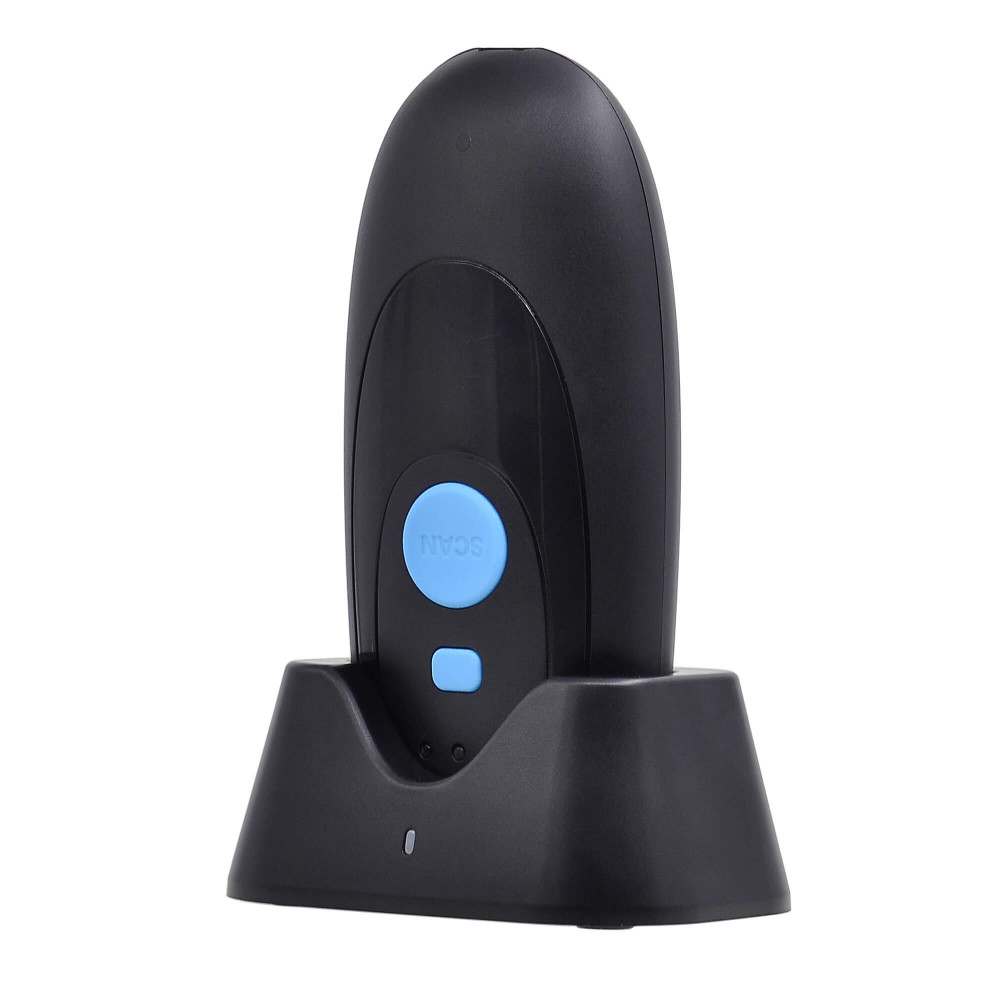

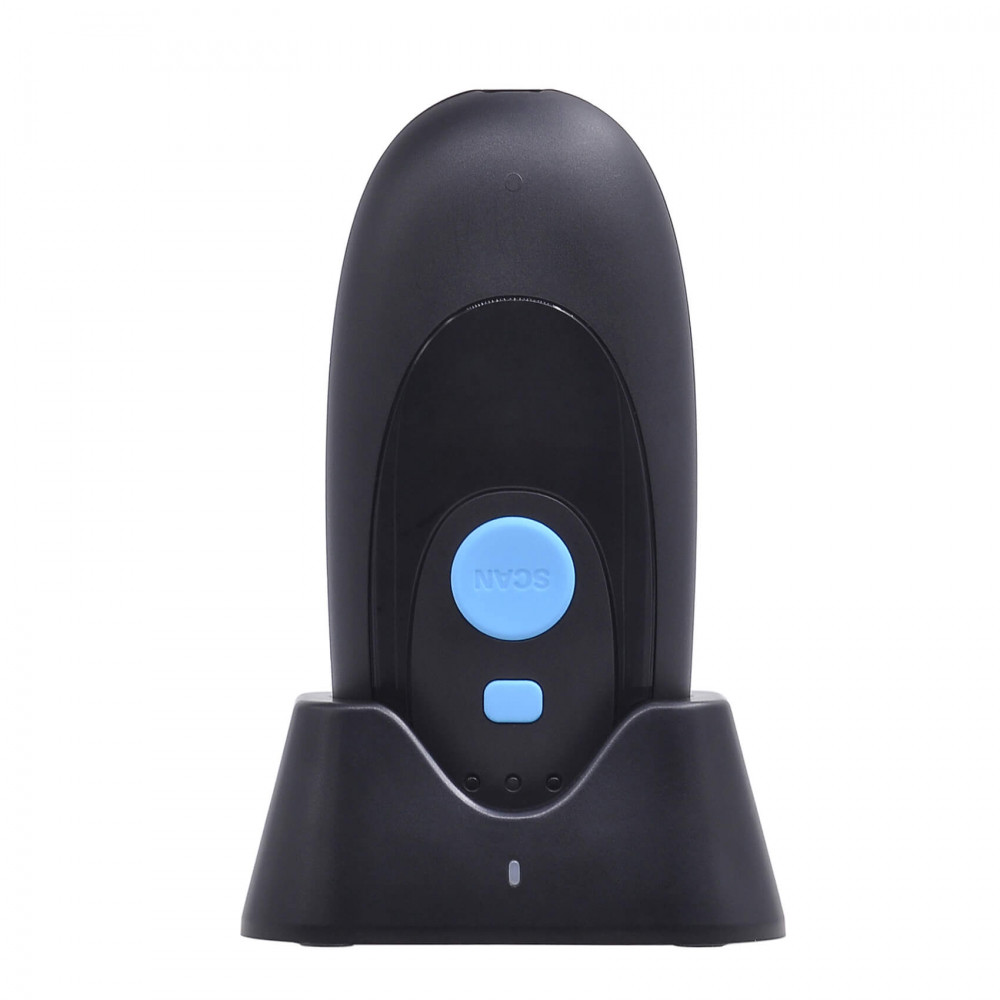

MERTECH CL-5300 P2D is a wireless scanner with a unique body shape. Classic barcode scanners are designed like guns. The CL-5300 model features a cylindrical shape. This small device fits comfortably in the palm, with the scan button conveniently located under the thumb. Weighing 162 g, the device does not create strain on the operator's wrist.
Innovative Technologies
The SUPERLEAD technology ensures fast scanning of barcodes of any size. It allows recognition of all 1D and 2D barcodes.
The Antireflect® glare suppression system allows scanning of codes from reflective surfaces: glass, metal, plastic, and transparent film.
The Vibrochek® technology provides vibration of the case upon successful scanning. In noisy environments, the sound signal may go unnoticed, but the vibration will be felt.
Technical Specifications
MERTECH CL-5300 P2D supports data exchange at a distance of 300 m. Connectivity is established via Bluetooth or BLE 5.0. If the signal is lost, information is stored in the device's memory.
Model specifications:
- Scanning speed: 100 scans/sec.
- Recognition distance: up to 370 mm.
- Minimum label contrast: 25 cm.
- Built-in memory: 512 Kb (over 4000 SKU codes).
- Light, sound, and vibration indicators.
The package includes a signal receiver and a USB cable for charging. The reliable casing protects the electronics from damage when dropped from heights of up to 150 cm. A wrist strap is also included for fall protection.
Order Barcode Scanner
You can buy the wireless scanner MERTECH CL-5300 P2D directly from the manufacturer. When placing an order on the MERTECH website, low prices are available for the products. Discounts are offered to wholesale buyers. Delivery of orders is provided in Baku and its surroundings, as well as throughout the regions of Azerbaijan. To place an order, leave a request with one click or call by phone.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Transmission range | Up to 300 m |
| Connection type | Wireless |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Number of triggers without failures | Scanner, Receiver, USB, USB type A -USB type-c cable (105 cm), Manual, Warranty card, Packaging |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Built-in memory | Yes |
| Built-in memory capacity | 512 Kb (more than 4,000 SEUAP codes) |
| Automatic scanning | No |
| Sound and visual indication during scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Antireflective, 3500K LED |
|---|
| 5 MIL | 30-90 mm |
|---|---|
| 13 MIL | 40-250 mm |
| Minimum scanning resolution | 3.9 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°С ~ +70°С |
| Receiver power supply | 5V/100mA |
| Scanner power supply | 5V/1000mA |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For a pharmacy, For cigarettes, For perfume, For SEUAP, For a warehouse, For a store, For marking, For Chestny ZNAK, Industrial |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. |
| Interface | USB-COM - emulation |
|---|
| Battery capacity | 2500 mAh |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 170*95*70 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 162 gr |
| Gross weight, g | 290 |
|---|---|
| Box dimensions, mm | 215*75*100 |
| Equipment | Scanner, Receiver, USB, USB type A -USB type-c cable (105 cm), Manual, Warranty card, Packaging |
-
