| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Transmission rangeUp to 300 m | Connection typeWireless | Scanner resolution640(h)х480(v)Px |
| Scanning coverage angle40º(h)x32º(v) | Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast20% |

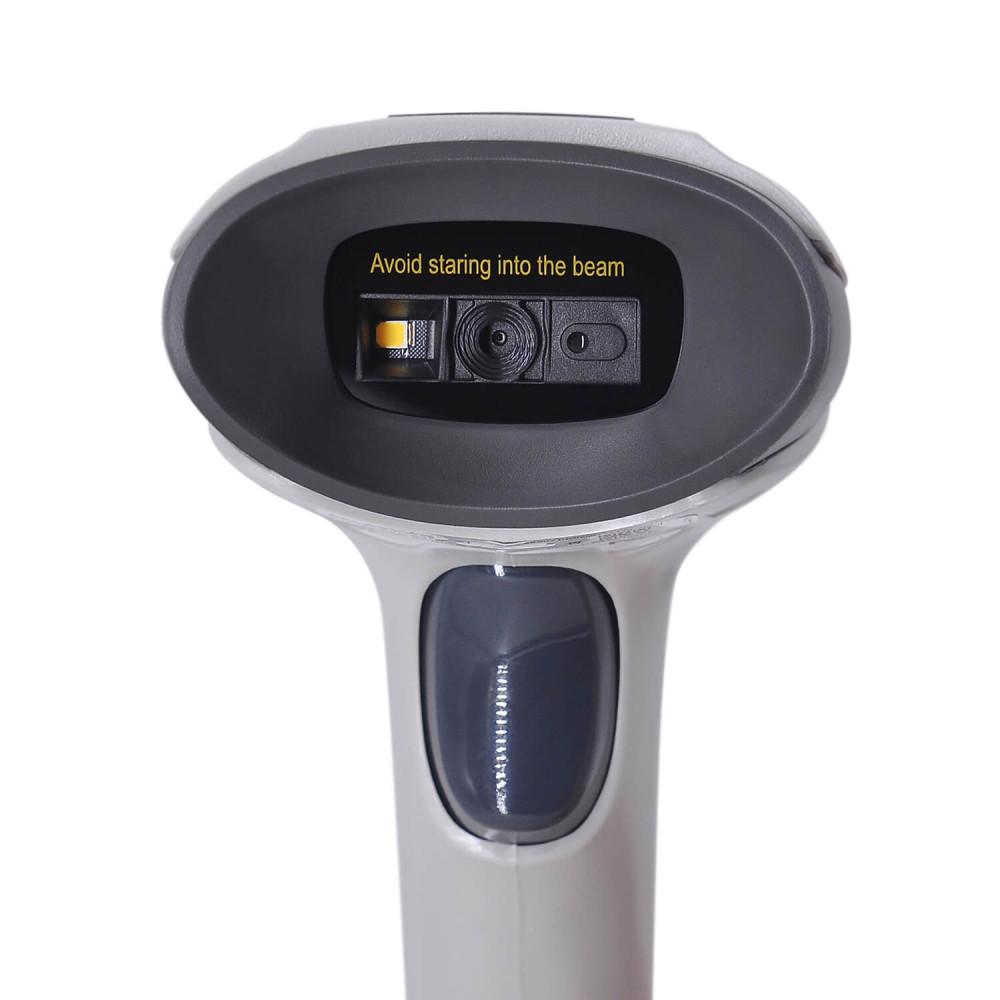

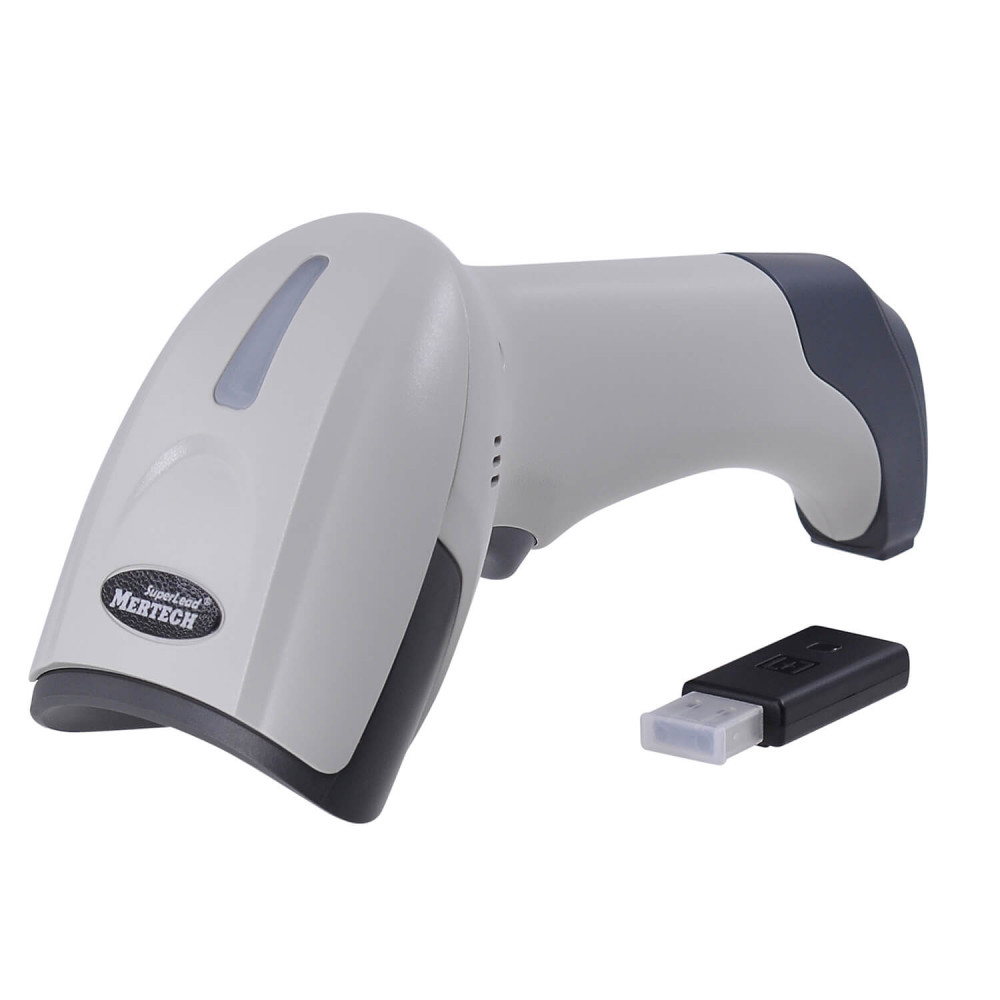

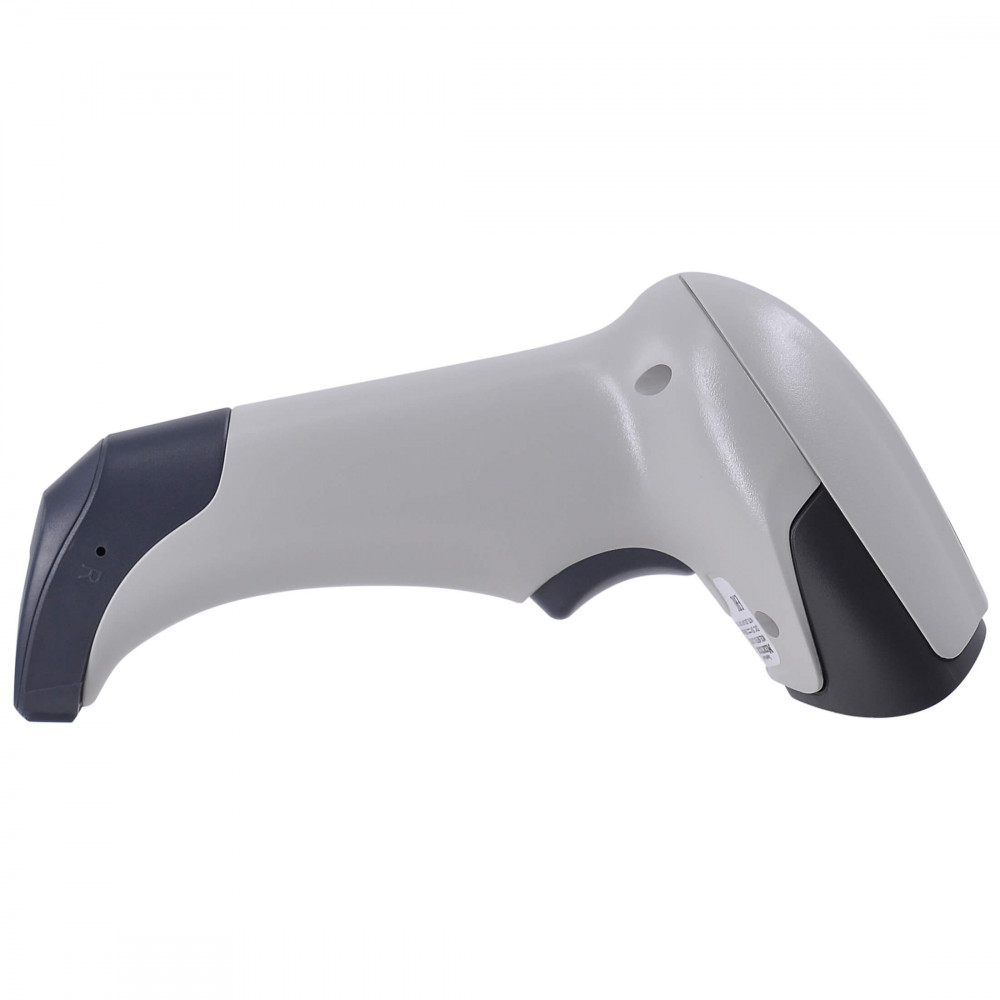

MERTECH CL-2310 BLE Dongle P2D is a next-generation wireless scanner. The innovative SuperLead technology is patented by MERTECH. It provides a high speed of barcode recognition, capable of performing up to 100 scans per second.
Specifications

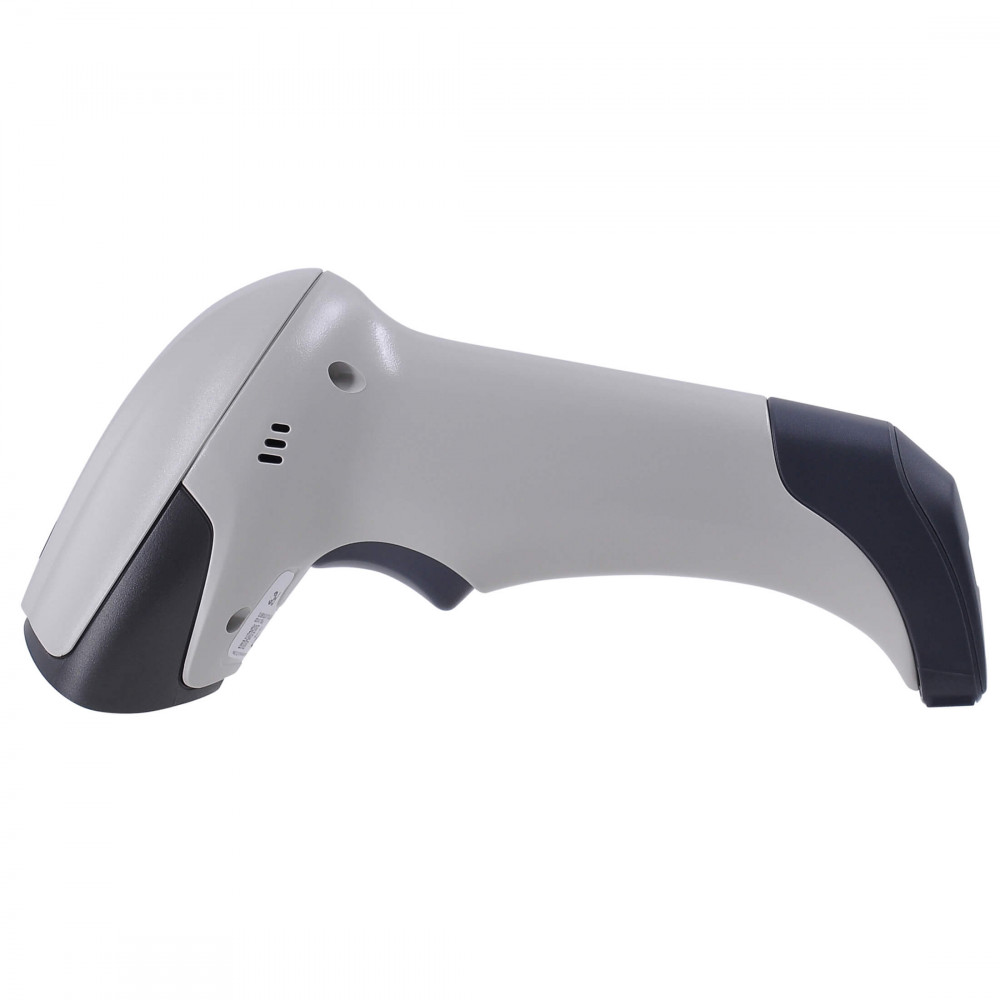

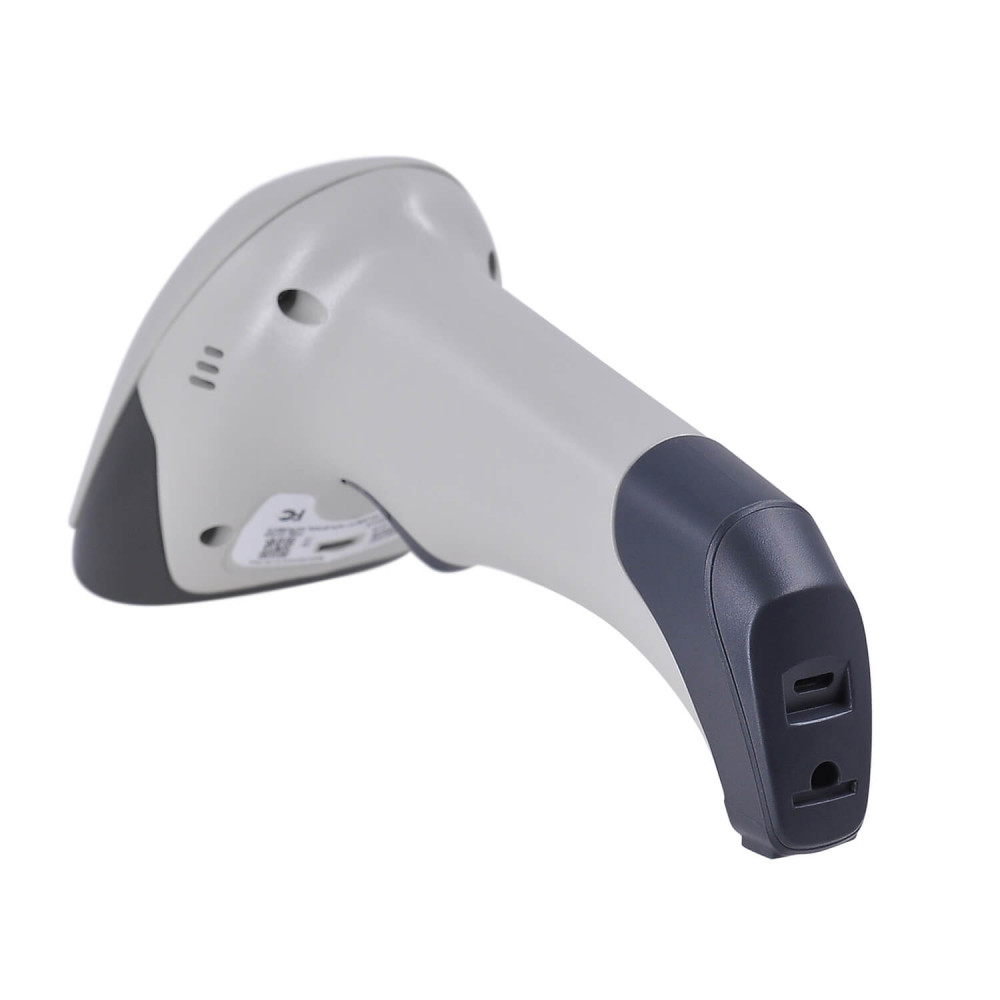

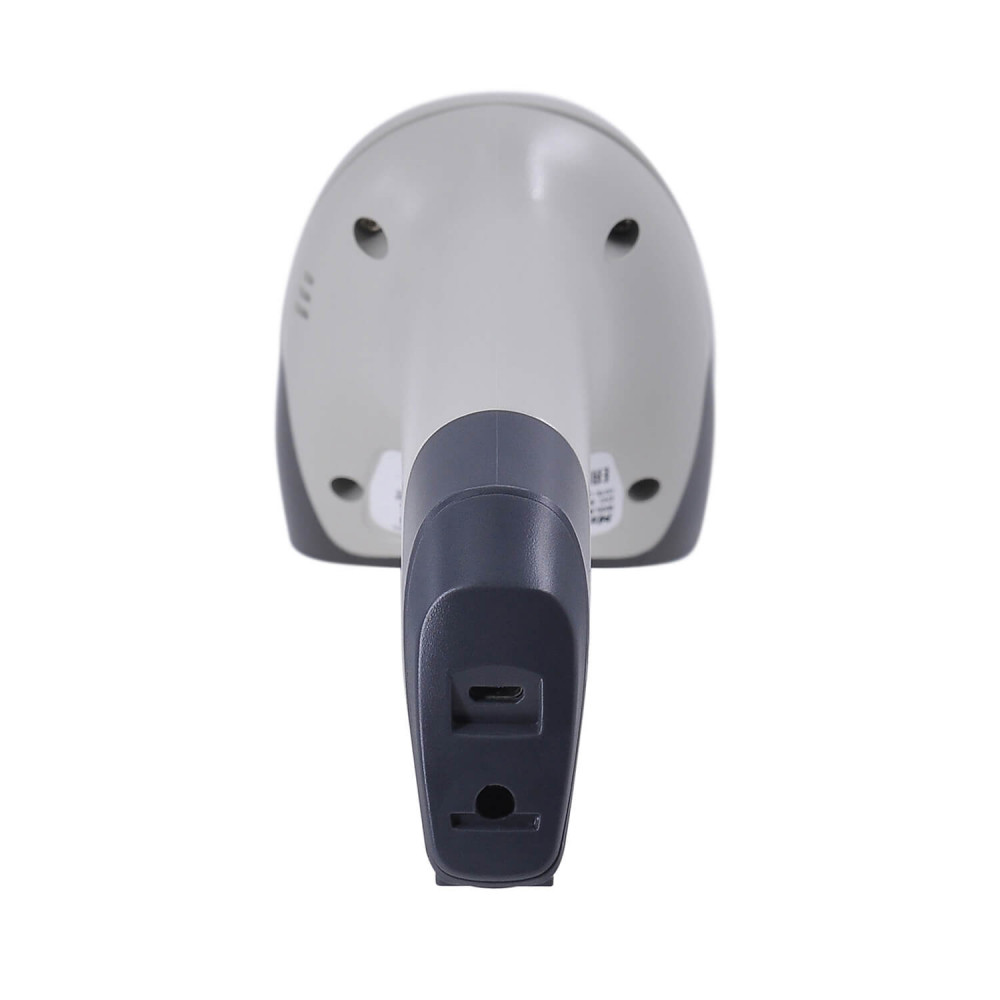

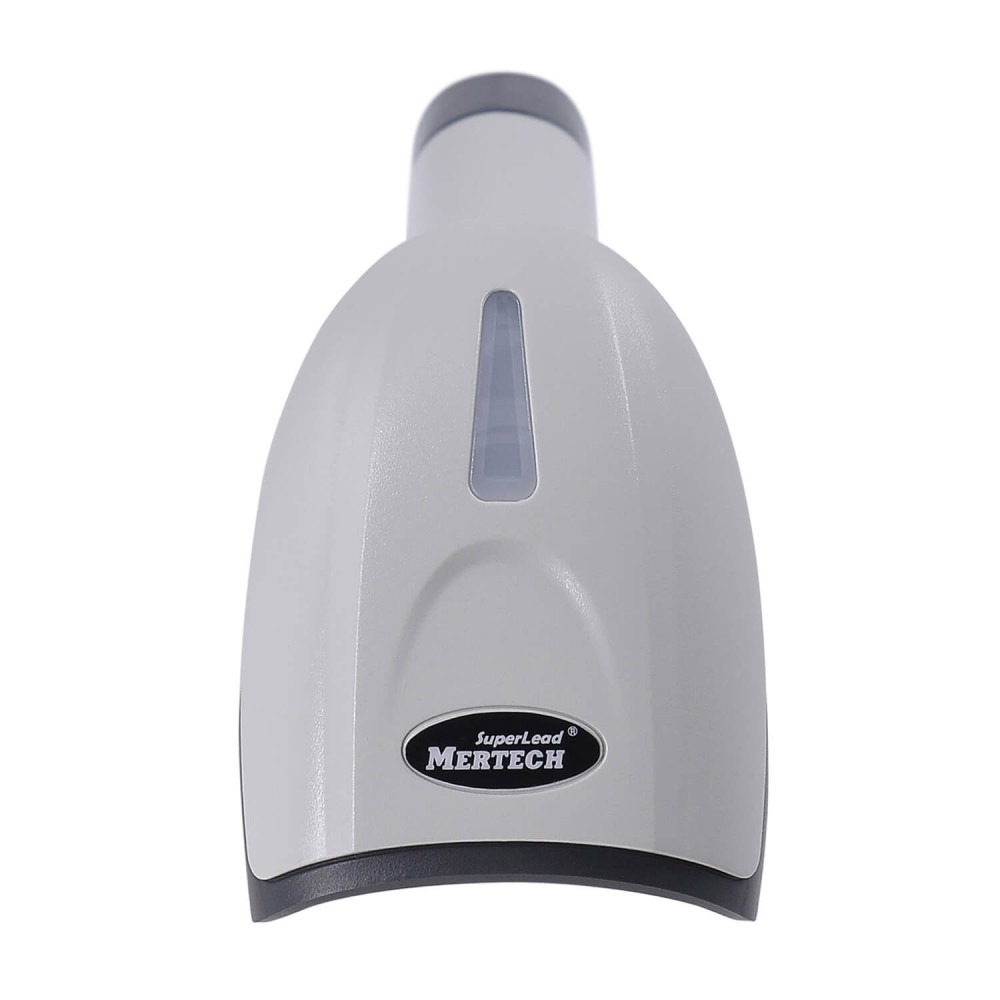

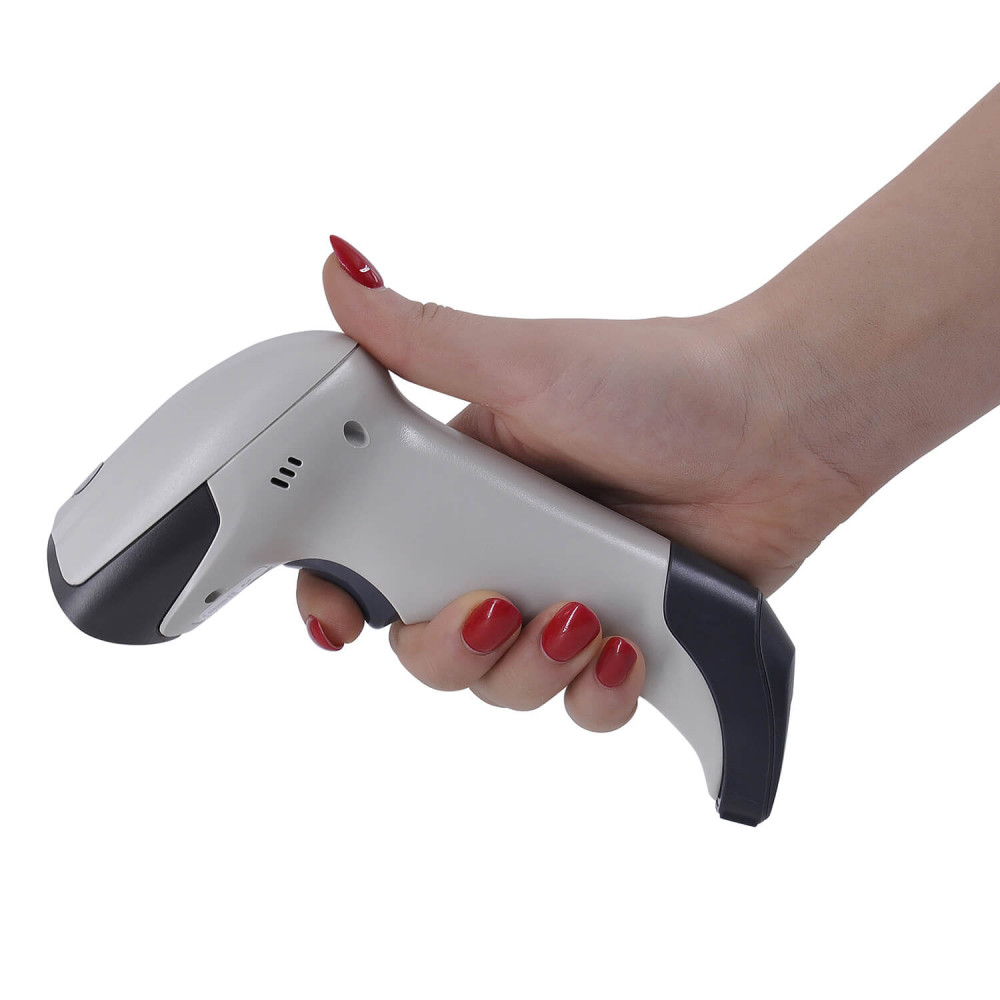

The casing is made of durable ABC plastic and polycarbonate. The dimensions of the casing are 180*95*70 mm. It withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. The stylish casing design is presented in white.
Specifications of the model:
- Scanning range: 370 mm.
- Minimum contrast: 20%.
- Antireflect, 3500K LED
- Built-in memory: 512 KB (15,000 Data Matrix codes).
- Built-in battery: 2600 mAh.
- Operating time: up to 4 hours.
- Protection class against external factors: IP54
The information transfer utilizes Bluetooth Low Energy technology (BLE 5.0). It saves battery consumption when operating in wireless mode. Syncing range: up to 300 meters. A USB cable is used for wired connection.
Advantages of the Model
The scanner is suitable for working with labeled goods. The device reads any 2D barcodes, even recognizing small codes printed on cigarette packs.
Let’s list the advantages of this model:
- Reading markings from complex surfaces.
- Scanning blurry and damaged barcodes.
- Available "Hands-Free" and "Sleep" modes.
- Easy setup of operating modes (instructions included).
- There is a laser dot sight for convenient scanning.
- Vibration signal upon barcode reading.
The scanner is suitable for retail stores and small warehouses. It easily syncs with online cash registers such as Mercury, Evotor, ATOL, Shtrikh, Pioneer, and other manufacturers.
Place an Order
On our website, you can purchase the MERTECH CL-2310 scanner at a low price. The catalog features prices from the manufacturer. Our dealer network covers over 100 cities, with delivery available to any region in Azerbaijan. To place an order, leave a request on our website and wait for a call from our manager.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Transmission range | Up to 300 m |
| Connection type | Wireless |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Number of triggers without failures | 5 million |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Built-in memory | Yes |
| Built-in memory capacity | 512 Kb (more than 4,000 SEUAP codes) |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | White 6500K LED |
|---|
| 5 MIL | 30-90 mm |
|---|---|
| 13 MIL | 40-170 mm |
| Minimum scanning resolution | 3.9 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Analogues of manufacturers | Datalogic, Zebra, Mindeo, Sunlux, Newland |
| Storage temperature | -40°С ~ +70°С |
| Permissible humidity | 0% ~ 95% |
| Receiver power supply | 5V/100mA |
| Scanner power supply | 5V/1000mA |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For SEUAP, For warehouse, For store, For marking, For Honest Sign, Industrial, Medical |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. |
| Interface | USB-HID; USB-COM - emulation; Bluetooth - BLE 5.0 |
|---|
| Battery capacity | 2600 mAh |
|---|
| Color | White |
|---|---|
| Overall dimensions (WxDxH), mm | 180*95*70 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 210 gr |
| Gross weight, g | 290 |
|---|---|
| Box dimensions, mm | 215*75*100 |

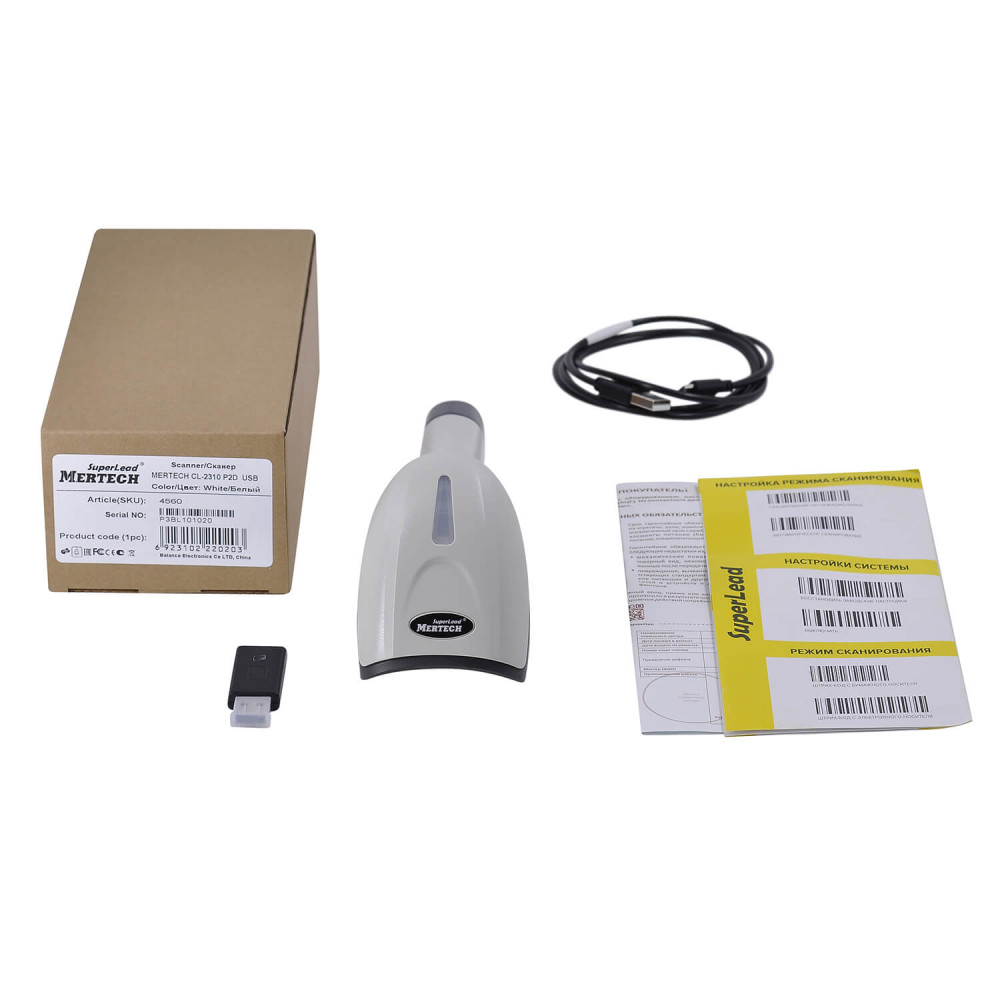

| Equipment | Scanner, USB receiver, USB type A - micro USB cable (105 cm), Manual, Warranty card, Packaging |
-
