| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Transmission rangeUp to 300 m | Connection typeWireless | Scanner resolution640(h)х480(v)Px |
| Scanning coverage angle40º(h)x32º(v) | Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast20% |

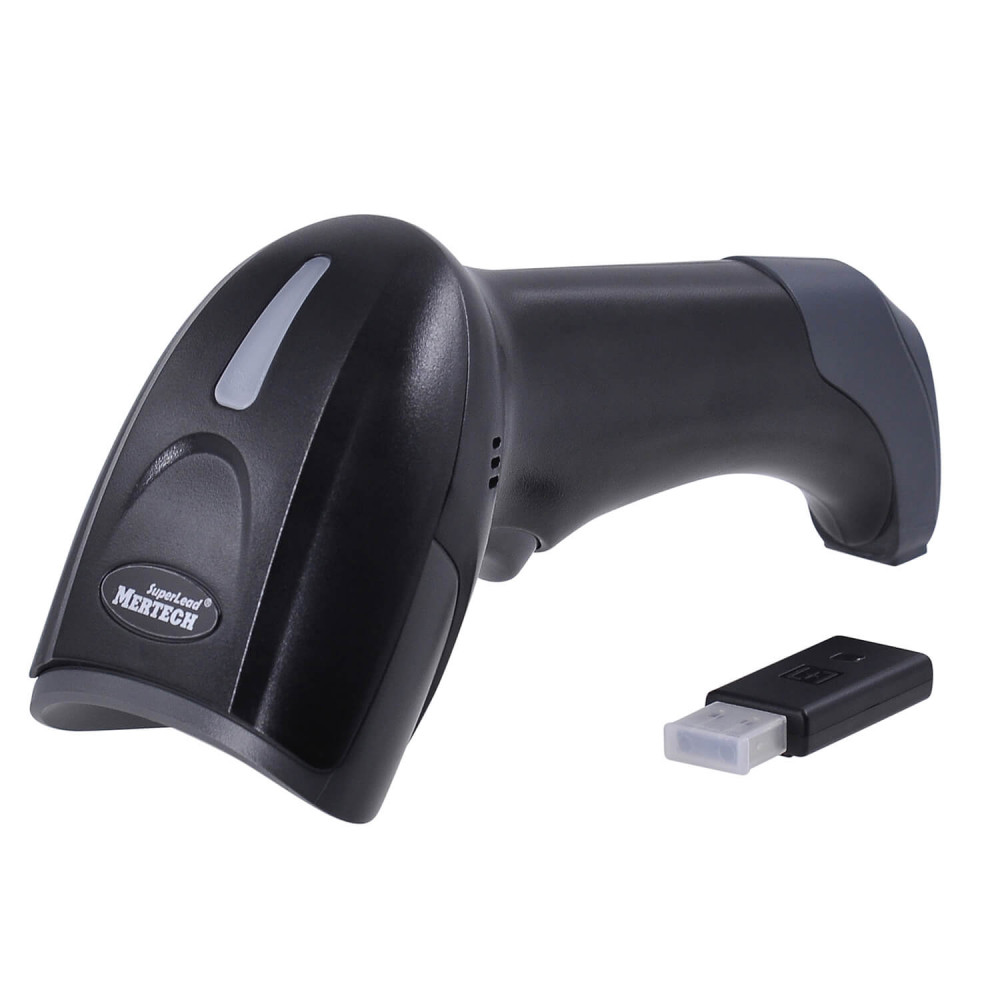

MERTECH CL-2310 BLE Dongle P2D is a next-generation wireless scanner. The innovative SuperLead technology is patented by MERTECH. It ensures high barcode recognition speed, with the device capable of up to 100 scans per second.
Technical Specifications
The casing is made of durable ABC plastic and polycarbonate. Dimensions of the casing: 180*95*70 mm. It withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. The stylish casing design is done in black color.
Specifications of the model:
- Scan range: 370 mm.
- Minimum contrast: 20%.
- Antireflect, 3500K LED
- Built-in memory: 512 KB (15,000 Data Matrix codes).
- Built-in battery: 2600 mAh.
- Operating time: up to 4 hours.
- Protection class against external factors: IP54
Bluetooth Low Energy technology (BLE 5.0) is used for data transmission. It saves battery life while operating in wireless mode. Synchronization range: up to 300 meters. A USB cable is used for wired connection.
Advantages of the Model
The scanner is suitable for working with marked goods. The device reads any 2D barcodes and can recognize even small codes printed on cigarette packs.
Let's list the advantages of this model:
- Reading labels from complex surfaces.
- Scanning unclear and damaged barcodes.
- Available modes of "Hands-Free" and "Sleep."
- Easy setup of operating modes (instructions are available).
- There is a laser point target for convenient scanning.
- Tactile indication system that duplicates the sound signal when scanning a code.
The scanner is suitable for retail shops and small warehouses. It easily synchronizes with online cash registers like Merkuriy, Evotor, ATOL, Shtrikh, Pioneer and other manufacturers.
Place an Order
You can buy the MERTECH CL-2310 scanner at a low price on our website. The catalog lists prices from the manufacturer. Our dealer network covers over 100 cities, and delivery of equipment is possible to any region of Azerbaijan. To place an order, leave an application on our website and wait for a call from the manager.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Transmission range | Up to 300 m |
| Connection type | Wireless |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Number of triggers without failures | 5 million |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Built-in memory | Yes |
| Built-in memory capacity | 512 Kb (more than 4,000 SEUAP codes) |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | White 6500K LED |
|---|
| 5 MIL | 30-90 mm |
|---|---|
| 13 MIL | 40-170 mm |
| Minimum scanning resolution | 3.9 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°С ~ +70°С |
| Permissible humidity | 0% ~ 95% |
| Receiver power supply | 5V/100mA |
| Scanner power supply | 5V/1000mA |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For a pharmacy, For cigarettes, For perfume, For SEUAP, For a warehouse, For a store, For marking, For Chestny ZNAK, Industrial |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. |
| Interface | USB-HID; USB-COM - emulation; Bluetooth - BLE 5.0 |
|---|
| Battery capacity | 2600 mAh |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 180*95*70 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 210 gr |
| Gross weight, g | 290 |
|---|---|
| Box dimensions, mm | 215*75*100 |

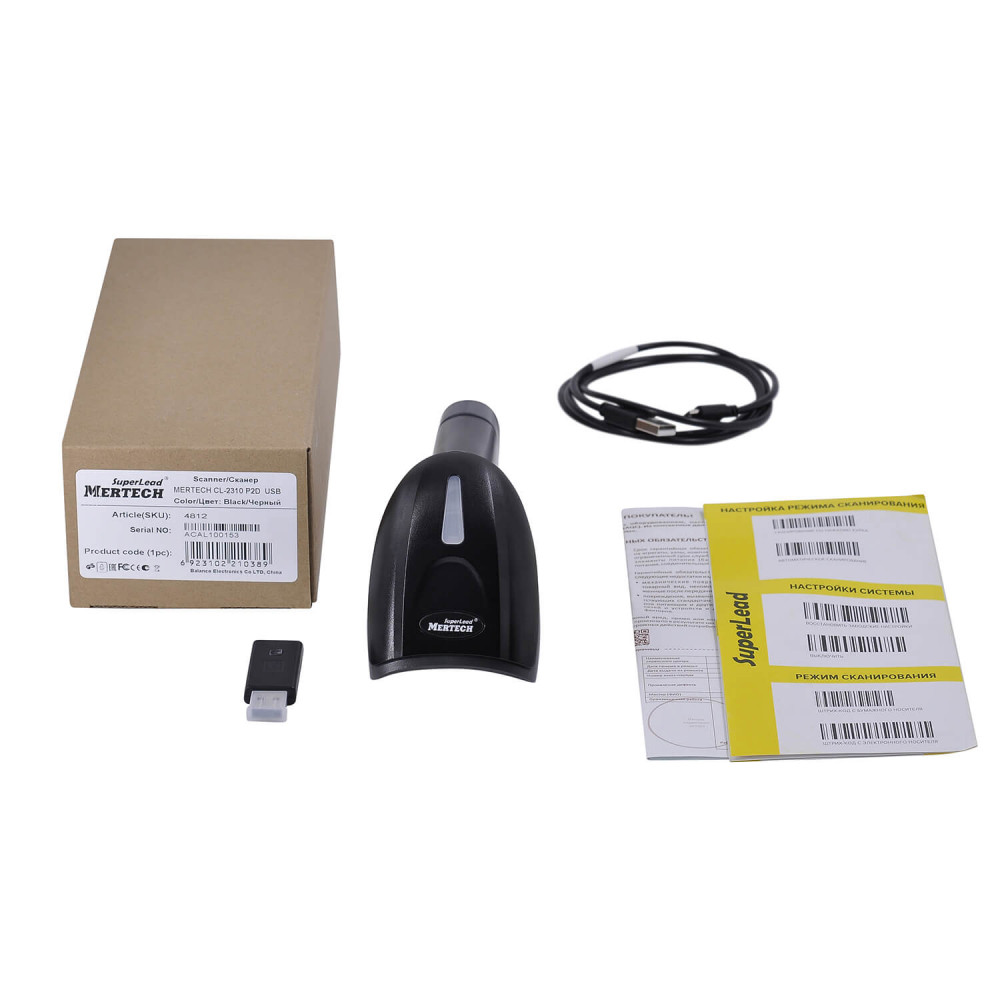

| Equipment | Scanner, USB receiver, USB type A - micro USB cable (105 cm), Manual, Warranty card, Packaging |
-
