| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Transmission rangeUp to 300 m | Connection typeWireless | Scanner resolution640(h)х480(v)Px |
| Scanning coverage angle40º(h)x32º(v) | Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast20% |

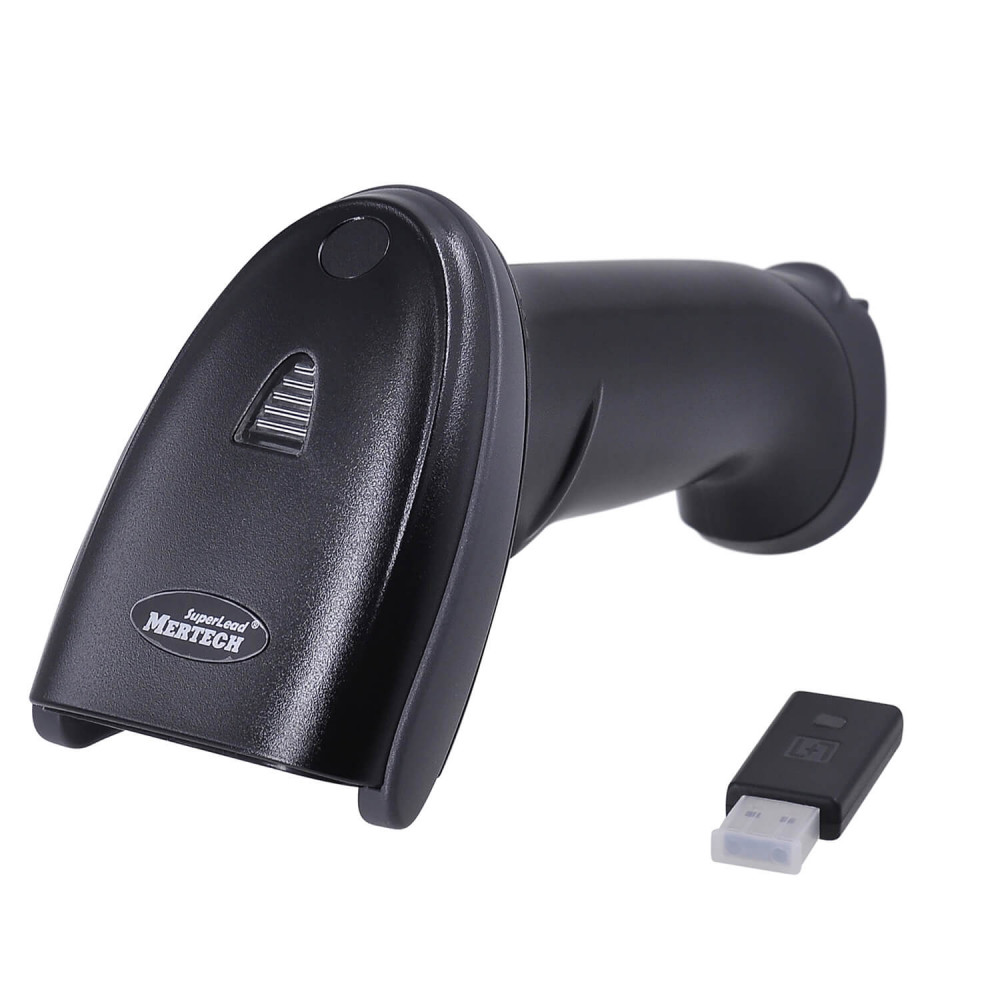

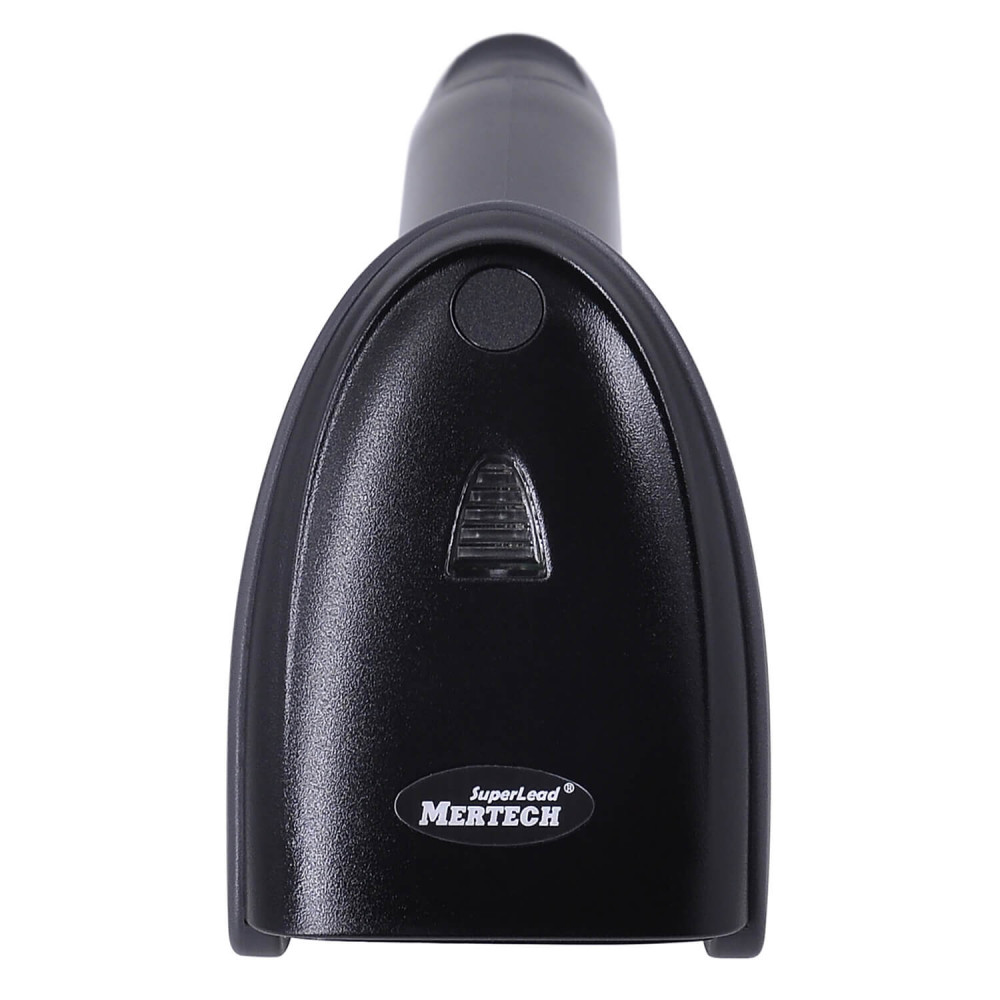

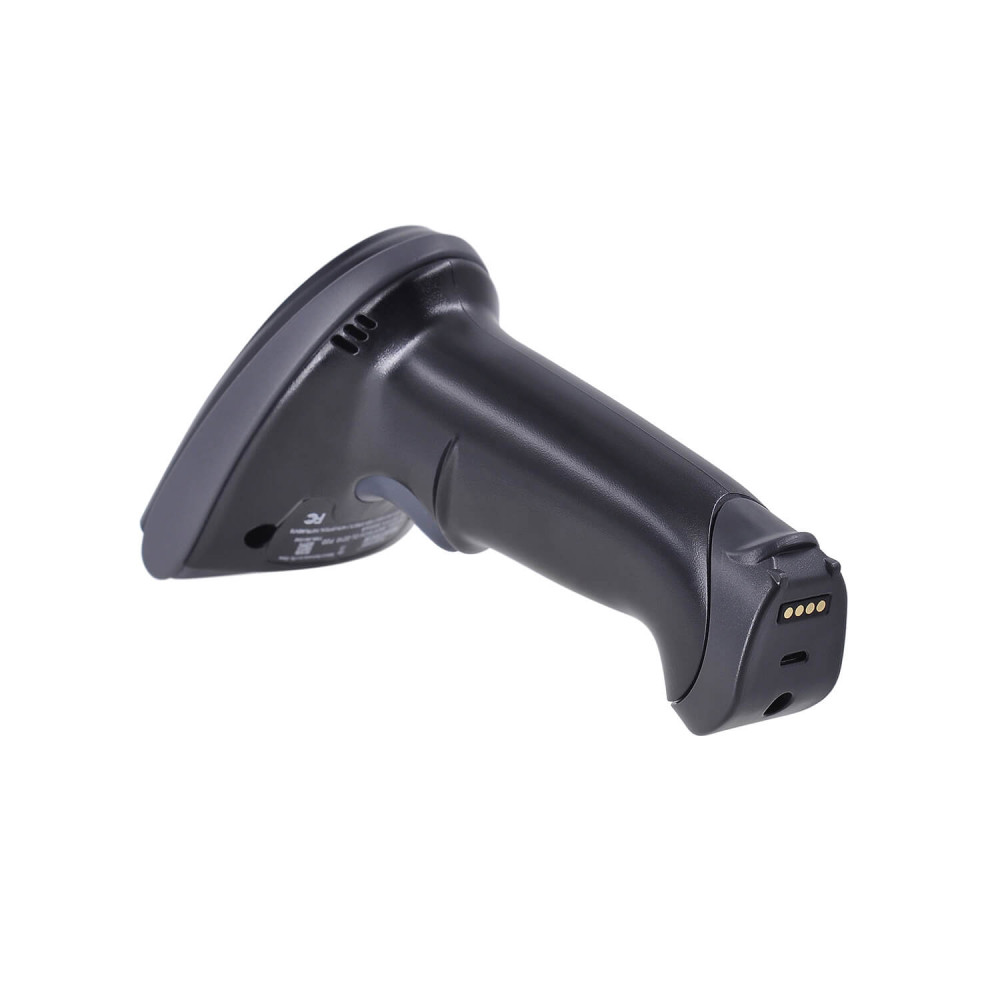

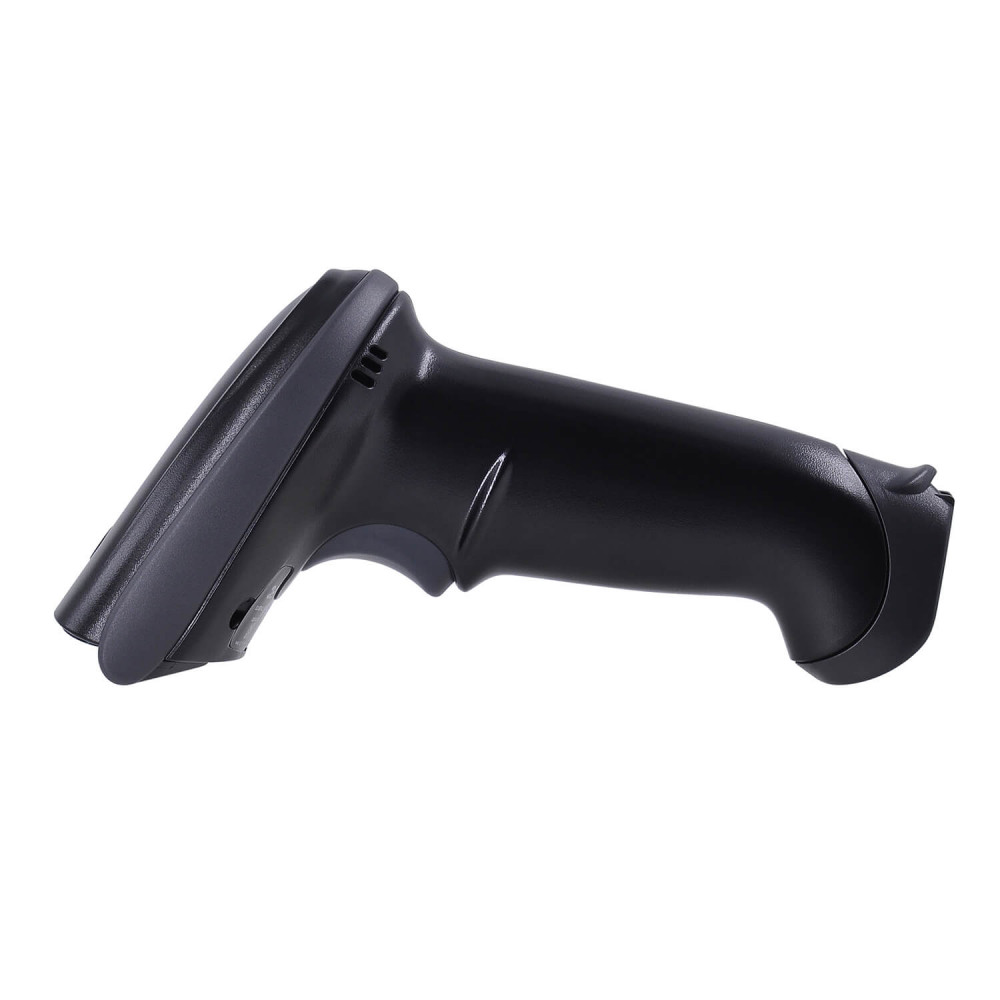

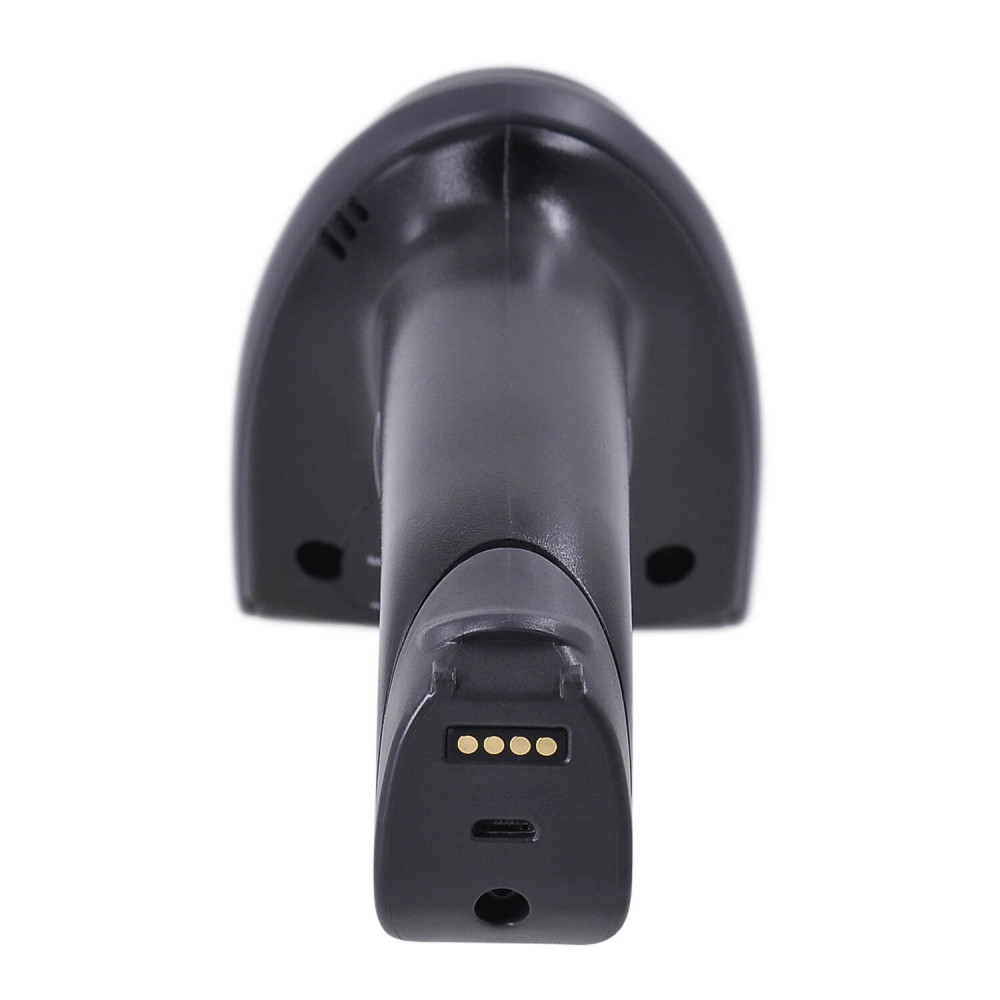

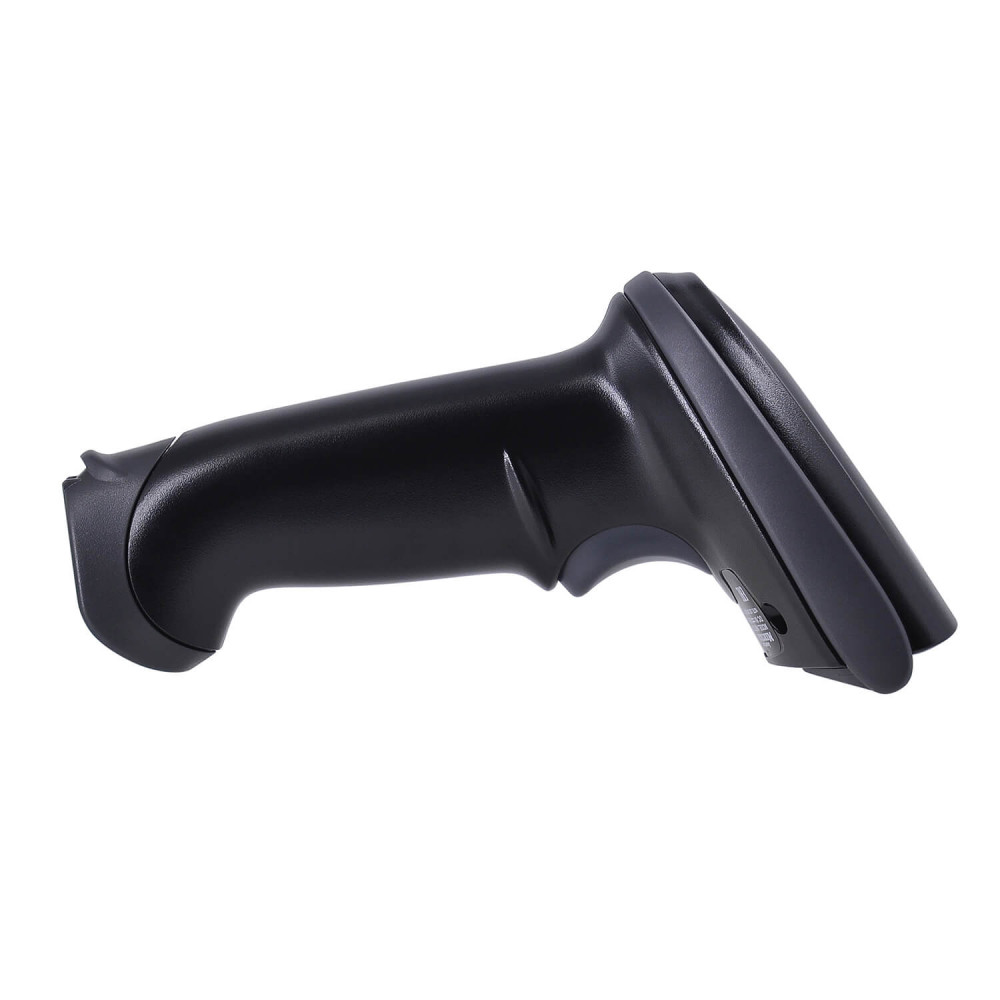

MERTECH CL-2210 BLE Dongle is a wireless scanner that recognizes all 2D and 1D codes.
Specifications
MERTECH CL-2210 is a handheld scanner. The body is made of plastic and polycarbonate. The device withstands multiple drops from a height of 150 cm. The protection class of the enclosure against dust and moisture is IP 54.

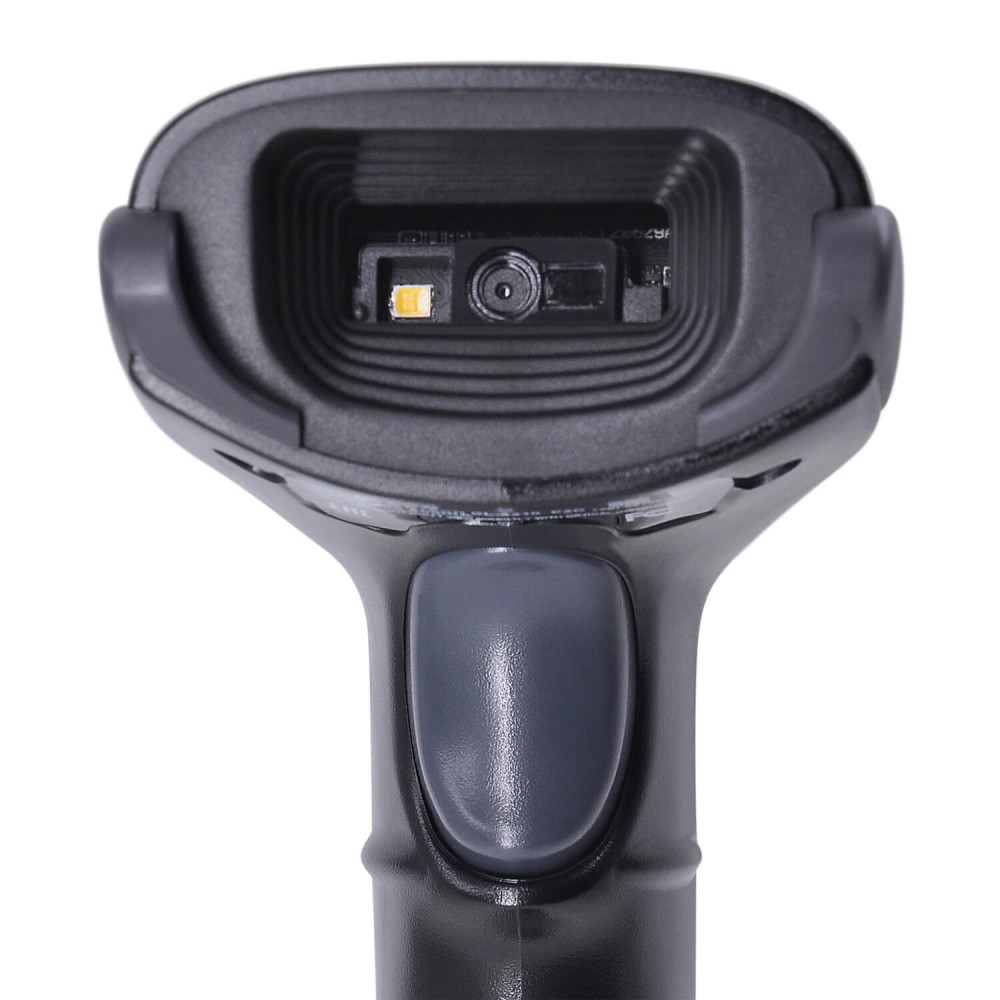

It features a 2D Image reading module. Label recognition is done using SUPERLEAD technology. An LED backlight of 3500K is provided for accelerated scanning.
The battery capacity is 2600 mAh. The device can operate without recharging for a full shift: at least 12 hours. A USB cable is used for charging.
The scanner can work in both wireless and stationary modes. The interfaces include: USB (HID and COM), RS-232, Bluetooth/BLE 5.0. Synchronization with 1C and other accounting programs is provided.
The package includes a Dongle key with BLE 5.0 data transmission technology. This technology allows data transmission over a distance of up to 300 meters.
Advantages
The scanner is recommended for working with marking. The model has passed testing from CRPT and is also approved by the 1C company. Thanks to SUPERLEAD technology, it easily recognizes codes of any complexity. It is suitable for accounting any marked goods: shoes, cigarettes, pharmaceuticals, textiles, etc.
Model advantages:
- Scanning range: up to 370 mm.
- Data transmission range: up to 300 m.
- Recognition speed: 100 scans/sec.
- Trigger durability of 5 million activations.
- Memory capacity of 512 Kb (over 4000 EAN codes).
- USB receiver for data transmission from the scanner.
The model is suitable for shops, cafes and restaurants, pharmacies, gas stations, and other business sectors. The device can recognize damaged and unclear codes.
How to Order Equipment
You can buy barcode scanners at a favorable price directly from the manufacturer in the MERTECH online store. The CL-2210 model is always in stock. Delivery is available throughout Azerbaijan. Leave a request on the website to place an order.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Transmission range | Up to 300 m |
| Connection type | Wireless |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Number of triggers without failures | 5 million |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Built-in memory | Yes |
| Built-in memory capacity | 512 Kb (more than 4,000 SEUAP codes) |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Antireflective, 3500K LED |
|---|
| 5 MIL | 30-90 mm |
|---|---|
| 13 MIL | 40-200 mm |
| Minimum scanning resolution | 3.9 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°С ~ +70°С |
| Receiver power supply | 5V/100mA |
| Scanner power supply | 5V/1000mA |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For a pharmacy, For cigarettes, For perfume, For SEUAP, For a warehouse, For a store, For marking, For Chestny ZNAK, Industrial |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. |
| Interface | USB-HID; USB-COM - emulation; RS-232 - emulation; Bluetooth - BLE 5.0 |
|---|
| Battery capacity | 2600 mAh |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 170*95*70 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 162 gr |
| Gross weight, g | 290 |
|---|---|
| Box dimensions, mm | 215*75*100 |

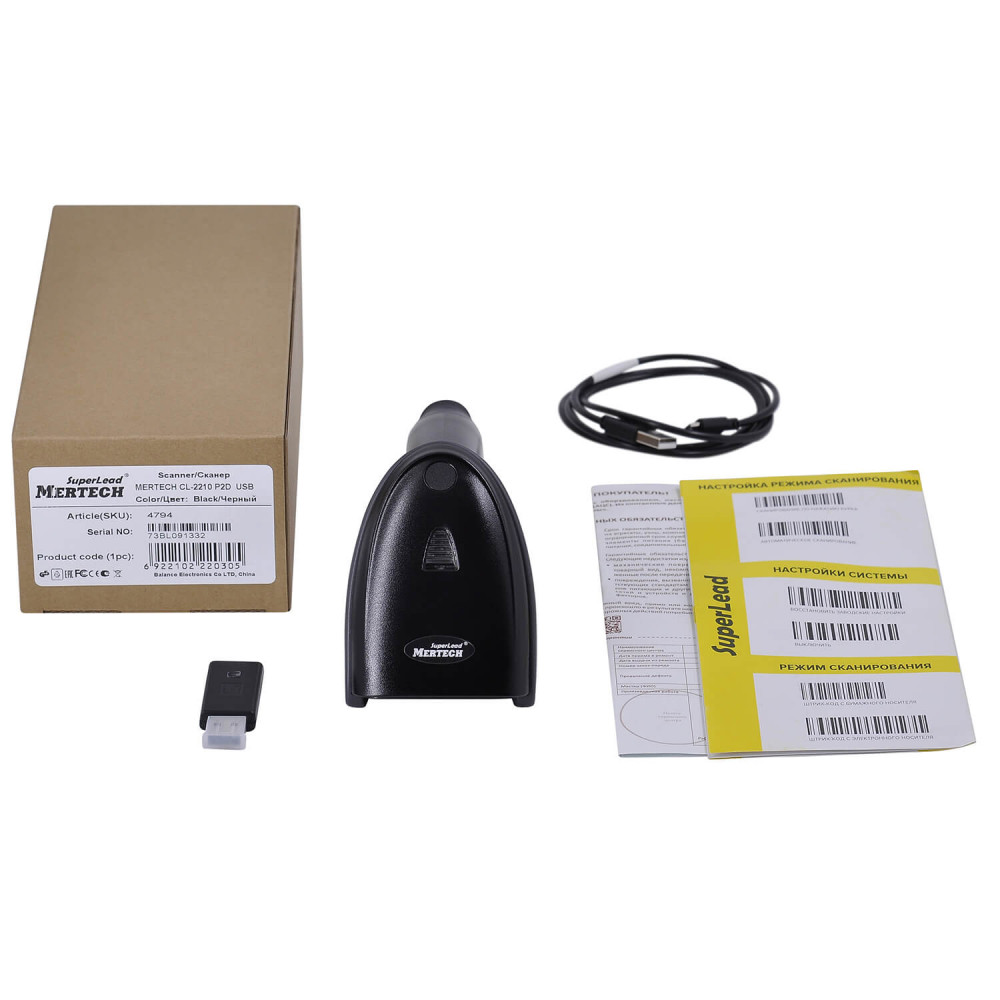

| Equipment | Scanner, USB receiver, USB type A - micro USB cable (105 cm), Brief instructions, Warranty card, Packaging |
-
