| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Connection typeWired | Scanner resolution640(h)х480(v)Px | Scanning coverage angle40º(h)x31º(v) |
| Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast25% | Maximum scanner resolution3.9 MIL |

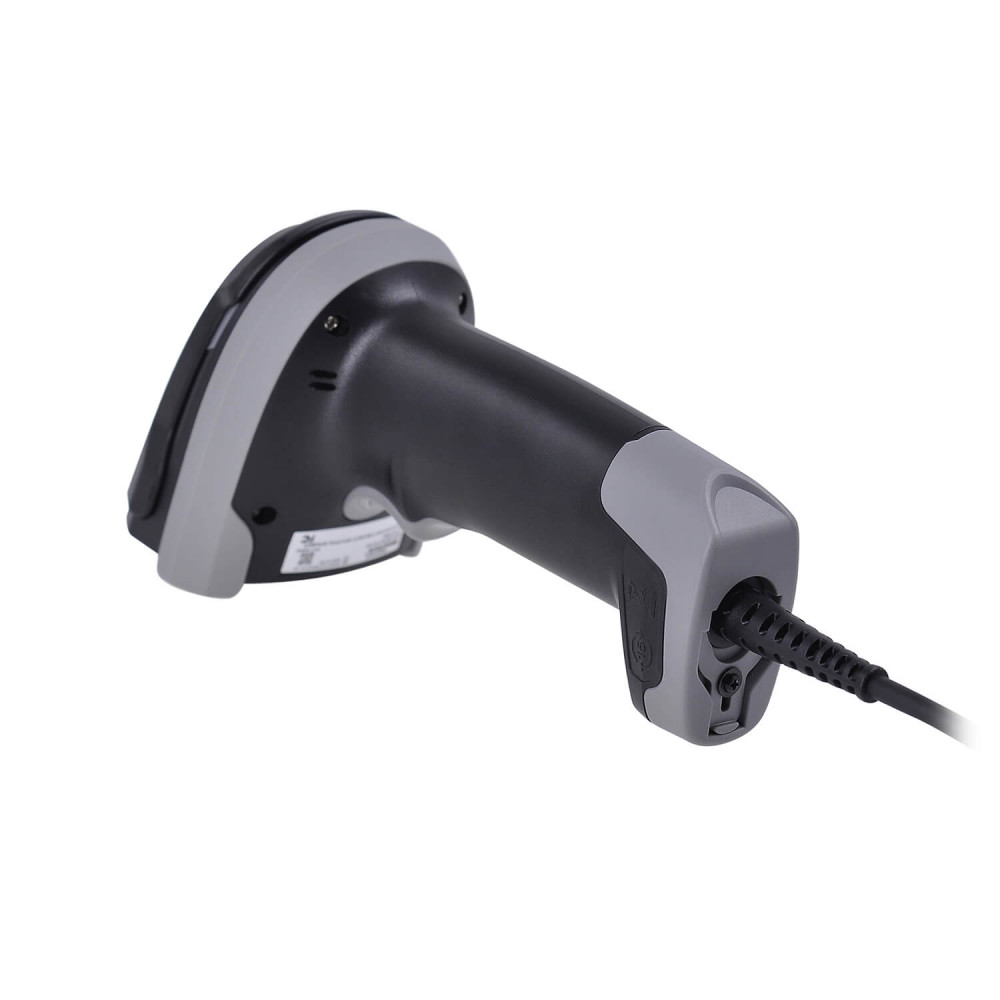

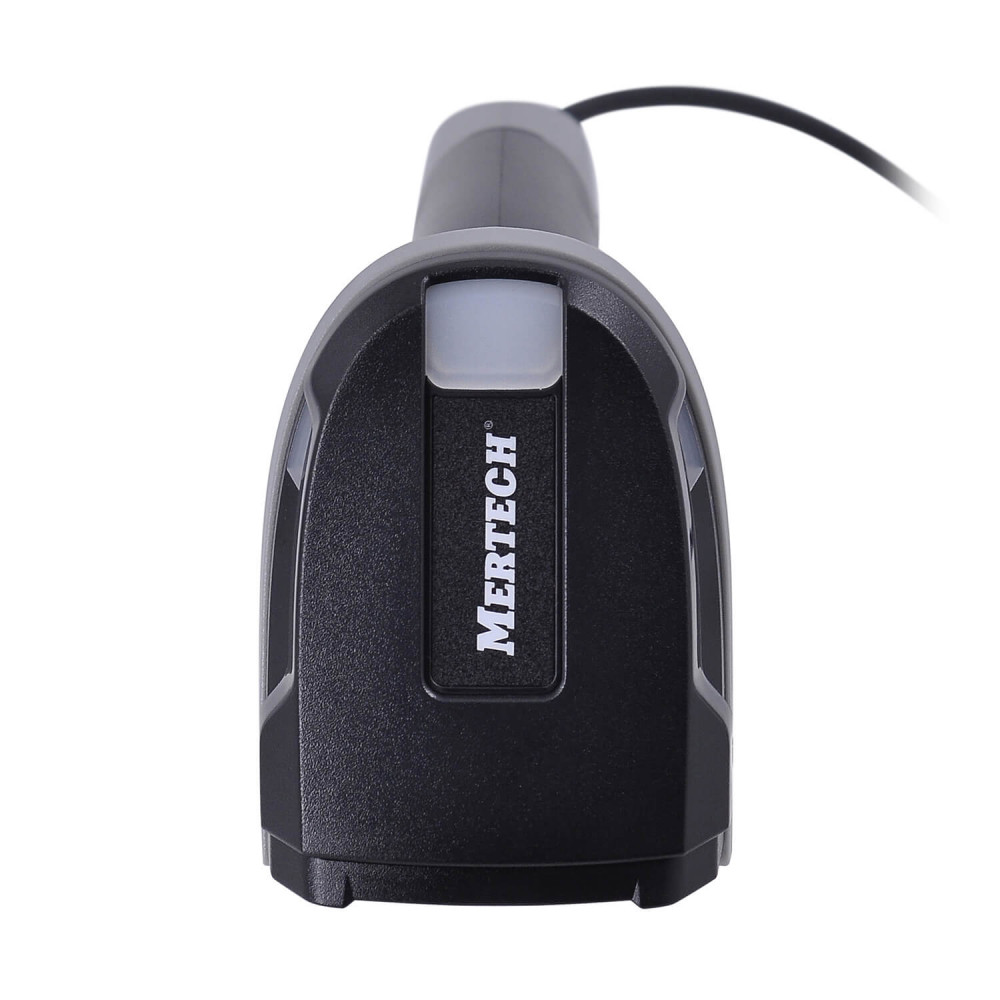

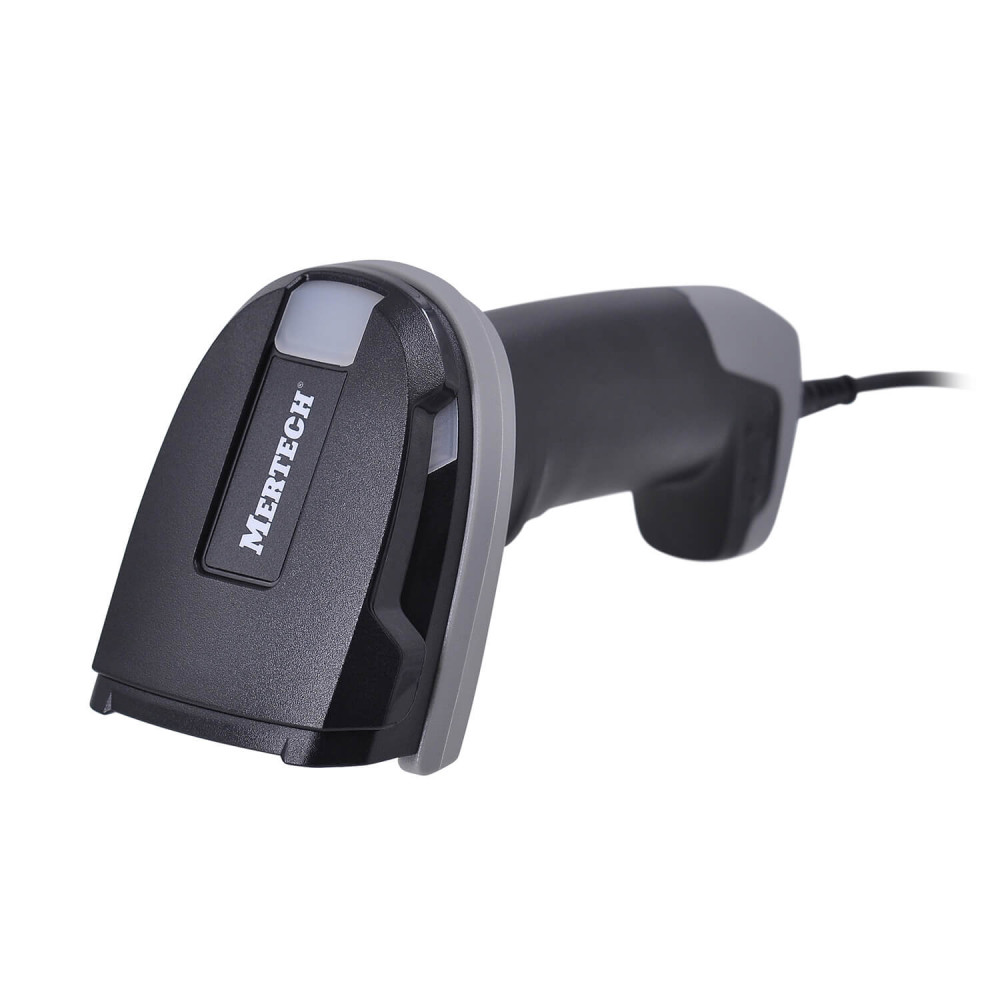

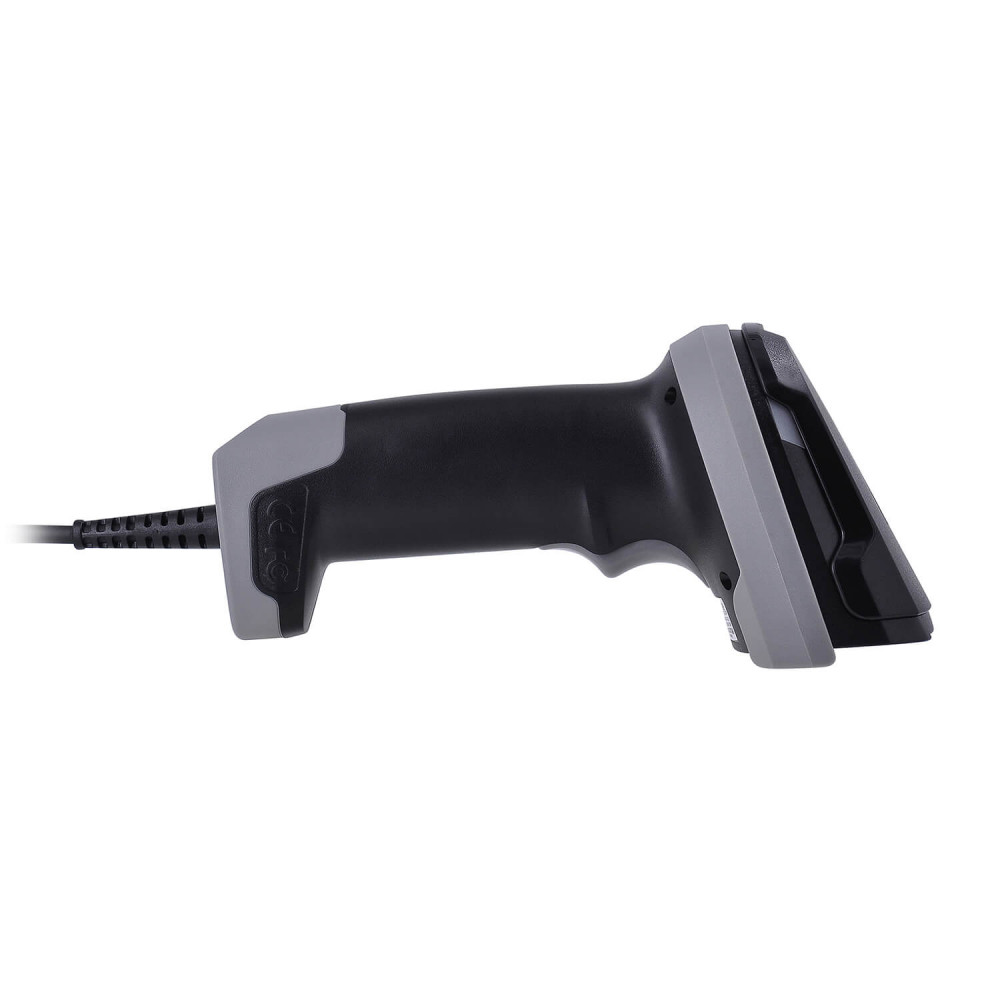

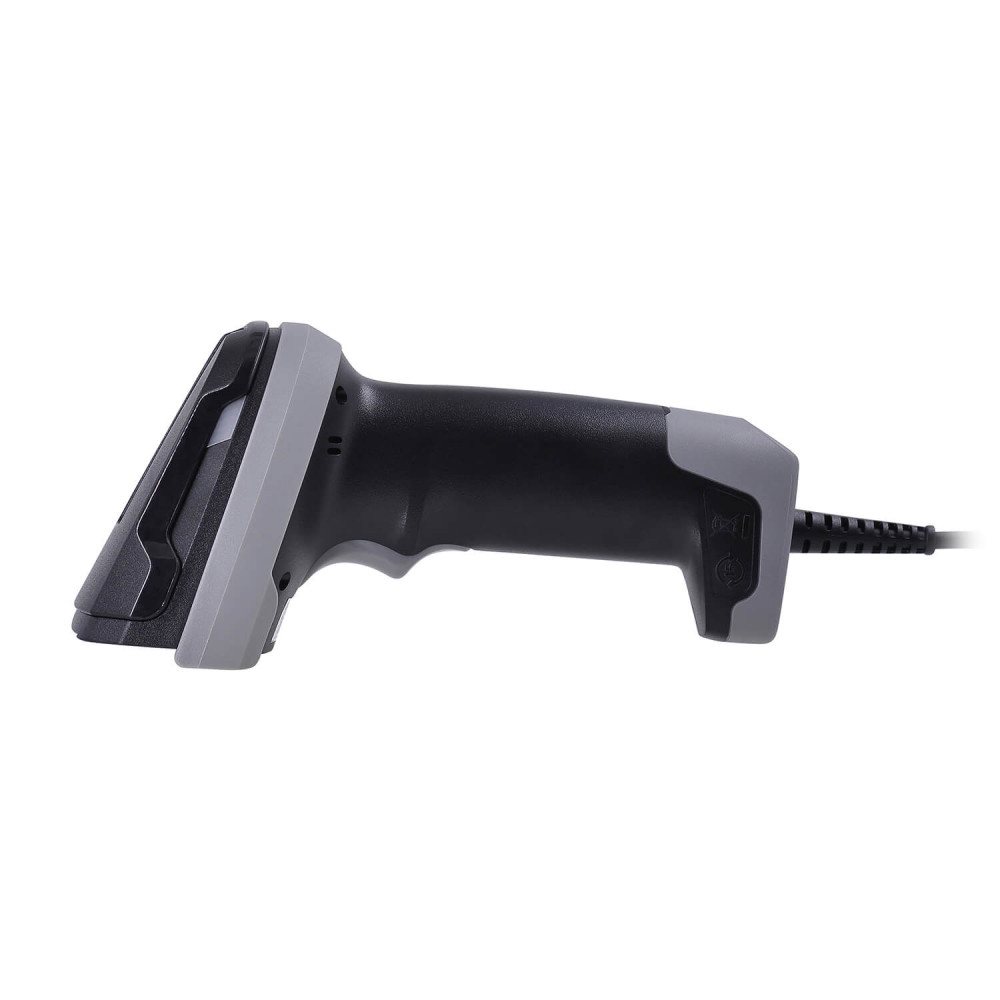

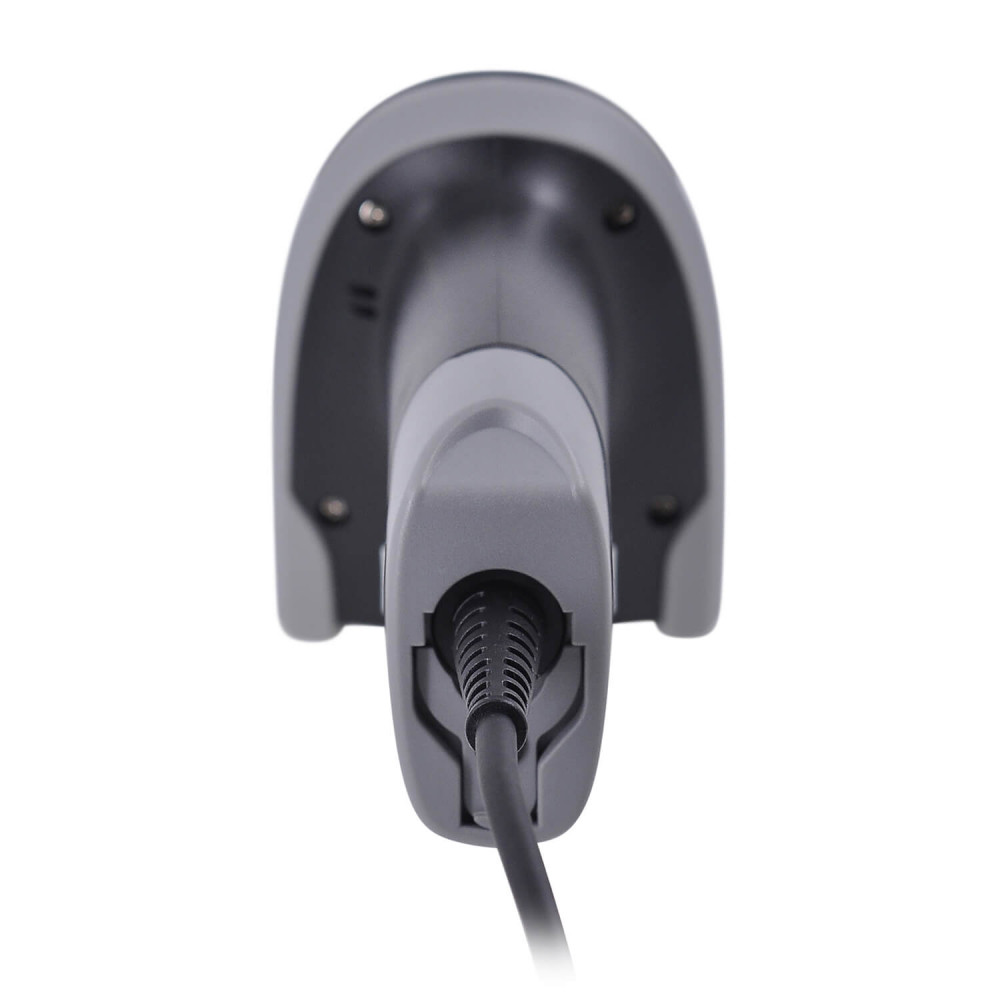

The wired scanner MERTECH 2410 P2D SUPERLEAD USB Black is suitable for working with any types of products. The scanning module recognizes all popular linear and 2D barcodes, including Data Matrix, QR code, and MicroQR.
Advantages of the Model
The new model features a 2D Image scanning module. The photo scanner recognizes barcodes instantaneously. The camera has a wide coverage range, which helps scan labels as convenient for the operator. Code recognition is accompanied by visual and auditory signals. The indication helps to speed up the workflow.

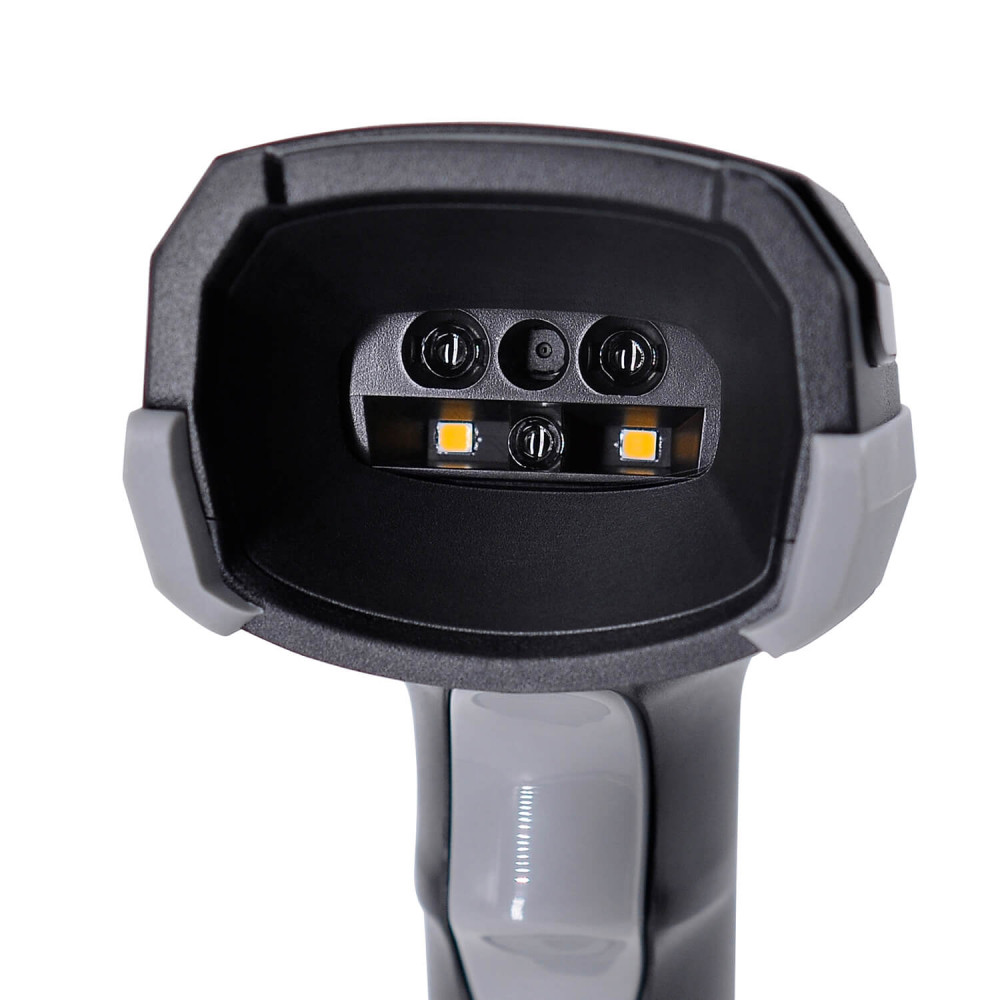

The built-in backlight enables working with labels in any lighting conditions. The wired model MERTECH 2410 recognizes poorly printed and blurred barcodes. Scanning is possible even on reflective surfaces, including phone screens. The bright contrasting sight helps the operator aim the camera at the labels.
The scanning element can operate in automatic mode. The trigger resource is rated for 5 million activations. The warranty on MERTECH scanning equipment is valid for 3 years.
Specifications
The technical specifications of the MERTECH 2410 scanner ensure fast code recognition under any conditions:
- Scanning speed: 100 scans/sec
- Activation distance: up to 380 mm.
- Camera coverage angle: 40°(h) by 31°(v).
- Sensitivity: tilt ± 65°, rotation 360°, deviation ±60°.
- Camera resolution: 640 by 480 pixels.
- Minimum label contrast: 25%.
- LED backlight at 3500K (white).
- Crosshair 525 nM in the form of a green dot.
By default, the connection uses a USB-HID interface. USB-COM emulation is available, and optionally — RS232.
The new model has a stylish and modern design. The outer panels of the case are made of durable materials: plastic and polycarbonate. The device withstands 50 drops from a height of 1.8 meters and an unlimited number of drops from 1.5 meters.

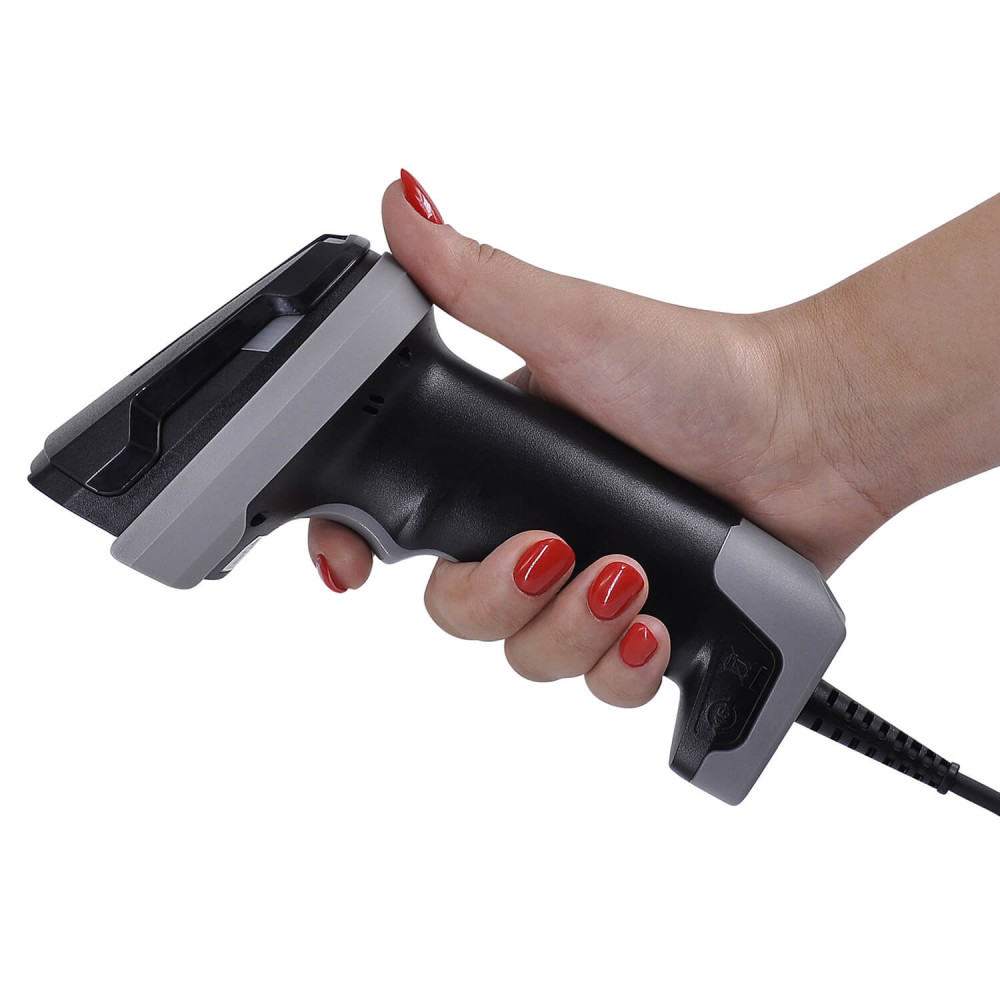

The device has a high level of protection against water and dust: IP65. Thanks to the anatomical shape of the handle, it is comfortable to hold and aim at the labels. Weighing 165 grams, the device almost does not create a load on the operator's wrist.
The new wired scanner is available for pre-order. On the MERTECH website, you can purchase the equipment at manufacturer prices. Delivery is carried out throughout Azerbaijan. Leave a request, and a consultant will assist you in completing the purchase.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Connection type | Wired |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 40º(h)x31º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 25% |
| Maximum scanner resolution | 3.9 MIL |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 380 mm |
| Number of triggers without failures | 5 million |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Aim | 525 nM, 'Green Dot |
|---|---|
| Backlight | White, 3500K LED |
| 5 MIL | 20-70 mm |
|---|---|
| 13 MIL | 40-160 mm |
| Minimum scanning resolution | 3 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP65 |
| Analogues of manufacturers | Proton, Cipherlab, Globalpos, Urovo, Idzor, Mypos, Poscenter, Cino |
| Storage temperature | -40°С ~ +70°С |
| Nutrition | 5V/300mA |
| Permissible humidity | 0% ~ 95% |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For a pharmacy, For cigarettes, For perfume, For SEUAP, For a warehouse, For a store, For marking, For Chestny ZNAK, Industrial |
| Operating temperature | 0°С ~ +40°С |
| Drop test | Withstands 50 drops from 1.8 m onto concrete or multiple drops from 1.5 m. |
| Interface | USB-HID; USB-COM - emulation; RS232 - optional |
|---|
| Color | Black, Gray |
|---|---|
| Overall dimensions (WxDxH), mm | 188*90*70 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 165 gr |
| Interface cable | USB |
|---|---|
| Gross weight, g | 300 |
| Box dimensions, mm | 180*75*105 |

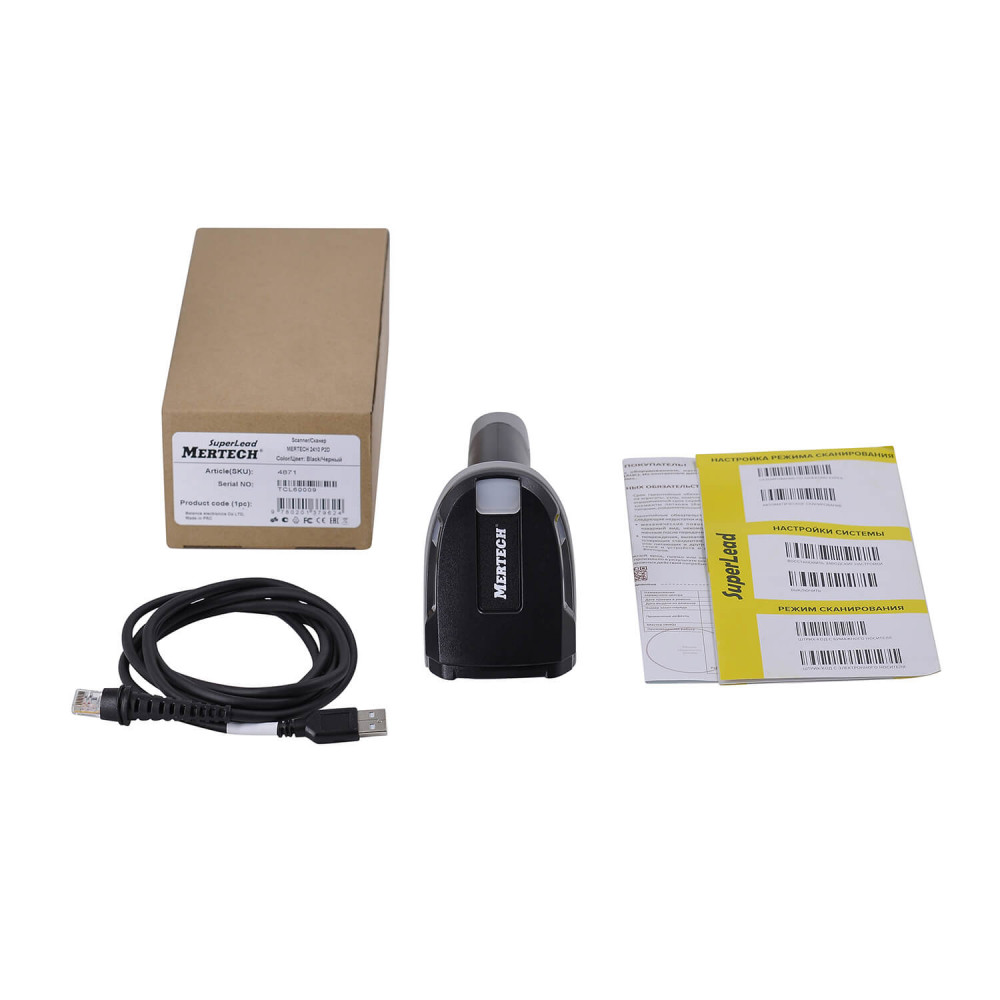

| Equipment | Scanner, USB type A cable, Manual, Warranty card, Packaging |
-
