| Scanner typeEmbedded | Scanning element2D image | Scanning speed100 scans/sec |
| Connection typeWired | Scanner resolution640(H)x480(V)Px | Scanning coverage angle45º(h)x35º(v) |
| Barcode Sensitivity45º(h)x35º(v) | Minimum barcode contrast25% | Reading barcodes1D, 2D |

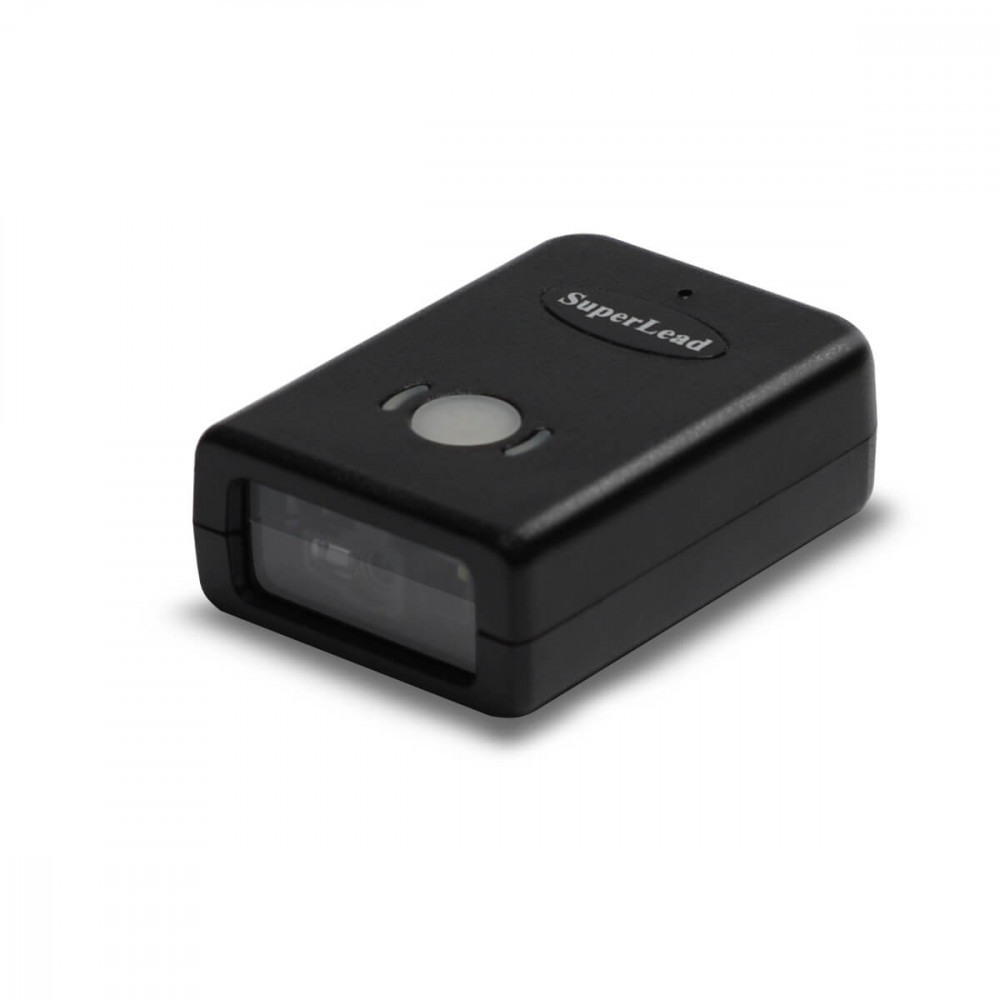

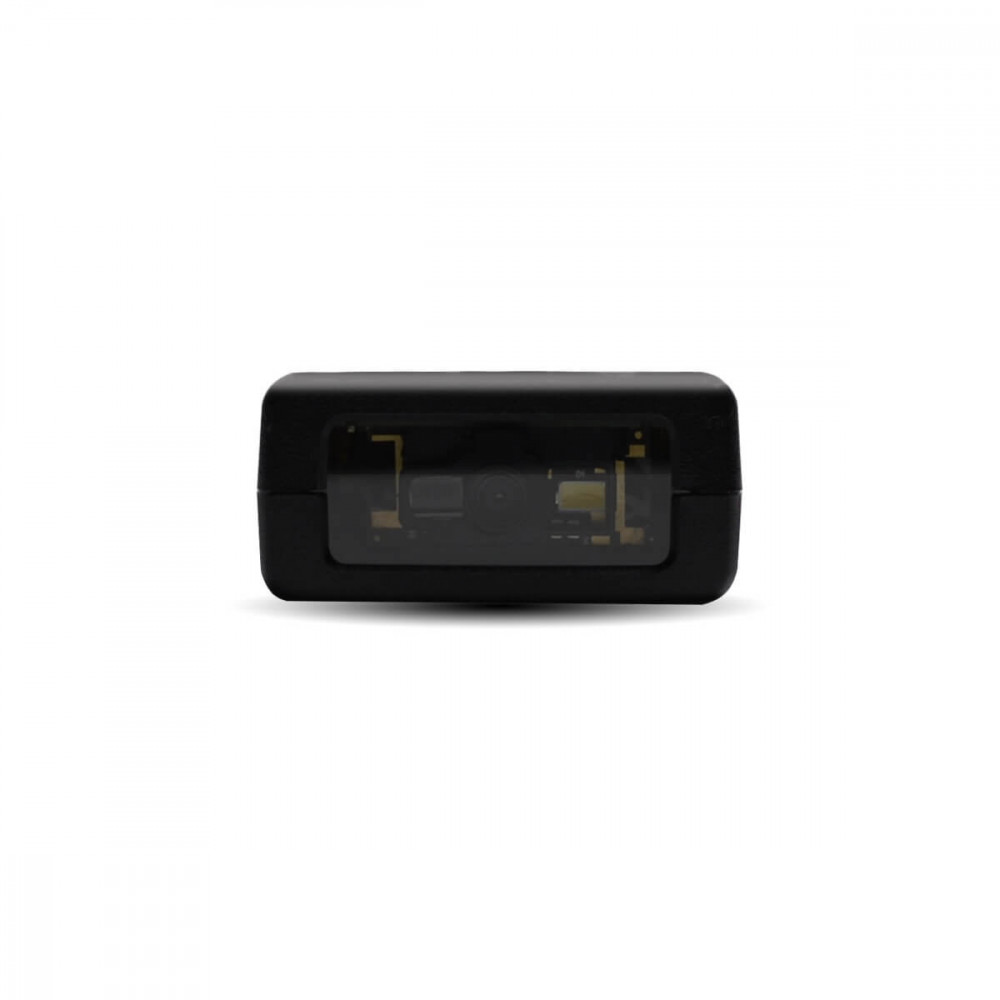

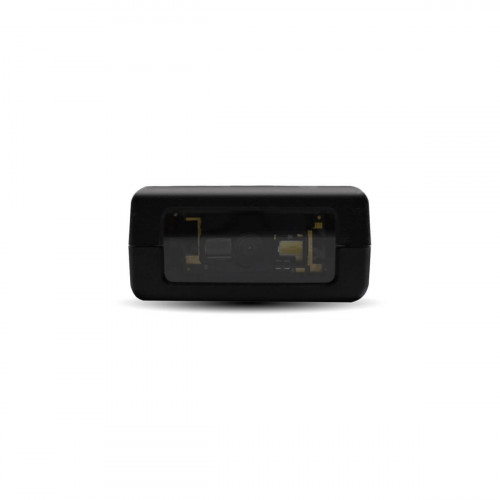

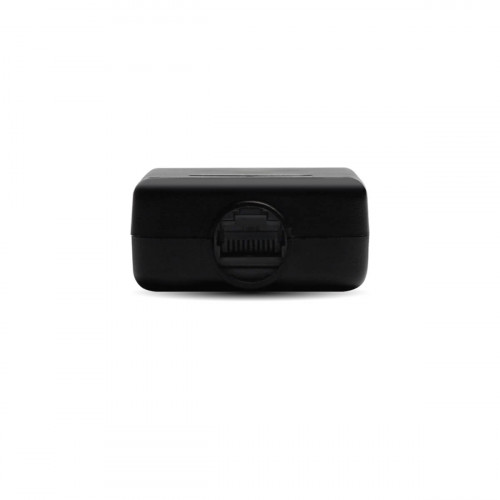

The MERTECH S100 is an embedded 2D scanner from MERTECH. It reads two-dimensional and linear barcodes quickly. The small device can be integrated into a vending machine or used as a mobile scanner.
Technical specifications

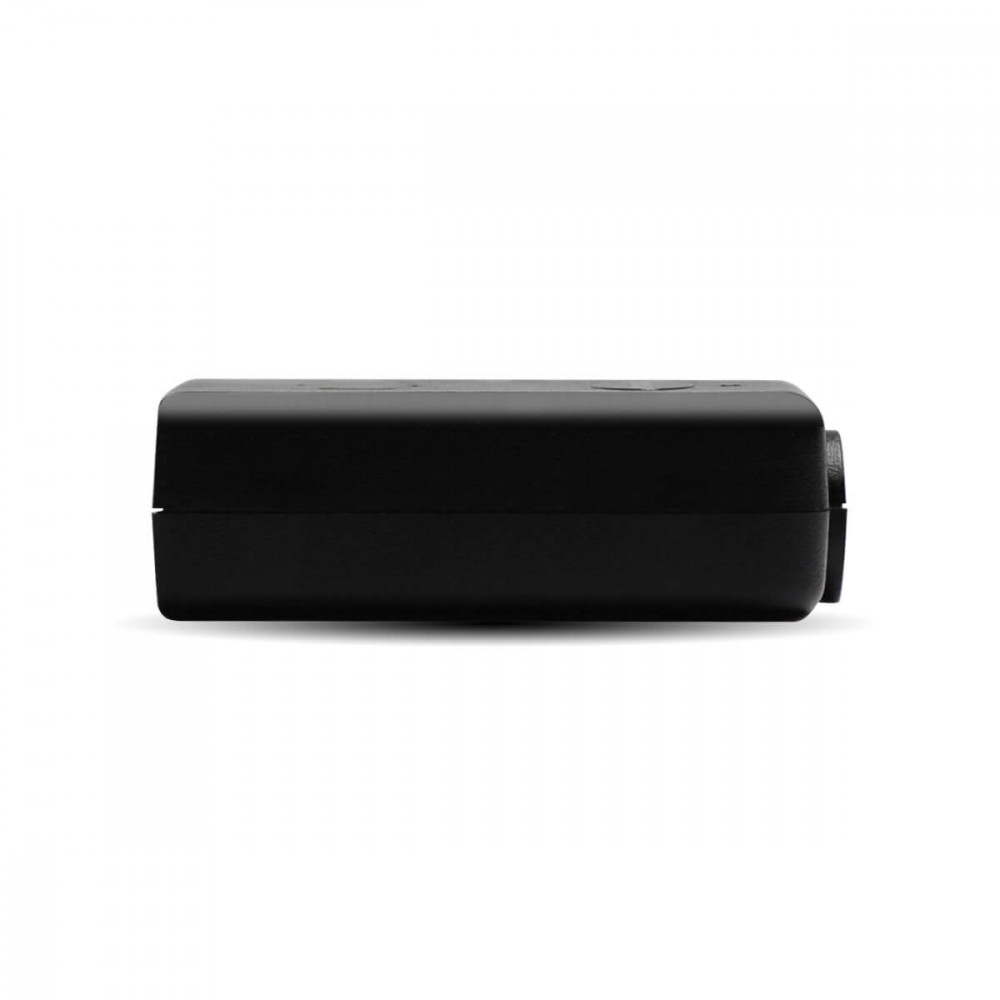

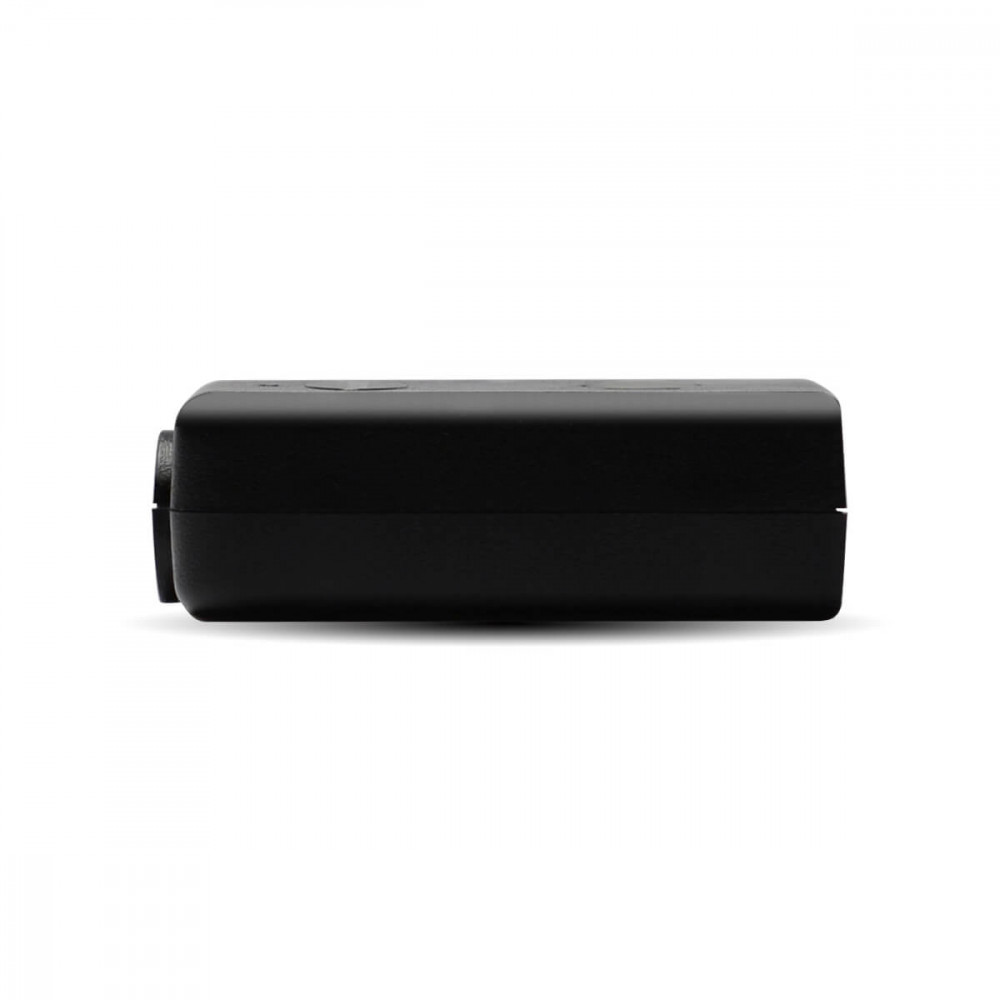

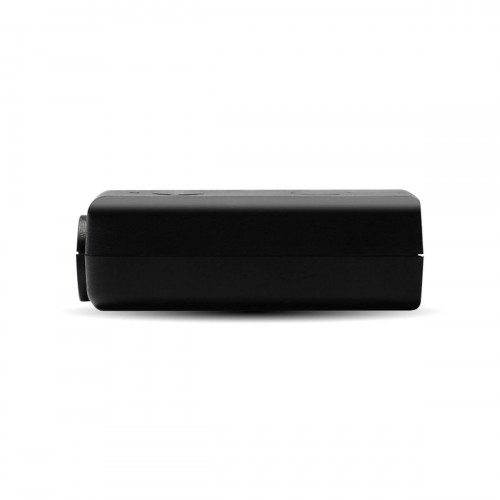

The model is small in size. The dimensions of the case are 69mm*47mm*26mm. The device weighs only 50 grams. Despite its small size, the structure is very durable. The case is made of plastic and polycarbonate (ABC+PC). The device can withstand shocks and repeated falls from a height of up to 150 cm.
Operating characteristics of the model:
- Scanning module: 2D Image.
- Working speed: 100 scans per second.
- Scanning range: up to 370 mm.
- Minimum contrast ratio: 25%.
- Sensitivity: 360*65*60 degrees.
- Screen resolution: 640*480 pixels.
- The backlight is 6500K LED (white).
- Dust and moisture protection: IP42.
- Power Consumption: 5V/400mA.

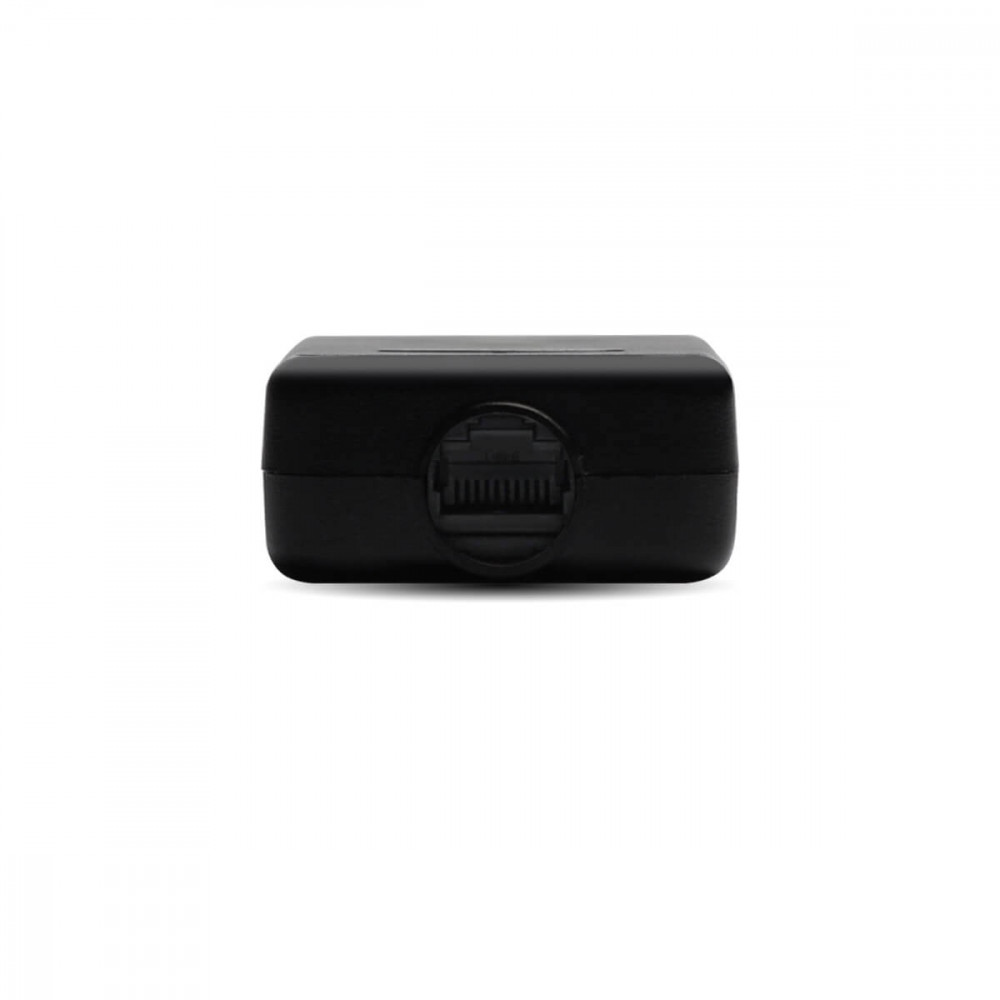

The wired scanner is connected to the system via a USB-HID interface. USB-COM, RS-232 emulation is possible (optional). A USB connection cable is included.
Advantages of the model
The embedded MERTECH S100 scanner recognizes all popular 1D and 2D barcodes. The improved backlight makes it easier to read data. The device successfully recognizes damaged and unclear codes. It can read data from a mobile phone screen or from a mirrored surface.

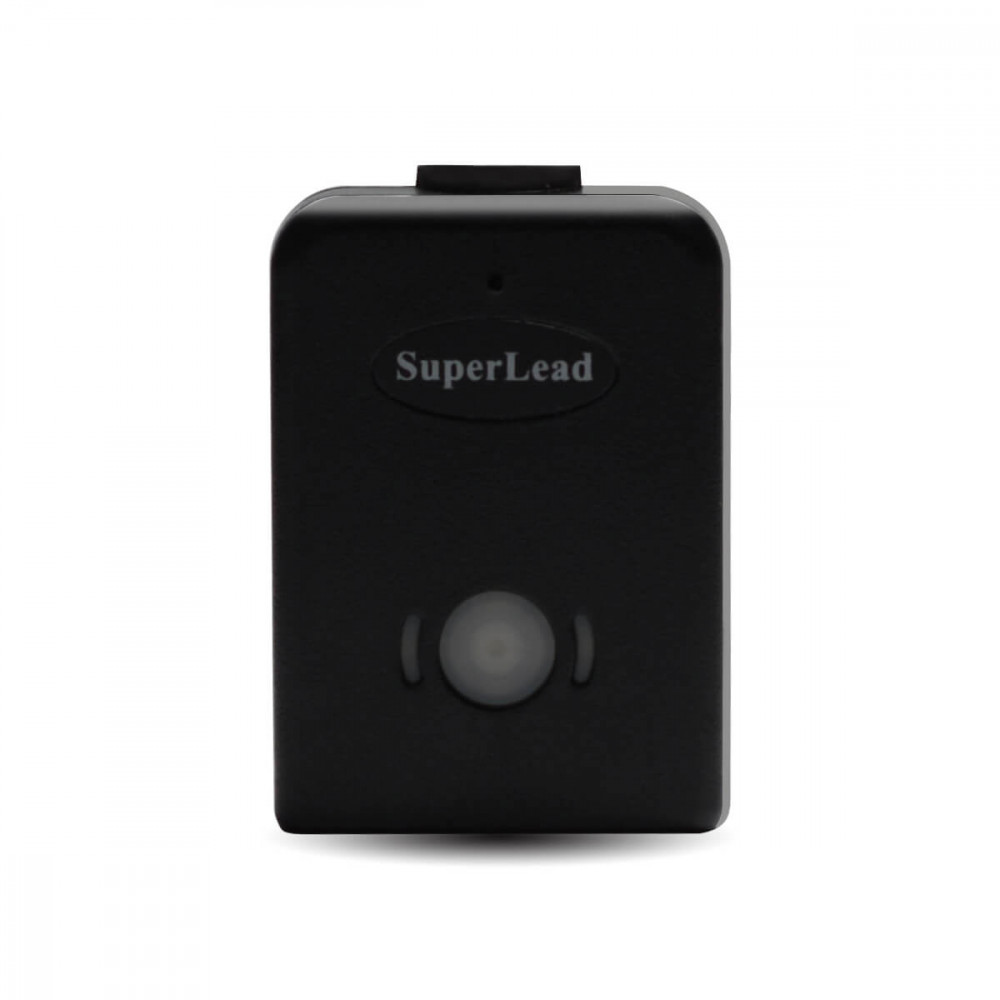

The patented SuperLead technology ensures fast and accurate data reading. This is a unique technology that is not available in similar models from other manufacturers. The work is accompanied by an audible and visual indication of the process.
An automatic code reading mode is provided. When the device is not active, it goes into sleep mode to reduce power consumption. After bringing the product to the reader, the device will automatically wake up from sleep mode.
Place an order
You can buy a MERTECH S100 scanner at a low price in our online store. We are an official MERTECH dealer and sell equipment at factory prices. You can order the delivery of goods in Moscow or to your city. The delivery service operates in all regions of Russia. To place an order, leave a request on our website.
| Scanner type | Embedded |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Connection type | Wired |
| Scanner resolution | 640(H)x480(V)Px |
| Scanning coverage angle | 45º(h)x35º(v) |
| Barcode Sensitivity | 45º(h)x35º(v) |
| Minimum barcode contrast | 25% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 370 mm |
| Sound and visual indication | Yes |
|---|---|
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | White 6500K LED |
|---|
| 5 MIL | 50-110 mm |
|---|---|
| 13 MIL | 40-300 mm |
| Minimum scanning resolution | 4 MIL |
| Guarantee | 3 years old |
|---|---|
| Resistance to external influences | IP42 |
| Storage temperature | -40°C ~ +70°C |
| Permissible humidity | 0% ~ 95% |
| Operating temperature | 0°C ~ +50°C |
| Drop test | It can withstand multiple falls from a height of 1.5 m. |
| Interface | USB-HID; USB-COM emulation; RS232 - optional |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 69*47*26 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 50 g |
| Quantity in masterbox, pcs | 100 pieces |
|---|---|
| Gross weight, g | 170 |
| Box dimensions, mm | 100*80*105 |
| Equipment | Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging |
-
