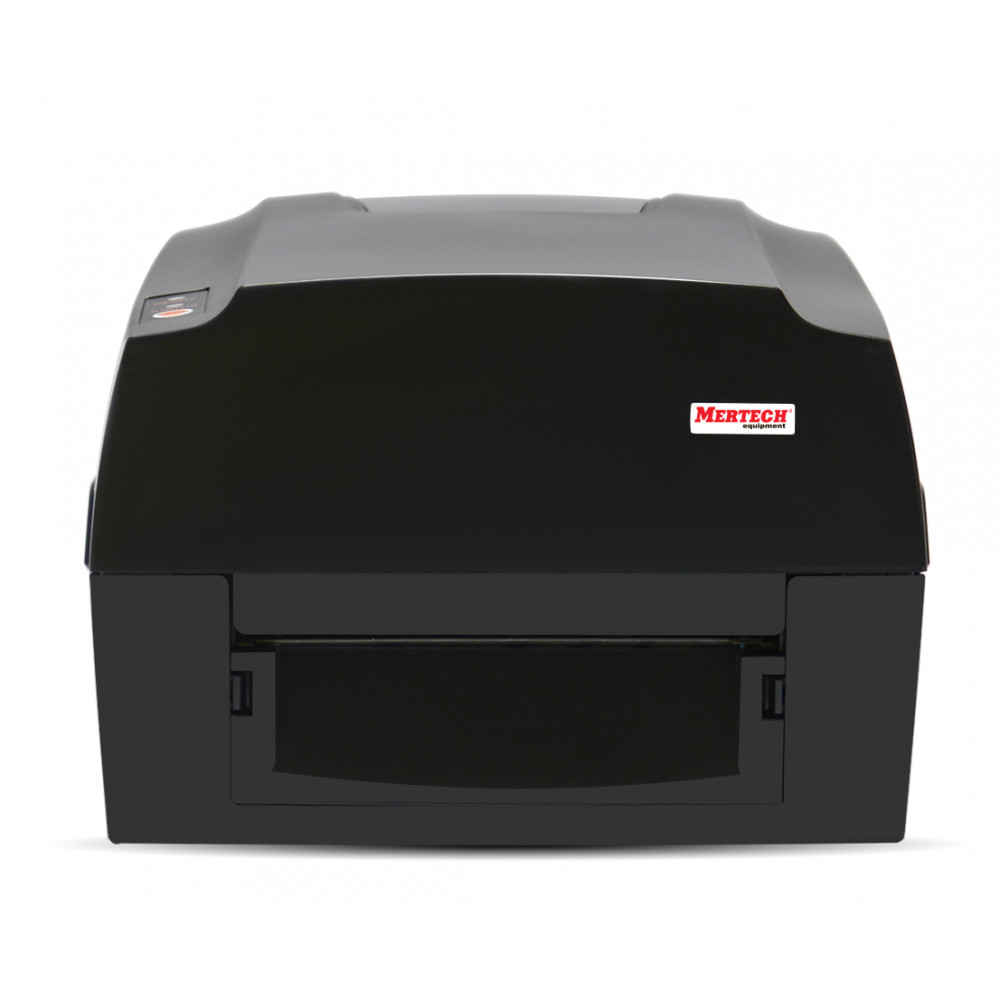

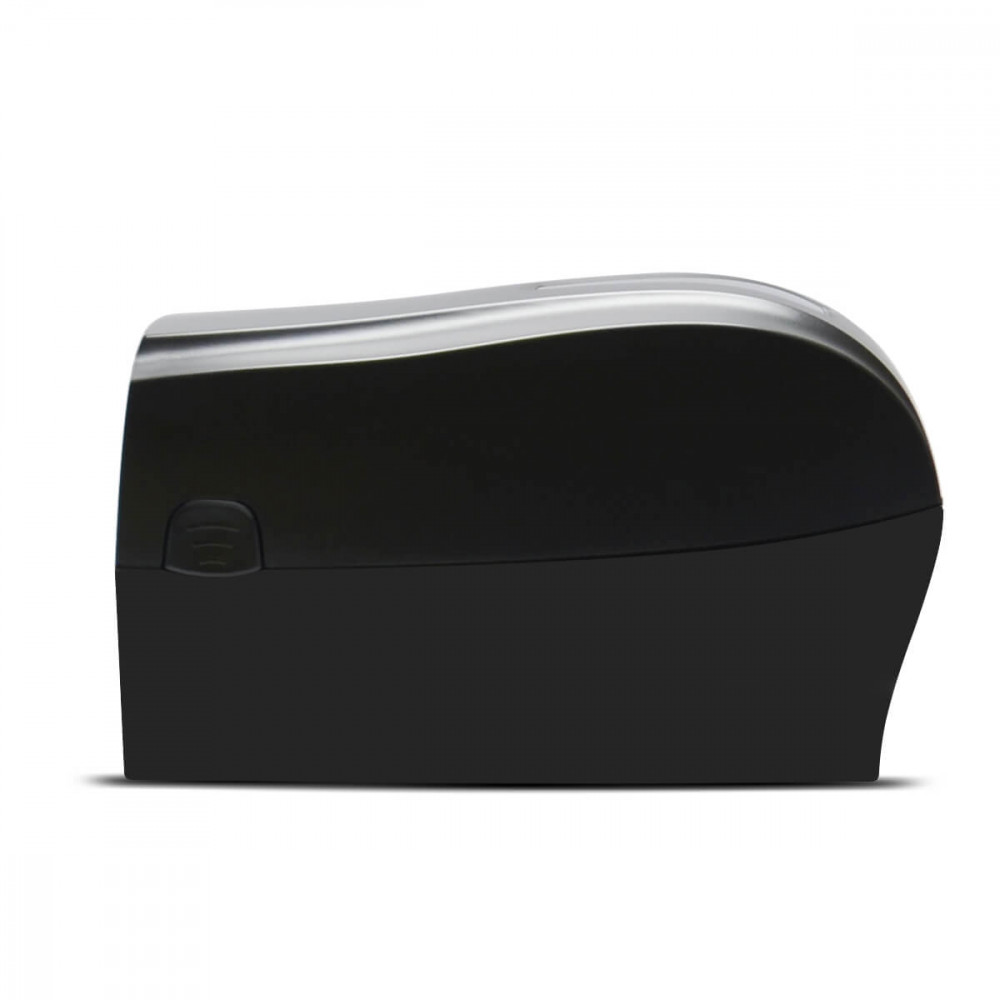

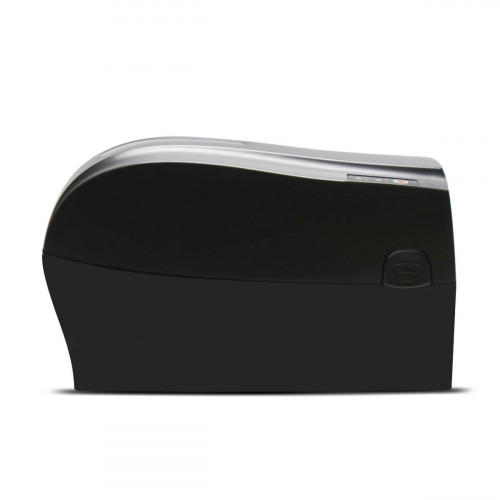

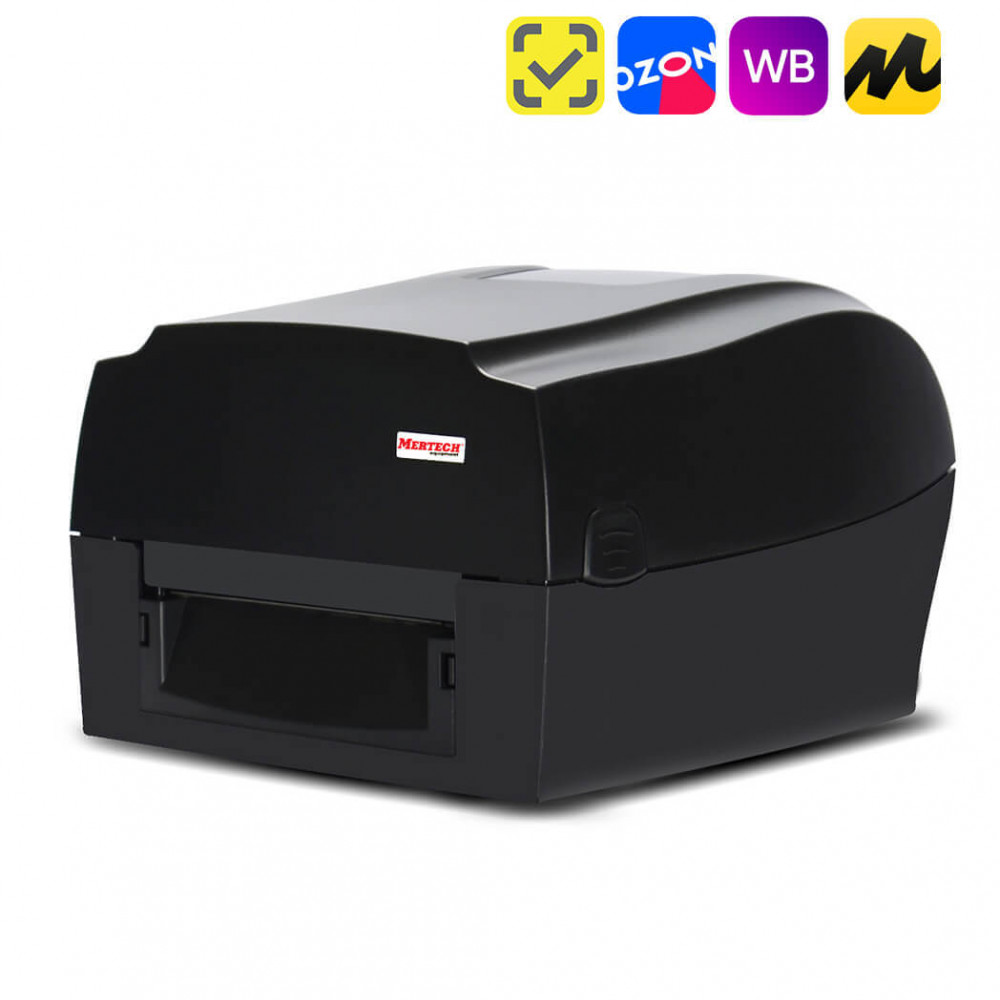

Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA (300 DPI) USB, RS232, Ethernet Black

The MERTECH TERRA NOVA TLP300 printer is designed for thermal printing of labels and receipts. It can print on paper, textile, synthetic ribbons, sticky labels, receipt thermal ribbons, and tags. This model features a modern mechanism, an improved system board, a practical design, and compact dimensions. It differs from the TLP100 model by having an increased ribbon length (300 m instead of 100 m).

Advantages of the Model

The TERRA NOVA TLP300 thermal printer from MERTECH has many advantages:

1. Printing speed of 100 mm/sec. The resolution can be adjusted in the range of 300 DPI.
2. The system board supports printing one-dimensional and two-dimensional barcodes (PDF417 and QR code).
3. The Easy Load feature allows you to change the ribbon or cash register tape in 10 seconds.

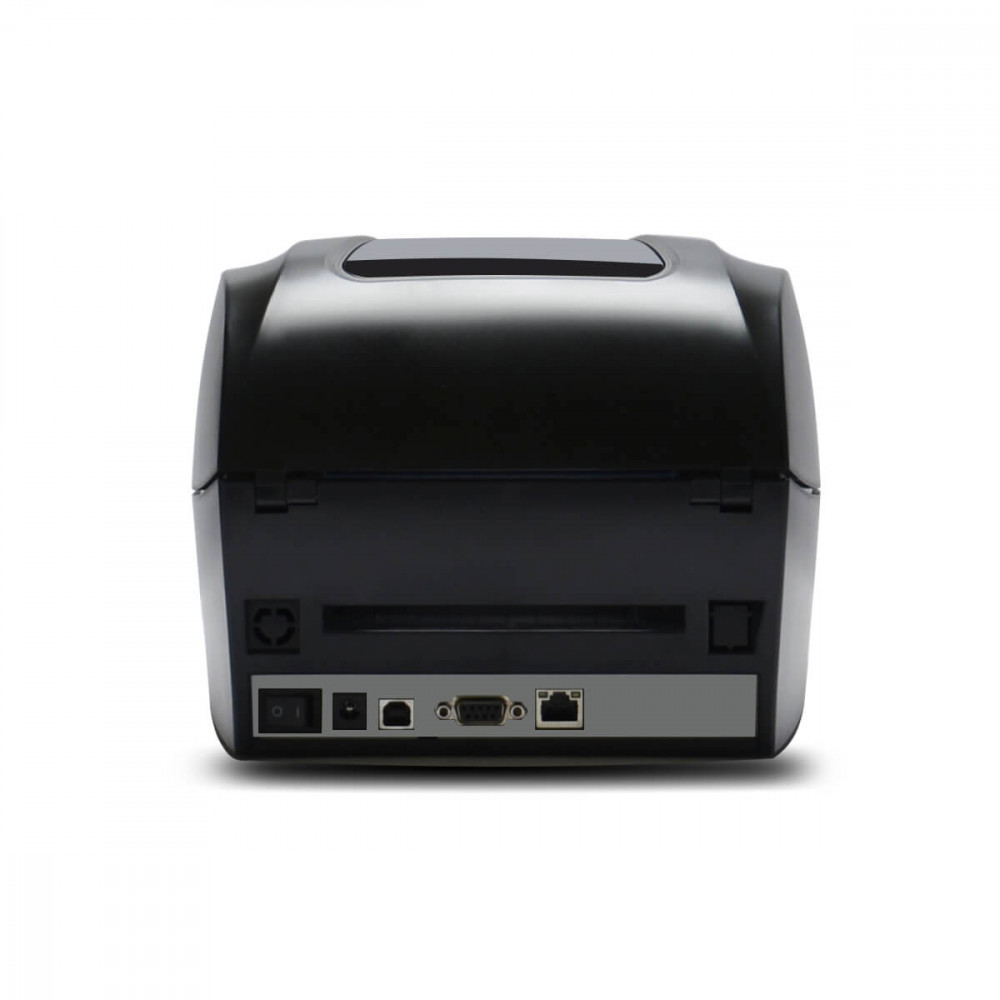

4. Three interfaces are available for connection to a POS system: USB, Ethernet, RS-232C.
5. Functionality: up to 10,000 receipts and labels per work shift.
6. Low noise level: up to 50 decibels (no louder than a voice).

Inside is an intelligent system board. The device supports two protocols for thermal printing: ZPL protocol from Zebra and TSPL protocol from TSC. The model is compatible with the BARTENDER software. This is American software for managing printing. The software is developed by Seagull Scientific.

Technical Specifications

The stationary NOVA TLP300 printer has compact dimensions. The length of the model is 285 mm, width is 226 mm, height is 171 mm. The printing device will not take up much space on the table. The model is suitable for any business sector. It is used in retail spaces, warehouses, and offices, as well as in pharmaceutical enterprises.

The device is equipped with 4 sensors:

1. Fixed transmissive.
2. Adjustable reflective.
3. Ribbon end detection.
4. Thermal head position detection.

If a sensor detects an error, visual and audible indicators will activate. The MERTECH TERRA NOVA TLP300 can print labels and receipts with lengths from 15 to 1200 mm and a width of 108 mm. The maximum ribbon length is 300 meters.

Various materials are suitable for printing. It is possible to print on labels with perforations or holes with black marks. You can use resin-based ribbons, wax, or a mixture of materials. However, the quality of printing depends not only on the device but also on the chosen substrate.

Package Contents

The package includes the printer itself, an instruction manual, a warranty certificate, label tape, and ribbon. Before starting work, you need to install the drivers. After driver installation, you can connect the device to the POS system, change its settings, and specify the appearance of receipts and labels.
