| Thermal head resource50 km | Printer classDesktop | Print speed127 mm/sec |
| Print typeThermal transfer | Print area width, mm20-108 | Print Resolution203 dpi |
| Flash memory16 Mb | Printer typeLabel printer | RAM memory32 Mb |

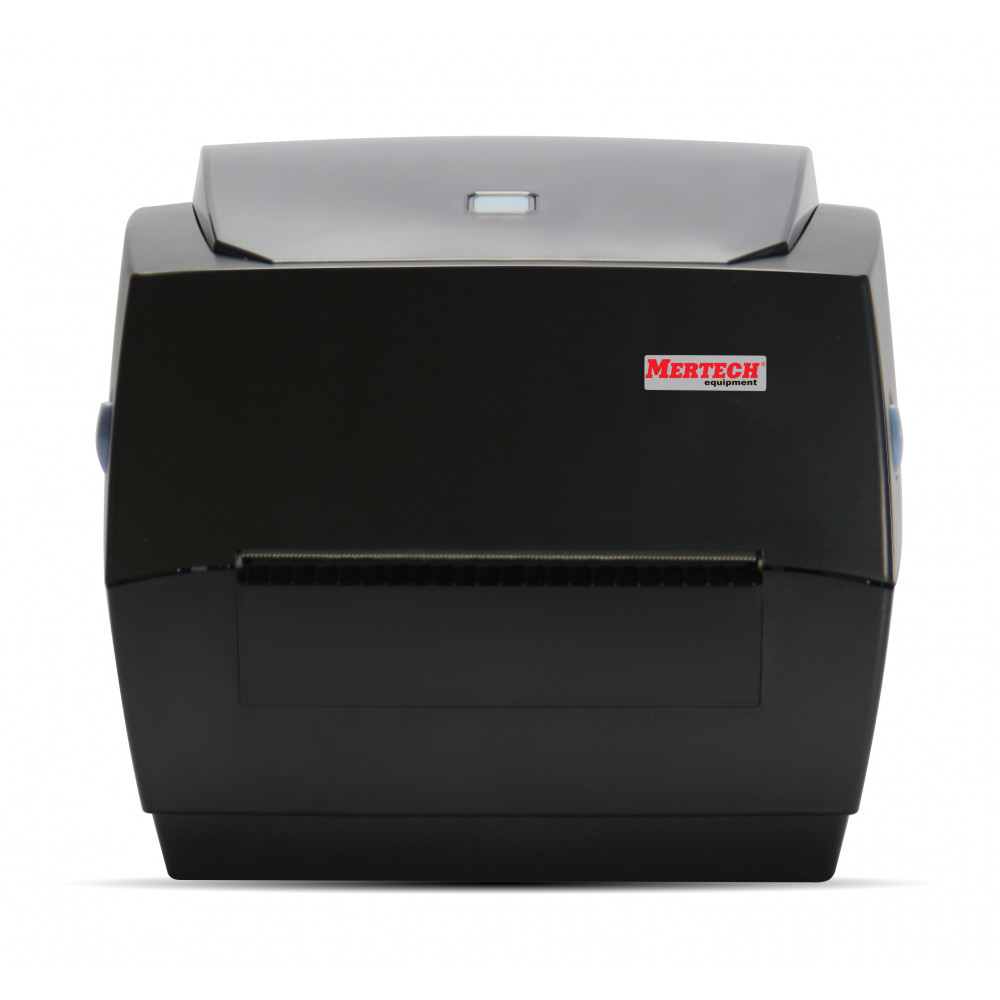

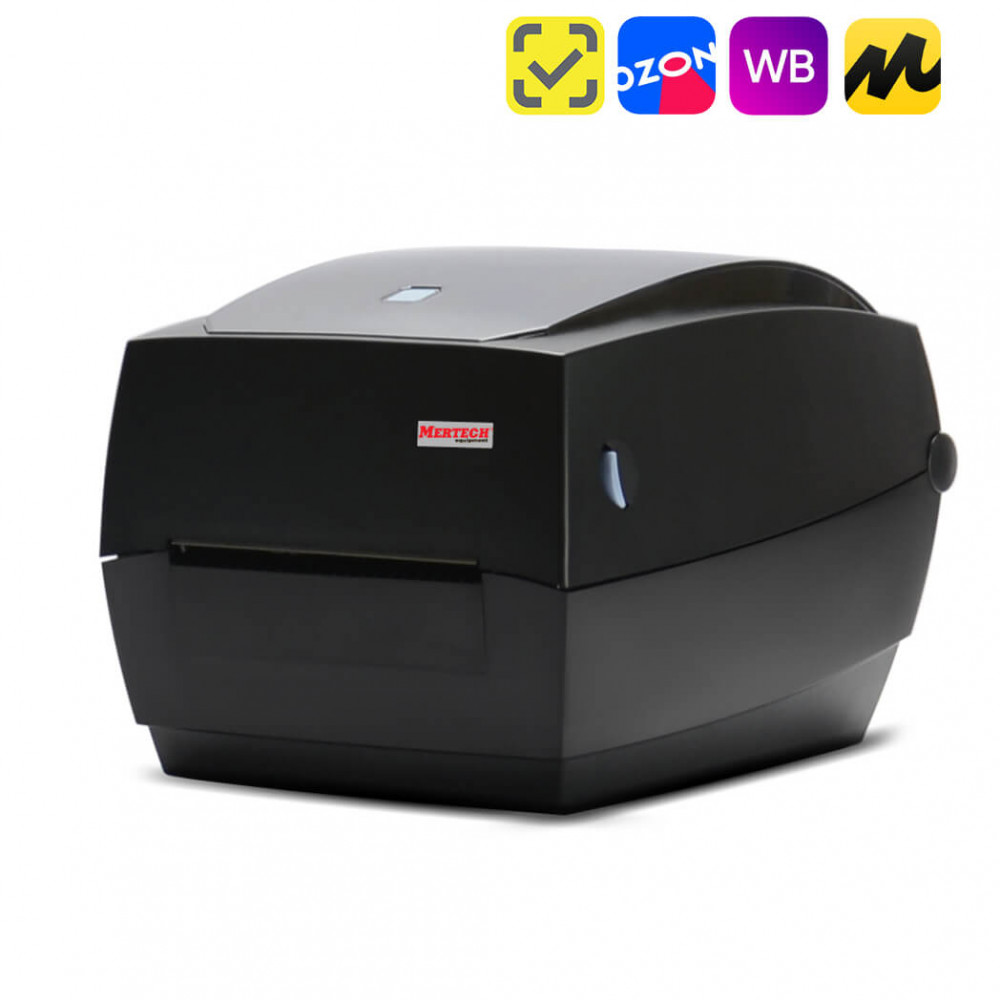

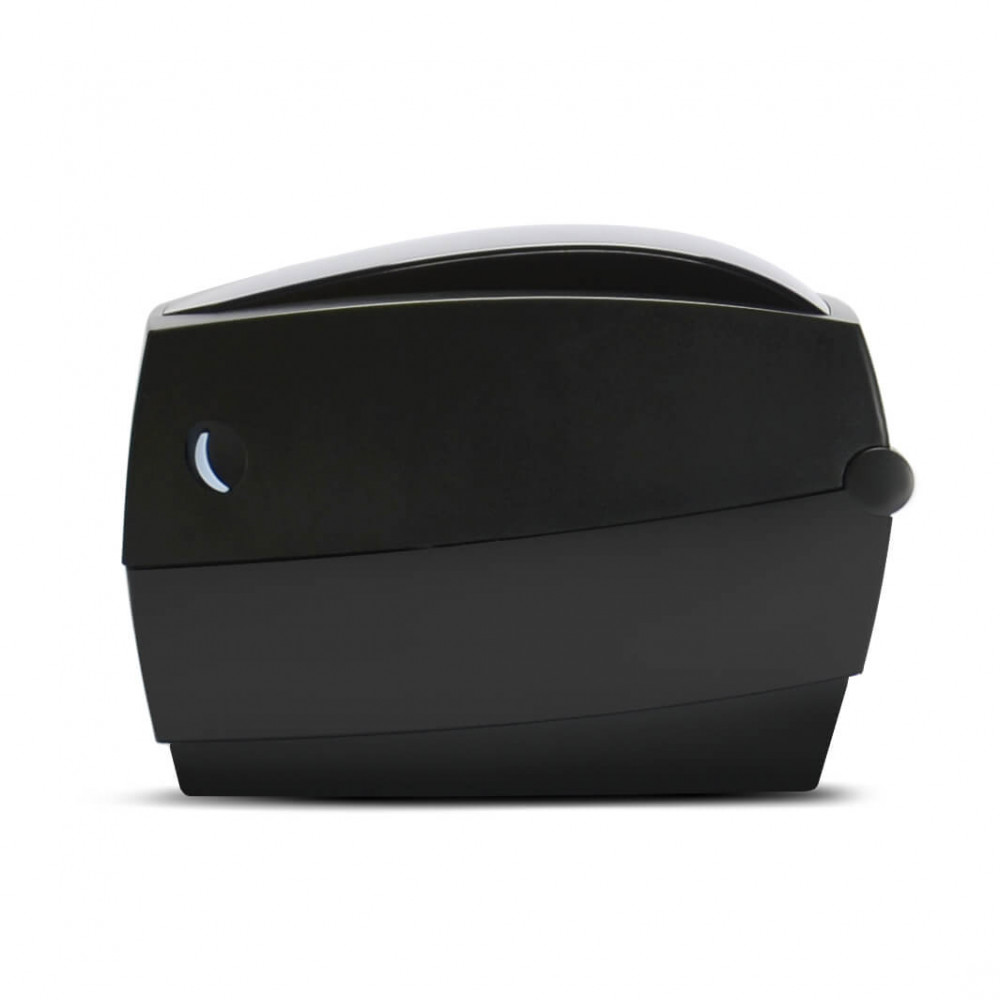

The MERTECH TERRA NOVA TLP100 thermal transfer printer is designed for printing receipts and labels. It performs thermal transfer printing and direct thermal printing. The device prints on synthetic, textile, and paper ribbons, as well as on thermal receipt tapes and tags. The model features a practical design, a modern mechanism, and an advanced interface board.
Advantages of the Model
The MERTECH TERRA NOVA TLP100 from MERTECH has the following advantages:
- Print speed of 127 mm per second. Resolution of 203 DPI.
- Printing of all known barcodes (including PDF417 and QR codes).
- Easy Load system for quick ribbon or label tape loading.
- Daily duty cycle: up to 10,000 labels or receipts.

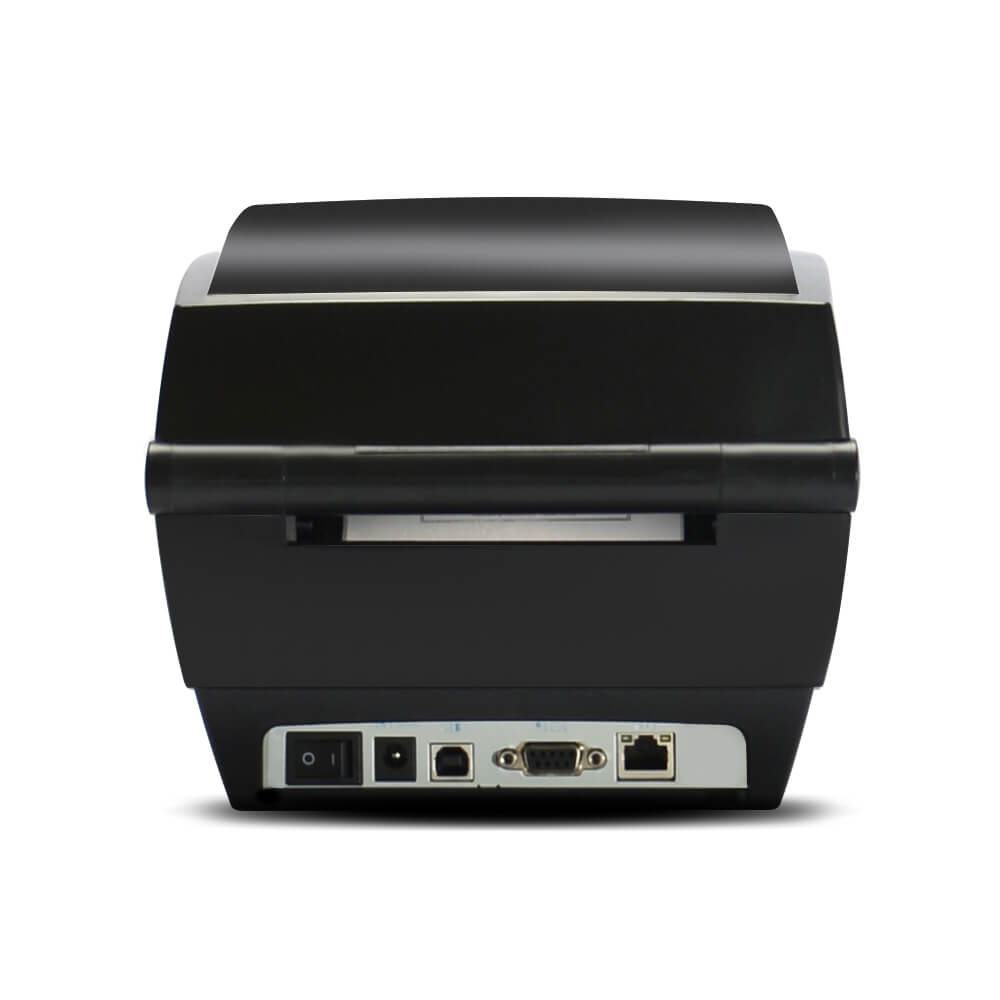

- Three interfaces for connection to the POS system: USB, Ethernet, RS-232.
- Low noise level: up to 50 dB (no louder than human speech).
Inside the device is an intelligent system board. It supports two printing protocols: the TSPL protocol from TSC and the ZPL protocol from Zebra. The system board is compatible with the BARTENDER printing software from Seagull Scientific (USA).
Technical Specifications
The NOVA TLP100 printer features compact dimensions. The body length is 240 mm, width is 198 mm, and height is 171 mm. The device will not take up much space on your desk. It is suitable for any business sector and can be used in stores, pharmacies, markets, warehouses, and offices.
The model is equipped with four sensors: a fixed transmission sensor, an adjustable reflective sensor, media end sensors, and a thermal head position sensor. In case of errors, audible and visual indications are activated.
Acceptable label length: 15-1200 mm. Ribbon length: up to 100 m. This printer can print labels with gaps, holes, black marks, or continuous labels. It accepts wax, resin, or wax + resin-based ribbon. (The type of material affects the quality of text and image reproduction).
For control, the 1C "Enterprise" programs 7.7 and 8.0, as well as BARTENDER, are suitable. Drivers are suitable for Windows computers. The package includes a power adapter, label tape, ribbon, instructions, and a warranty card.
| Thermal head resource | 50 km |
|---|---|
| Printer class | Desktop |
| Print speed | 127 mm/sec |
| Print type | Thermal transfer |
| Print area width, mm | 20-108 |
| Print Resolution | 203 dpi |
| Flash memory | 16 Mb |
| Printer type | Label printer |
| RAM memory | 32 Mb |
| Printing protocol | TSPL, ZPL and EPL |
| Recommended print volume per day | 10000 labels |
| Ribbon type | Wax based; Wax and resin based; Resin based |
| Print area length, mm | 15-1200 mm |
| CPU | NUC976 |
| Поддержка СЭУАП | Yes |
|---|---|
| Cutter | optional |
| OS support | Windows 2000, Vista, 7, 8, 10, 11, IOS |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39; Code 93; Code 128UCC; Code 128 subgroups A; B; C; Codabar; Interleave 2 of 5; EAN-8; EAN-13; EAN-128; UPC-A; UPC-E; EAN and UPC with the addition of 2 (5) digits; MSI; PLESSEY; POSTNET; RSS-Stacked; GS1 DataBar; Code 11 |
| EasyLoad | Yes |
| Supported 2D barcodes | PDF417; Maxicode; DataMatrix; QR Code; Aztec |
| Feed function | Yes |
| Print QR code | Yes |
| Bartender Support | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of the printer | For 1C, For OZON, For inventory, For shoe labeling, For warehouse, For labeling, For marketplace, For textile labels, For EVOTOR, For Wildberries |
| Storage temperature | -20°С ~ +50°С |
| Nutrition | 24V/2.5A |
| Permissible humidity | 90% |
| Operating temperature | 5 ~ 40°C |
| Roll core diameter | 0.5" |
|---|---|
| Maximum ribbon length | 100 m |
| Material width (min/max), mm | 118 |
| Roll diameter, mm | 127 mm |
| Printing material | Paper tapes; textile tapes; synthetic tapes; labels |
| Ribbon winding | OUT |
| Roll core width | 110 mm |
| Interface | RS-232; USB; Ethernet |
|---|
| Color | black |
|---|---|
| Overall dimensions (WxDxH), mm | 198*240*171 |
| Weight | 1.75 kg |
| Equipment | Printer, USB interface connection cable, Power supply, Warranty card, Packaging |
|---|
-
