| Belt width (min/max), mm50 / 110 | Bushing diameter, mm12.7 (0.5" inch) | Roll winding length, mup to 100 |
| Thermal head resource50 km | Printer classDesktop | Print speedup to 152 mm/sec |
| Print typeThermal transfer | Print Resolution203 dpi | Flash memory256 Mb |
The MERTECH HT600 desktop thermal transfer printer is designed for label printing. This versatile solution is suitable for labeling any products, including portioned dishes. The device offers fast label printing and high-resolution barcodes.
Advantages of the Model
The MERTECH HT600 printer boasts high performance. It can print up to 10,000 labels of size 58x40 mm in a single day. A set of automatic sensors monitors the workflow. Visual and audible signals inform users about the device's status.

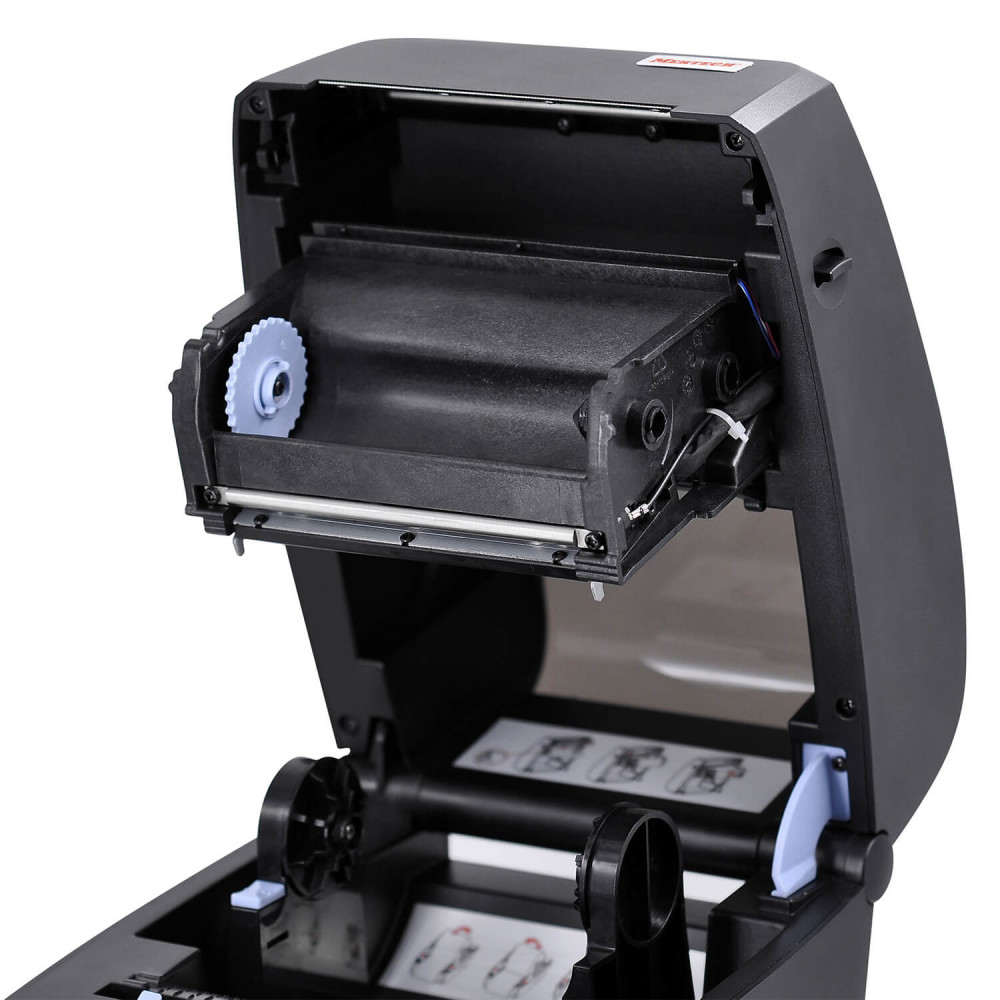

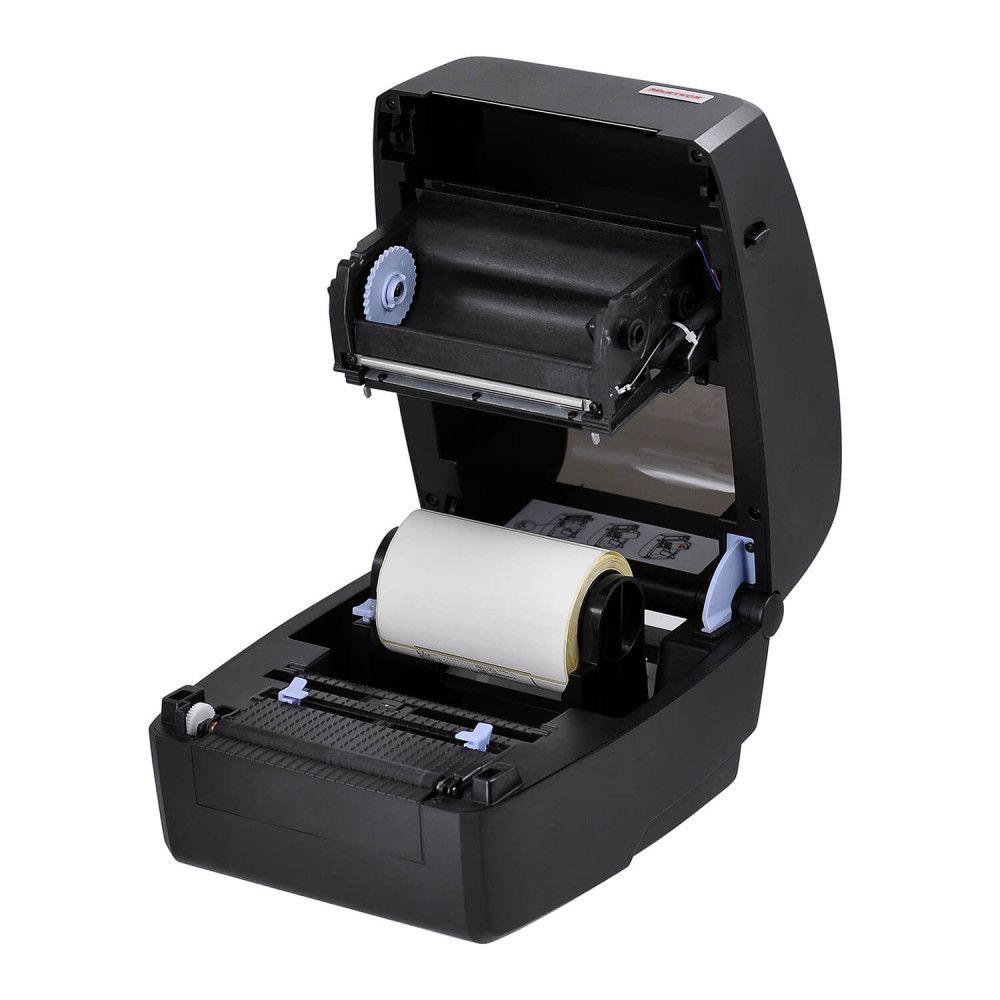

The model is equipped with a reliable print head. Its strength resource is rated for 50 km of labels. The thermal head is compatible with wax, resin, or mixed material ribbons. Changing the label tape or ribbon can be done in 10-15 seconds. The menu includes a fast ribbon rewind function.
The thermal transfer printer supports all popular 1D and 2D barcodes, including PDF417, QR Code, and Data Matrix.

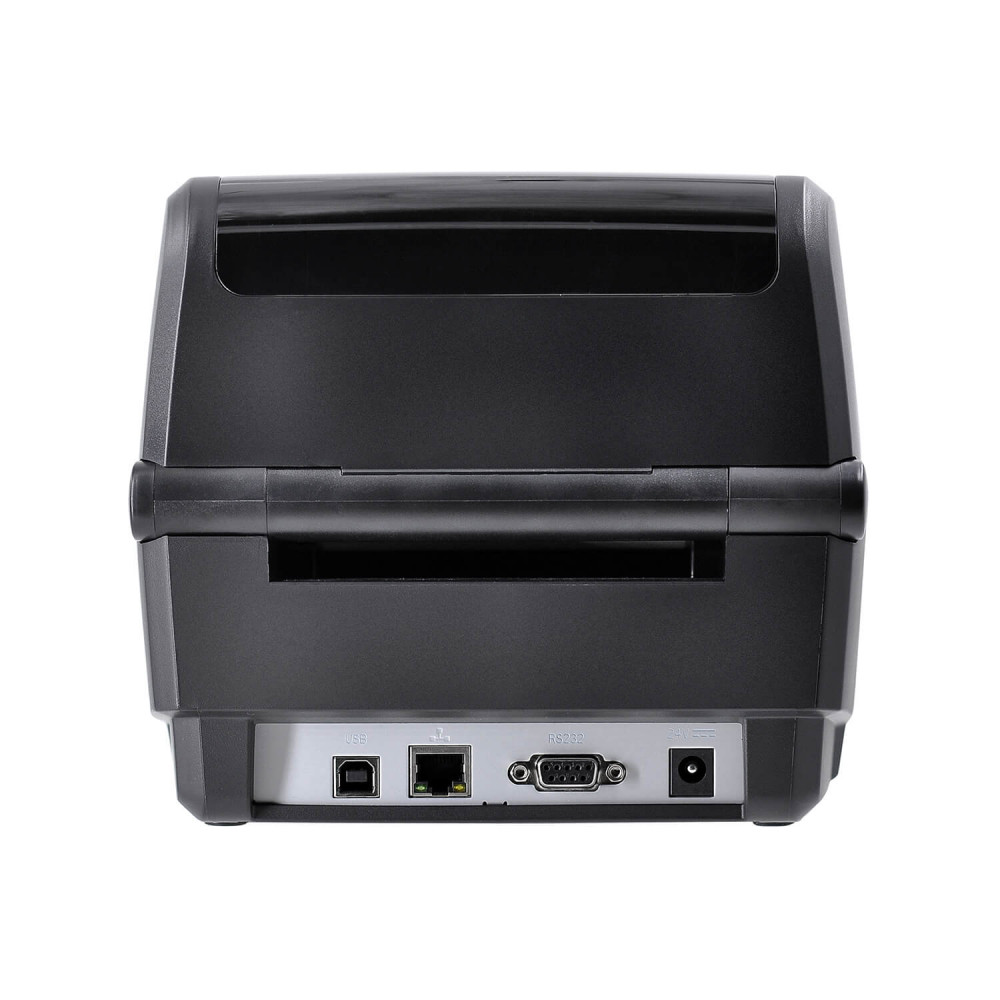

The model supports Ethernet, RS232, and USB interfaces. An optional Bluetooth connection is available. It utilizes TSPL, ZPL, and EPL printing protocols. The menu includes a function for loading fonts. Label templates can be uploaded to the device's memory from Bartender. The Flash memory volume is 256 MB, and RAM is 128 MB.
The printer has compatible accessories available for separate purchase. To speed up the printing process, a large roll holder, cutter, or separator can be ordered.
Technical Specifications
The MERTECH HT600 thermal transfer printer has the following specifications:
- Print speed: up to 152 mm/sec.
- Image resolution: 203 DPI.
- Label tape width: from 50 to 110 mm.
- Print area width: from 25 to 108 mm.
- Print area length: from 15 to 1200 mm.
- Maximum roll winding length: up to 100 m.
- Compatible core diameter: 12.7 mm (0.5 inches).
The construction is based on a sturdy metal frame. The body panels are made of reliable materials: plastic and polycarbonate. The device features a modern design with a convenient layout of interface elements. It has a body size of 285x226x171 mm and weighs 2.045 kg.
You can order thermal transfer label printers at a low price on the MERTECH website. Only by contacting the manufacturer directly are the lowest prices available. Equipment delivery is conducted throughout Azerbaijan. Leave an application on the website to discuss order conditions.
| Belt width (min/max), mm | 50 / 110 |
|---|---|
| Bushing diameter, mm | 12.7 (0.5" inch) |
| Roll winding length, m | up to 100 |
| Thermal head resource | 50 km |
| Printer class | Desktop |
| Print speed | up to 152 mm/sec |
| Print type | Thermal transfer |
| Print Resolution | 203 dpi |
| Flash memory | 256 Mb |
| RAM memory | 128 Mb |
| Printing protocol | TSPL, ZPL, EPL |
| Recommended print volume per day | 10,000 labels size 58x40 |
| Ribbon type | wax based, wax and resin, resin |
| Print area length, mm | 15 - 1200 |
| Ability to download fonts | Yes |
|---|---|
| Label Separator | Yes (optional) |
| Supported code pages | PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) |
| Tape rewind function | Yes |
| Поддержка СЭУАП | Yes |
| Cutter | Yes (optional, cutter resource 1 million) |
| Built-in sensors | Paper present, Lid open, Label gap, Print head temperature, Black marks, Ribbon end |
| External holder | Yes (optional) |
| OS support | Windows 7/ 8/ 10/ 11, Linux, MacOS |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49, Cadablock |
| EasyLoad | Yes |
| Supported 2D barcodes | PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code |
| Print QR code | Yes |
| Bartender Support | Yes |
| Applications of the printer | For 1C, For OZON, For inventory, For shoe labeling, For warehouse, For labeling, For marketplace, For textile labels, For EVOTOR, For Wildberries |
|---|---|
| Storage temperature | -20°С ~ +50°С |
| Nutrition | DC 24V, 2.5A |
| Permissible humidity | 30 - 85% (operation); 10 - 90% (storage) |
| Operating temperature | 5 ~ 40°C |
| Network adapter cable length (m) | 3.1 |
| Roll core diameter | 0.5 inch (12.7 mm), 1 inch (25.4 mm), 1.5 inch (38.1 mm) |
|---|---|
| Paper width, mm | 25.4 -108 mm 25.4-106 mm |
| Paper thickness, mm | 0.06 - 0.250 (60 µm - 250 µm) |
| Roll diameter, mm | up to 127 |
| Printing material | Paper, textile and synthetic tapes, labels |
| Ribbon winding | OUT |
| Interfaces | USB + RS232, Ethernet, Wi-Fi - optional |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 285*226*171 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 2,045 kg |
| Equipment | Printer, USB interface connection cables, Power supply, Warranty card, Packaging |
|---|
| Print width, mm | from 25mm to 108mm |
|---|
-
