| Belt width (min/max), mm30 - 100 | Bushing diameter, mm25.4 (1" inch) | Roll winding length, m450 |
| Thermal head resource50 km | Printer classIndustrial | Print speedUp to 200 mm/sec |
| Print typeThermal transfer | Print Resolution300 dpi | Flash memory256 Mb |

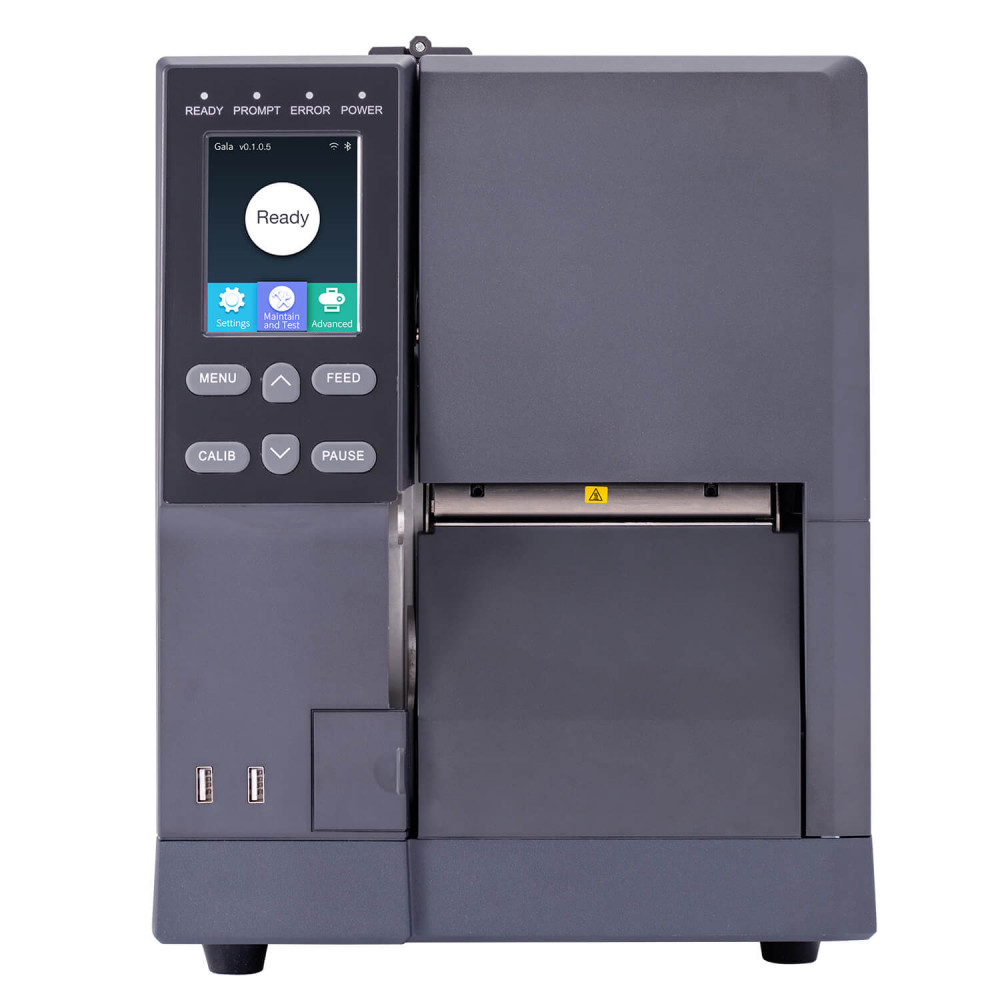

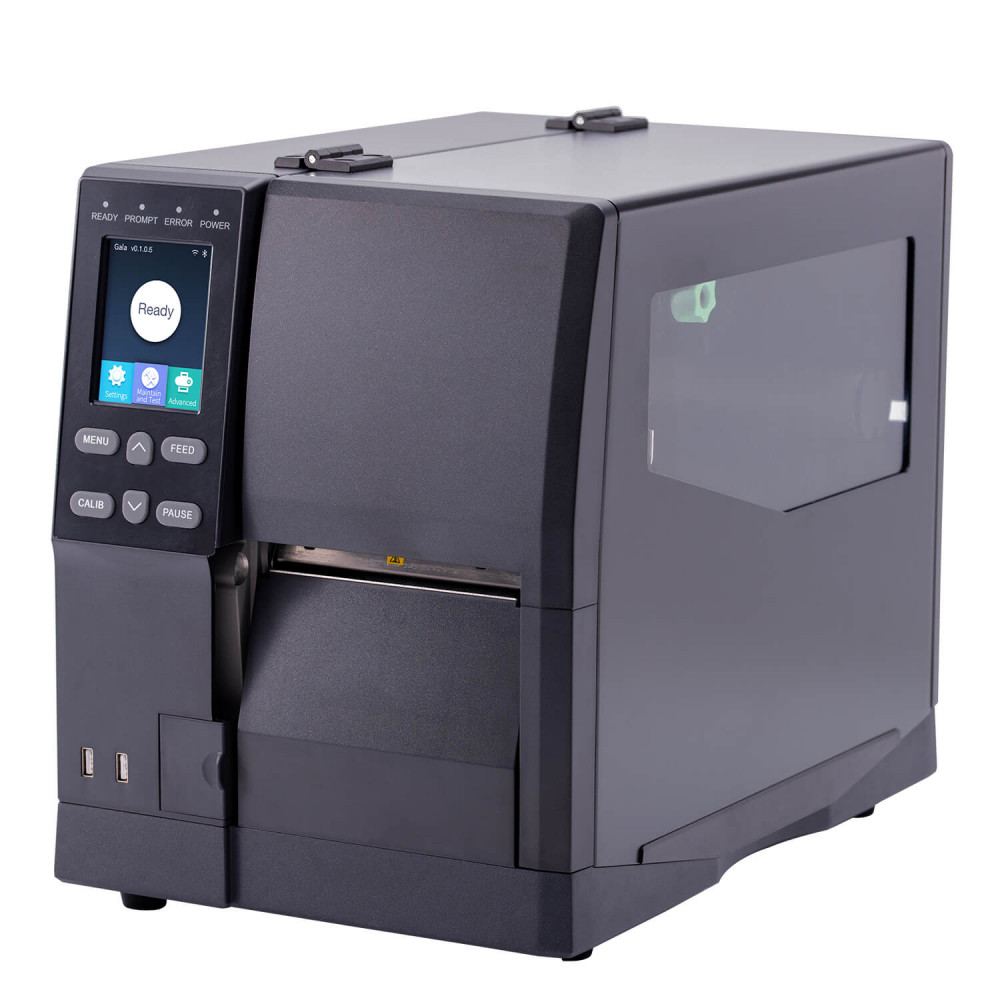

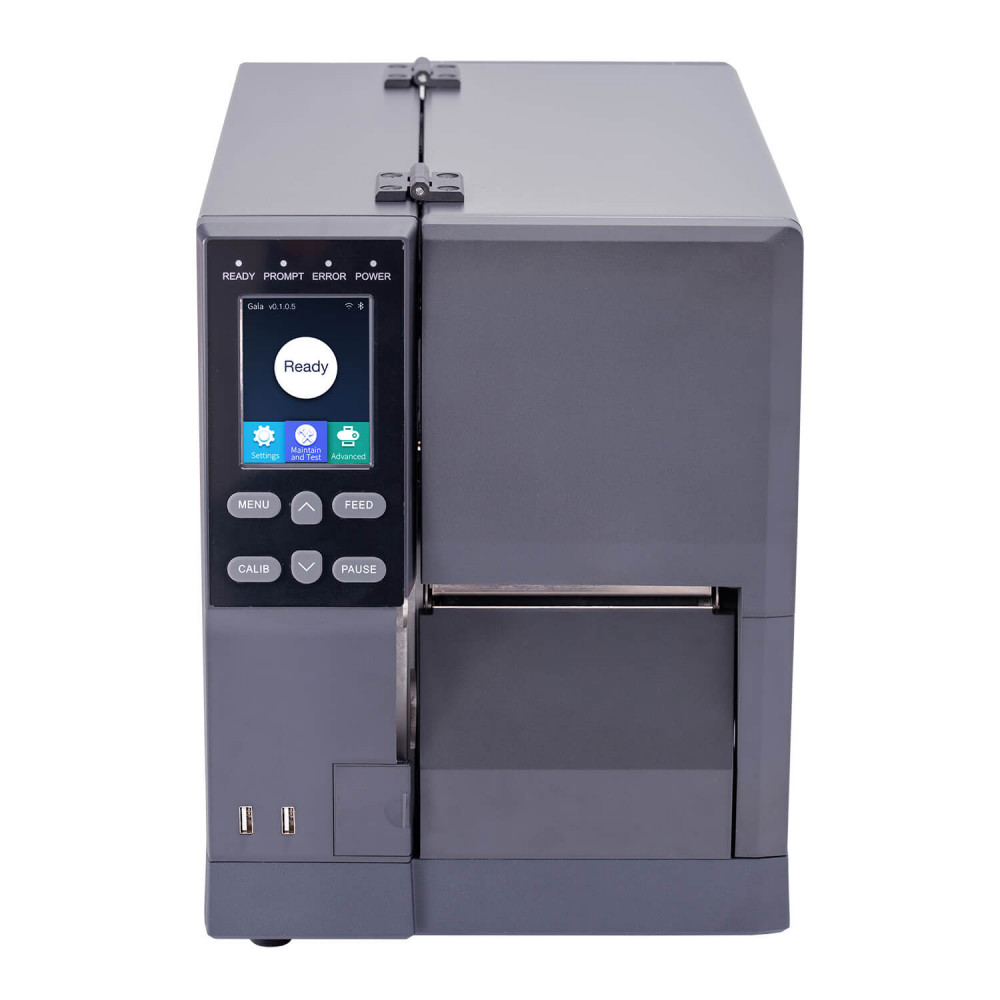

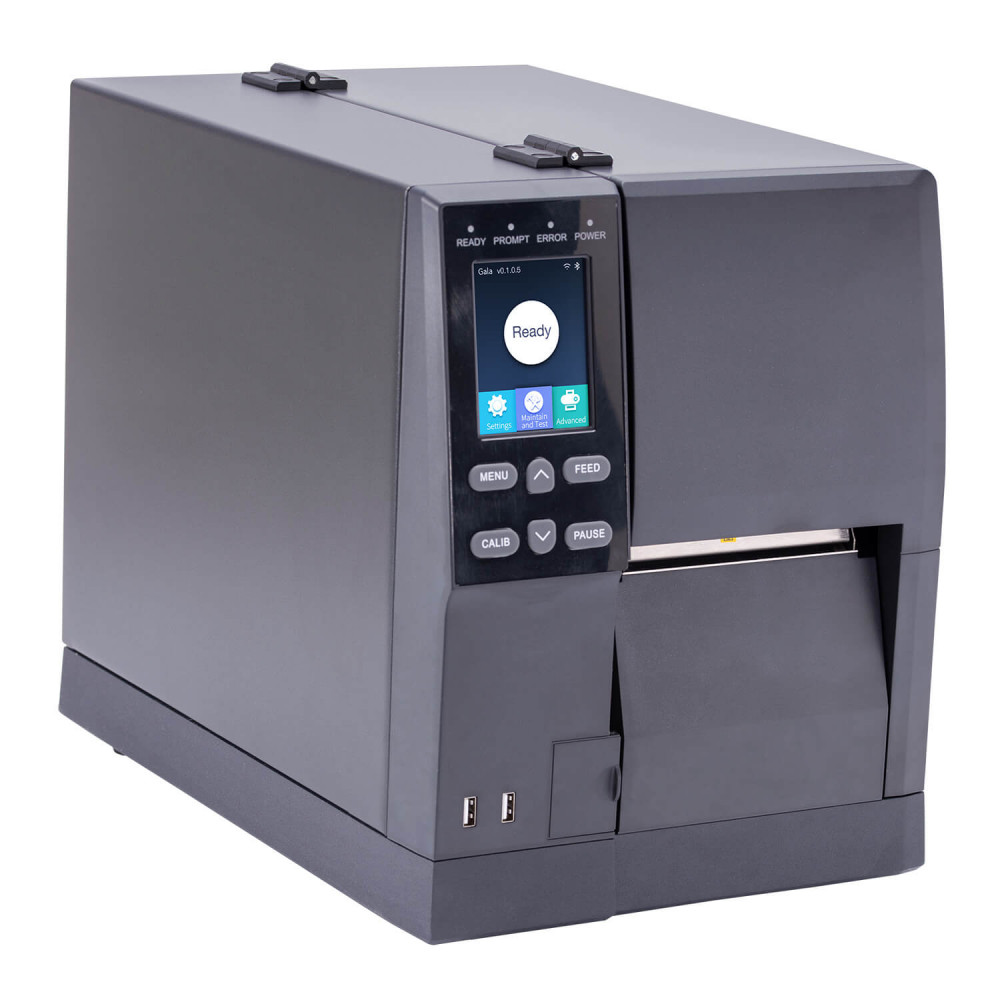

The MERTECH G700 thermal transfer printer is designed for industrial-scale label printing. It can print up to 30,000 labels in a workday, with a printing speed of up to 355 mm/sec. The thermal transfer printing technology ensures the durability of texts and images.
Technical Specifications
The industrial model prints any 1D and 2D barcodes with a resolution of 203 DPI. Supported encoding formats include QR Code and Data Matrix.
Advantages of the device:
- Thermal transfer technology.
- Information application speed: 355 mm/sec.
- Maximum label tape width up to 100 mm.
- Production of up to 30,000 labels per shift.
- Label roll diameter up to 230 mm.
- Compatibility with all types of ribbons.

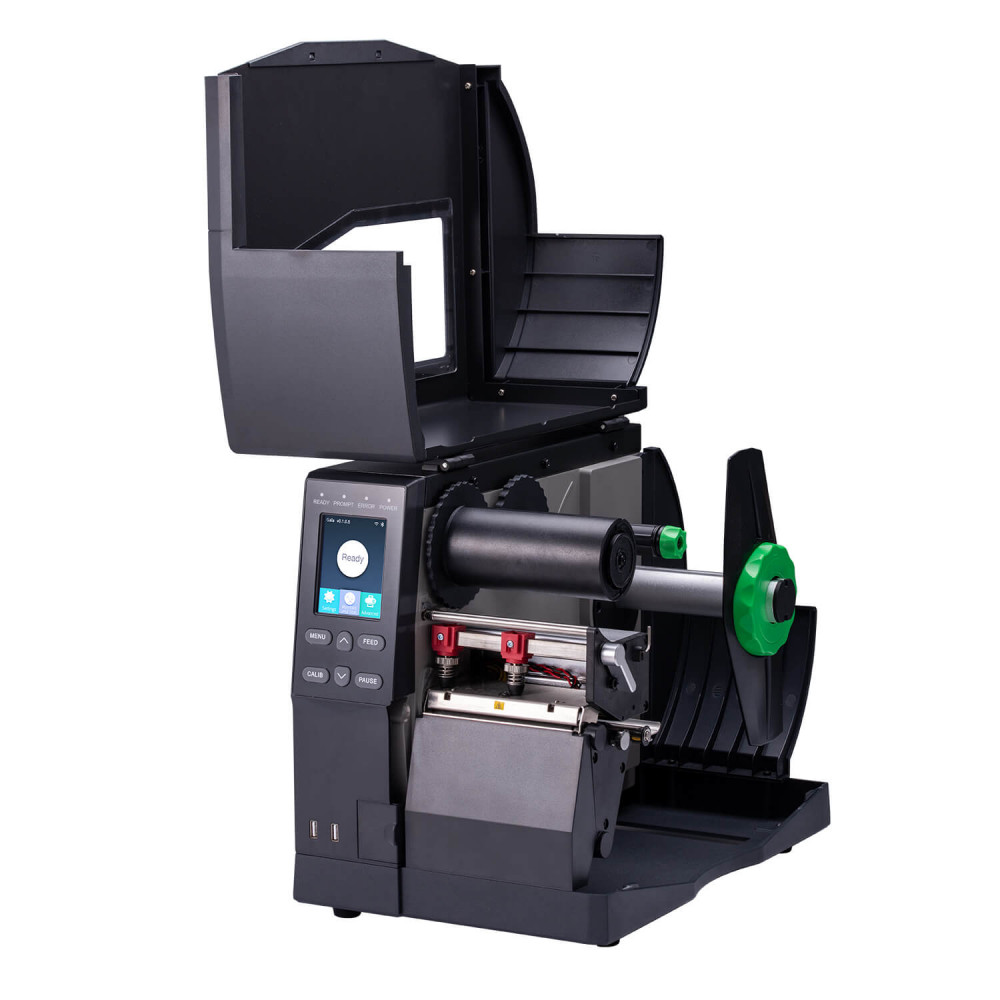

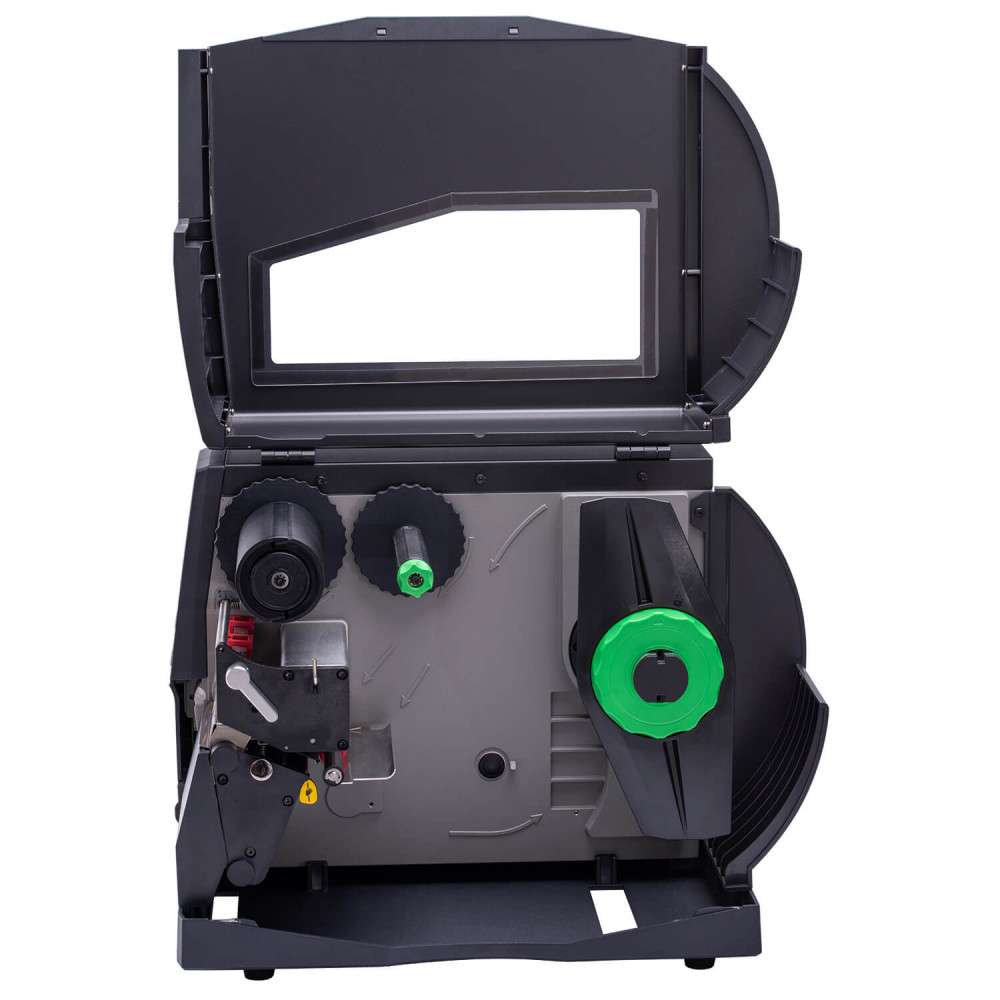

- Easy ribbon replacement with the Easy Load system.
- High-quality assembly of the body.
- Connection to PCs running Windows and Linux.

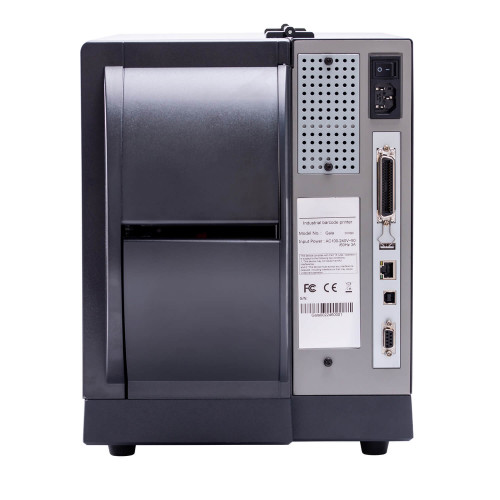

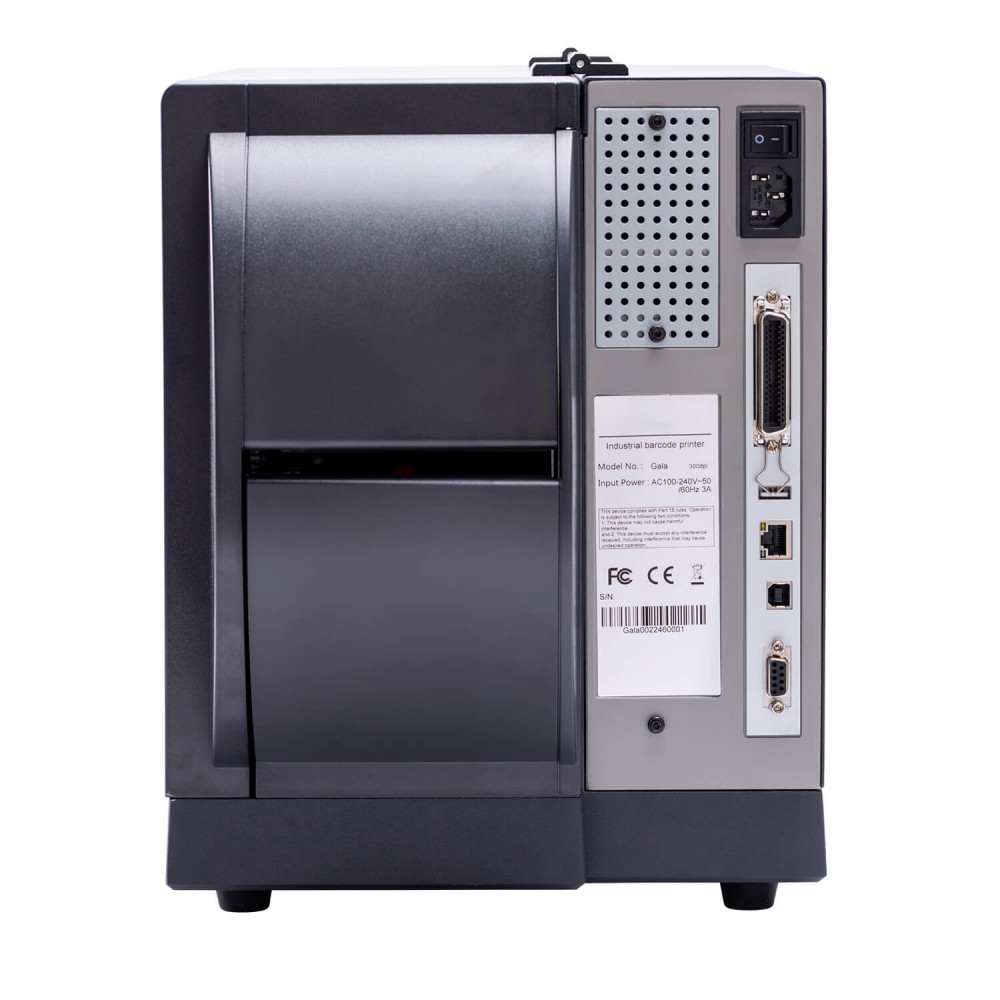

The MERTECH G700 model can be equipped with a wide range of interfaces. The basic version features USB and RS232 ports, with optional Wi-Fi, Ethernet, and Parallel interfaces available.
The device may include a cutter and a label separator, along with an external holder for rolls (available for an additional fee). The cutter blade is designed to last for 1 million labels.
With the purchase of the printer, you will gain access to the Bartender software for template management. This software allows you to create and edit printing templates, as well as add new fonts.
Order an Industrial Printer
On the MERTECH website, you can purchase the MERTECH G700 industrial printer at a low price directly from the manufacturer. Equipment delivery is available across all regions of Azerbaijan. To place an order, please submit a callback request, and our manager will contact you shortly.
| Belt width (min/max), mm | 30 - 100 |
|---|---|
| Bushing diameter, mm | 25.4 (1" inch) |
| Roll winding length, m | 450 |
| Thermal head resource | 50 km |
| Printer class | Industrial |
| Print speed | Up to 200 mm/sec |
| Print type | Thermal transfer |
| Print Resolution | 300 dpi |
| Flash memory | 256 Mb |
| RAM memory | 512 Mb |
| Printing protocol | TSPL, ZPL, EPL, DPL |
| Recommended print volume per day | 30,000 labels |
| Ribbon type | Wax based; Wax and resin based; Resin based |
| Print area length, mm | 15 - 1524 |
| Ability to download fonts | Yes |
|---|---|
| Label Separator | Yes (optional) |
| Supported code pages | PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) |
| Tape rewind function | Yes |
| Поддержка СЭУАП | Yes |
| Cutter | Yes (optional) |
| Resource of the cutter | 1 million |
| Built-in sensors | Paper present, Ribbon present, Lid open, Label gap, Print head temperature, Black marks, Ribbon end, Motor overheat temperature |
| External holder | Yes (optional) |
| OS support | Windows 2000, Vista, 7, 8, 10, 11, IOS |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49, Cadablock |
| EasyLoad | Yes |
| Supported 2D barcodes | PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code |
| Print QR code | Yes |
| Bartender Support | Yes |
| Guarantee | 2 years |
|---|---|
| Storage temperature | -20°С ~ +50°С |
| Nutrition | AC 220V, 50Hz |
| Permissible humidity | 30 - 85% (operation); 10 - 90% (storage) |
| Operating temperature | 5 ~ 40°C |
| Roll core diameter | 1.5 inches (38.1 mm), 3 inches (76.2 mm) |
|---|---|
| Paper width, mm | up to 118 |
| Paper thickness, mm | 0.08 - 0.25 (76 µm - 250 µm) |
| Roll diameter, mm | up to 230 |
| Printing material | Paper, textile and synthetic tapes, labels |
| Ribbon winding | OUT |
| Interface | USB + RS232, Wi-Fi - optional, Ethernet, Paralleli - optional |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black, grey |
| Overall dimensions (WxDxH), mm | 460x263x330 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 12.5 kg |
| Equipment | Printer, Interface connection cables (RS232 and USB), Power supply, CD with instructions and software, Warranty card, Packaging |
|---|
| Print width, mm | 104 |
|---|
-
