| Belt width (min/max), mm30 - 100 | Bushing diameter, mm25.4 (1" inch) | Roll winding length, m450 |
| Thermal head resource50 km | Printer classIndustrial | Print speedUp to 152 mm/sec |
| Print typeThermal transfer | Print Resolution203 dpi | Flash memory32 Mb |
The MERTECH G400 thermal transfer label printer belongs to the industrial class. It can print up to 30,000 labels per day. This model is suitable for labeling products in retail and small wholesale trade. It can print labels for marketplaces, labels for the "Honest Mark," and cash receipts.
Advantages of the Model
The thermal transfer printer has a reliable construction. The thermal head will not fail during the printing of 50 km of labels. The safety of operation is monitored by a system of 8 sensors. The device features a convenient control panel with a display.
When selecting templates, a wide range of fonts can be used. The thermal transfer printer prints a large number of 1D and 2D barcodes, including PDF417, Data Matrix, and QR codes. Customers have access to the Bartender program for designing labels and receipts.
The model supports a wide range of printing protocols and interfaces. The basic configuration includes USB and RS-232 cable connections to a computer. Optionally, Ethernet parallel emulation and Wi-Fi are available.

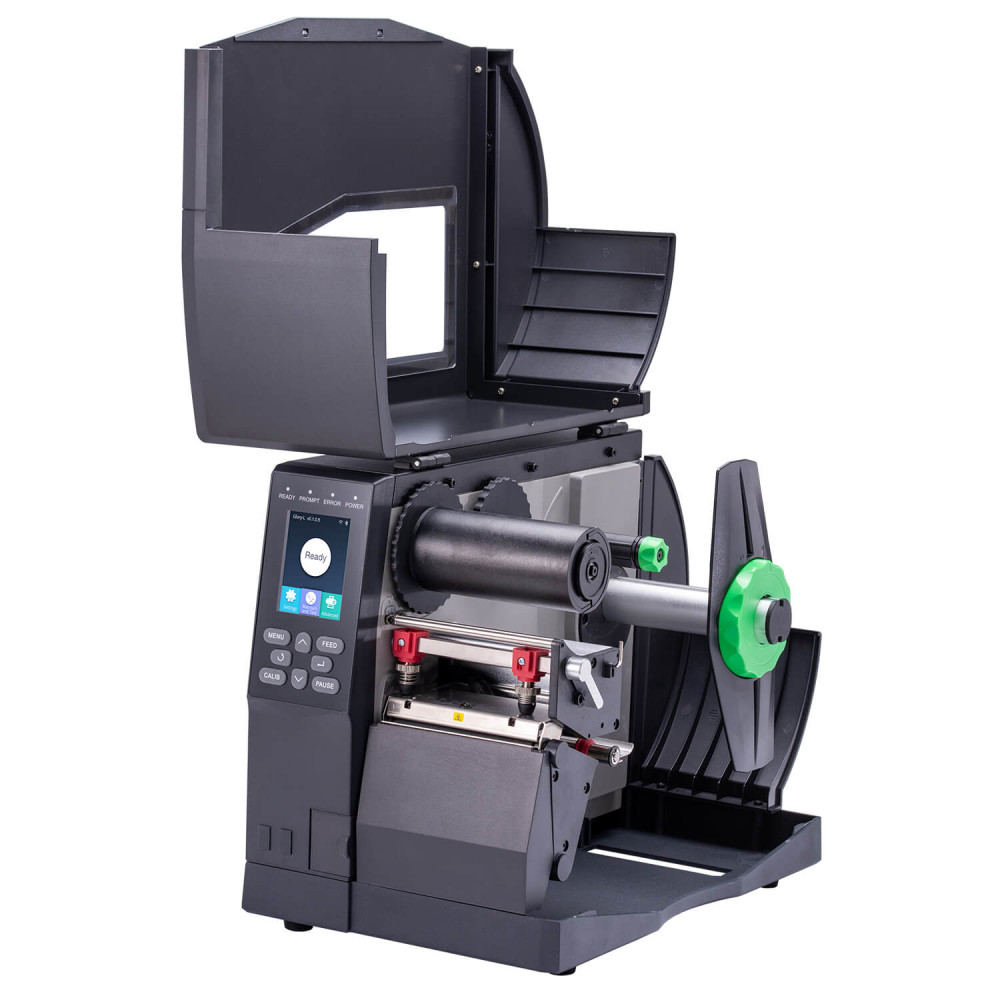

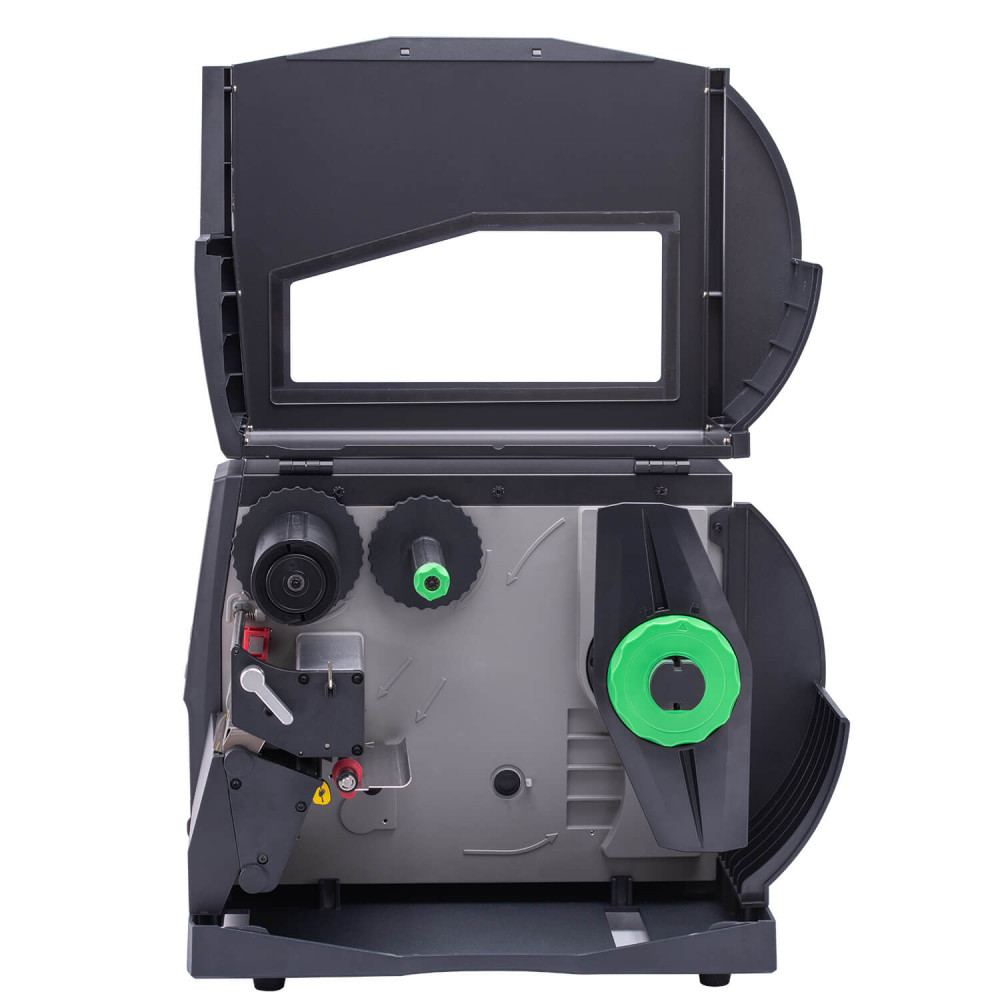

The device has a stylish casing with gray and black panels. The transparent insert allows you to observe the working process. Roll replacement is done using the Easy Load system and takes no more than 15 seconds.
Specifications
The main parameters of the MERTECH G400 model are:
- Support for TSPL, EPL, DPL, ZPL protocols.
- Operating speed: up to 152 mm/sec.
- Resolution: 203 DPI.
- Length of the printing area: 15-2286 mm.
- Width of the printing area: up to 104 mm.
- Flash memory: 32 MB.
- RAM: 128 MB.
- Dimensions: 460 x 263 x 330 mm.
- Weight: 12.5 kg.
- Warranty: 2 years.
The printer is compatible with label tape widths of 30-100 mm. The mechanism accommodates rolls with a winding length of up to 450 m and a diameter of up to 230 mm. The device prints on adhesive labels, paper tapes, textiles, and synthetic materials. Wax, resin, or component blend ribbons are suitable as consumables.
The package may include a cutter and an external roll holder. The cutter's blade will remain sharp for up to 1 million applications. Accessories for the printer are sold separately. To discuss ordering conditions and purchase equipment at a low price, leave a request on the website.
| Belt width (min/max), mm | 30 - 100 |
|---|---|
| Bushing diameter, mm | 25.4 (1" inch) |
| Roll winding length, m | 450 |
| Thermal head resource | 50 km |
| Printer class | Industrial |
| Print speed | Up to 152 mm/sec |
| Print type | Thermal transfer |
| Print Resolution | 203 dpi |
| Flash memory | 32 Mb |
| RAM memory | 128 Mb |
| Printing protocol | TSPL, ZPL, EPL, DPL |
| Recommended print volume per day | 30,000 labels |
| Ribbon type | Wax based; Wax and resin based; Resin based |
| Print area length, mm | 15 - 2286 |
| Ability to download fonts | Yes |
|---|---|
| Label Separator | Yes (optional) |
| Supported code pages | PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) |
| Tape rewind function | Yes |
| Поддержка СЭУАП | Yes |
| Cutter | Yes (optional) |
| Resource of the cutter | 1 million |
| Built-in sensors | Paper present, Ribbon present, Lid open, Label gap, Print head temperature, Black marks, Ribbon end, Motor overheat temperature |
| External holder | Yes (optional) |
| OS support | Windows 2000, Vista, 7, 8, 10, 11, IOS |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49, Cadablock |
| EasyLoad | Yes |
| Supported 2D barcodes | PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code |
| Print QR code | Yes |
| Bartender Support | Yes |
| Guarantee | 2 years |
|---|---|
| Storage temperature | -20°С ~ +50°С |
| Nutrition | AC 220V, 50Hz |
| Permissible humidity | 30 - 85% (operation); 10 - 90% (storage) |
| Operating temperature | 5 ~ 40°C |
| Roll core diameter | 1.5 inches (38.1 mm), 3 inches (76.2 mm) |
|---|---|
| Paper width, mm | up to 118 |
| Paper thickness, mm | 0.08 - 0.25 (76 µm - 250 µm) |
| Roll diameter, mm | up to 230 |
| Printing material | Paper, textile and synthetic tapes, labels |
| Ribbon winding | OUT |
| Interface | USB + RS232, Wi-Fi - optional, Ethernet, Paralleli - optional |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black, grey |
| Overall dimensions (WxDxH), mm | 460x263x330 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 12.5 kg |
| Equipment | Printer, Interface connection cables (RS232 and USB), Power supply, CD with instructions and software, Warranty card, Packaging |
|---|
| Print width, mm | 104 |
|---|
-
