| Belt width (min/max), mm30 - 110 | Bushing diameter, mm25.4 (1 inch) | Roll winding length, m450 |
| Thermal head resource50 km | Printer classIndustrial | Print speedUp to 152 mm/sec |
| Print typeThermal transfer | Print Resolution300 dpi | Flash memory32 Mb |

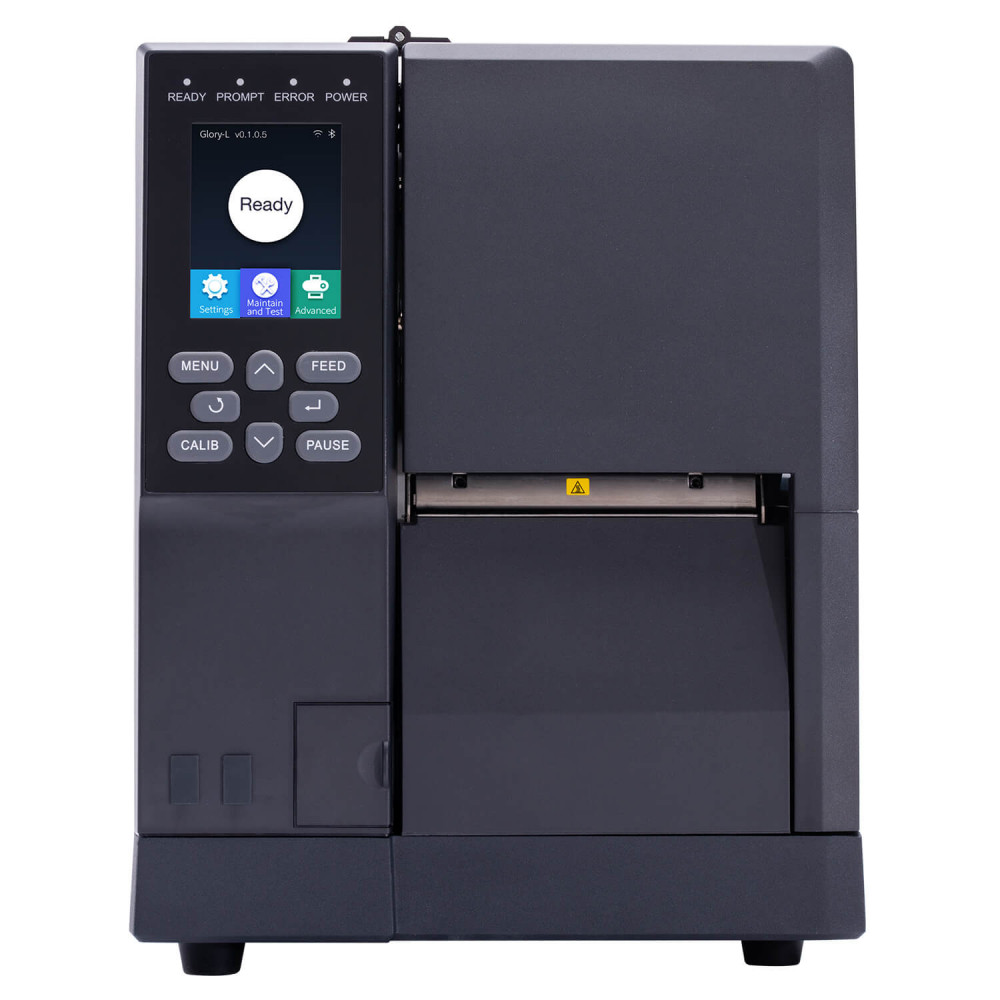

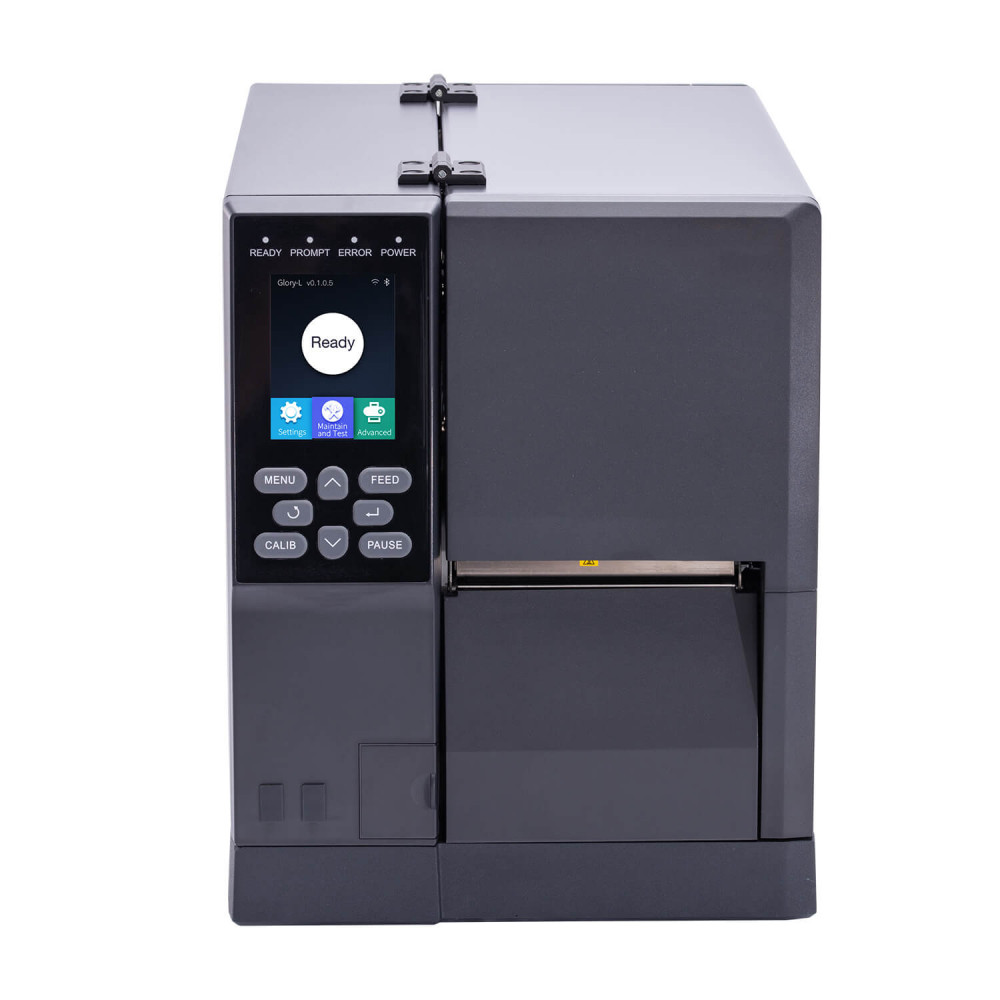

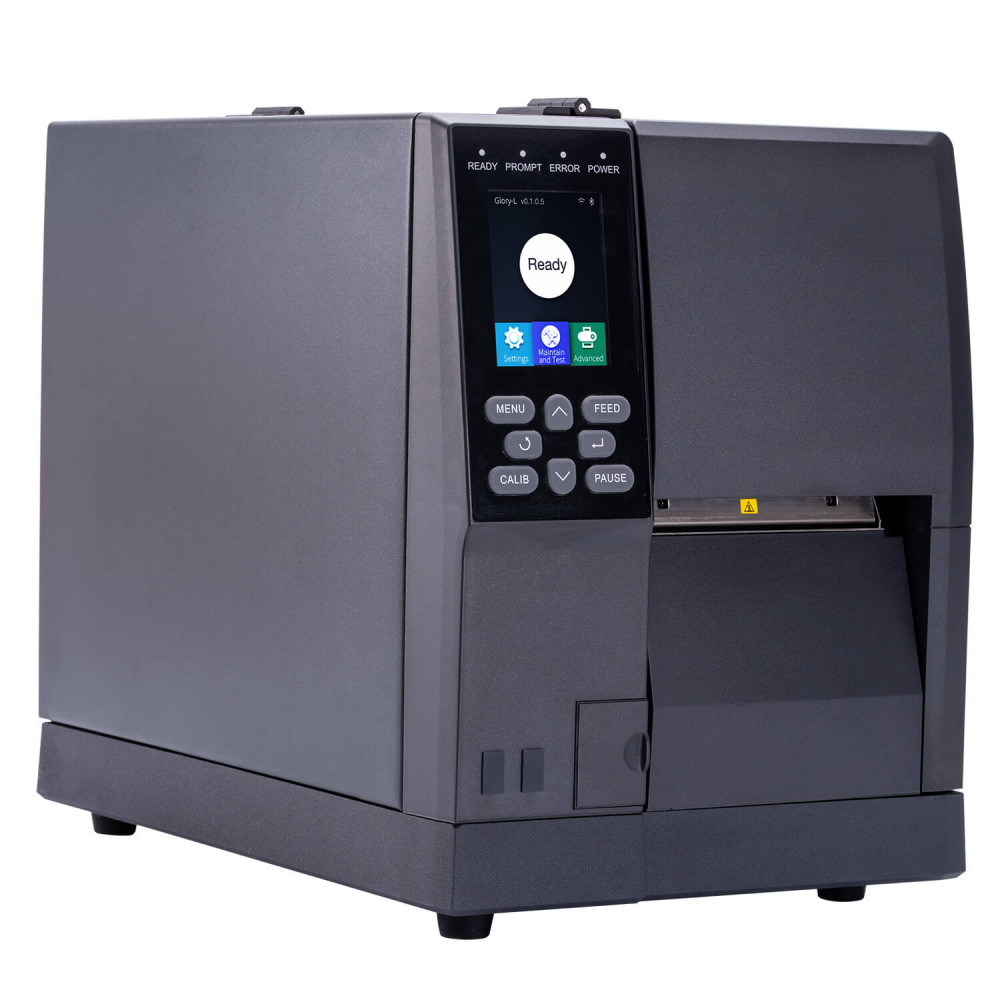

The MERTECH G400 thermal transfer printer is suitable for printing labels and receipts. The industrial-grade model prints up to 30,000 labels per day. You can use the printer to print the USAIS excise stamps and the "Honest MARK" marking codes, to make deliveries to marketplaces.
Advantages of the model
The industrial-grade printer has a reliable design. The thermal head's safety margin is designed for 50 km of receipts or labels. 8 sensors are responsible for the stable operation of the printing mechanism. You can control the settings using a convenient panel with a display.
The MERTECH G40 model supports a large number of page codes, fonts, and barcodes. When printing, you can use PDF417, Data Matrix, QR. The 300 DPI resolution allows you to print small text. You can manage printing templates in the free Bartender program.

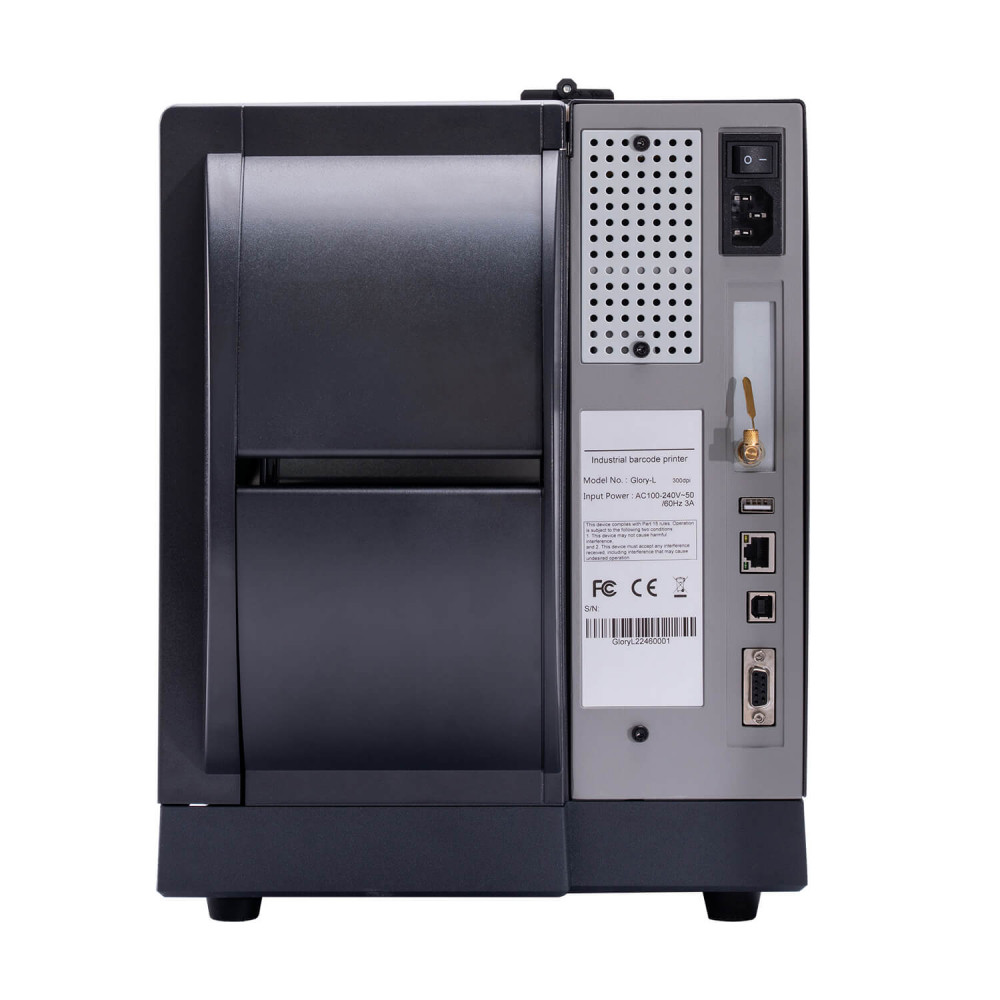

Wired and wireless interfaces are used to connect to the computer. The basic configuration includes support for USB Type B, RS-232, Ethernet and USB HOST. Optionally, a Wi-Fi connection is available.

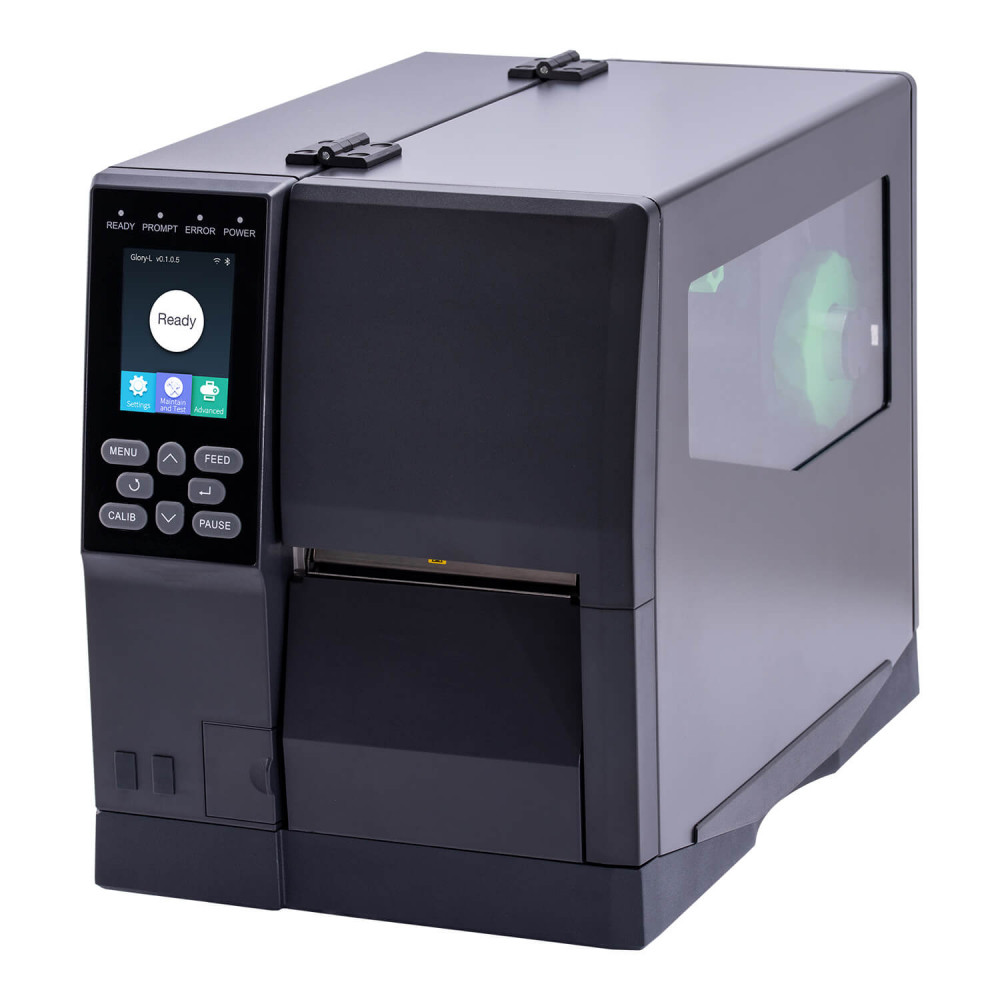

The printer has a modern design with black and grey panels. A transparent window is made on the case to monitor the operation of the mechanism and control the remaining winding of the tape. The technology takes no more than 15 seconds to replace the rolls.
Technical specifications
Characteristics of the MERTECH G400 model (300 DPI):
- Protocols: TSPL, ZPL.
- Working speed: up to 203.2 mm/sec.
- Image resolution: 300 DPI.
- Working area length: 15-2286 mm.
- Working area width: up to 104 mm.
- Flash memory: 32 MB
- RAM memory: 128 MB
- Case dimensions: 460 x 263 x 330 mm.
- Device weight: 12.5 kg.
- The warranty is 2 years.

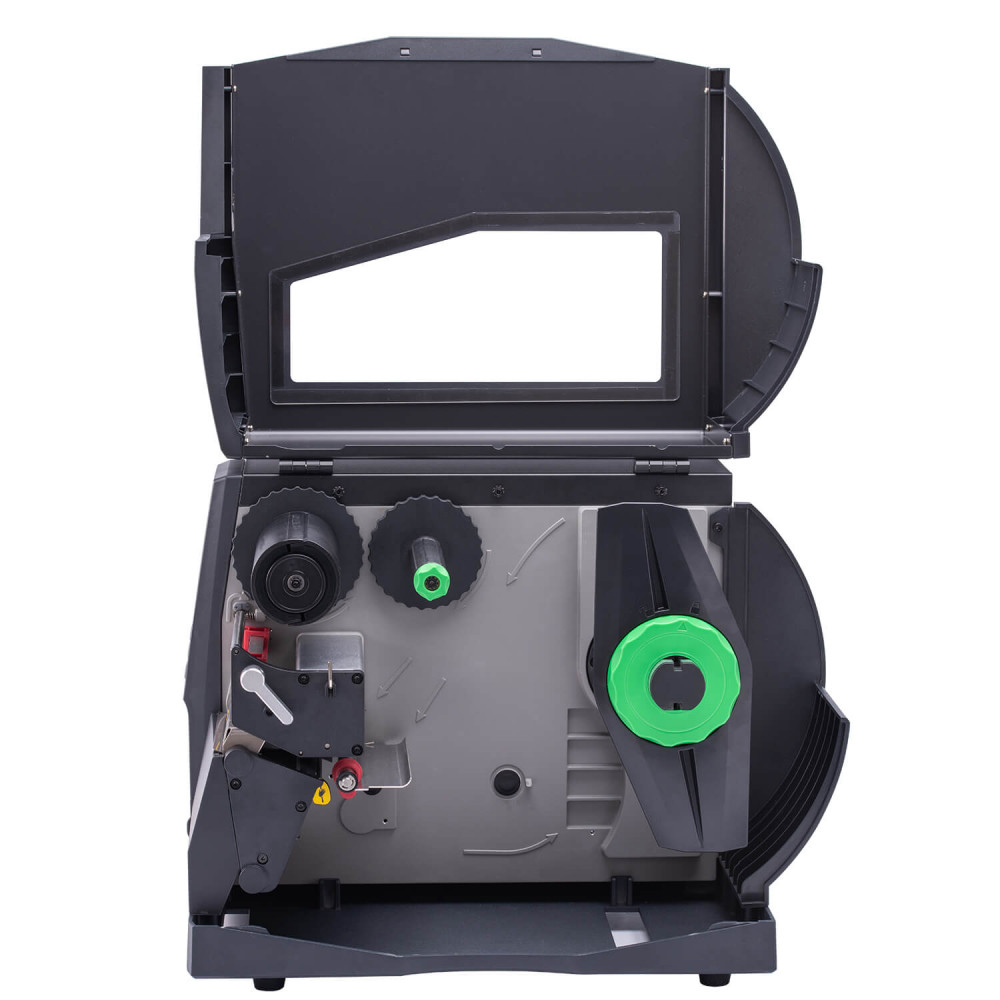

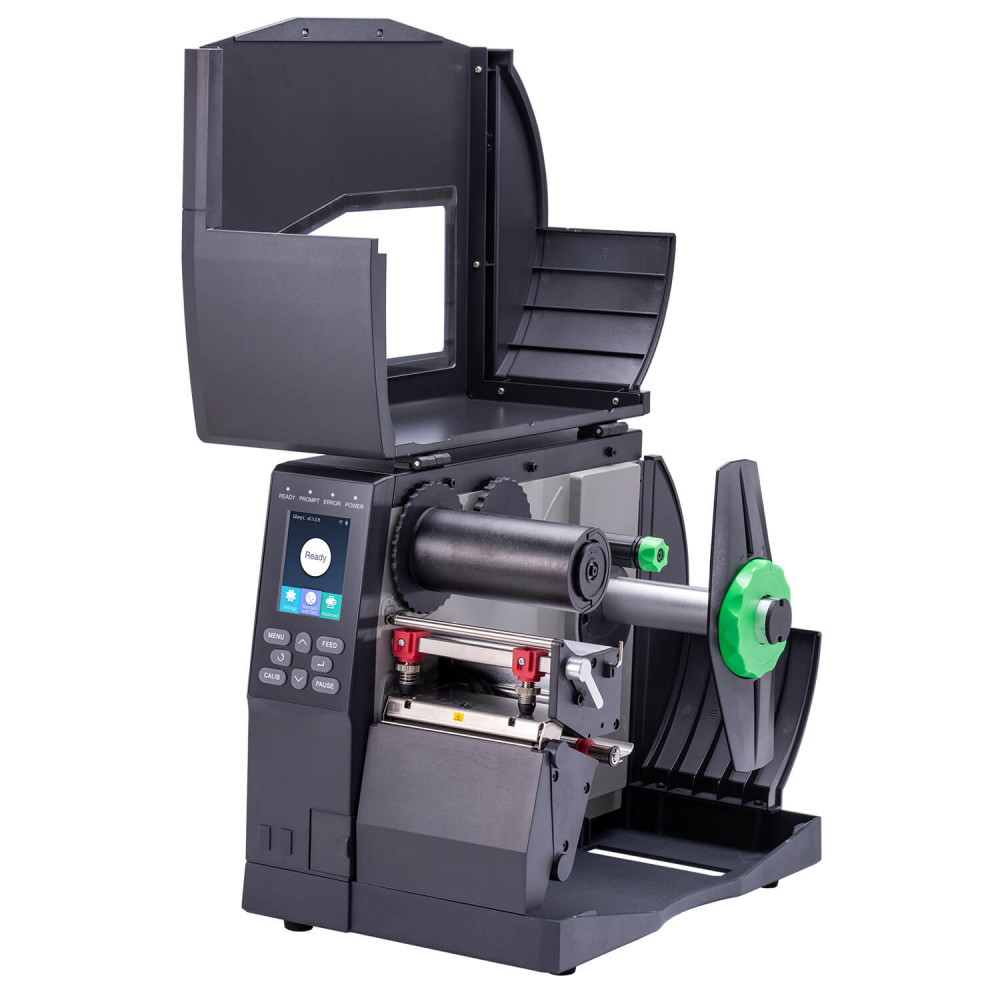

The machine prints on sticky labels and tapes made of paper, textiles or synthetic materials. Suitable tape width: from 25 to 120 mm. The compartment size is designed for rolls with a diameter of up to 254 mm and a winding of up to 450 m. The printing mechanism is compatible with ribbons made of wax, resin or a mixed composition.
As accessories, you can order an external roll holder and a cutter. The blade will stay sharp for 1 million uses. To discuss the terms of the order and buy printers at a low price, leave a request on the website.
| Belt width (min/max), mm | 30 - 110 |
|---|---|
| Bushing diameter, mm | 25.4 (1 inch) |
| Roll winding length, m | 450 |
| Thermal head resource | 50 km |
| Printer class | Industrial |
| Print speed | Up to 152 mm/sec |
| Print type | Thermal transfer |
| Print Resolution | 300 dpi |
| Flash memory | 32 Mb |
| RAM memory | 128 Mb |
| Printing protocol | TSPL, ZPL |
| Recommended print volume per day | 30,000 labels |
| Ribbon type | Wax-based; wax- and resin-based; resin-based |
| Print area length, mm | 15 - 2286 |
| Ability to download fonts | Yes |
|---|---|
| Label Separator | Yes (optional) |
| Supported code pages | PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) |
| Tape rewind function | Yes |
| Поддержка СЭУАП | Yes |
| Cutter | Yes (optional) |
| Resource of the cutter | 1 million |
| Built-in sensors | Paper availability, Ribbon availability, Lid opening, Label Gap, Printhead Temperature, Black Marks, Tape Termination, Engine Overheating temperature |
| External holder | Yes (optional) |
| OS support | Windows 2000, Vista, 7, 8, 10, 11, IOS |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock |
| EasyLoad | Yes |
| Supported 2D barcodes | PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code |
| EGAIS support | Yes |
| Print QR code | Yes |
| Bartender Support | Yes |
| Guarantee | 2 years old |
|---|---|
| Storage temperature | -20°C ~ +50°C |
| Nutrition | AC 220V, 50Hz |
| Permissible humidity | 30 - 85% (operation); 10 - 90% (storage) |
| Operating temperature | 5 ~ 40°C |
| Roll core diameter | 1.5 inches (38.1 mm), 3 inches (76.2 mm) |
|---|---|
| Paper width, mm | 25-120 |
| Paper thickness, mm | 0.08 - 0.25 (76 microns - 250 microns) |
| Roll diameter, mm | Up to 250 (up to 10 inches) |
| Printing material | Paper, textile and synthetic tapes, labels |
| Ribbon winding | OUT |
| Interface | USB Type B, RS-232, Ethernet, USB HOST, Wi-Fi — optional |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black, Grey |
| Overall dimensions (WxDxH), mm | 460x263x330 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 12.5 kg |
| Equipment | Printer, Interface connection cables (RS232 and USB), Power supply, CD with instructions and software, Warranty card, Packaging |
|---|
| Print width, mm | 104 |
|---|
-
