Printer classDesktop | Print speed100 mm/sec | Print typeDirect thermal printing |
Print area width, mm56 | Print head resource50 km | Print Resolution203 dpi |
Flash memory2 Mb | Printer typeLabel printer | RAM memory2 Mb |

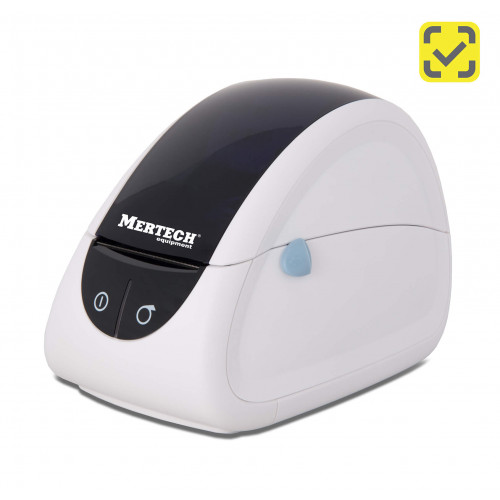

MERTECH LP58 EVA is a modern thermal printer from MERTECH. The printer prints on thermal receipt paper or on adhesive thermal labels. The device is suitable for printing receipts or labels for product labeling. It can be used in any field: in stores, pharmacies, food service establishments, and other areas of business.
Advantages of the Model
The compact thermal printer MERTECH LP58 EVA has many advantages:
- Automatically recognizes the material (paper or label). A reboot is required after changing the type of material.

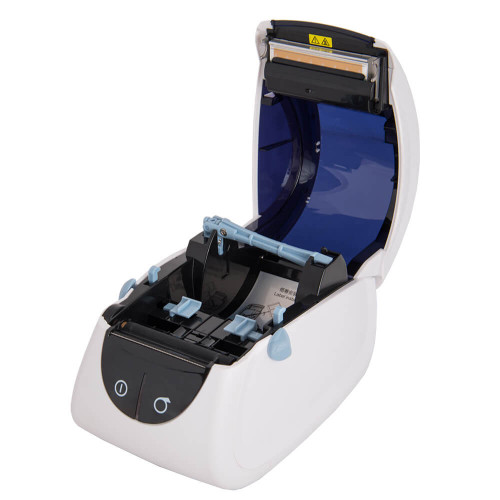

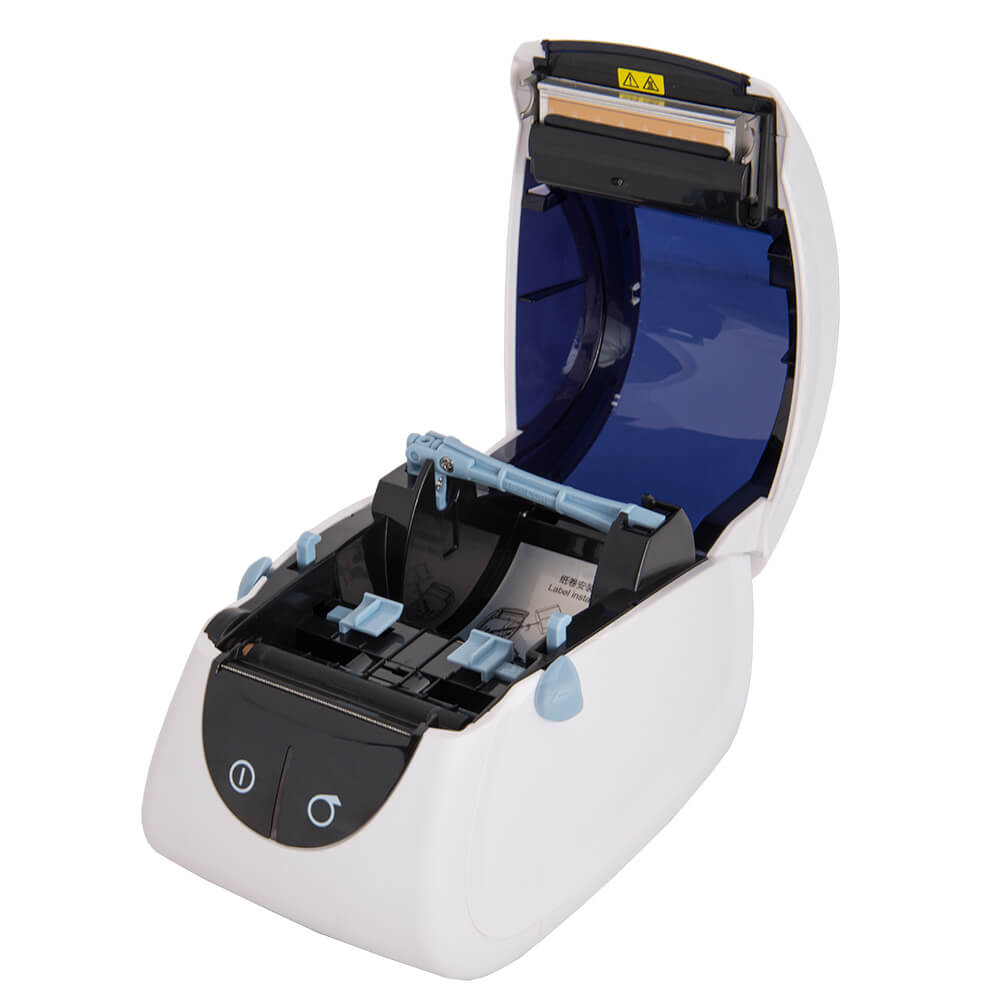

- Replacing the ribbon or material takes up to 10 seconds thanks to Easy Load technology.
- Prints all possible barcodes, including PDF417 and QR codes.
- Print speed of 100 mm per second. Print head lifespan: 50 km of receipts.
- Handles a load of up to 7000 receipts or labels per day.
- Compatible with most operating systems and inventory software. A cash drawer 6V can be connected to the device.
- The model is available in two color options. Standard design: black housing. More modern design: black, white, and blue panels.
When purchasing the MERTECH LP58 EVA thermal printer, you will receive a gift. It is a licensed version of the BARTENDER printing software. The developer of BARTENDER is Seagull Scientific (USA).
Technical Specifications
MERTECH LP58 EVA is equipped with two interfaces: RS-232 and USB. The printer can be connected to a POS system (hardware-software complex of a retail point) through either of the two interfaces. The model has an RJ12 socket for connecting a cash drawer 6V.
The desktop thermal printer prints one-dimensional and two-dimensional barcodes. In the model settings, you can choose the print quality (resolution up to 203 DPI). The panels have touch sensors to detect common errors:
- No paper.
- Label gap.
- Open lid.
The package includes a cable and power supply. The model is compatible with Windows OS computers. Driver installation is quick and easy. The software is fully translated into Russian.
After installing the drivers, you can manage printing from the computer, create labels and receipts for any product. If you encounter difficulties with driver installation or printer management, MERTECH's technical support will help connect and configure the device.
Printer class | Desktop |
---|---|
Print speed | 100 mm/sec |
Print type | Direct thermal printing |
Print area width, mm | 56 |
Print head resource | 50 km |
Print Resolution | 203 dpi |
Flash memory | 2 Mb |
Printer type | Label printer |
RAM memory | 2 Mb |
Printing protocol | TSPL, ESC/POS |
Recommended print volume per day | 7000 labels |
Print area length, mm | 15-400 mm |
Поддержка СЭУАП | Yes |
---|---|
Cutter | No |
Built-in sensors | Lid open; no paper; label gap detected |
External holder | No |
OS support | Windows 2000, Vista, 7, 8, 10, 11, IOS |
Supported fonts | Font 0 to font 8 |
Sound and visual indication | Yes |
Supported 1D barcodes | CODE128; EAN128; ITF; CODE39; CODE93; EAN13; EAN13+2; EAN8; EAN8+2; EAN8+5; CODABAR; POSTNET; UPC-A; UPCA+2; UPCA+5; UPC-E; UPCE+5; UPC-E+5; CPOST; MSI; MSIC; PLESSEY; EAN14 |
EasyLoad | Yes |
Supported 2D barcodes | PDF417; QR code MaxiCode; Data Matrix; Data Matrix inverse; QR Code; QR Inverse; Micro QR Code; Aztec Code; Aztec Inverse; Postal Code |
Feed function | Yes |
Print QR code | Yes |
Bartender Support | Yes |
Guarantee | 2 years |
---|---|
Applications of the printer | For 1C, For inventory, For shoe labeling, For warehouse, For labeling, For marketplace, For EVOTOR, For Wildberries |
Storage temperature | -10°С ~ +50°С |
Nutrition | 12V, 2A (External power adapter) |
Permissible humidity | 95% |
Operating temperature | 5 ~ 45°C |
Material width (min/max), mm | 25.4 - 58 |
---|---|
Roll diameter, mm | 90 |
Printing material | Thermal paper; Self-adhesive thermal labels |
Interface | RS-232; USB |
---|
Color | white |
---|---|
Overall dimensions (WxDxH), mm | 128*186*133 |
Weight | 800 gr |
Equipment | Printer, Interface connection cables (USB), Power supply, Warranty card, Packaging |
---|
-
