| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Weighing limit15 kg | Platform size330*255 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

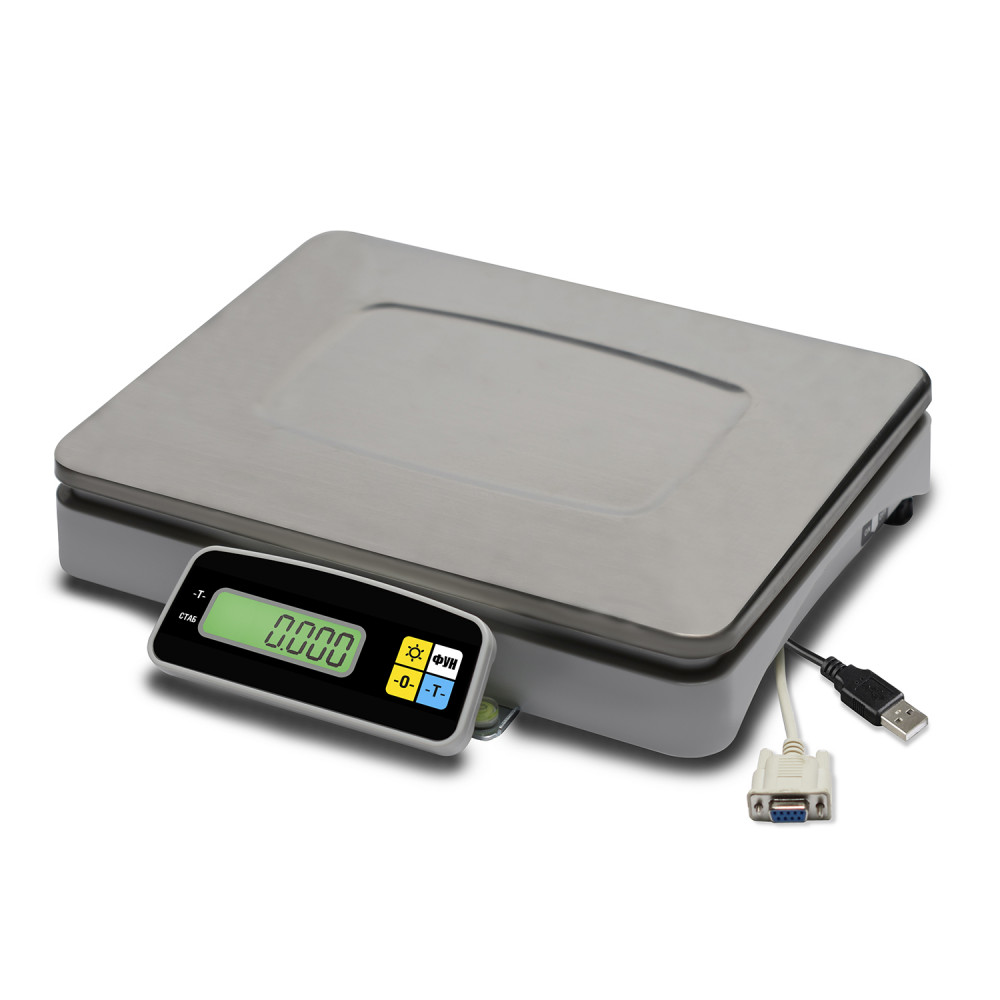

The M-ER 222 F-15.2 "Connect" LCD USB and RS-232 scales feature an ultra-thin platform. The model can be used for integration into cash registers or boxes. To do this, the display needs to be removed. The design includes 2 interfaces for connecting to a POS system: RS-232 and USB-COM. The weighing results are displayed on an external LCD screen (with backlight).
Design Features
The 222 F "Connect" model is distinguished by its compact dimensions. Body size: 330*320*80 mm. The size of the weighing platform is 330*255 mm. This is one of the thinnest models available on the market. The catalog presents 2 variants of the model. They differ in technical specifications:
- M-ER 222 F-15.2. Maximum load – 15 kg. Minimum – 40 g. Division price – 2 g.
- M-ER 222 F-32.5. Maximum load – 32 kg. Minimum – 100 g. Division price – 5 g.
The accuracy class of weighing is III (for trade). The declared characteristics are confirmed by state verification. The model operates on the CAS-M protocol. In addition to simple weighing, the tare weight subtraction mode is available.
Embedded scales save space on the cashier's desk. They expedite customer service. The weighing results are transmitted to the POS computer and added to the cash receipt. The cashier only needs to specify the type of product. All other operations are conducted automatically.
Connection and Setup
A flat, vibration-free surface is suitable for installation. To ensure accurate measurements, the platform should be installed horizontally. The position of the weighing platform can be adjusted using vertical supports.
Connection to the POS computer is made via RS-232 and USB-COM. Cables are included in the package. Synchronization with most online cash registers and smart terminals occurs using free drivers. We guarantee compatibility with Mercury, Evotor, Atol, MTS, Shtrikh, and other brands' equipment.
The M-ER 222 F-15.2 "Connect" LCD USB and RS-232 operates from the electric network. After installation and connection of the scales, the LCD screen will undergo a check. When the readings equal "0," the device will be ready for operation. The stabilization indicator will automatically turn on.
Place an Order
You can purchase the M-ER 222F "Connect" trading scales at the manufacturer's price. We sell weighing equipment without markup. Delivery of orders is carried out in Baku and throughout Azerbaijan. Free consultations on installation, connection, and setup of the scales are available for customers. To purchase weighing equipment, please submit a request on the website.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Weighing limit | 15 kg |
| Platform size | 330*255 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Tare sampling range | The whole range |
|---|---|
| Units of measurement | Gr; kg |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For connection to a POS computer, For food products |
| Verification | Yes |
| Nutrition | via USB |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| Interfaces | RS-232; USB |
|---|
| Overall dimensions (WxDxH), mm | 340*240*77 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic, metal |
| Weight | 3.75 kg |
| Keyboard type | Industrial sensor |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | IP 54 |
| Adjustable supports | Yes |
-
