| Scanner typeStationary | Scanning element2D image | Scanning speed350 scans/sec |
| Connection typeWired | Scanner resolution640(h)х480(v)Px | Scanning coverage angle50º(h)x35º(v) |
| Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast25% | Reading barcodes1D, 2D |

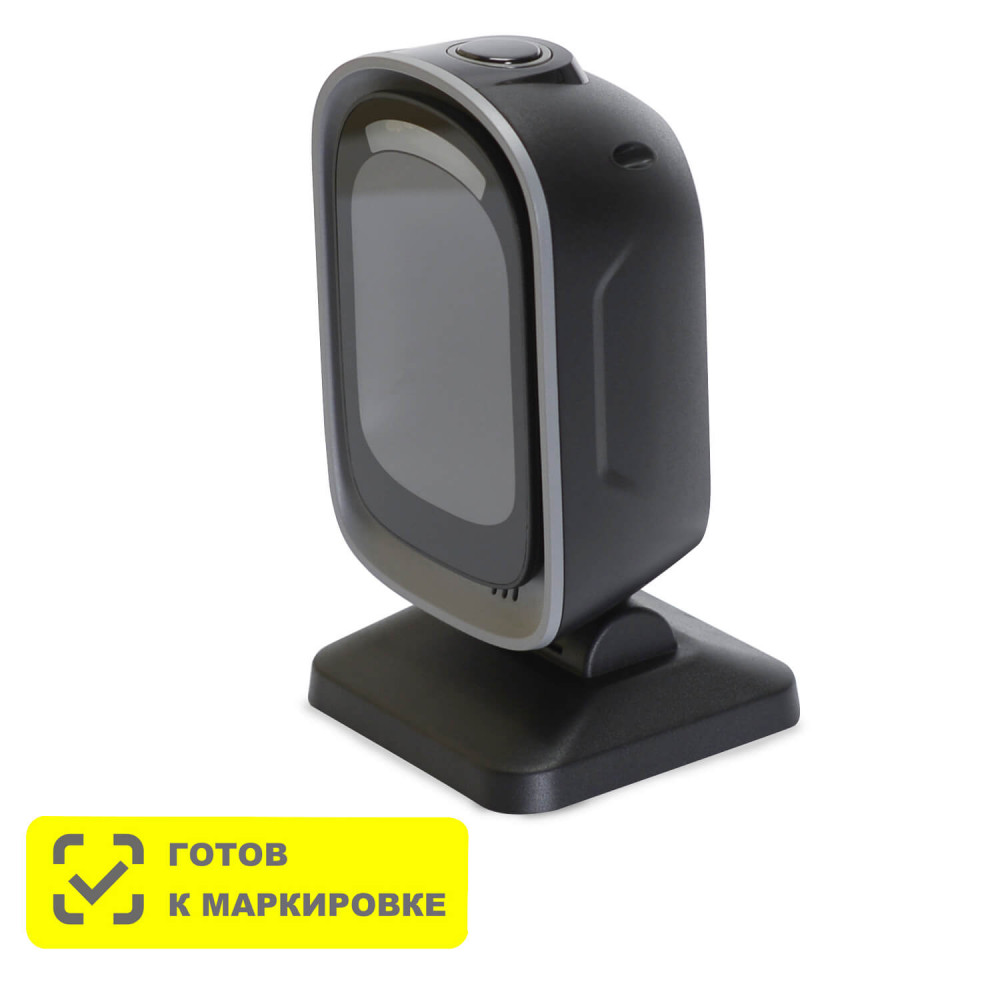

The MERTECH 8500 P2D Mirror stationary scanner recognizes linear and two-dimensional barcodes. The scanner uses SuperLead technology, patented by MERTECH. The device performs up to 350 scans per second. The model is distinguished by its small size and original design.
Technical Specifications
The body is made of primary plastic and polycarbonate (ABC+PC). Material color: black. Body dimensions: 150*85*80 mm, with a device weight of 270 grams. Thanks to its reinforced design, this scanner withstands shocks and falls from a height of up to 1.5 meters. The degree of protection of the body against dust and moisture: IP 54.
Let's list the specifications of the model:
- Barcode recognition distance: 210 mm.
- Type of scanning module: 2D Image.
- Allowed code contrast: 25%.
- Barcode resolution: up to 4mil.
- Scanning coverage angle: 50º(h)x35º(v).
- Screen resolution: 640*480 pixels.
- Screen backlight: LED 650 nm (red).
- Power consumption: 5V/500mA.
The device operates in manual or automatic mode. A convenient control button is used to switch between modes. The scanner connects to a POS system or workstation via a USB-HID interface. USB-COM and RS-232 interface emulation is available.
Advantages of the Model
In terms of functionality, it is comparable to expensive multi-plane scanners. The price of the device is accessible to a wide range of entrepreneurs.
The main advantages of the model:
- Reads all popular 1D and 2D barcodes.
- Recognizes damaged and poorly printed codes.
- Reads labels from smartphone screens and mirrored surfaces.
- Instead of a laser, a photoelectric element is used, safe for the cashier's eyes.
- Improved backlighting enhances the speed and accuracy of scanning.
- Special grooves for secure mounting on the cashier's table.
- The angle of the body is adjustable manually.
It can be used in retail and wholesale stores, in pharmacies, at gas stations.
Place an Order
On our website, you can purchase the MERTECH 8500 P2D Mirror scanner at the manufacturer's price. We deliver MERTECH equipment to any regions of Azerbaijan. Delivery is carried out through our own dealer network, without markup. To place an order, submit a request on the website.
| Scanner type | Stationary |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 350 scans/sec |
| Connection type | Wired |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 50º(h)x35º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 25% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 210 mm |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | White 6500 LED |
|---|
| 5 MIL | 0-60 mm |
|---|---|
| 13 MIL | 0-200 mm |
| Minimum scanning resolution | 4 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -40°С ~ +70°С |
| Permissible humidity | 0% ~ 95% |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For SEUAP, For warehouse, For store, For marking, For Honest Sign, Medical |
| Operating temperature | 0°С ~ +50°С |
| Drop test | Withstands multiple drops from a height of 1.5 m |
| Interface | USB-HID; USB-COM - emulation; RS232 - optional |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 147*83*80 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 270 gr |
| Gross weight, g | 430 |
|---|---|
| Box dimensions, mm | 160*95*85 |
| Equipment | Scanner, USB type A cable (205 cm), Manual, Warranty card, Packaging |
-
