| Printer classDesktop | Print speedUp to 230 mm/sec | Print typeDirect thermal printing |
| Print area width, mmUp to 72 | Print head resource100 km | Print Resolution203 dpi |
| Flash memory4 Mb | Printer typeReceipt printer | RAM memory4 Mb |
The MERTECH Q80 receipt printer with Ethernet, RS232, and USB in black is suitable for retail stores, pharmacies, gas stations, cafes or restaurants, beauty salons, hotels, and other types of businesses. The new model is compatible with the СЭУАП system and for the sale of marked goods.
Advantages of the Model
The thermal printer prints receipts at a speed of 230 mm/sec. The high speed reduces the service time for each customer. The resolution is 203 dpi. The software supports printing a wide range of fonts and all popular barcodes.

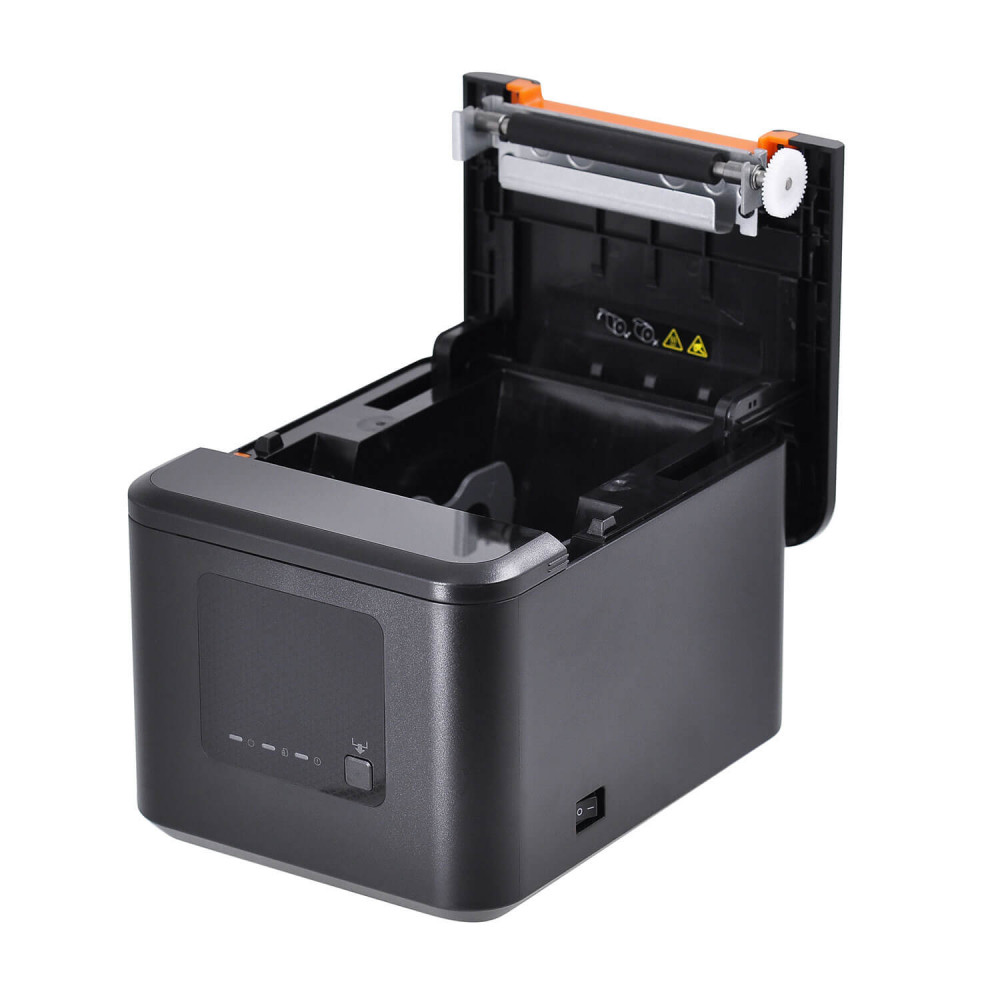

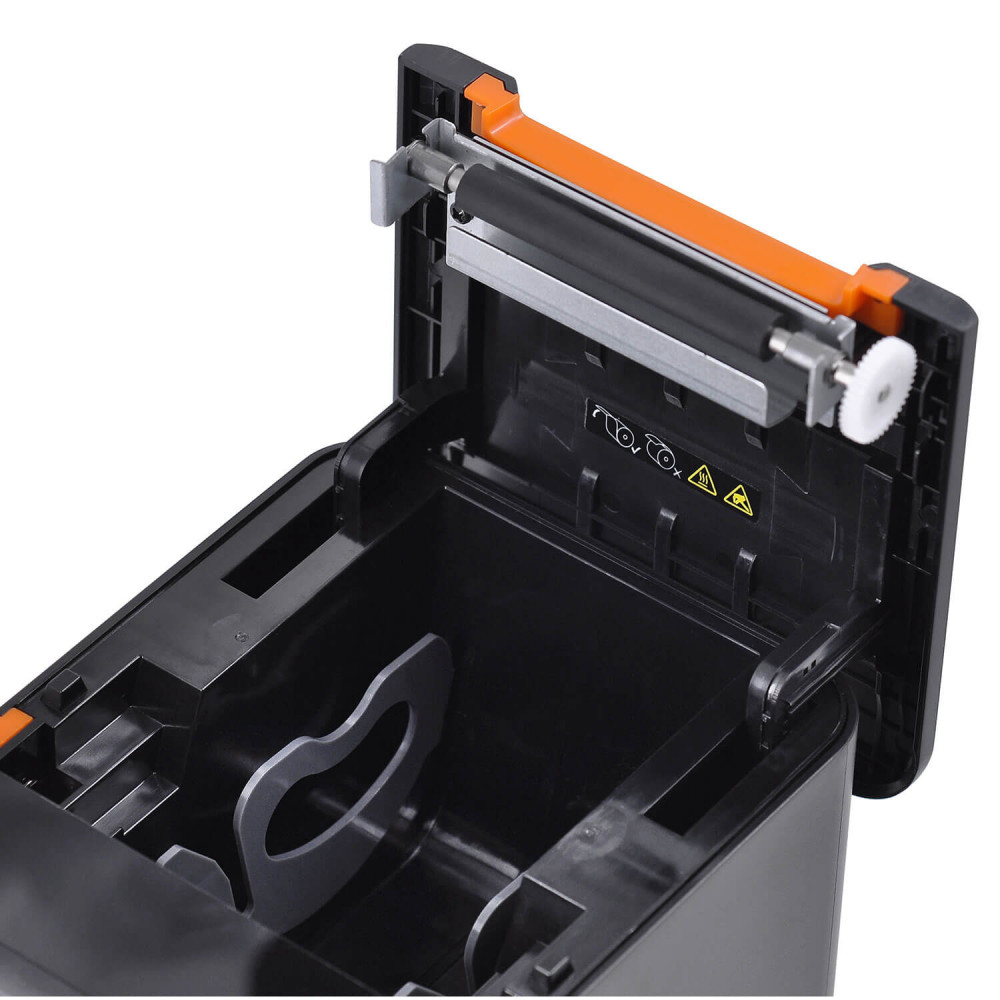

The service life of the thermal head is rated for 100 kilometers of receipts. The design includes a cutter that is rated for 1.5 million receipts. It is compatible with rolls up to 83 mm in diameter. Replacing the roll can be done in 10-15 seconds without much effort.
The correct operation of the printing mechanism is ensured by automatic sensors. The design includes sensors for roll installation, lid opening, thermal head overheating, and knife hang-ups.
Technical Specifications
Main specifications of the MERTECH Q80 thermal printer:
- Supports ESC/POS protocol.
- Paper width: 58 or 80 mm.
- RAM Memory: 4 MB.
- FLASH Memory: 4 MB.
- Dimensions: 140x179x117 mm.
- Warranty period: 2 years.
The device can be connected to a cash register or POS system via USB or RS232 port. Ethernet connectivity is an additional option, as is installing the RJ12 cash drawer. The device is compatible with all popular operating systems, including Windows 7-10, Linux, and MacOS.
You can order receipt printers at the lowest price on the official MERTECH website. Delivery of commercial equipment is conducted throughout Azerbaijan. To purchase printers for printing receipts, leave a quick request on the website.
| Printer class | Desktop |
|---|---|
| Print speed | Up to 230 mm/sec |
| Print type | Direct thermal printing |
| Print area width, mm | Up to 72 |
| Print head resource | 100 km |
| Print Resolution | 203 dpi |
| Flash memory | 4 Mb |
| Printer type | Receipt printer |
| RAM memory | 4 Mb |
| Printing protocol | ESC/POS |
| Поддержка СЭУАП | Yes |
|---|---|
| Cutter | Yes |
| Resource of the cutter | 1.5 million |
| Built-in sensors | Overheating of the TPG, presence of paper, opening of the lid, knife hanging |
| External holder | No |
| OS support | Windows 7/8/10, Windows Server 2008/2012/2016, Linux, Javapos, OPOS, MacOS |
| Supported fonts | Chinese BIG-5, GB18030, Japanese S-JIS, Korean KS-X1001 Encodings -47 |
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC-A, UPC-E, Code 39, Code 93, Code128, EAN128, EAN8, EAN13, Interleaved 2 of 5 |
| EasyLoad | Yes |
| Supported 2D barcodes | QR Code; PDF417 |
| Receipt tape rewind function | Yes |
| Print QR code | Yes |
| Guarantee | 2 years |
|---|---|
| Resistance to external influences | IP42 |
| Storage temperature | -20°С ~ +60°С |
| Nutrition | DC 24V, 1.5A |
| Permissible humidity | 5 - 95% (operation); 15 - 95% (storage) |
| Operating temperature | -0°С ~ +45°С |
| Paper width, mm | 58/80 |
|---|---|
| Paper thickness, mm | 0.056 - 0.13 |
| Roll diameter, mm | up to 83 |
| Printing material | Receipt tape |

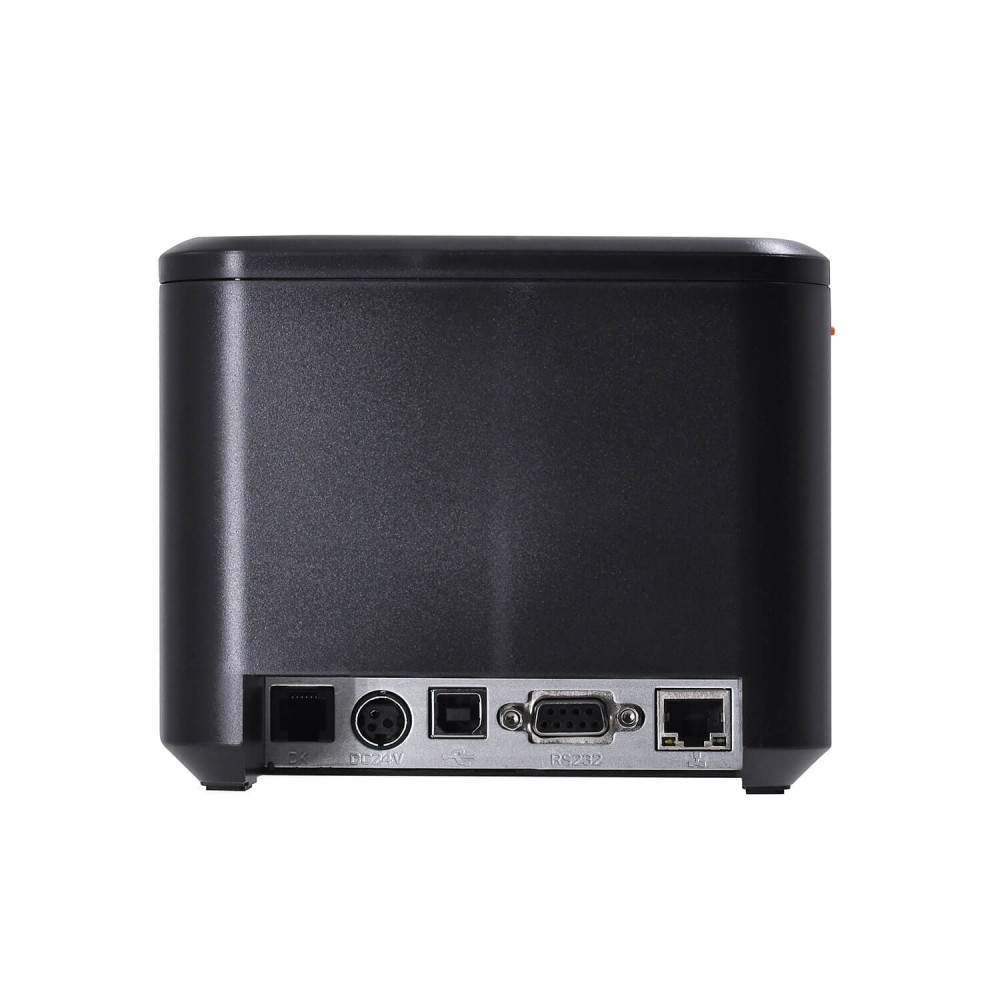

| Interfaces | USB, RS232, Ethernet, RJ12 (cash drawer) |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 140*179*117 |
| Body material | ABC + PC (plastic + polycarbonate) |

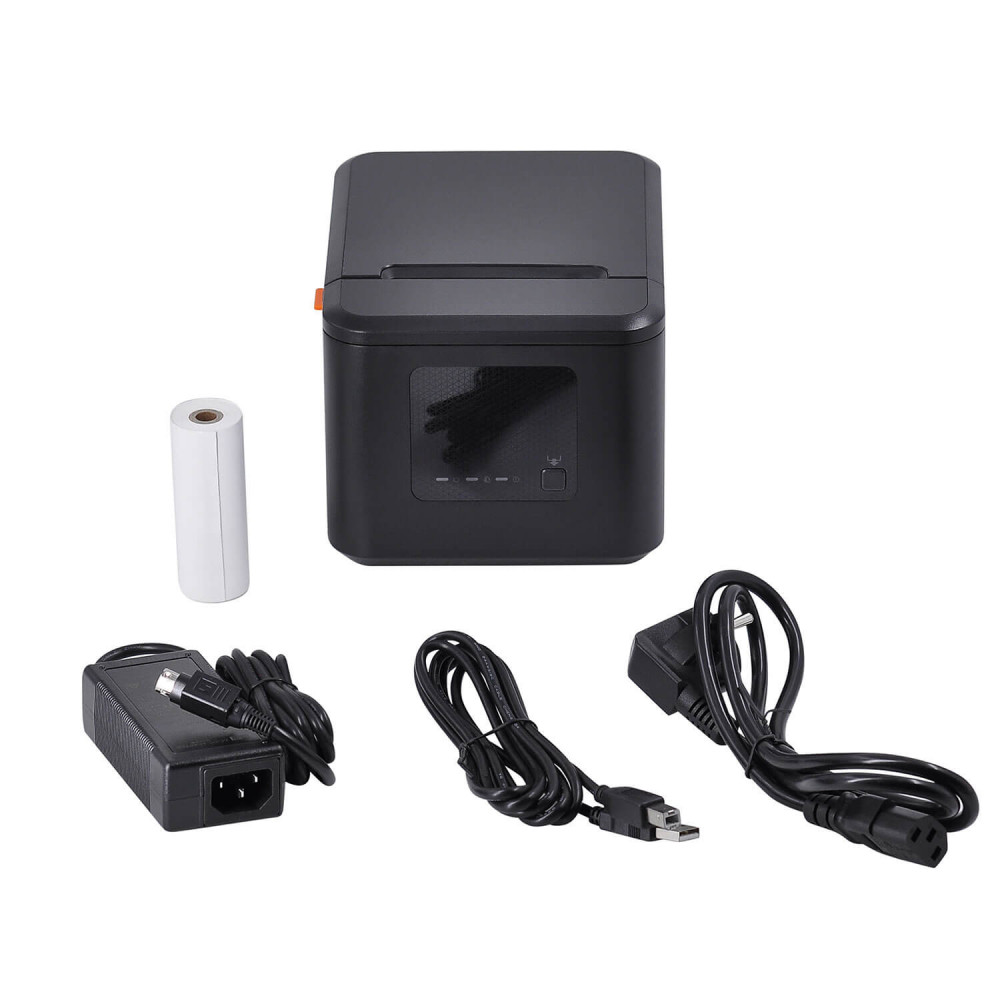

| Equipment | Printer; Interface connection cables (RS232 and USB); Power supply; Warranty card; Packaging |
|---|
-
