| Printer classDesktop | Print speed230 mm/sec | Print typeThermo |
| Print area width, mmUp to 72 | Print head resource150 km | Print Resolution203 dpi |
| Flash memory4 Mb | Printer typeReceipt printer | RAM memory2 Mb |

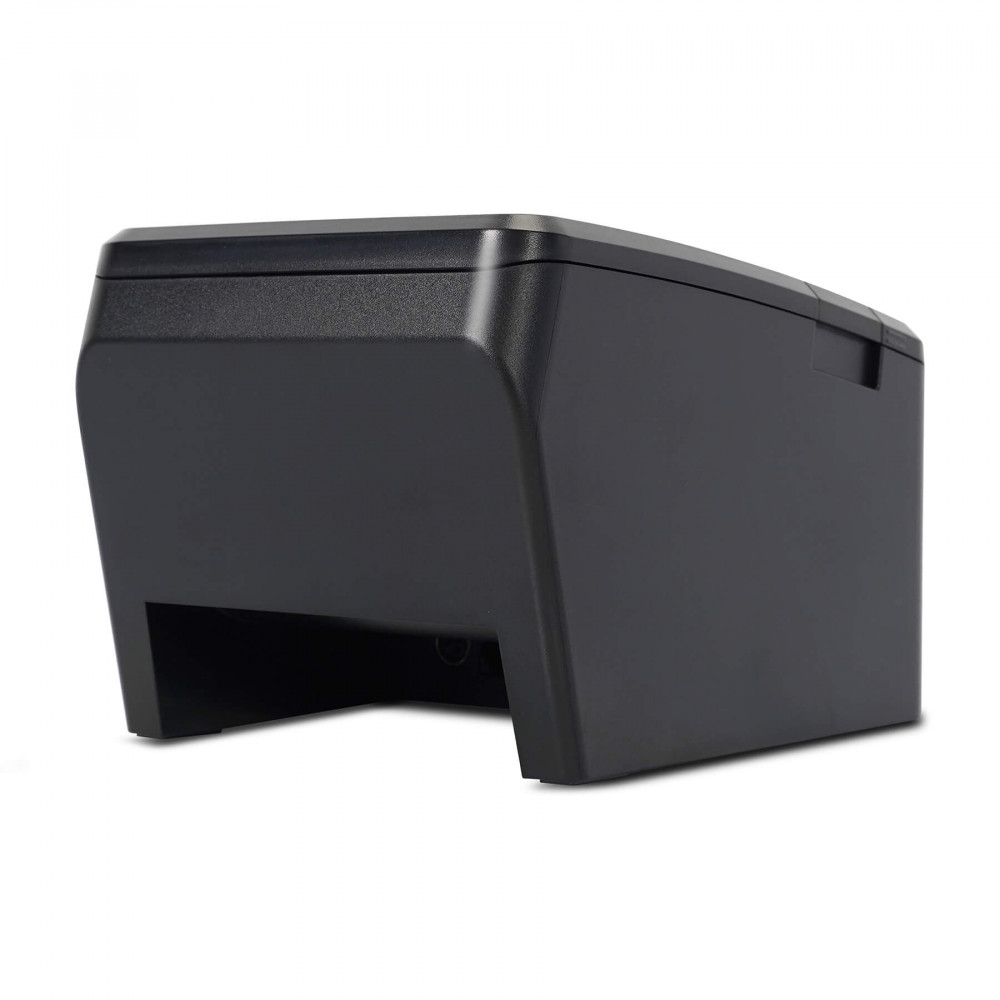

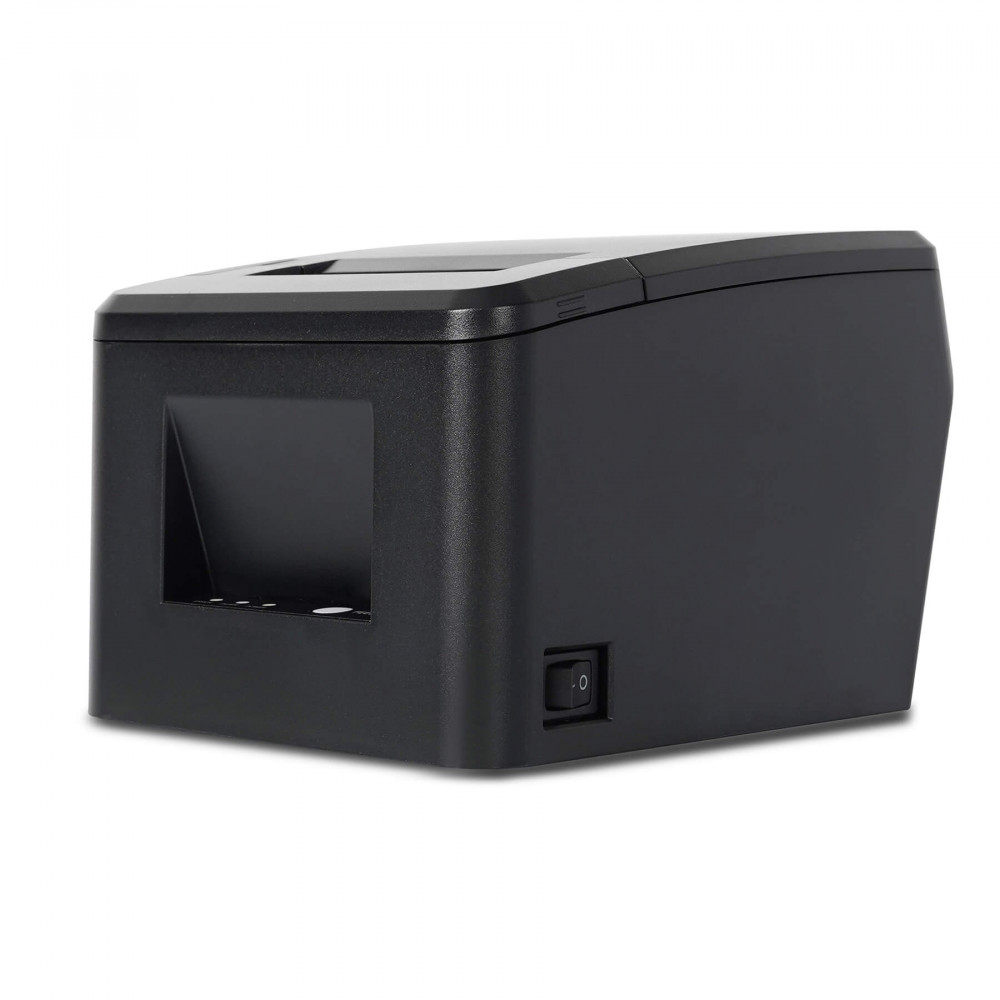

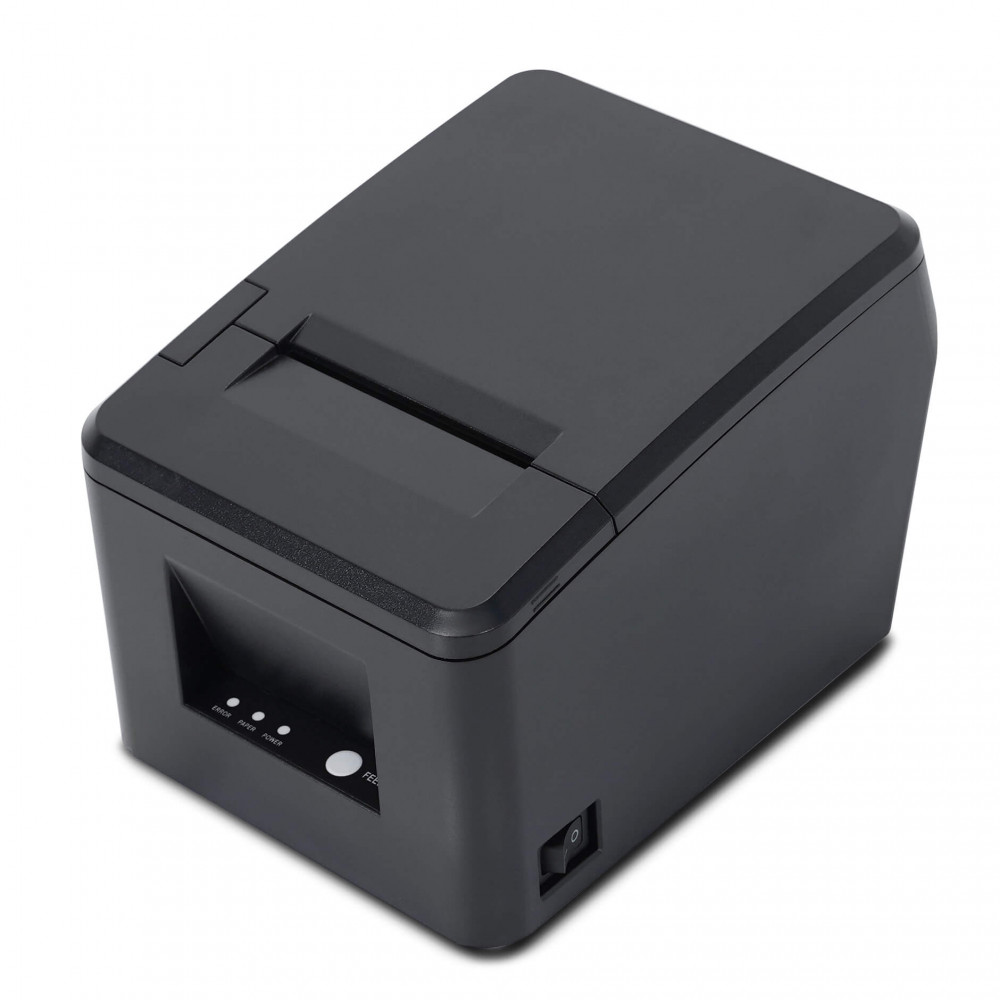

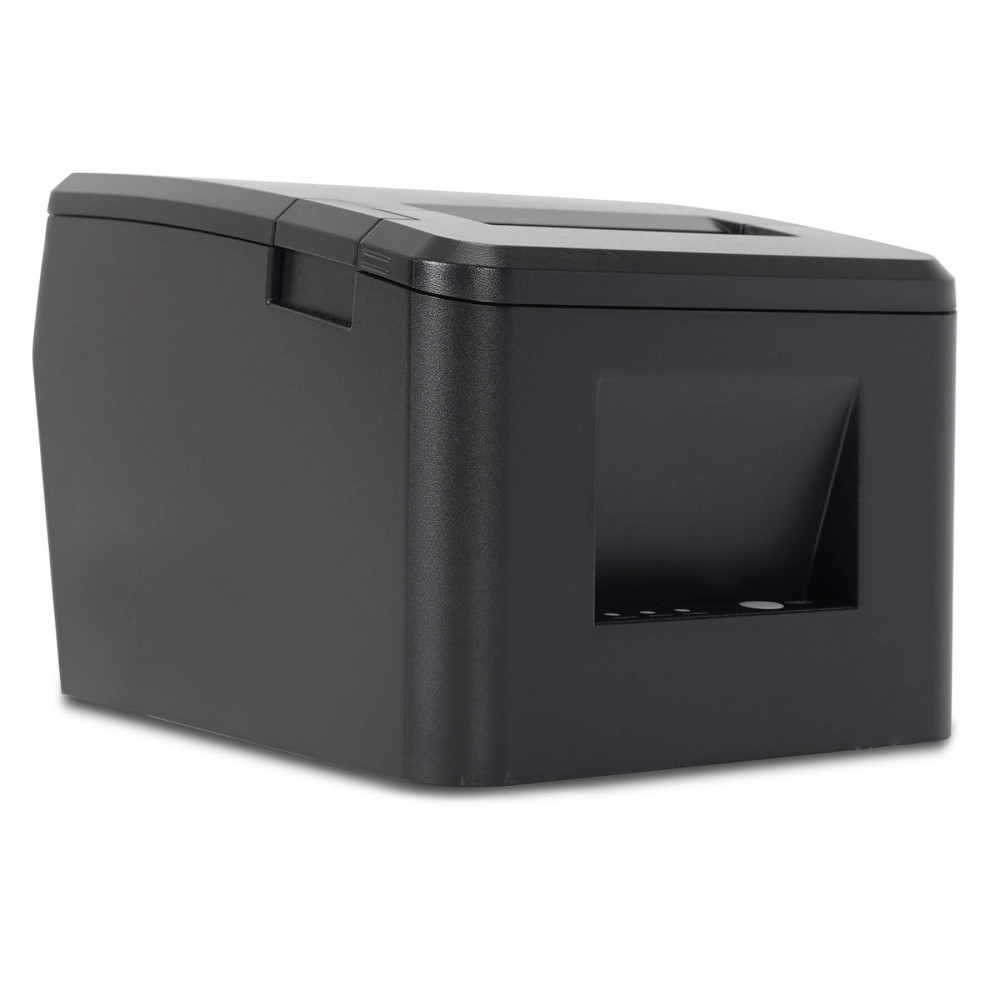

MERTECH 80 is a desktop thermal printer for receipt printing. The device is available in several modifications. They differ in the set of available interfaces. This version of the printer can connect to the cash register via RS-232, USB, RJ12, Ethernet.
Technical Specifications
The MERTECH 80 printer operates on the principle of thermal printing. The information medium is a thermal receipt paper with a sensitive layer. When the heated thermal head touches the paper, the surface of the medium darkens.
Printer specifications:
- Maximum speed: 230 mm/sec.
- Image resolution: up to 203 dpi.
- Medium material: thermal receipt paper.
- Thermal paper width: up to 80 mm.
- Data print width: up to 72 mm.
- Medium thickness: 0.056 - 0.13 mm.
- Roll diameter: 83 mm.
- Printing protocol ESC/POS.
The core of the chassis is a sturdy metal frame. Panels made of polycarbonate and plastic (ABS+PC) are attached to it. The panels protect the mechanism from impacts, including those resulting from falls. Degree of protection against dust and moisture: IP 42. Panel color: black.
Model Advantages
The MERTECH 80 receipt thermal printer can print linear and two-dimensional codes. Linear barcodes such as EAN 13, EAN 8; ITF; UPC-A; UPC-E; CODEBAR; CODE 39, 93, 128 are available for printing. It also prints two-dimensional barcodes PDF417 and QR.
The model includes a receipt cutter. Cutter lifespan: 2 million cuts. The thermal head can print 150 kilometers of receipts. The printer has a paper presence sensor and a cover open sensor. There are light and sound indicators for monitoring operation.
The thermal printer memory capacity: RAM 2 MB, Flash 4 MB. The package includes free software for managing print templates. The device supports ASCII and GBK fonts, Encoding 47. The model has been adapted for use with the automated management system.
How to Place an Order
You can buy the MERTECH 80 printer with delivery in Baku on the official MERTECH website. Only on the official site, the equipment is sold at low prices. Delivery is carried out to any settlements. To purchase receipt printers, leave a request on the site and wait for a call from the manager.
| Printer class | Desktop |
|---|---|
| Print speed | 230 mm/sec |
| Print type | Thermo |
| Print area width, mm | Up to 72 |
| Print head resource | 150 km |
| Print Resolution | 203 dpi |
| Flash memory | 4 Mb |
| Printer type | Receipt printer |
| RAM memory | 2 Mb |
| Printing protocol | ESC/POS |
| Поддержка СЭУАП | Yes |
|---|---|
| Cutter | Yes |
| Resource of the cutter | 2 million |
| Built-in sensors | Availability of paper; Opening of the lid |
| External holder | No |
| OS support | Windows XP/ Vista/ 7/ 8/ 8.1/ 10; Linux; OPOS; POSReady |
| Supported fonts | Chinese GBK 16x16, 24x24 dots; Alphanumeric ASCII 9x17, 12x24 dots; Encodings 47 |
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC-A; UPC-E; EAN-8; EAN-13; CODE 39; ITF; CODEBAR; CODE 128; CODE 93 |
| EasyLoad | Yes |
| Supported 2D barcodes | QR Code; PDF417 |
| Print QR code | Yes |
| Guarantee | 2 years |
|---|---|
| Resistance to external influences | IP42 |
| Storage temperature | -20°С ~ +60°С |
| Paper width, mm | up to 80 |
|---|---|
| Paper thickness, mm | 0.056 - 0.13 |
| Roll diameter, mm | up to 83 |
| Printing material | Receipt tape |
| Interfaces | USB; RS232; Ethernet; RJ12 |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 191*140*127 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 1.64 kg |
| Equipment | Printer; Interface connection cables (RS232 and USB); Power supply; Warranty card; Packaging |
|---|
-
