| Printer classDesktop | Print speedUp to 120 mm/sec | Print head resource50 km |
| Print Resolution203 dpi | Flash memory64kBytes | RAM memory32kBytes |
| Printing protocolESC/POS | Поддержка СЭУАПYes | CutterYes |

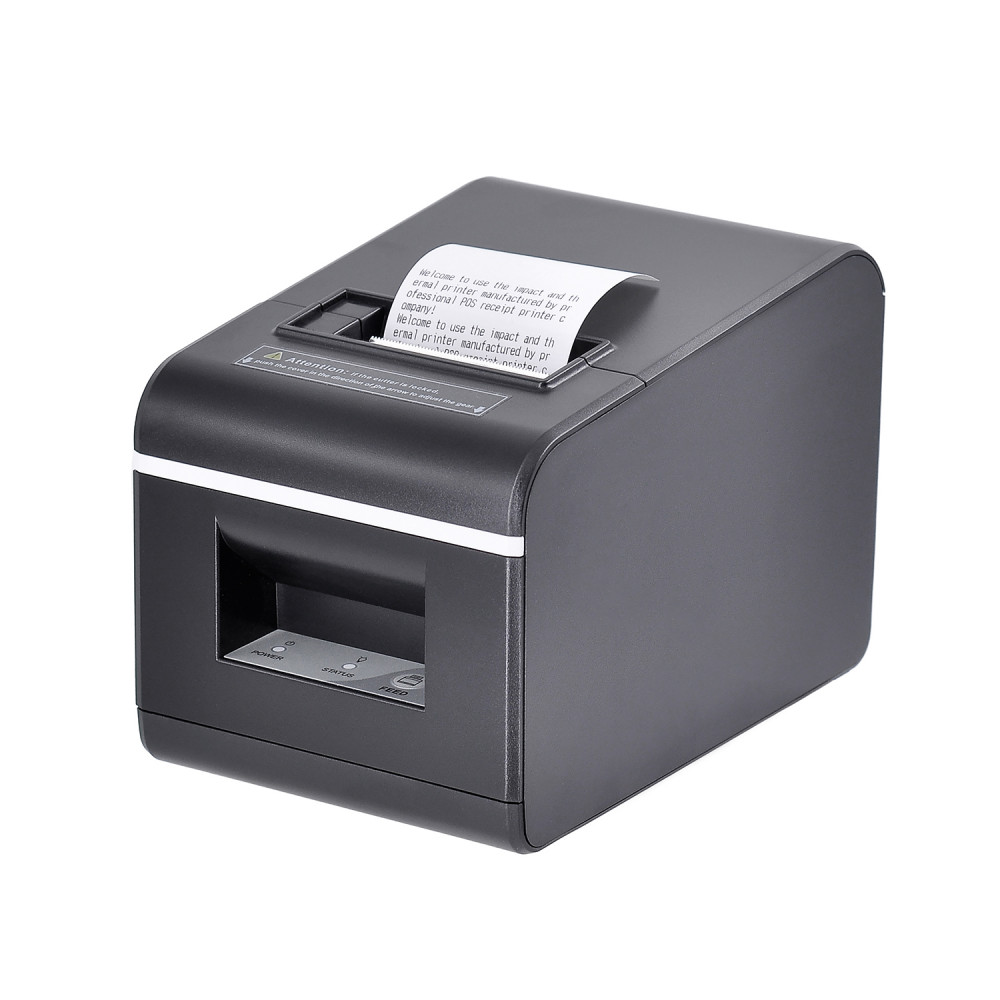

The MERTECH F58 USB Black thermal printer operates using thermal printing technology. It can print on paper up to 58 mm wide. The device can only be connected to a computer via a USB cable.
Technical Specifications
The body is based on a sturdy metal frame. The external panels are made of plastic and polycarbonate. The robust casing protects the printing mechanism from impact. The compact receipt printer weighs only 820 grams.
Main characteristics of the thermal printer:
- Working protocols: ESC, POS.
- Print speed: up to 120 mm/sec.
- Barcode resolution: up to 203 dpi.
- Thermal paper width: up to 58 mm.
- Print area width: up to 72 mm.
- Roll diameter: 60 mm.
No additional consumables are needed for printing receipts, except for thermal paper. The printing is done by heating the thermal print head. The top layer of thermal paper darkens upon contact with the heated thermal head, producing text and barcodes.
Advantages of the Thermal Printer
The MERTECH F58 can print all popular linear barcodes. QR codes with links to the electronic versions of the receipts can also be printed.
The receipt printer features high build quality. The device is designed for stable and long-term operation. The print head's durability is rated for 150 km of receipt paper, while the cutter is rated for 2 million cuts.
The design includes sensors for detecting receipt paper presence and lid closure. When a sensor detects an error, the device sends a signal. Replacing the ribbon using EasyLoad technology takes no more than 15 seconds.
The package includes a USB cable for connecting the device to an online cash register. The customer also receives access to a free program for creating and editing receipt templates. To purchase the MERTECH F58 printer, please submit a request on the website or contact one of our dealers.
| Printer class | Desktop |
|---|---|
| Print speed | Up to 120 mm/sec |
| Print head resource | 50 km |
| Print Resolution | 203 dpi |
| Flash memory | 64kBytes |
| RAM memory | 32kBytes |
| Printing protocol | ESC/POS |
| Поддержка СЭУАП | Yes |
|---|---|
| Cutter | Yes |
| Resource of the cutter | 1 million |
| Built-in sensors | Availability of paper, Lid opening |
| External holder | No |
| OS support | Windows 7/ 8/ 10; Linux |
| Supported fonts | Chinese GBK 16x16, 24x24 dots; Alphanumeric ASCII 9x17, 12x24 dots; Encodings 47 |
| Sound and visual indication | Visual |
| Supported 1D barcodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 |
| EasyLoad | Yes |
| Supported 2D barcodes | QR Code |
| Sleep mode | Yes |
| Receipt tape rewind function | Yes |
| Print QR code | Yes |
| Resistance to external influences | IP42 |
|---|---|
| Nutrition | DC 12V, 2A |
| Permissible humidity | 10-80% (operation); 10-90% (storage) |
| Operating temperature | +10°С ~ +60°С |
| Paper width, mm | up to 58 |
|---|---|
| Paper thickness, mm | 0.056 - 0.13 |
| Roll diameter, mm | up to 60 |
| Printing material | Receipt tape |
| Interfaces | USB; RJ12 |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 170*120*120 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 820 gr |
| Equipment | Printer, USB interface cables, Power supply, Quick start guide, Warranty card, Packaging |
|---|
| Print width, mm | Up to 58 |
|---|
-
