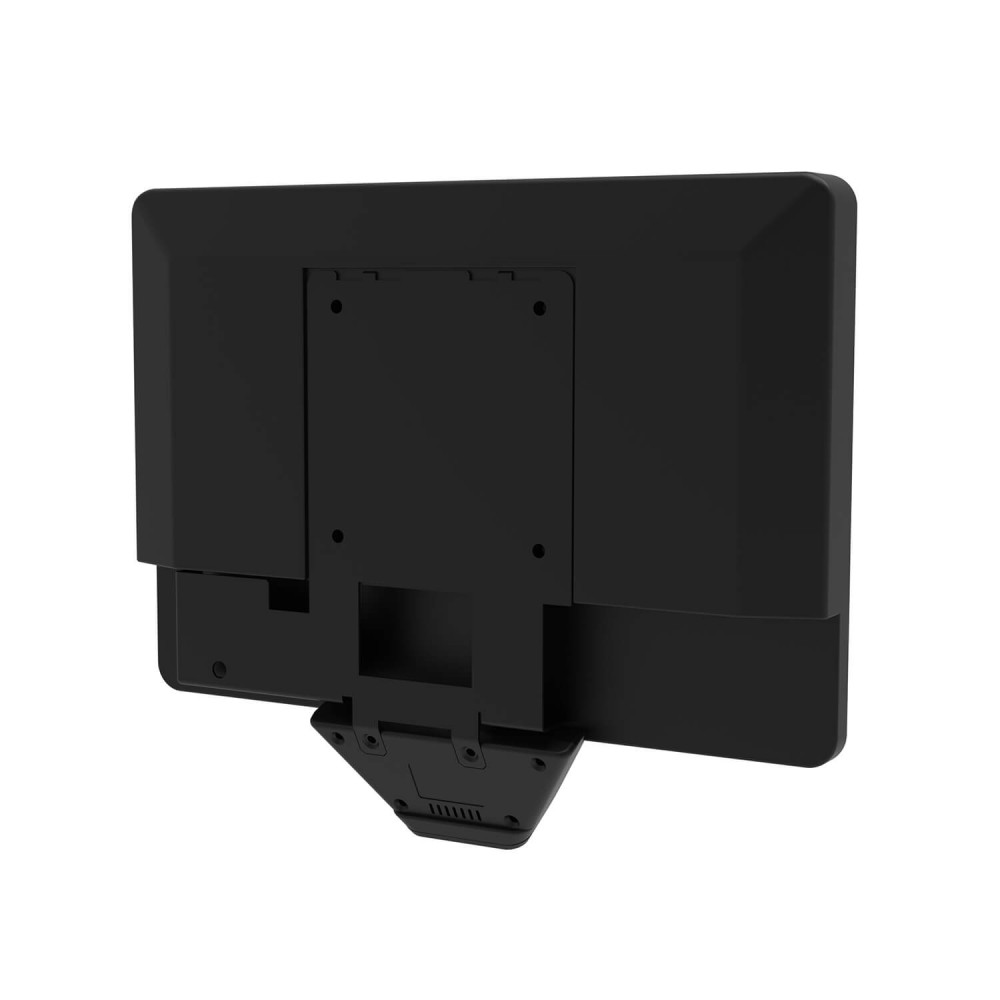

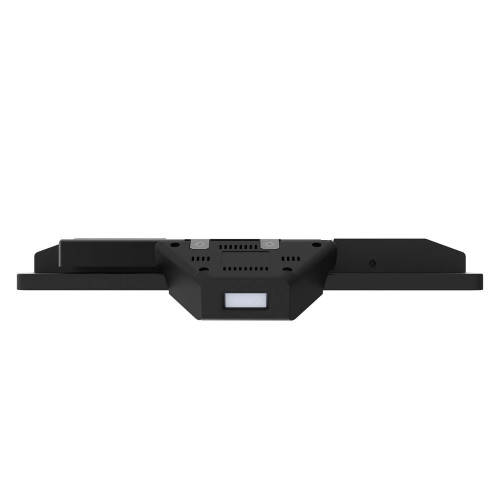

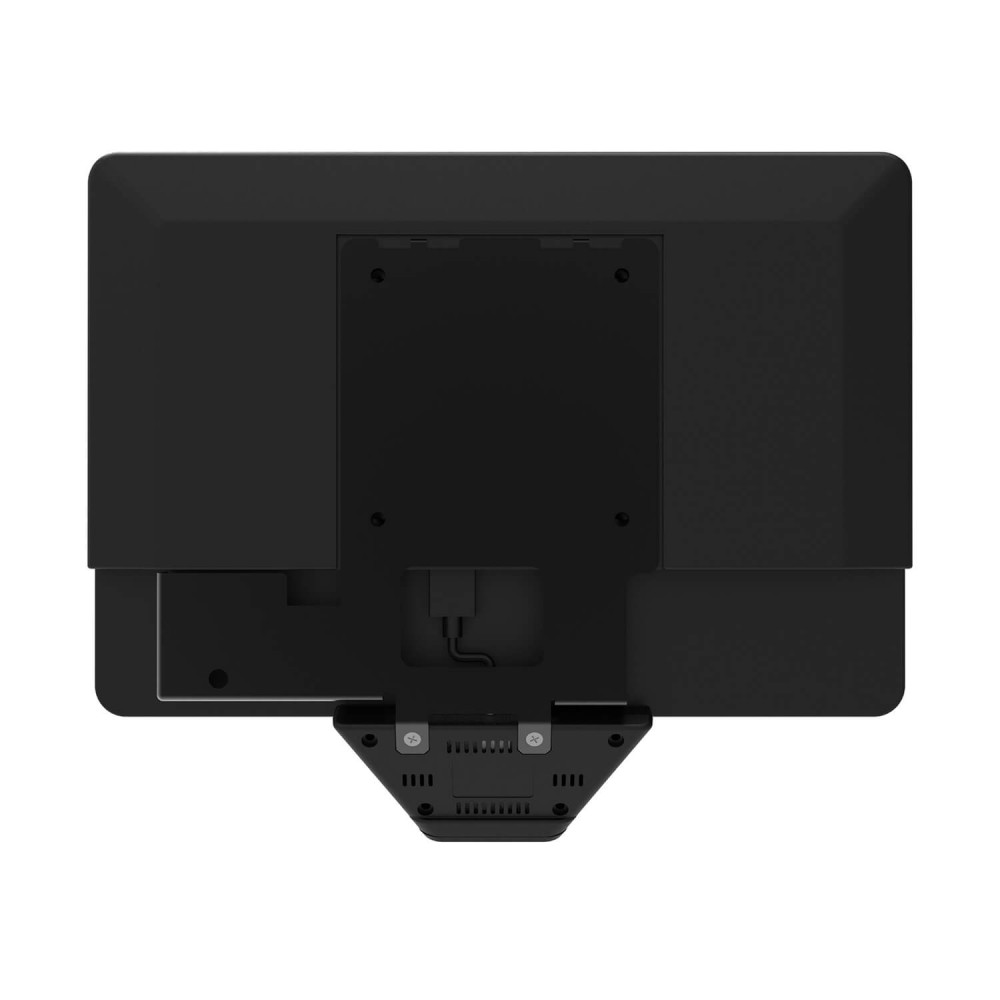

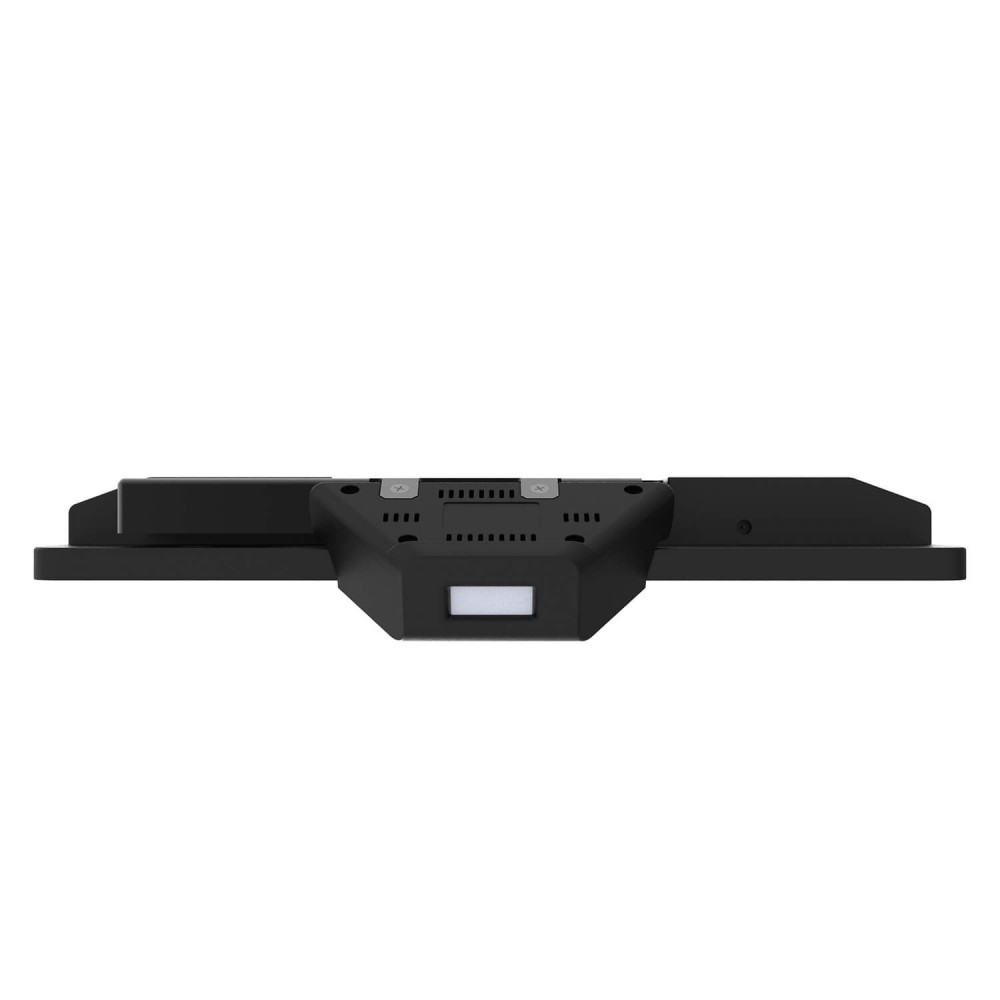

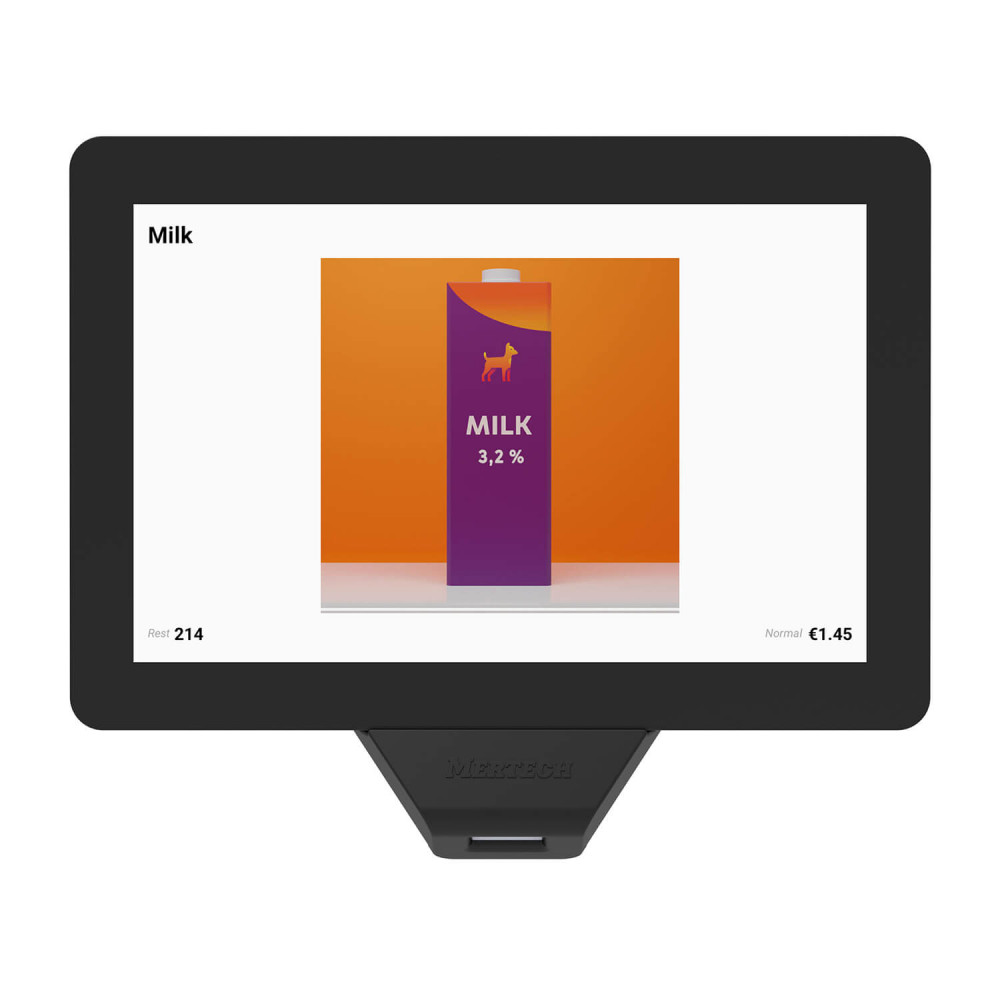

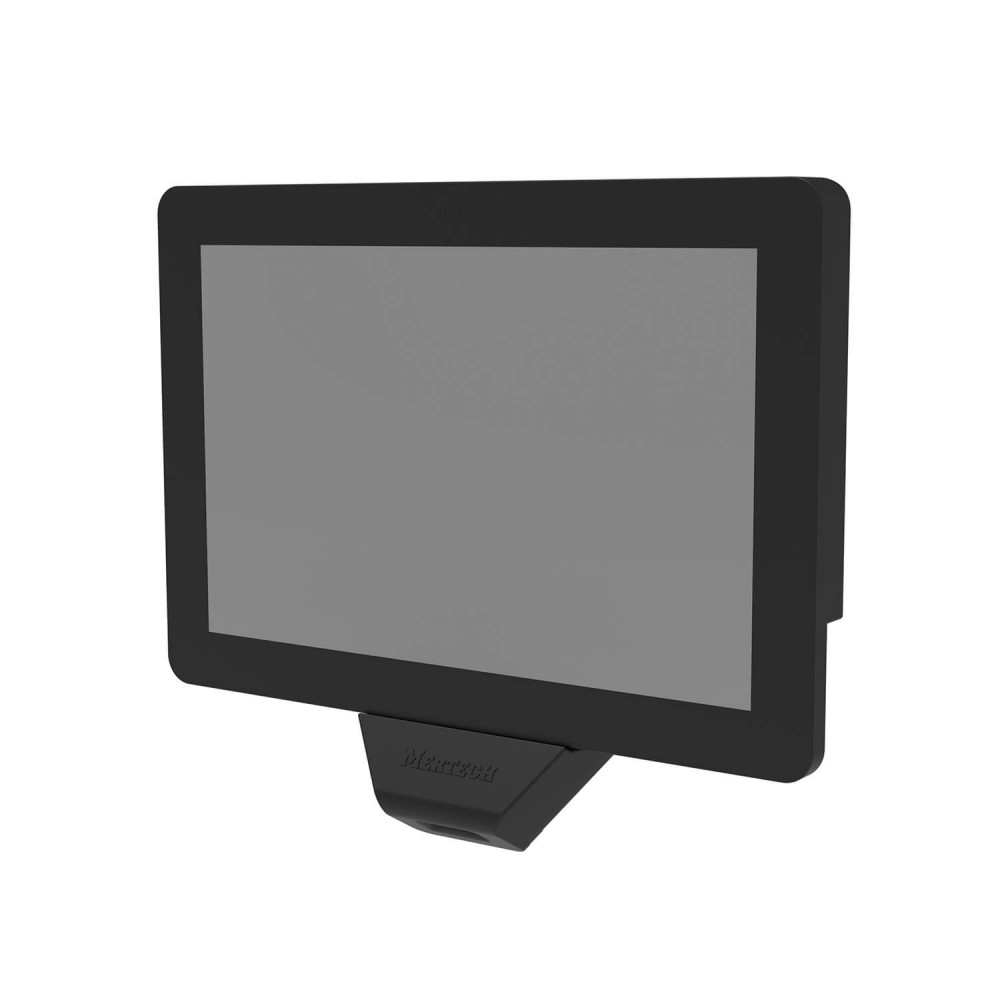

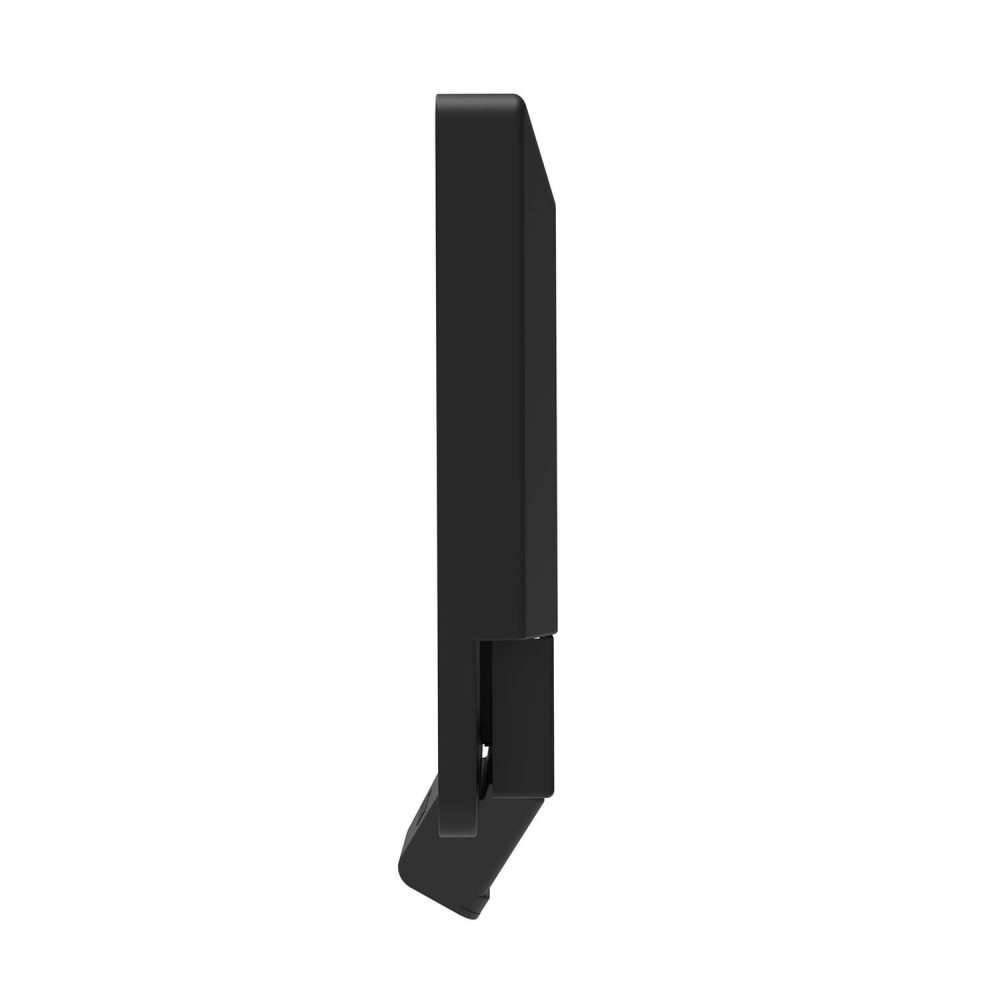

Price checker MERTECH P10 / P10SL2N in a set with POE injector and VESA mount
454 ₼
Price checker MERTECH P10 / P10SL2N in a set with POE injector and VESA mount
Specification
| Scanning moduleT5930 | operating systemAndroid 11 | Hard disk32GB |
| RAM memory4GB | Scanner resolution640(H) x 480(V) Px | Scanning coverage angle40º(h)x32º(v) |
| Barcode SensitivityTilt +-65°, Rotate 360°, Roll +-60° | Minimum barcode contrast25% | CPUROC-RK3568-PC |
Shipping Information
Enter a delivery address
Specifications Price checker MERTECH P10 / P10SL2N in a set with POE injector and VESA mount
Technical parameters
| Scanning module | T5930 |
|---|---|
| operating system | Android 11 |
| Hard disk | 32GB |
| RAM memory | 4GB |
| Scanner resolution | 640(H) x 480(V) Px |
| Scanning coverage angle | 40º(h)x32º(v) |
| Barcode Sensitivity | Tilt +-65°, Rotate 360°, Roll +-60° |
| Minimum barcode contrast | 25% |
| CPU | ROC-RK3568-PC |
Functional capabilities
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. |
| Supported 2D barcodes | PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100,140), QR Code, Hanxin code |
| Built-in memory | Yes |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| NFC | Optional ,13.56MHz, ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
Scanner specifications
| Backlight | 6500K LED |
|---|---|
| Laser (and sight shape) | 617nm Red (red square) |
| Matrix resolution | 0.3 M pixels |
Scanning range
| Minimum scanning resolution | 3.9 MIL |
|---|
Operating parameters
| Guarantee | 2 years |
|---|---|
| Operating temperature | 0-40° C |
Wireless connection
| RFID | Option ,125k,ISO/IEC 11784/11785,support EM4100,TK4100/GK4100,EM4305,T5577 |
|---|
Display
| Sensor | Capacitive 10 points |
|---|---|
| Display type | LCD |
| Relationship of the parties | 16:10 |
| Diagonal | 10.1" |
| Permission | 1280*800 |
| Brightness | 250cd/m2 |
Interfaces
| Interfaces | USB Host 3.0, USB 2.0, Type-C, Ethernet interface + POE IEEE802.3at, POE+, class 4, 25.5W, 3.5mm |
|---|
Frame
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 260x225x35 |

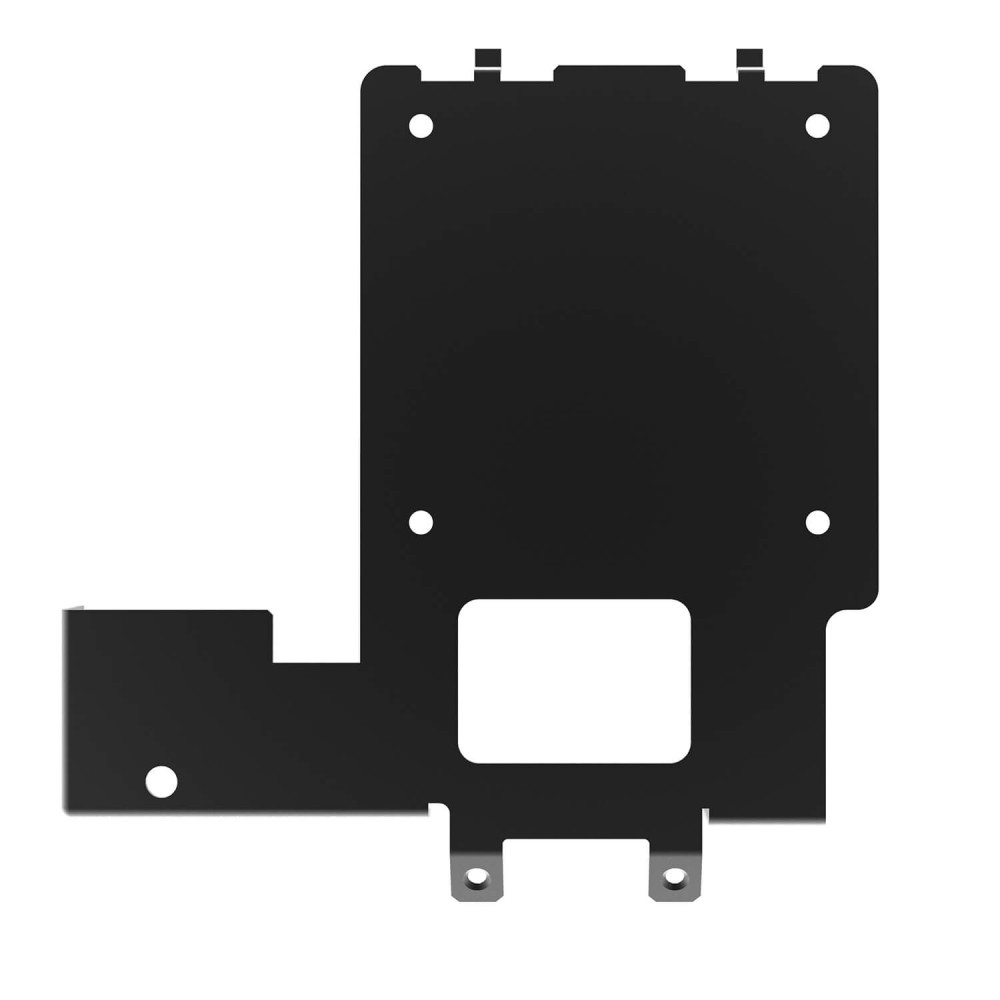

| VESA | 75*75 MM |
| Speakers | 2*2W |
| Body material | Plastic |
| Microphone | Eat |
Equipment
| Equipment | Device, VESA Bracket with fasteners, POE injector + network cable + Ethernet cable, Cable for connecting to a PC, Power adapter, 2 m cable, Warranty card, Quick start guide, Packaging |
|---|
Net
| Ethernet | 100M/1000M |
|---|---|
| Wi-Fi (WLAN) | 802.11 b/g/n, 2.4 / 5 GHz |
| Bluetooth (WPAN) | Bluetooth 4+ |
Camera
| Camera | 5.0MP |
|---|---|
| Video capture resolution | 1920x1080 |
Playing multimedia
| DC | DC 12V |
|---|---|
| Headset | 3.5mm stereo headphone output |
| Video format | MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support video resolution up to 4K |
| Audio format | MP3/WMA/AAC etc. |
| Image format | jpeg |
