MERTECH P10 / P10SL2H price checker with POE injector and VESA mount

The MERTECH P10 / P10SL2H is a modern price checker for retail halls and self—service stores with a high-performance high-resolution scanning module. The device helps customers to independently check the price of the product, get up-to-date information and make a purchase decision faster. The kit includes a POE injector and a 75×75 mm VESA mount, which simplifies installation and connection in the retail space.

The platform based on Android 11, the ROC-RK3568-PC processor, 4 GB of RAM and 32 GB of internal storage ensures stable interface operation, fast system response and the ability to integrate with trading software.

T5930HR High Resolution Scanner

The model is equipped with a T5930HR scanning module with a 1 MP matrix and a reading resolution of 1280×800 pixels. The increased image detail allows you to confidently recognize even small codes from 3 MIL (EAN-13) and work correctly with labeled products.

The coverage angle of 40° horizontally and 30° vertically and the high sensitivity to the barcode position (tilt ±65°, 360° rotation, ±60° deviation) ensure fast scanning without the need for precise alignment of the product.

The scanner supports a wide range of 1D and 2D barcodes, including Data Matrix, QR, Micro QR, PDF417, Aztec, MaxiCode and other formats. The device is fully ready to work with the Honest SIGN system and supports the Unified State Register of Legal Entities.

The 4000K LED backlight and the 617 nm square-shaped red sight enhance aiming accuracy and help to recognize barcodes on complex surfaces and in different lighting conditions.

Touch screen and multimedia capabilities

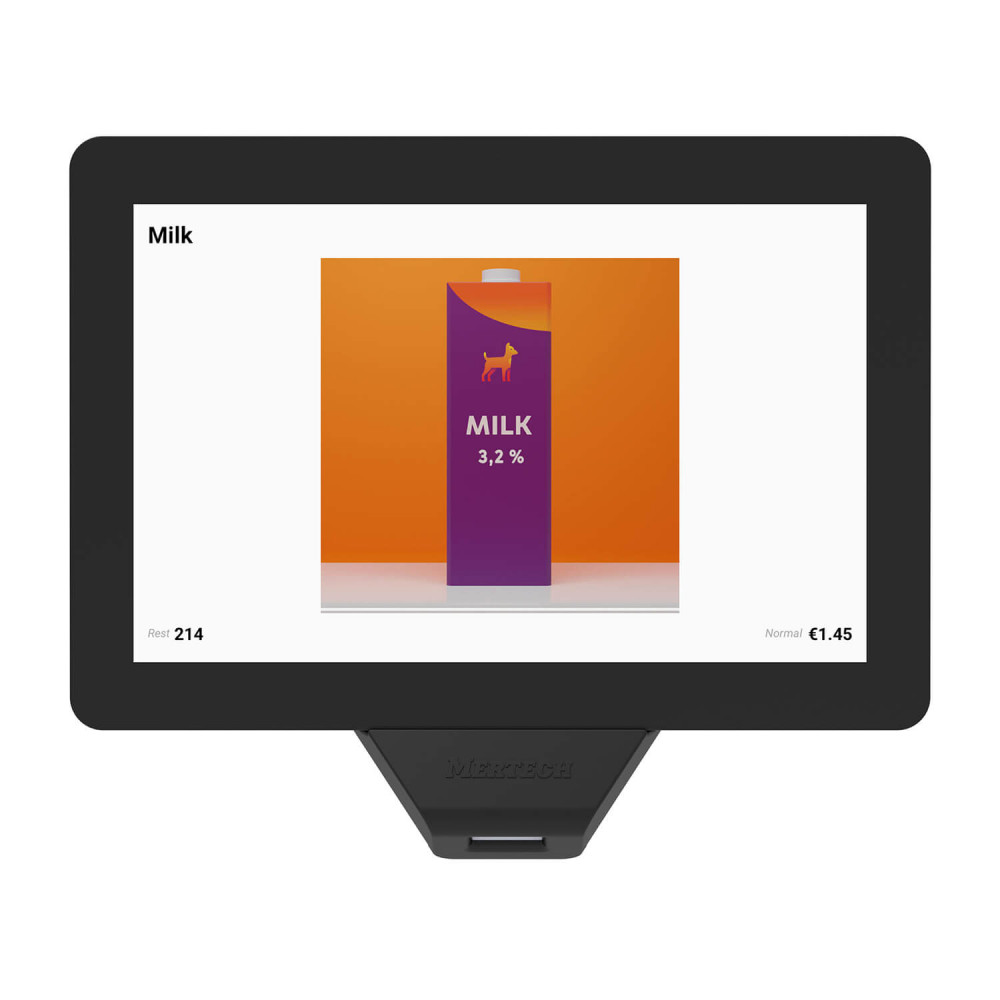

The price checker is equipped with a 10.1" LCD display with a resolution of 1280×800 and an aspect ratio of 16:10. The capacitive sensor supports up to 10 simultaneous touches, providing convenient navigation for buyers.

The screen with a brightness of 250 cd/m2 remains readable in the conditions of the trading floor. In standby mode, the device can play promotional materials — modern video formats up to 4K, audio and images are supported.

The built—in 5 MP camera with the ability to record video in 1920×1080 resolution, 2×2W speakers and microphone expand usage scenarios - from multimedia content to integration with service solutions.

Connection and integration

The MERTECH P10/P10SL2H supports 100M/1000M Ethernet, 2.4/5 GHz Wi-Fi, Bluetooth 4+, as well as USB 3.0, USB 2.0, Type-C interfaces and a 3.5mm audio jack. Power is supported using POE+ technology (IEEE 802.3at, Class 4, up to 25.5W), which allows you to transfer power and data over a single cable.

A POE injector, network and Ethernet cable are included in the package, which facilitates installation at no additional cost.

The device is compatible with popular trading software, including Absolut, Artix POS, Agorta, FIT, 1C Rarus, and is easily integrated into the store's IT infrastructure.

Construction and installation

The case is made of durable plastic and is designed for operation at temperatures from 0 to +40°C. The compact dimensions of 260×225×35 mm allow the device to be mounted on a wall or rack without overloading the space.

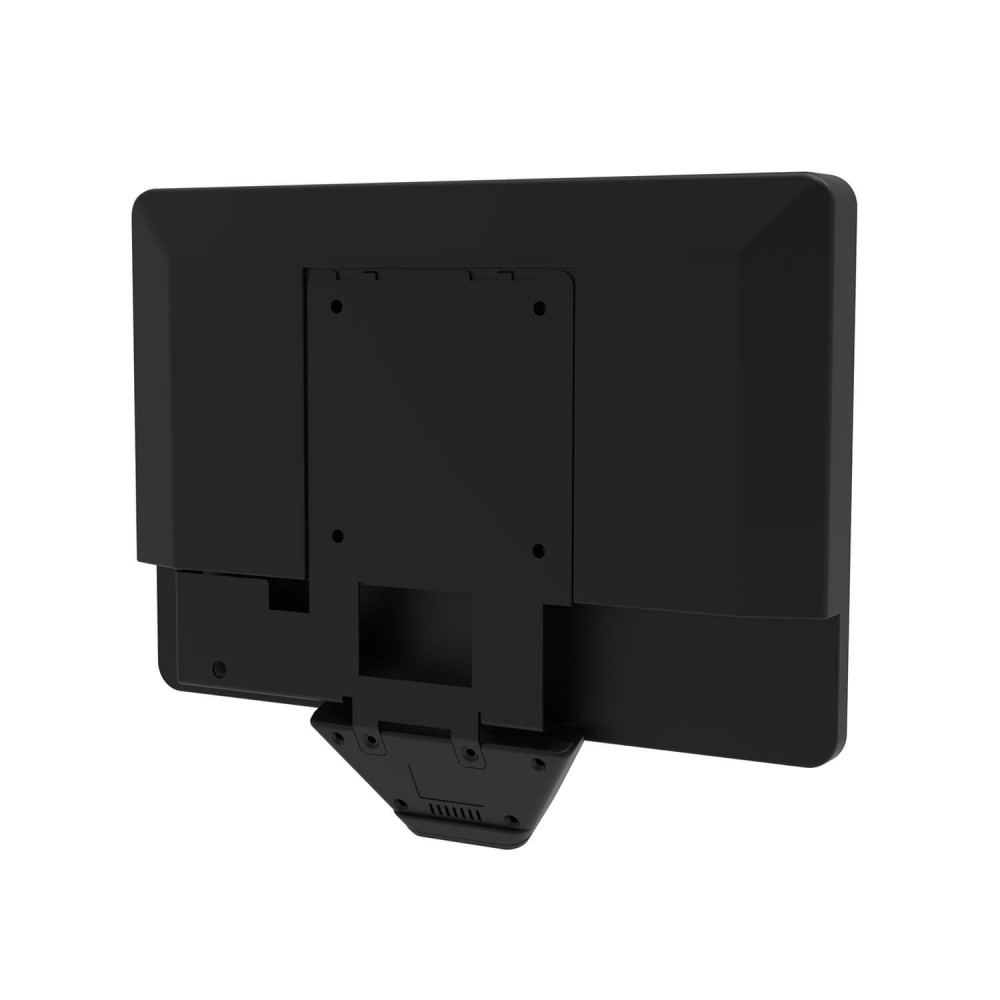

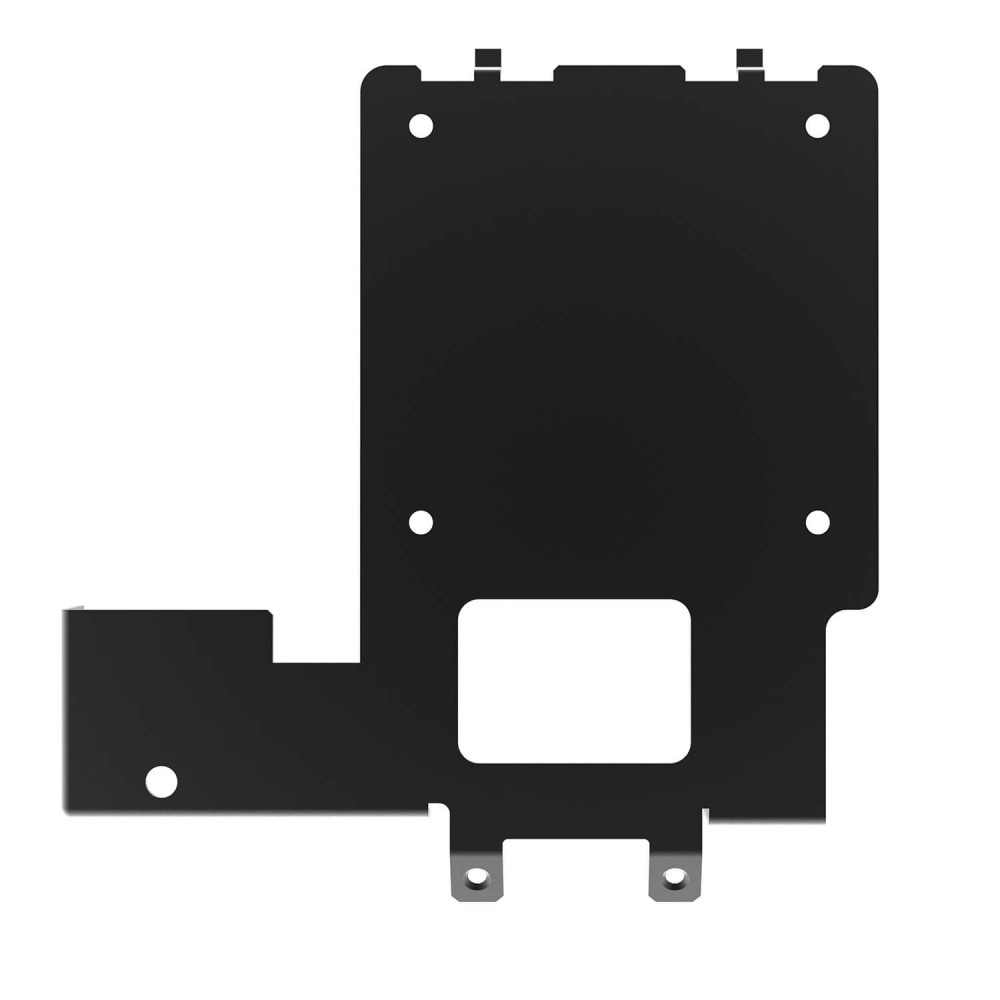

A standard 75×75 mm VESA mount is included, which simplifies installation. The weight of the device in the package is 2,366 kg, ensuring the stability of the structure.

Scope of application

The MERTECH P10 / P10SL2H is designed for supermarkets, hypermarkets, and self-service stores. The device helps to reduce staff workload, increase customer convenience, and increase sales by informing customers directly on the sales floor.

Order the MERTECH P10 from the manufacturer

On the MERTECH company's website, you can buy the P10 / P10SL2H price checker complete with a POE injector and a VESA mount at the manufacturer's price. The equipment comes with an official 2-year warranty and is fully equipped for quick installation. Delivery is carried out throughout Russia.
