| Type of scalesPacked, portioned | Discreteness0.1 gr | Minimum weight5 gr |
| Number of keys6 | Weighing limit6 kg | Platform size255x205 |
| ExecutionTabletop | VerificationYes | Accuracy classHigh (II) |
This product is currently undergoing redesign. The appearance of the product, including color, may slightly differ from that shown in the photograph. A mismatch between the actual product's appearance and the photos on the website does not indicate improper quality of the product.

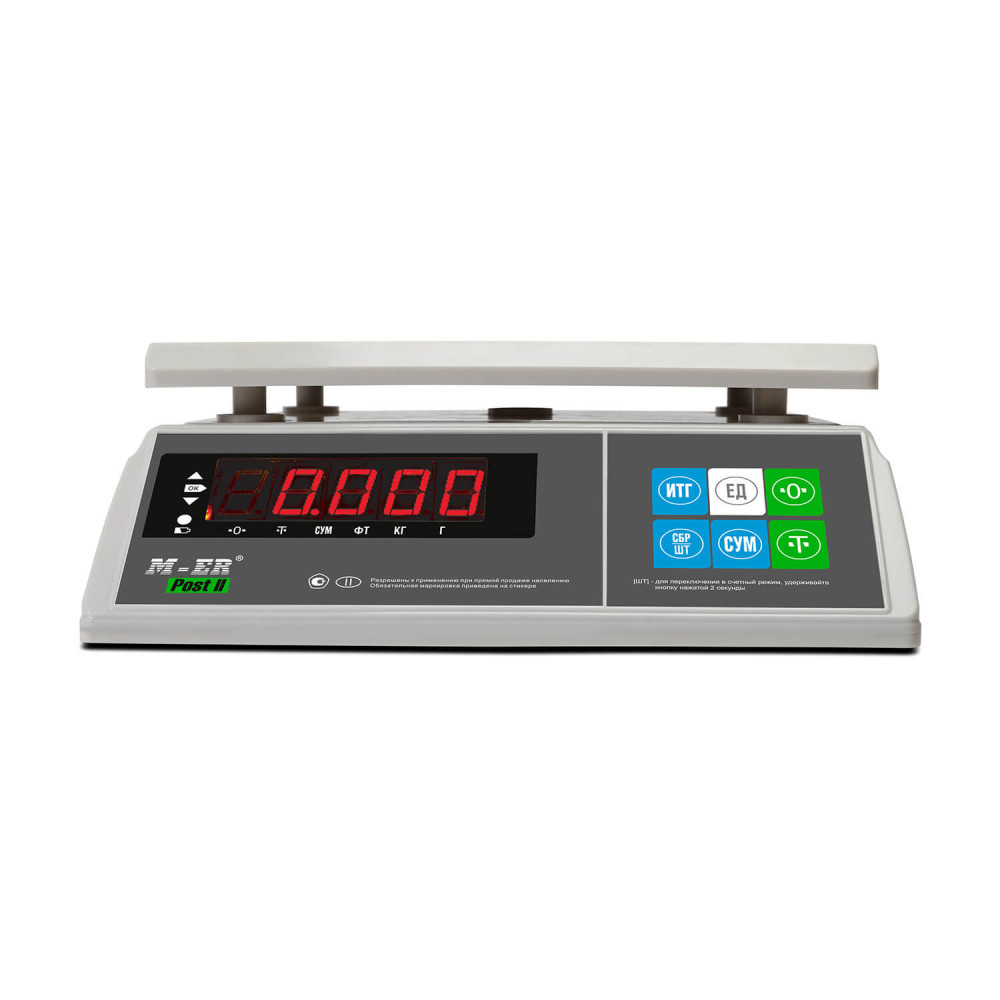

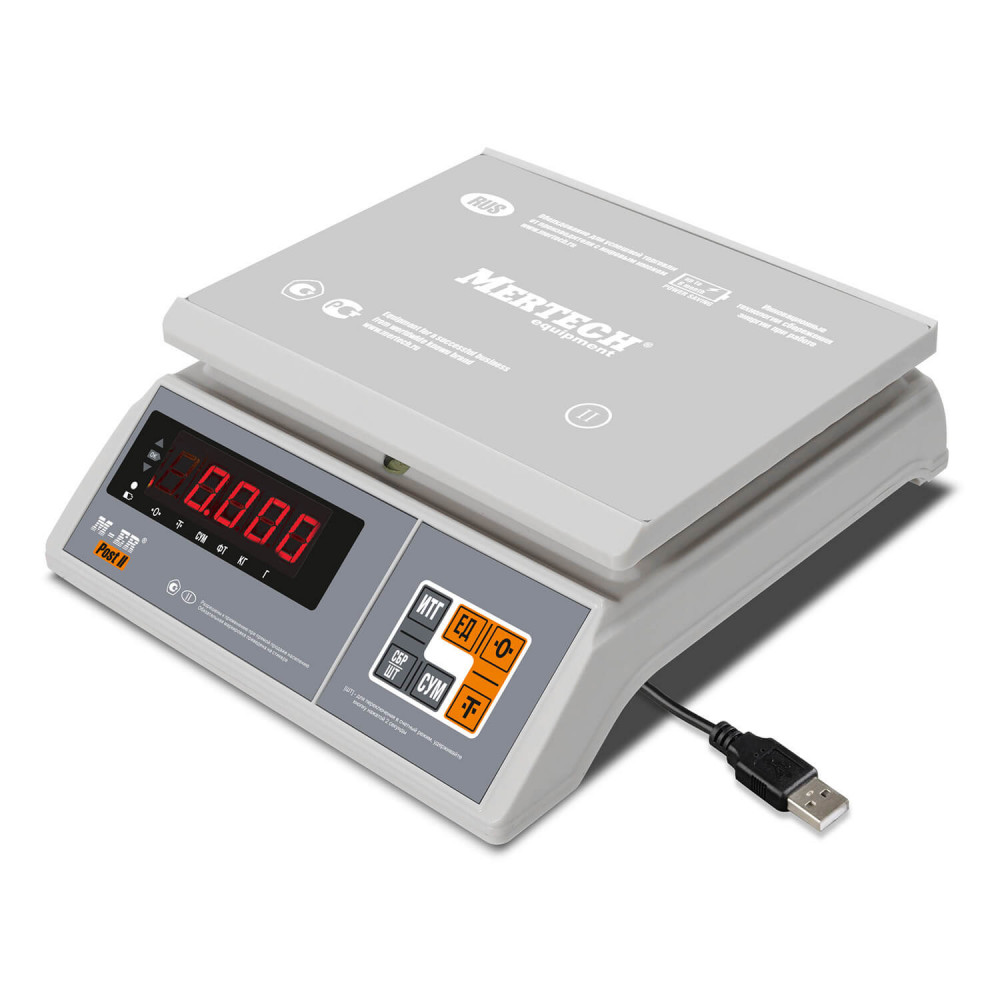

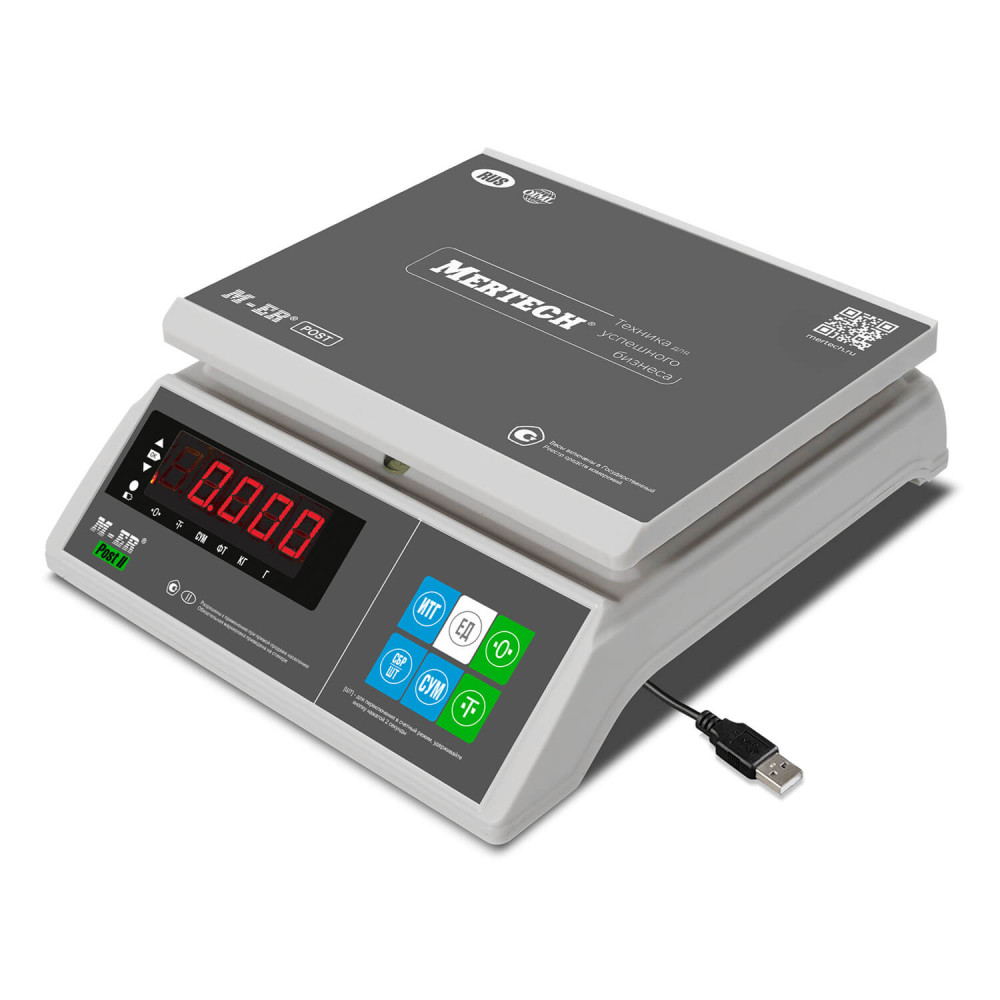

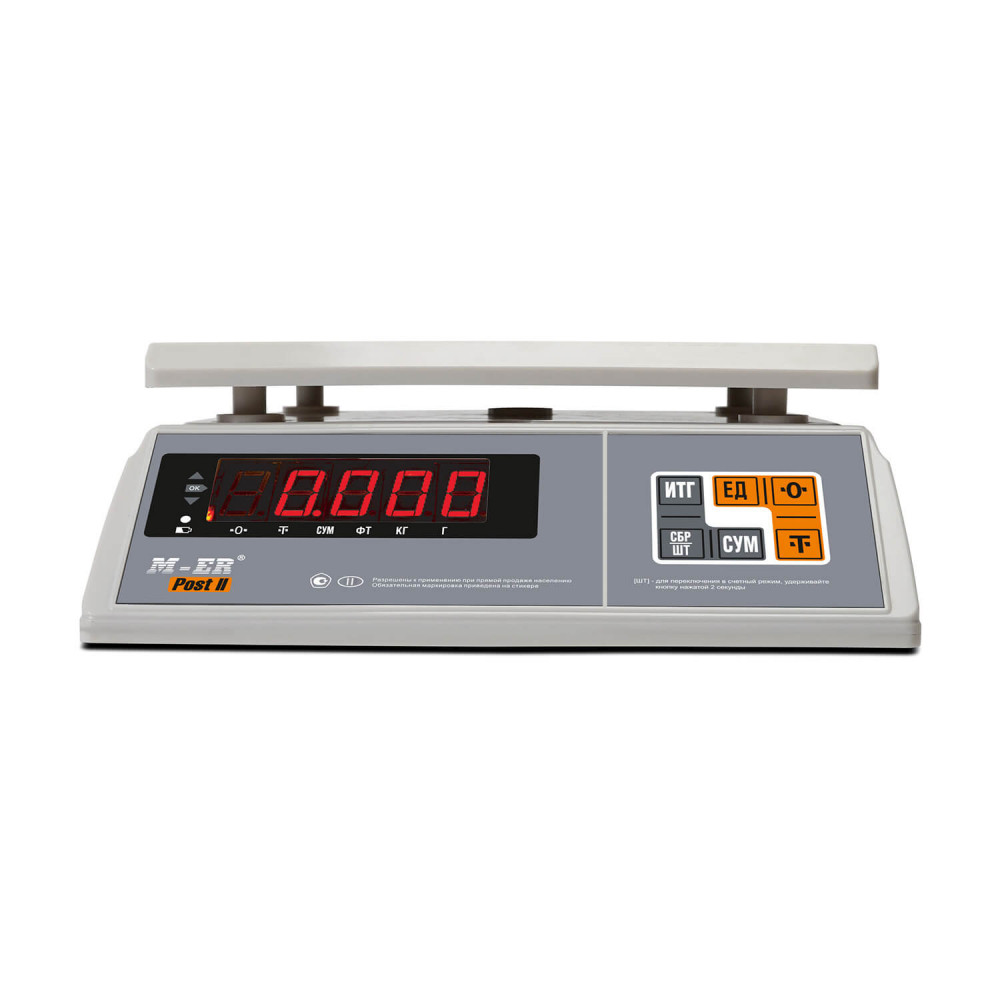

The M-ER 326 AFU-6.01 "Post II" LED USB-COM scales are of high precision class (II). This model has improved metrological characteristics. It can be used not only for weighing and packaging goods but also as laboratory scales. The model has several variations, which differ in weighing capacity, display type, and connection interface.
Design Features
This page presents the M-ER 326 AFU-6.01 "Post II" LED USB-COM scales with an LED display and USB port. The catalog includes analogs with LCD display and RS-232 interface. The maximum weighing capacity can be from 6 kg, with a minimum of 5 g, and a resolution of 0.1 g.
Available operating modes:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- Tare weight accounting;
The case has compact dimensions: 265*290*110 mm. The width of the platform is standard: 255*205 mm. The casing is made of durable plastic. The device can be used in any trading areas, including outdoors. Temperature fluctuations from +10°C to +40°C do not affect the measurement results.
Operating Rules
The main advantage of the M-ER 326 AFU-6.01 "Post II" LED USB-COM is its II class accuracy (high). Similar devices are used in laboratories. The declared accuracy class has been confirmed during state calibration.
Other advantages of the model:
- Simple and intuitive interface.
- Convenient membrane keyboard.
- Three measurement units: grams, kilograms, pounds.
- Larger size indicators on the LED display.
- USB-COM interface for connection to POS systems.
- Compact size of the device.
- Adjustable height of the supports.
In some modifications, 2 additional modes are available: piece counting and comparator mode. Piece counting mode allows you to determine the quantity of goods in a batch. Comparator mode is necessary for laboratory calculations.
Place an Order
You can purchase the M-ER 326 AFU-6.01 "Post II" LED USB-COM in the official MERTECH online store. We offer the equipment at a low price set by the manufacturer. All models from the M-ER 326 range are available in stock. Please clarify the availability.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 0.1 gr |
| Minimum weight | 5 gr |
| Number of keys | 6 |
| Weighing limit | 6 kg |
| Platform size | 255x205 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Changing the stabilization speed | Yes |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For EVOTOR, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | 10… +40 |
| Display type | LED |
|---|---|
| Character size | 11*20 |
| Number of indication digits | 6 |
| Character size, mm | 11*20 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Weight with platform | 2.15 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265*290*110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
