| Type of scalesPacked, portioned | Discreteness0.1 gr | Minimum weight5 gr |
| Number of keys6 | Platform size255x205 mm | ExecutionTabletop |
| VerificationYes | Accuracy classHigh (II) | Load cells, pcs.1 |
This product is currently undergoing redesign. The appearance of the product, including color, may differ slightly from what is shown in the photograph. Discrepancies between the actual product's appearance and the photographs on the website do not indicate improper quality of the product.

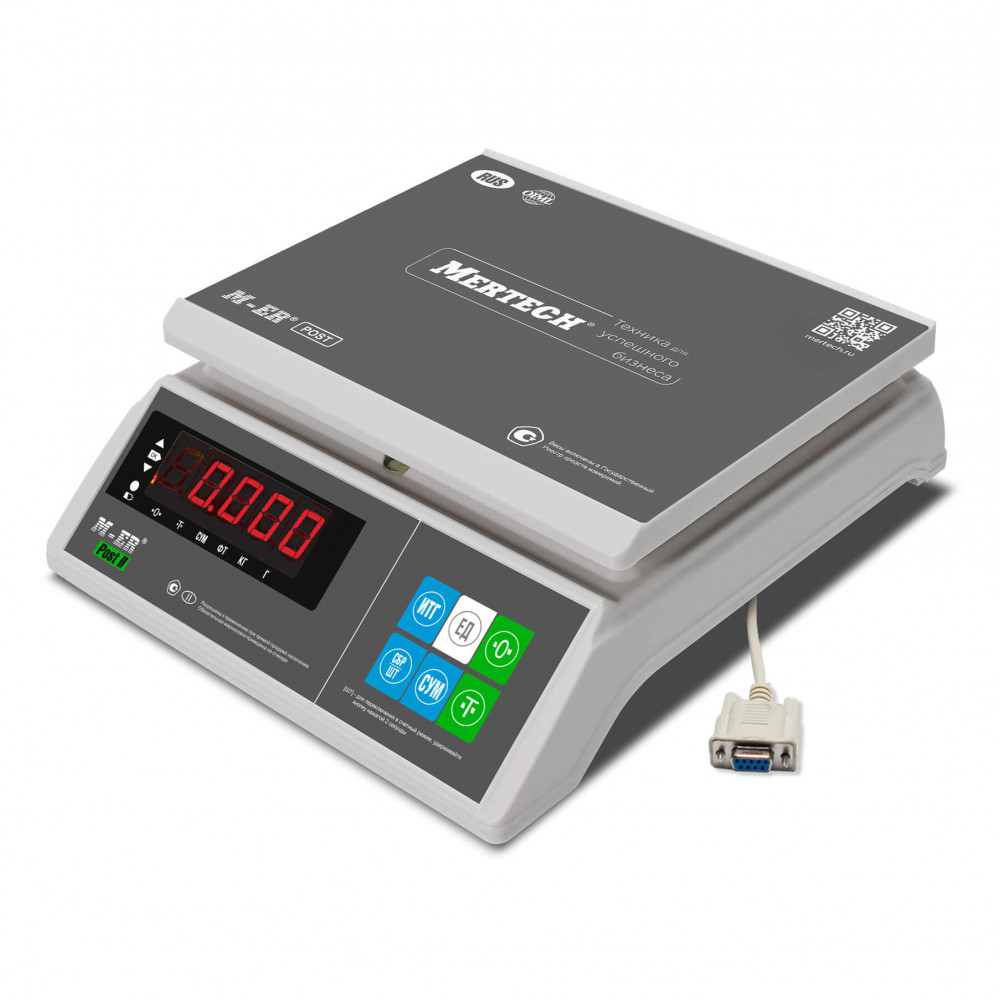

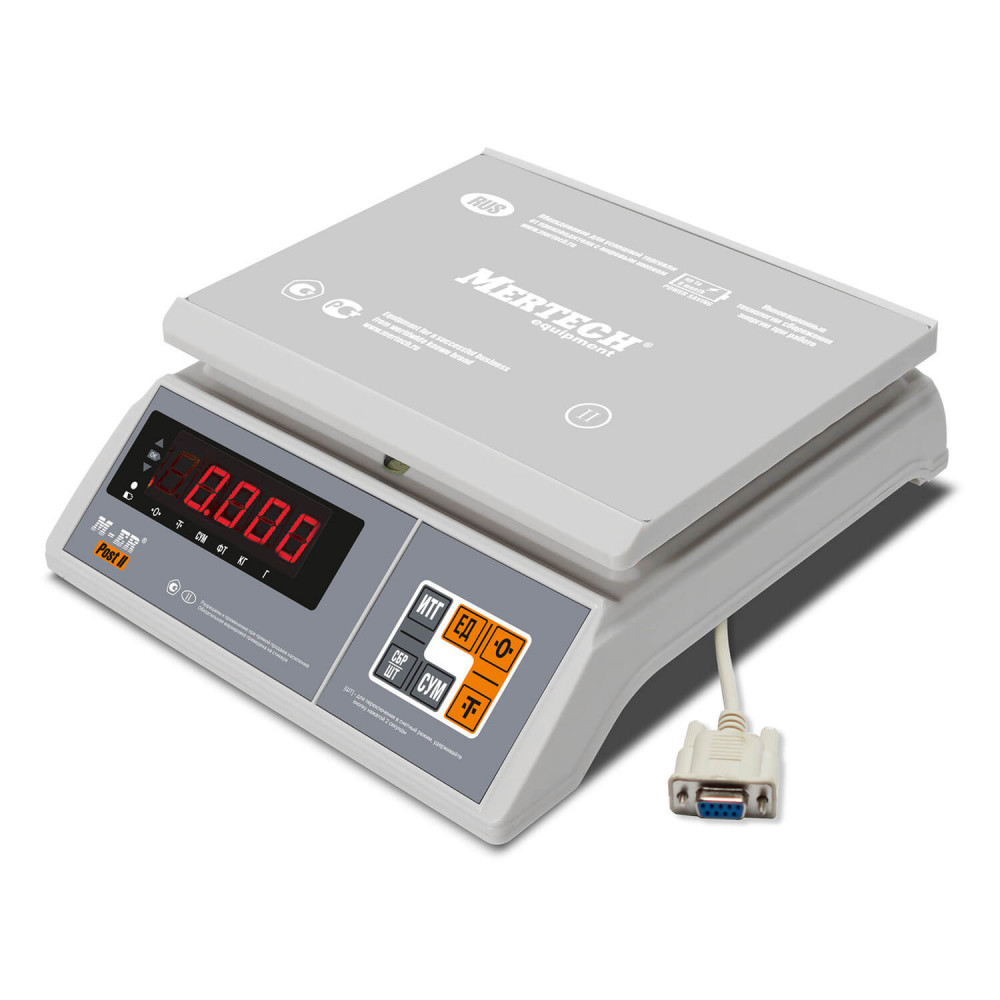

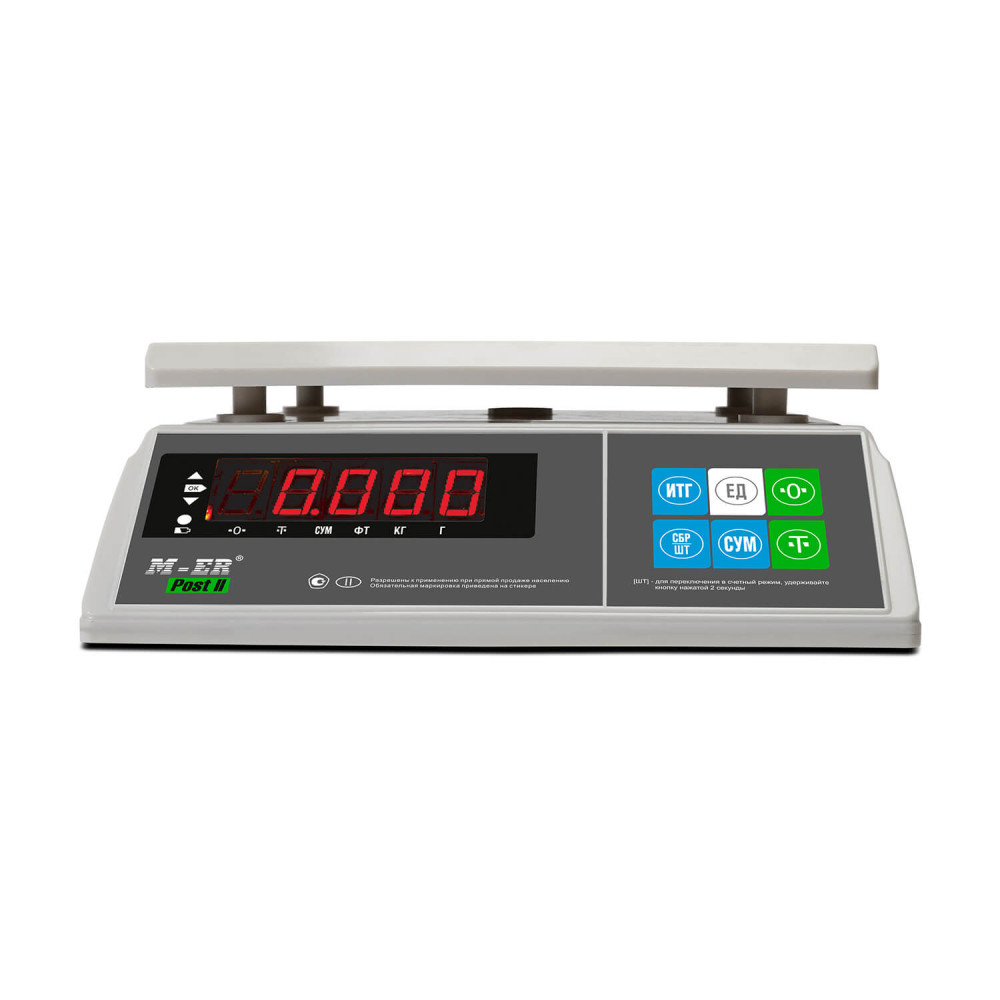

M-ER 326 AFU-6.01 "Post II" LED RS-232 – class II packaging scales according to GOST. They can be used as laboratory scales. The model features improved metrological characteristics. The stated parameters have been confirmed in state calibration. A certificate has been received confirming successful testing.
Design Features
The small scales do not take up much space on the table. Dimensions of the body: 265*290*110 mm. Weighing platform size: 255*205 mm. Product weight: 2.5 kg. The device is easy to transport from one place to another. The model is used in laboratories, in production, as packaging scales for trade.
The device operates in several modes:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- Tare weight accounting;
The M-ER 326 AFU-6.01 "Post II" LED RS-232 model has several modifications. They differ in maximum weighing limits. On this page, the scales have a maximum weighing capacity of 6 kg. The minimum weighing limit is 5 g. Measurement results are displayed on an LED display. An RS-232 interface is used for connection to a POS system.
Operating Rules
The M-ER 326 AFU-6.01 "Post II" LED RS-232 scales have the following advantages:
- Simple and intuitive control panel.
- The body is made of high-strength plastic.
- Unit of measurement selection: grams, kilograms, pounds.
- Available modifications with 2 additional modes: comparator and piece weighing.
- Larger digits on the LED display (9*21 mm or 11*21 mm).
- Adjustable height of supports. Platform stabilization level.
Temperature fluctuations from +10°C to +40°C do not affect measurement accuracy. However, the body does not have additional protection against dust and moisture. Only a protective dust film is provided. The device is designed for operation in covered, heated premises.
Place an Order
You can buy the M-ER 326 AFU-6.01 "Post II" LED RS-232 scales at a low price. We sell the equipment without a markup. Supplies are made from the manufacturer's warehouse. Orders are shipped to any cities in Azerbaijan. Courier delivery of orders is available in Baku. To make a purchase, please leave a request on the website.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 0.1 gr |
| Minimum weight | 5 gr |
| Number of keys | 6 |
| Platform size | 255x205 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | 10… +40 |
| Display type | LED |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 6 |
| Character size, mm | 11x20 |
| CAS-M (Active) | Yes |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS232 (DB-9F), length 2.7m |
|---|
| Weight with platform | 2.23 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265x290x110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
