| Type of scalesPacked, portioned | Discreteness0.1 gr | Minimum weight5 gr |
| Number of keys6 | Weighing limit6 kg | Platform size255x205 |
| ExecutionTabletop | VerificationYes | Accuracy classHigh (II) |
This product is in the redesign phase. The appearance of the product, including the color, may differ slightly from what is shown in the photo. A discrepancy between the actual product appearance and the photos on the website does not indicate poor product quality.

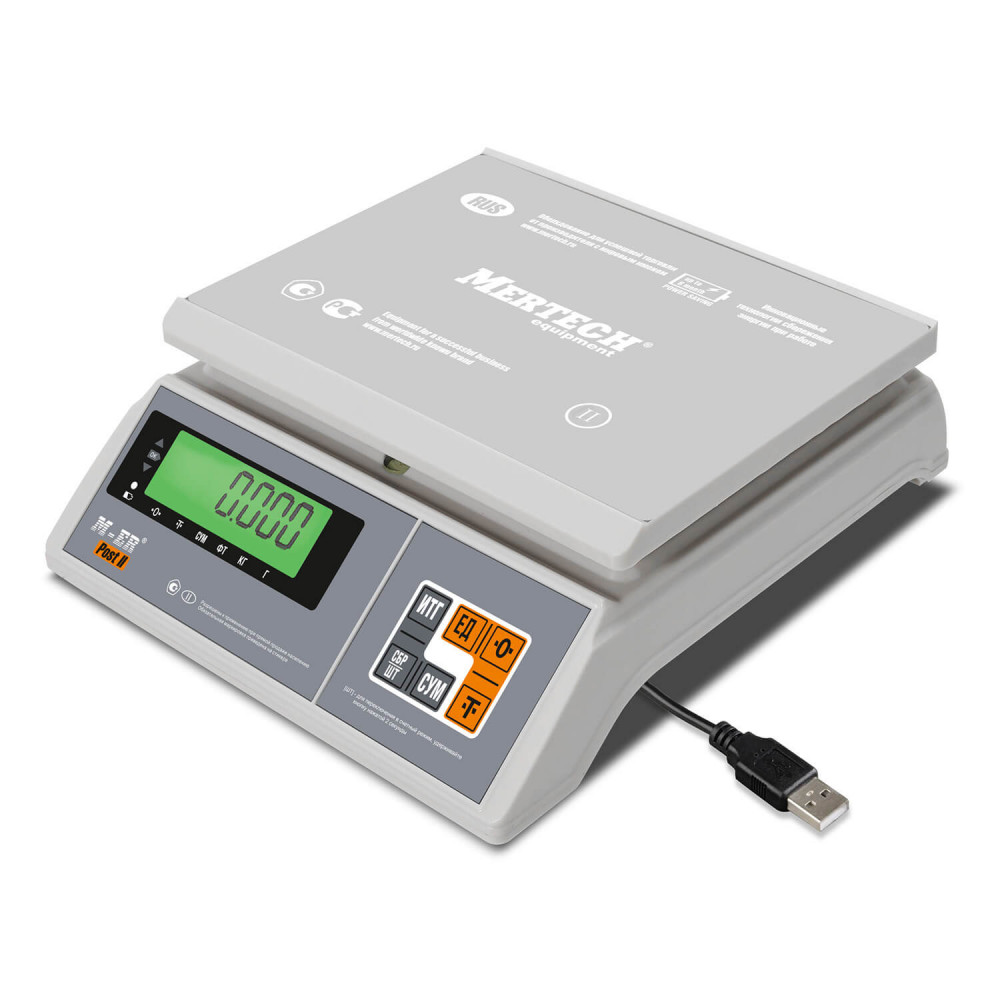

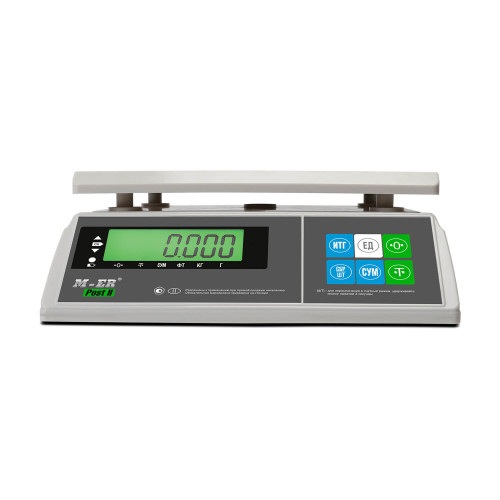

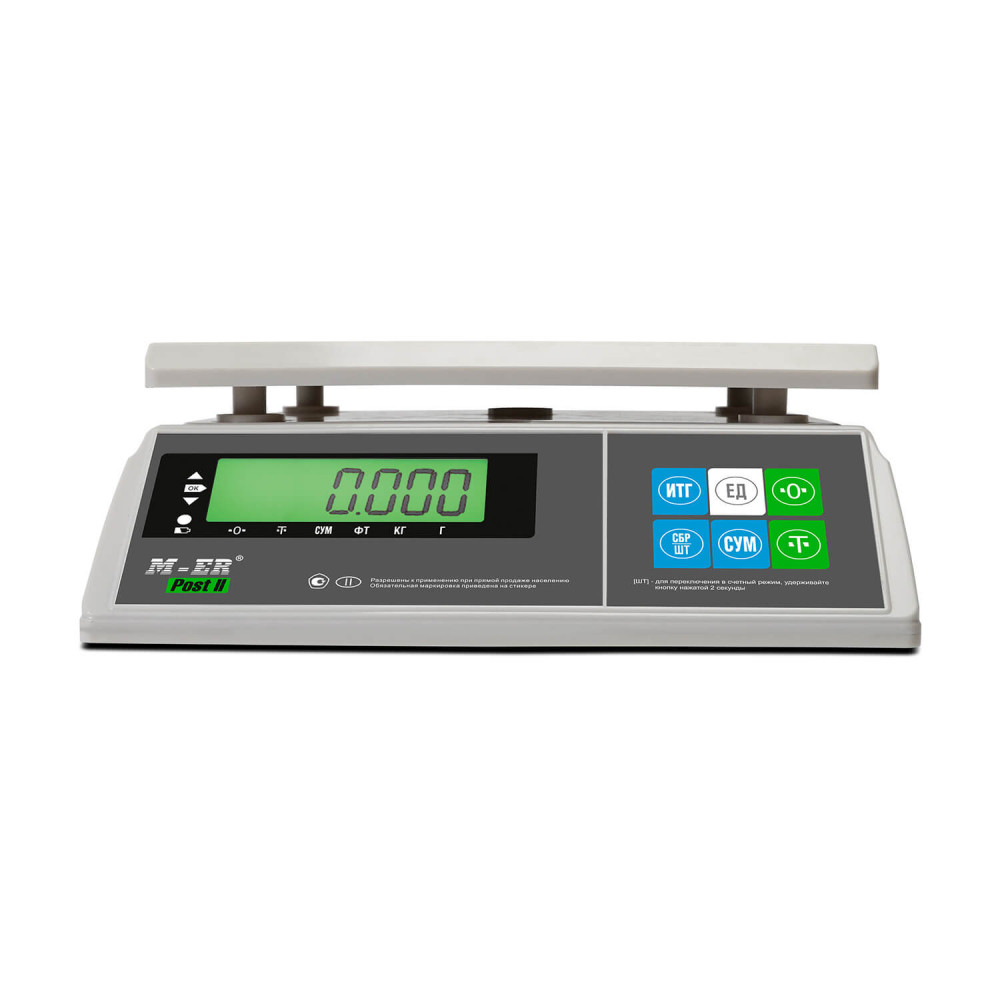

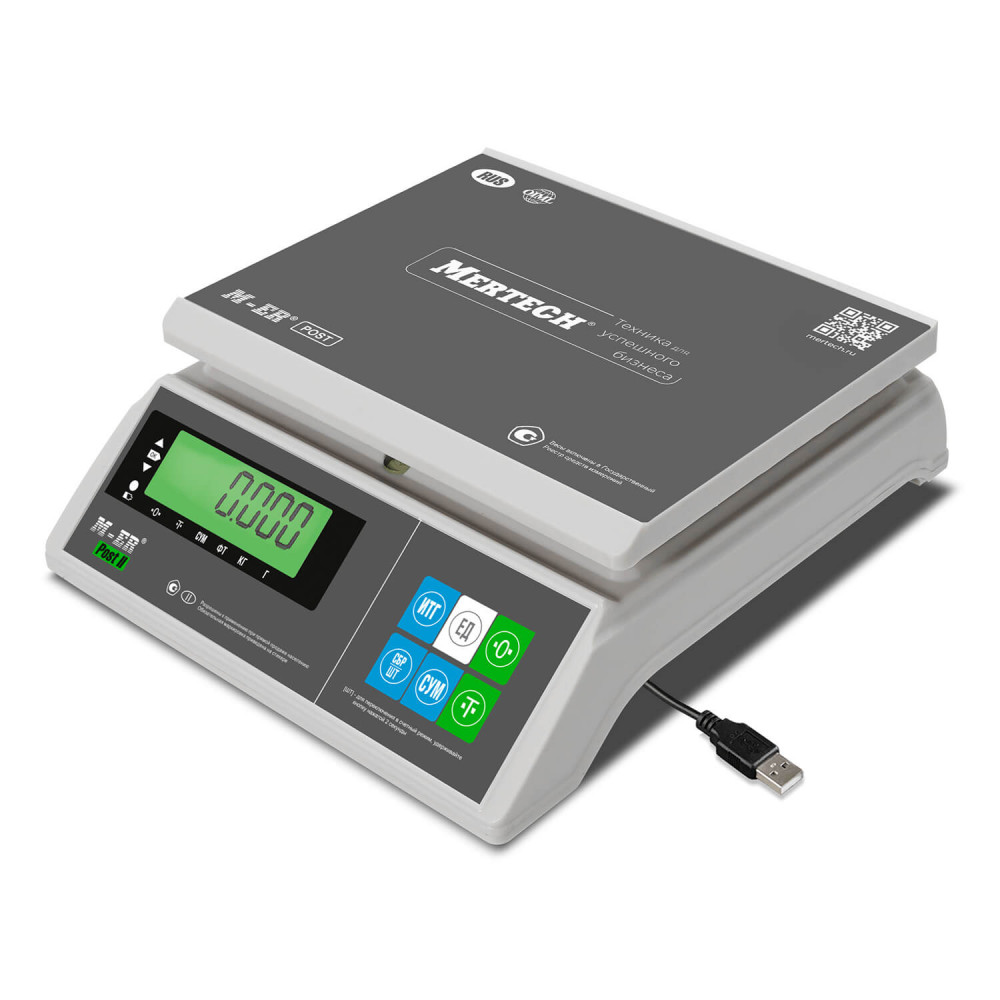

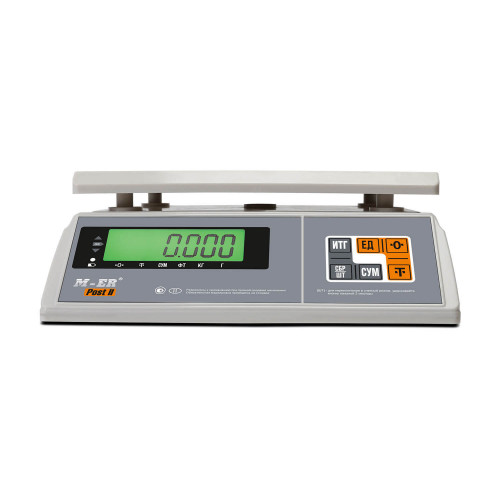

The M-ER 326 AFU-6.01 "Post II" LCD USB-COM scales belong to the high (II) accuracy class. Models from this line can be used as laboratory scales. They feature enhanced metrological characteristics. The declared accuracy class is confirmed by a state calibration certificate.
Design Features
These scales from the M-ER 326 AFU line are equipped with an LCD display and USB interface. The model is available in several variations, differing in technical characteristics. The maximum weighing limit of the M-ER 326 AFU-6.01 "Post II" LCD USB-COM model is 6 kg. The minimum limit is 5 g. The division price is 0.1 g.
All modifications implement the following functions:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- tare weight accounting;
Some models have 2 additional modes: comparator and piece weighing. If you need packaging scales with extended functionality, please indicate this when placing your order. We will select a modification with the required technical specifications.
Operating Rules
The main advantage of the M-ER 326 AFU-6.01 "Post II" LCD USB-COM is its high (II) accuracy class. However, models in this line also have other benefits. Here are the main advantages of the design, electronics, and software:
- Three available units of measurement: grams, kilograms, pounds.
- Intuitive button meanings on the control panel.
- Compact body dimensions: 265*290*110 mm. Platform size: 255*205 mm.

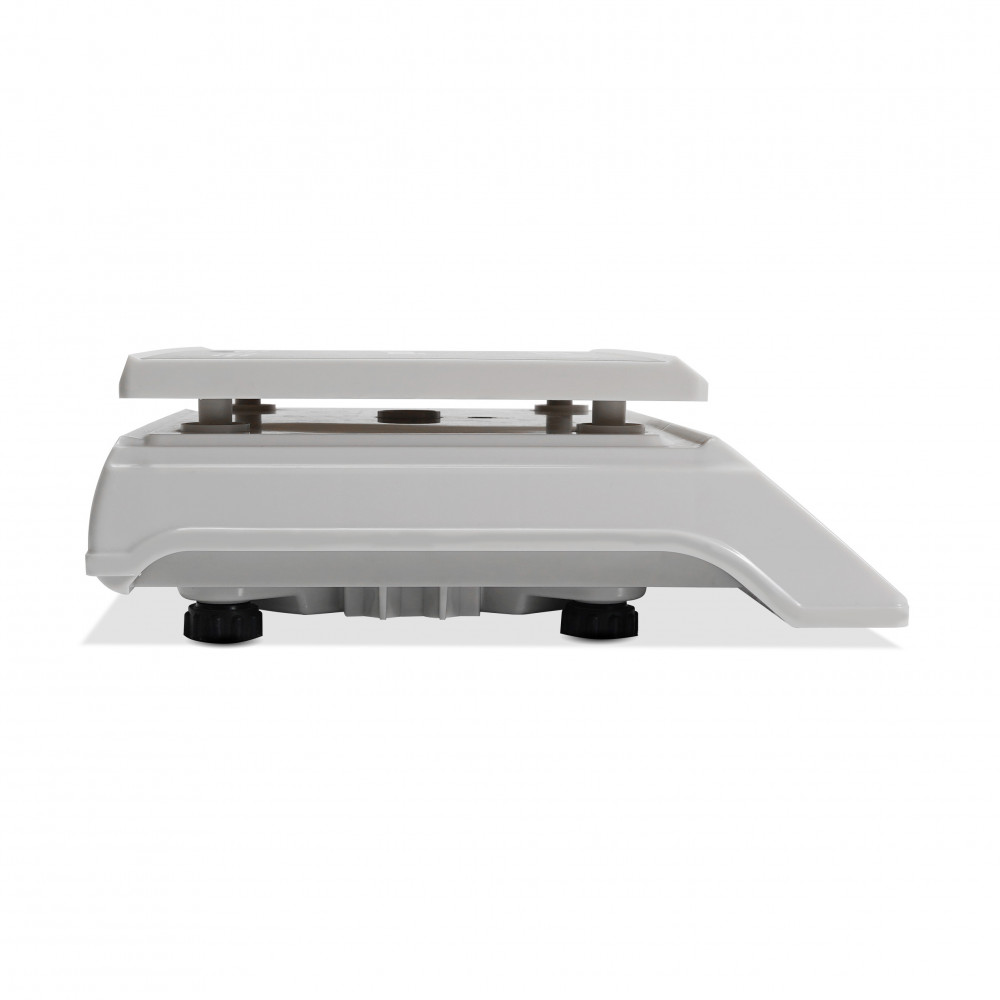

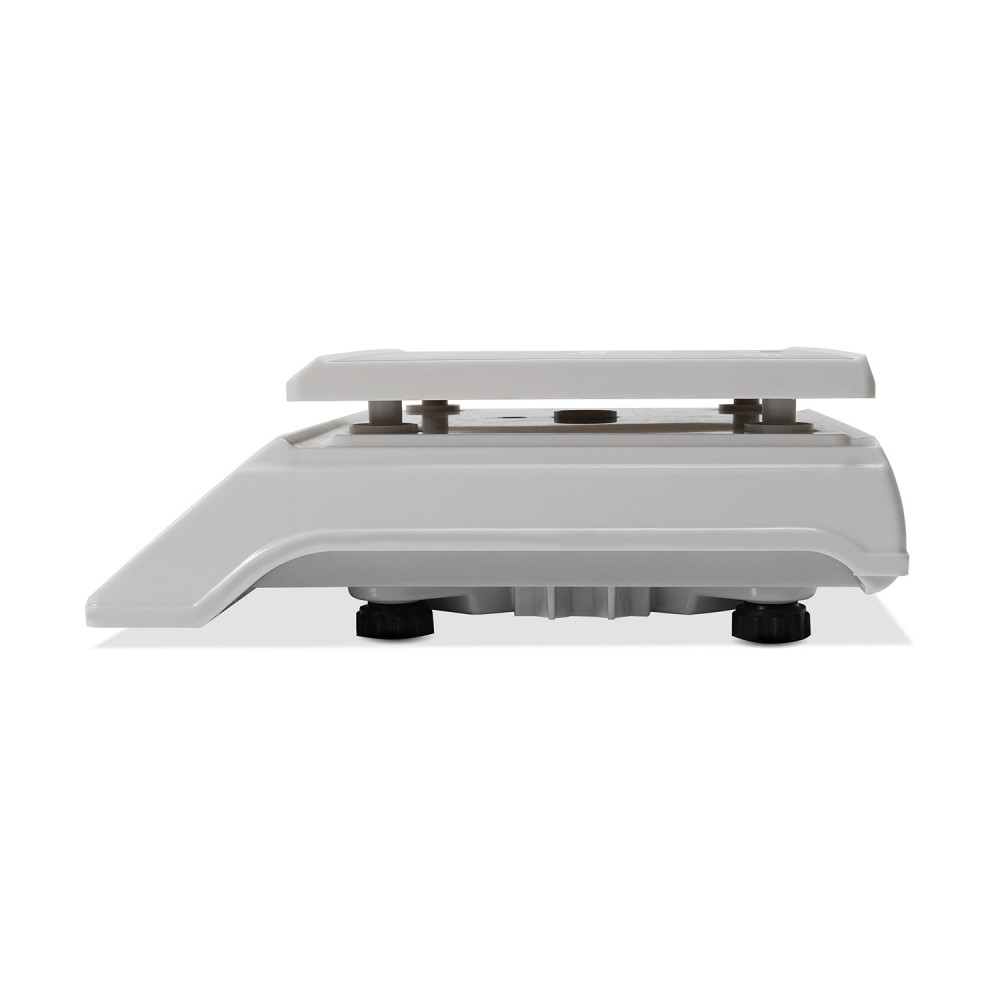

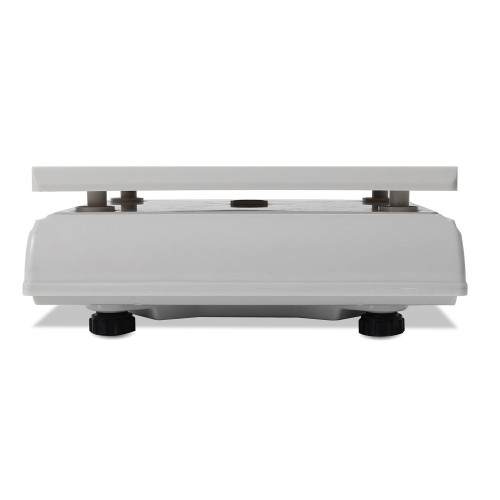

- Height-adjustable supports located on the underside.
- Larger symbol size on the LCD display (9*21 mm or 11*21 mm).
- Connection to POS systems via USB-COM interface.
The body is made of durable ABS plastic. The frame is coated with powder paint and is resistant to corrosion. The device can be used outdoors. Protection for the electronics against dust and moisture is provided. Temperature fluctuations from +10°C to +40°C do not affect measurement accuracy.
Place an Order
You can buy the M-ER 326 AFU-6.01 "Post II" LCD USB-COM at a low price. We sell weighing equipment at manufacturer prices. Models from the M-ER 326 AFU-6.01 "Post II" LCD USB-COM line are always available in stock. Goods are delivered throughout Baku or Azerbaijan. To purchase the packaging scales, please submit an application on the website.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 0.1 gr |
| Minimum weight | 5 gr |
| Number of keys | 6 |
| Weighing limit | 6 kg |
| Platform size | 255x205 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Changing the stabilization speed | Yes |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For EVOTOR, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | 10… +40 |
| Display type | LCD |
|---|---|
| Character size | 9*21 |
| Number of indication digits | 6 |
| Character size, mm | 9*21; 11*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Weight with platform | 2.1 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265*290*110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
There are no reviews for this product.
-
No questions yet
78 ₼
