| Type of scalesPacking, Portioned | Discreteness0.1 g | Minimum weight5 grams |
| Number of keys6 | Weighing limit6 kg | Platform size255x205 mm |
| ExecutionDesktop | VerificationYes | Accuracy classHigh (II) |
This product is currently under redesign. The product's appearance, including color, may differ slightly from those shown in the photo. The discrepancy between the appearance of the real product and the photos on the website is not an indicator of poor product quality.

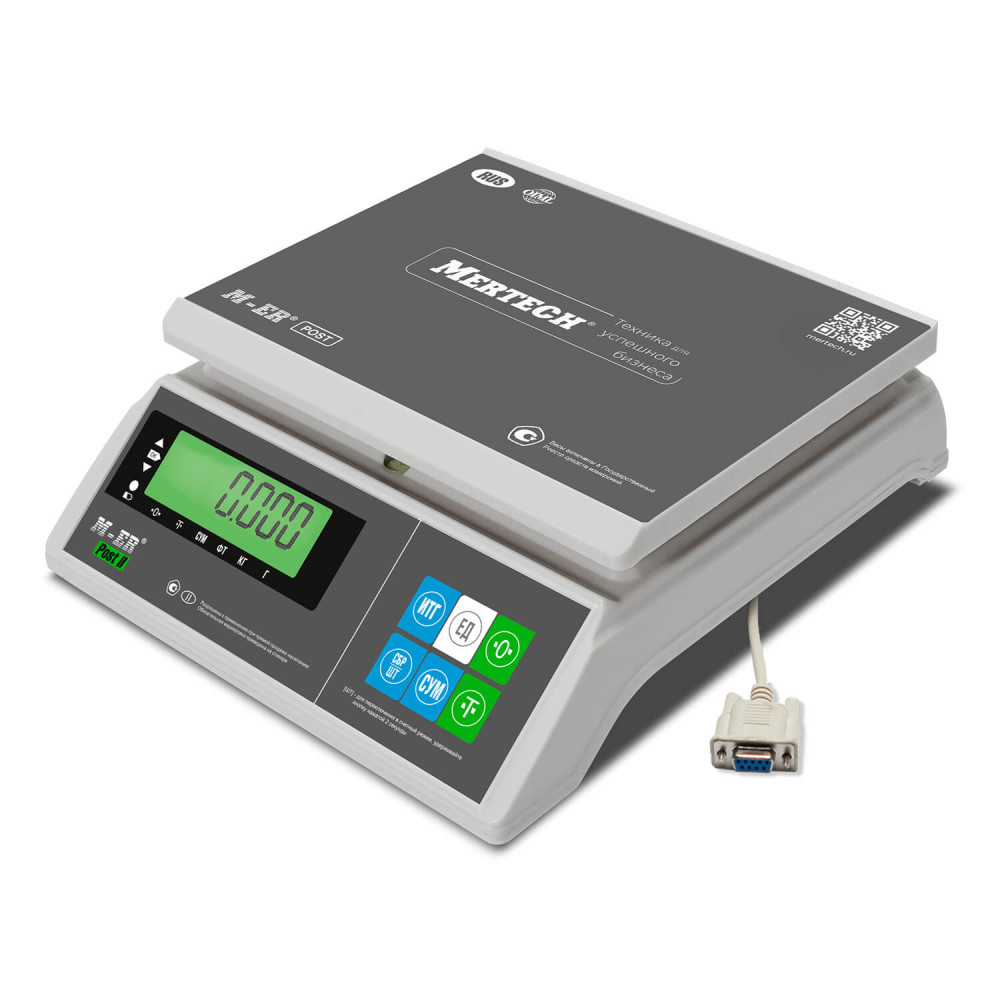

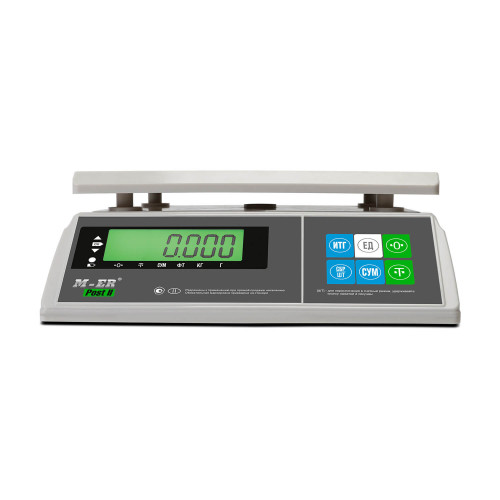

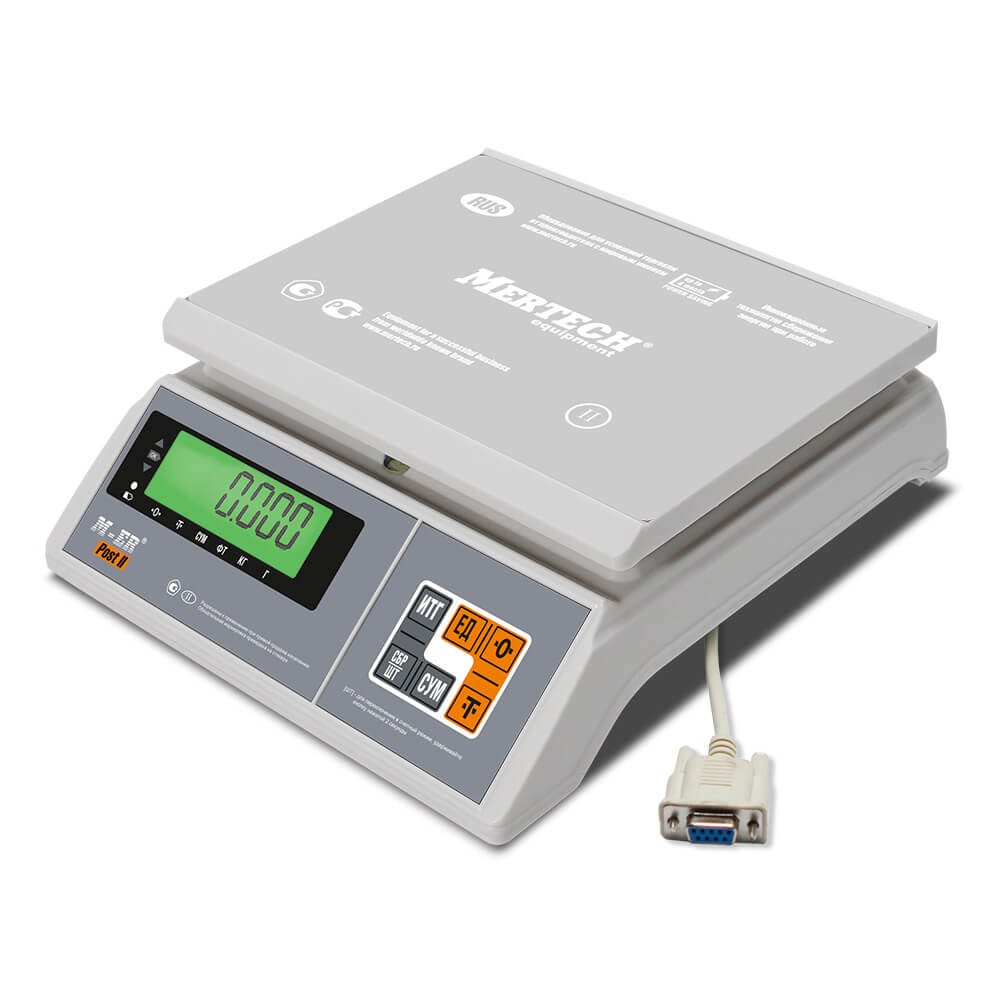

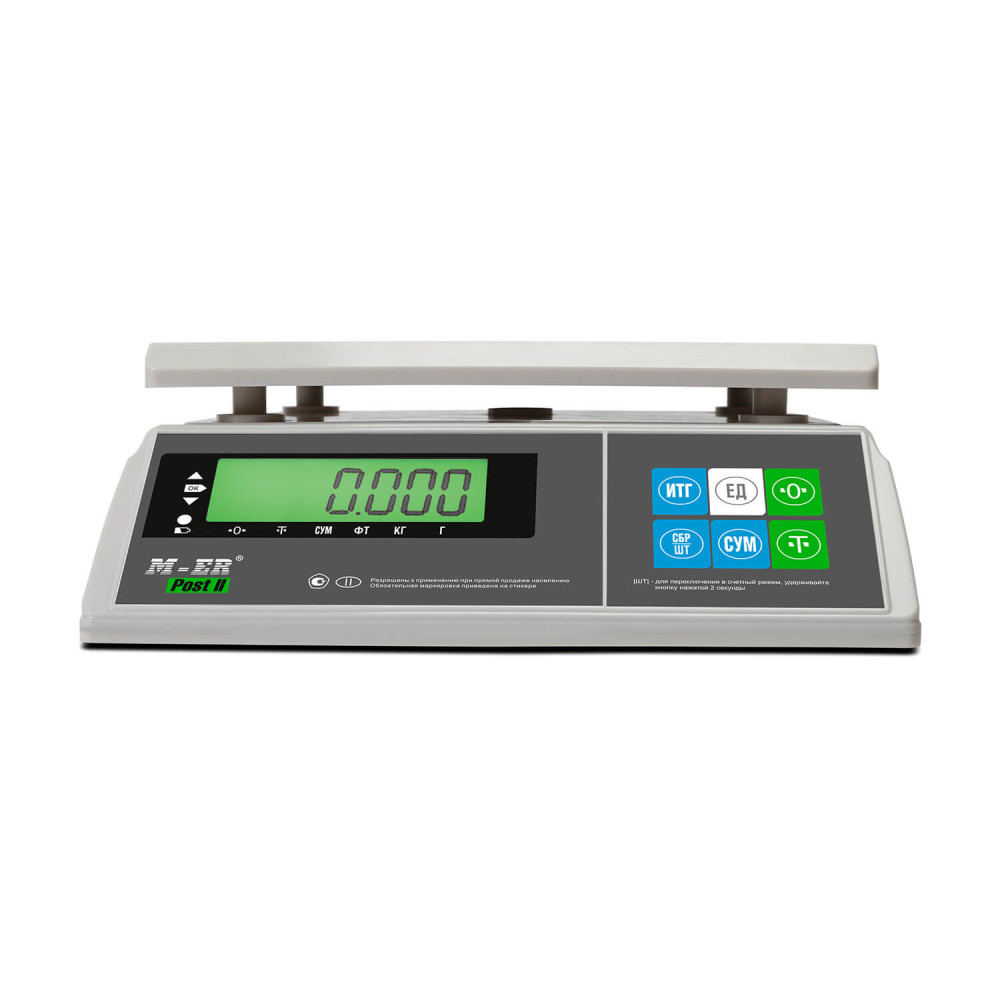

M-ER 326 AFU-6.01 "Post II" LCD RS-232 is a filling scale of high II accuracy class with improved metrological characteristics. The model is suitable for tasks where increased measurement accuracy is required, and can also be used as a laboratory scale. The declared parameters are confirmed by state verification, and the accuracy class meets the requirements of GOST.
Design features
The compact size makes the model convenient for placing on the desktop. The dimensions of the case are 265×290 × 110 mm, the size of the platform is 255×205 mm, and the weight of the device is 2.5 kg. Scales can be used as control scales in trading, in jewelry salons and workshops, as well as in research activities.
Several operating modes are available to the user:
- simple weighing;
- comparator mode;
- summation mode;
- displaying the weighing result;
- accounting for the weight of the container.
The M-ER 326 AFU-6.01 "Post II" LCD RS-232 range is available in several versions, which differ in the maximum weighing limit. This page contains a model with a measuring range from 5 g to 6 kg and a division price of 0.1 g. The measurement and calculation results are displayed on an LCD display.
Operating rules
The M-ER 326 AFU-6.01 "Post II" LCD RS-232 model combines precision, convenience and reliability in daily operation. Among the main advantages are:
- intuitive interface and ergonomic control panel;
- Support for three units of measurement: grams, kilograms and pounds;
- The case is made of durable ABS plastic;
- enlarged numbers on the LCD display: 9×21 mm or 11×21 mm;
- platform stabilization system and height-adjustable supports;
- RS-232 interface for connection to a POS computer.
The scales are designed for use in indoor heated rooms. The operating temperature range is from +10 to +40 °C. A protective dust cover is included in the kit, and power is provided from the electrical network via an adapter that comes with the device.
Place an order
You can buy packing scales M-ER 326 AFU-6.01 "Post II" LCD RS-232 at the manufacturer's price. The models of this line are supported in stock and are available with delivery in Moscow and other cities of Russia. To place an order, leave a request on the website or contact us by phone.
| Type of scales | Packing, Portioned |
|---|---|
| Discreteness | 0.1 g |
| Minimum weight | 5 grams |
| Number of keys | 6 |
| Weighing limit | 6 kg |
| Platform size | 255x205 mm |
| Execution | Desktop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transmission mode |
|---|---|
| Printing labels | No |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | G; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years old |
|---|---|
| Applications of scales | For connecting to 1C, For a store, For hardware, For connecting to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food, For catering |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40 °C without condensation of moisture |
| Atmospheric pressure | 630...800 mmHg (84...106.7 kPa) |
| Operating temperature | +10...+40 |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 6 |
| Character size, mm | 9x21 |
| CAS-M (Active) | Yes |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS232 (DB-9F), length 2.7m |
|---|
| Weight with platform | 2.2 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265x290x110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust cover, Warranty card, Instruction manual |
|---|
-
