| Type of scalesPacked, portioned | Discreteness1 gr | Minimum weight50 gr |
| Number of keys6 | Platform size255x205 mm | ExecutionTabletop |
| VerificationYes | Accuracy classHigh (II) | Load cells, pcs.1 |
This product is currently undergoing a redesign. The appearance of the product, including color, may slightly differ from what is shown in the photograph. A discrepancy between the actual product's appearance and the images on the website is not an indication of improper product quality.

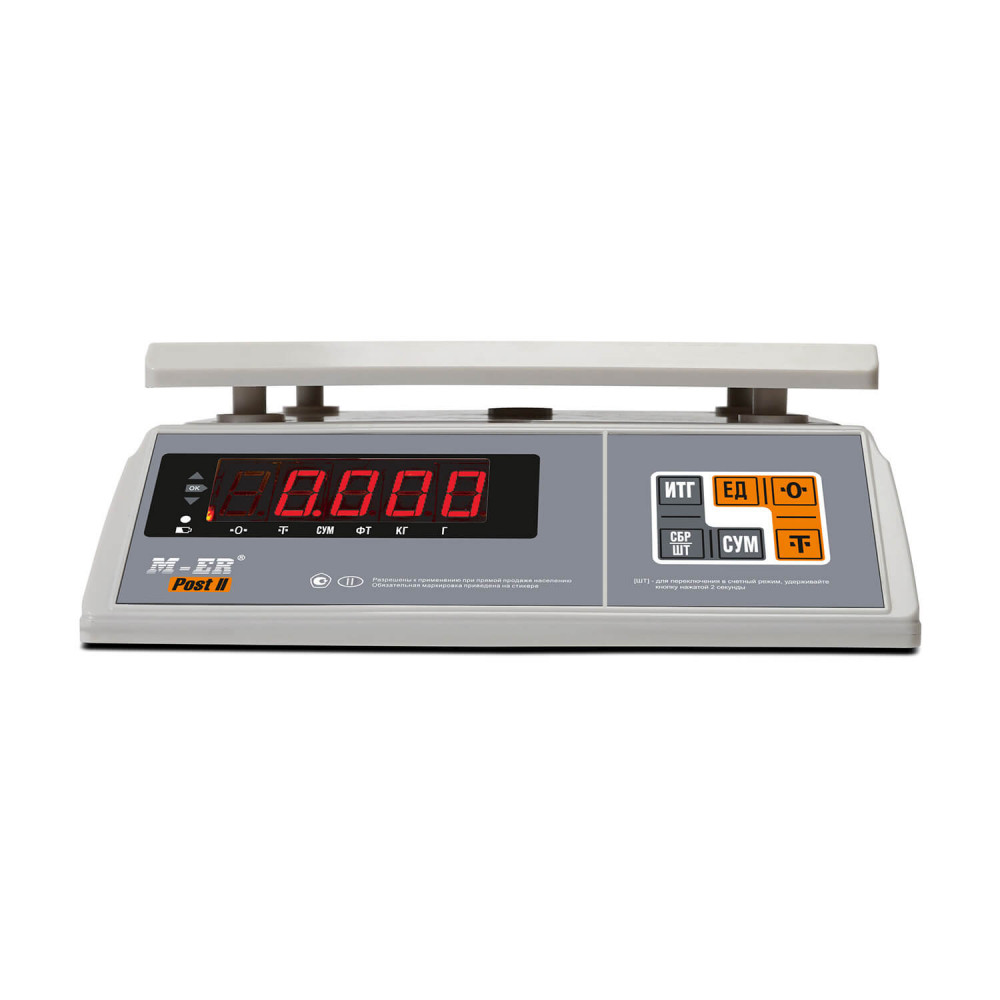

M-ER 326 AFU-32.1 "Post II" LED RS-232 – class II precision packaging scales according to GOST. They can be used as laboratory scales. The model has improved metrological characteristics. The declared parameters have been confirmed by state verification. A certificate confirming successful testing has been obtained.
Design Features

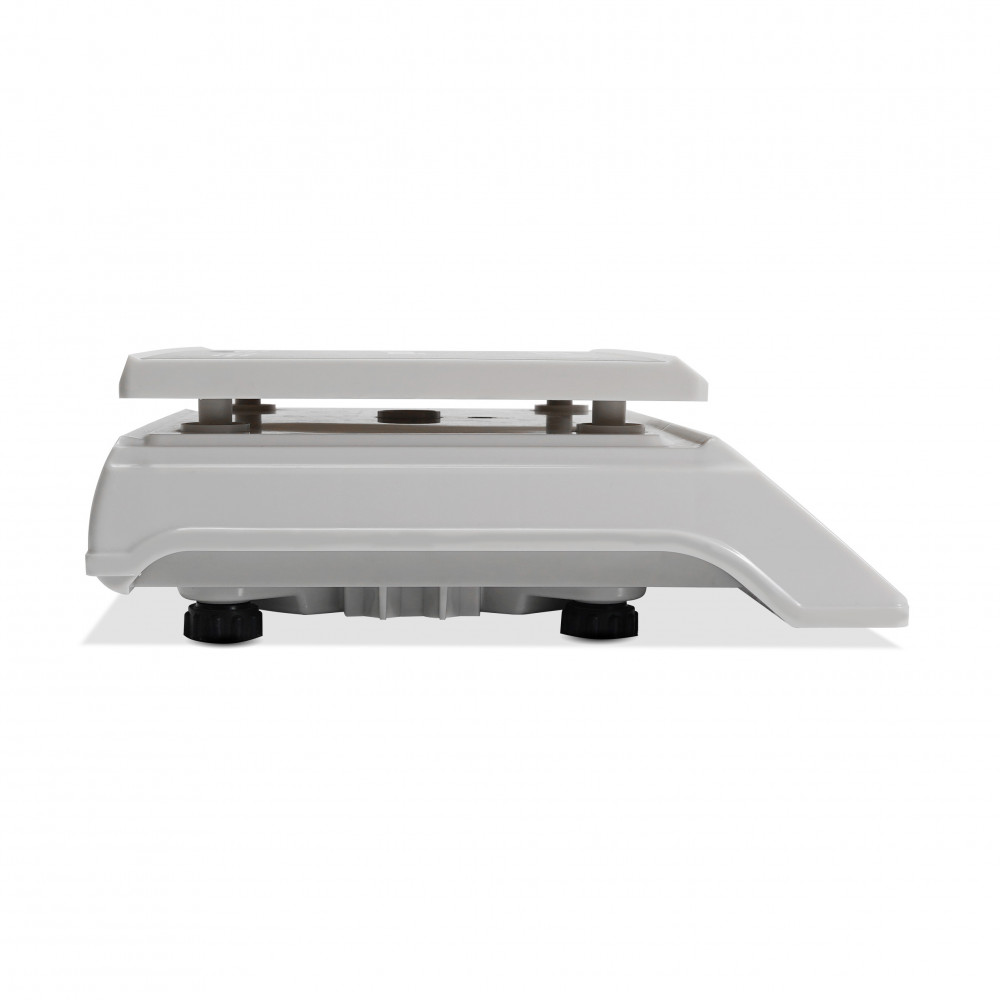

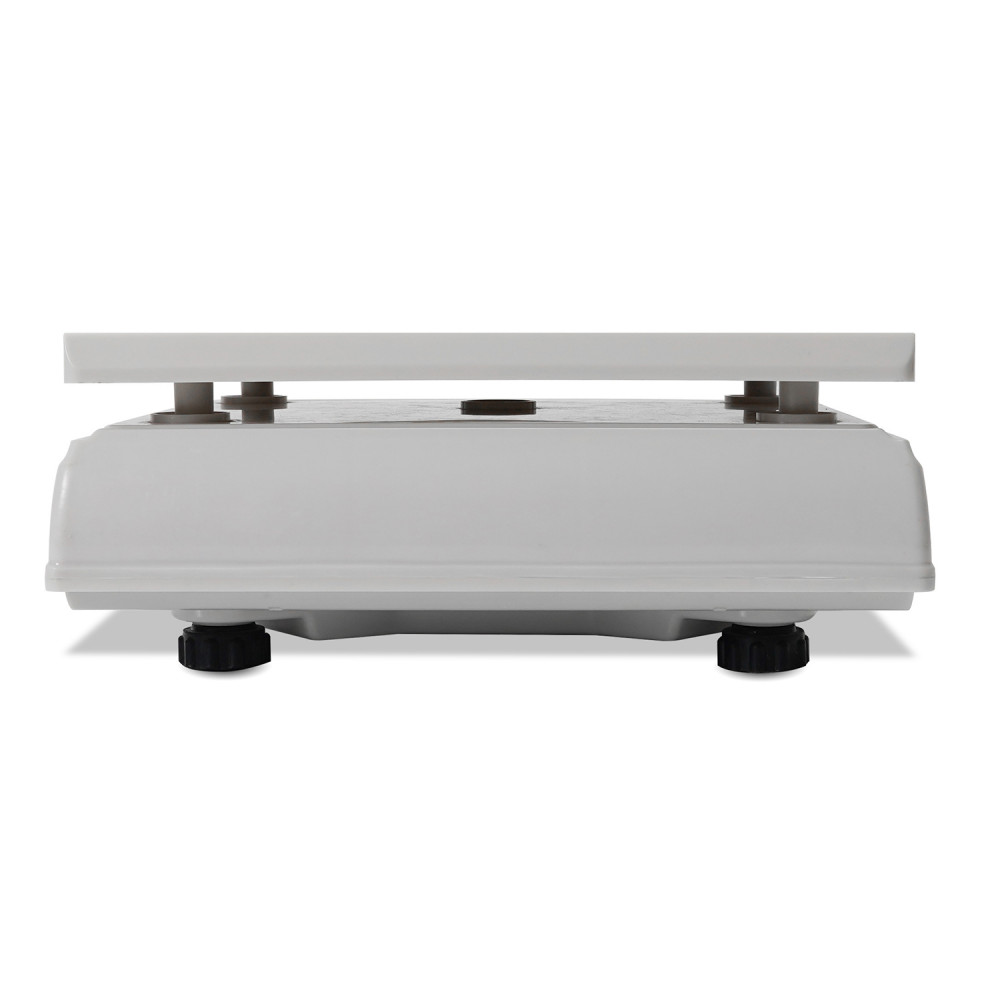

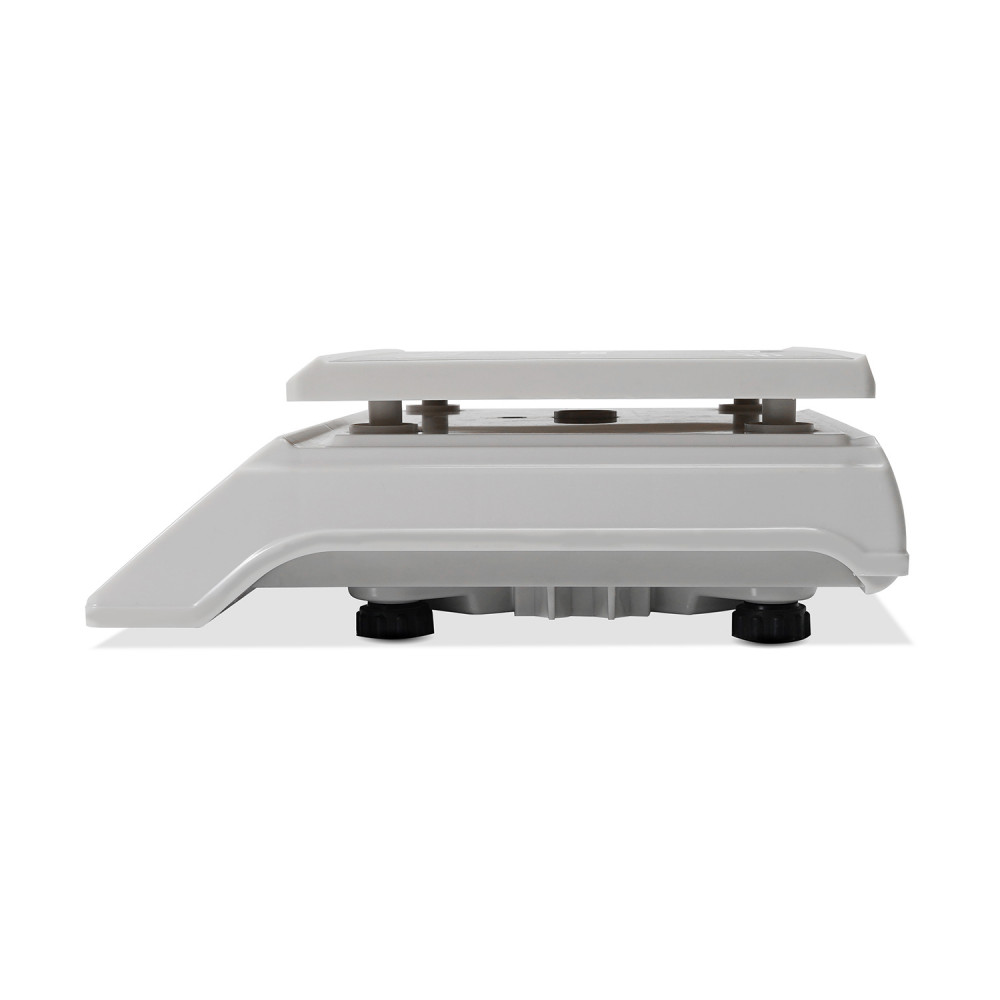

The small scales do not take up much space on the table. Body size: 265*290*110 mm. Weighing platform size: 255*205 mm. Product weight: 2.5 kg. The device is easy to carry from one place to another. The model is used in laboratories, in production, as packaging scales for trade.
The device operates in several modes:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- Tare weight accounting;
The M-ER 326 AFU-32.1 "Post II" LED RS-232 model has several modifications. They differ in the maximum weighing limit. On this page, the scales have a maximum weighing capacity of 32 kg. The minimum weighing limit is 50 g. Measurement results are displayed on an LED display. The RS-232 interface is used for connection to the POS system.
Operating Rules
The M-ER 326 AFU-32.1 "Post II" LED RS-232 RS232 LED packaging scales have the following advantages:
- Simple and intuitive control panel.
- The body is made of high-strength plastic.
- Unit of measurement selection: grams, kilograms, pounds.
- Modifications are available with 2 additional modes: comparator and piece weighing.
- Enlarged digits on the LED display (9*21 mm or 11*21 mm).
- Adjustable height of supports. Platform stabilization level.
Temperature fluctuations from +10°C to +40°C do not affect measurement accuracy. However, the body does not have additional protection against dust and moisture. Only a protective dust cover is provided. The device is designed for use in covered, heated premises.
Place an Order
You can buy the M-ER 326 AFU-32.1 "Post II" LED RS-232 RS232 LED packaging scales at a low price. We sell equipment without a trade markup. Deliveries are made from the manufacturer's warehouse. Orders are sent to any city in Azerbaijan. Courier delivery of orders is available in Baku. To make a purchase, please submit a request on the website.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 1 gr |
| Minimum weight | 50 gr |
| Number of keys | 6 |
| Platform size | 255x205 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | 10… +40 |
| Display type | LED |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 6 |
| Character size, mm | 11x20 |
| CAS-M (Active) | Yes |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS232 (DB-9F), length 2.7m |
|---|
| Weight with platform | 2.23 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265x290x110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
