| Type of scalesPacked, portioned | Discreteness1 gr | Minimum weight50 gr |
| Number of keys6 | Platform size255x205 | ExecutionTabletop |
| VerificationYes | Accuracy classHigh (II) | Load cells, pcs.1 |

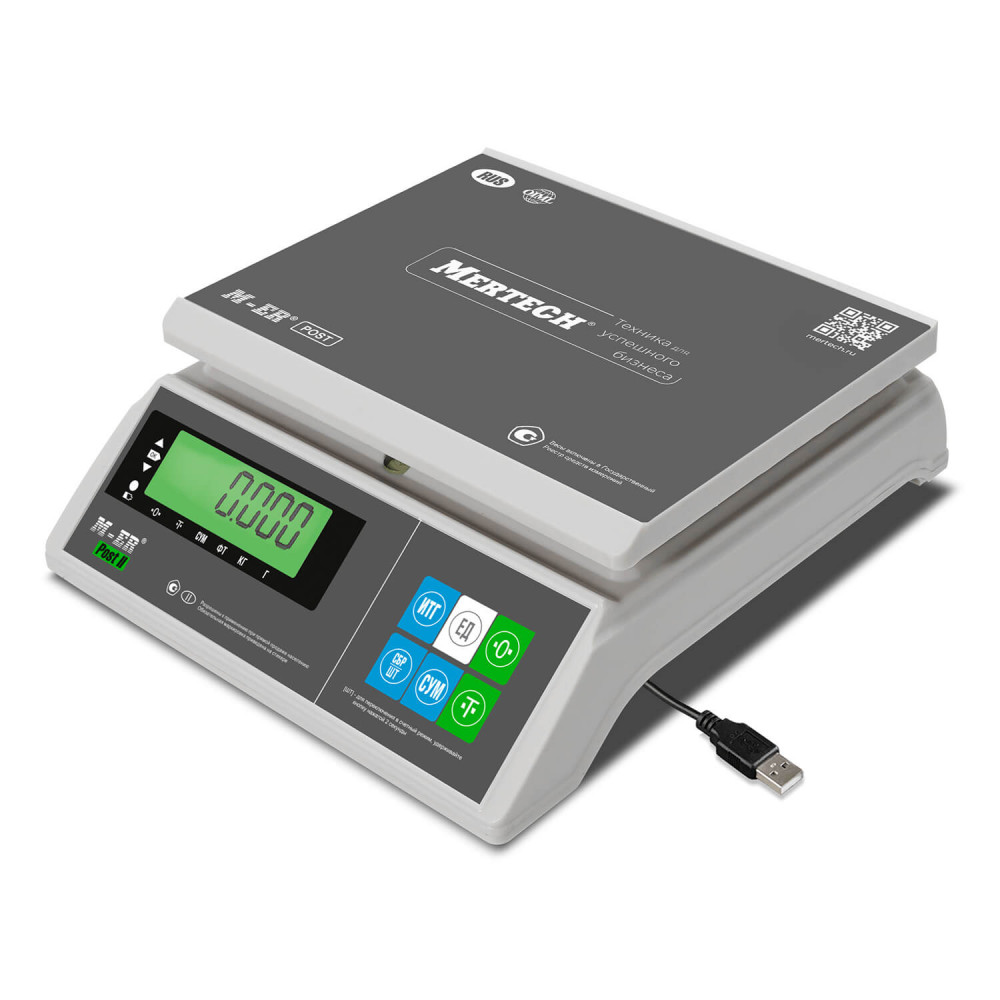

This product is in the redesign stage. The appearance of the product, including color, may slightly differ from that shown in the photo. Discrepancies between the actual product's appearance and the photos on the website do not indicate poor quality of the product.
The M-ER 326 AFU-32.1 "Post II" LCD USB-COM scales belong to the high (II) accuracy class. Models from this line can be used as laboratory scales. They have improved metrological characteristics. The declared accuracy class is confirmed by a state calibration certificate.
Design Features

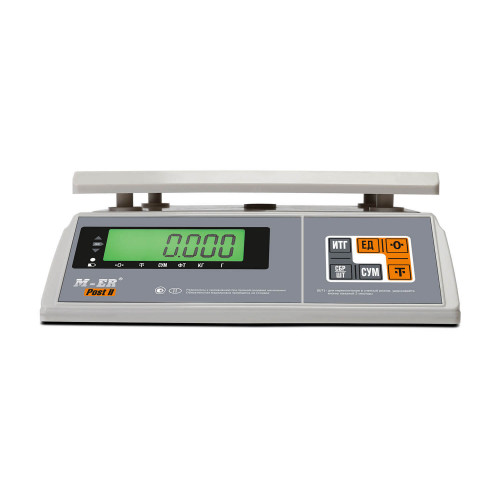

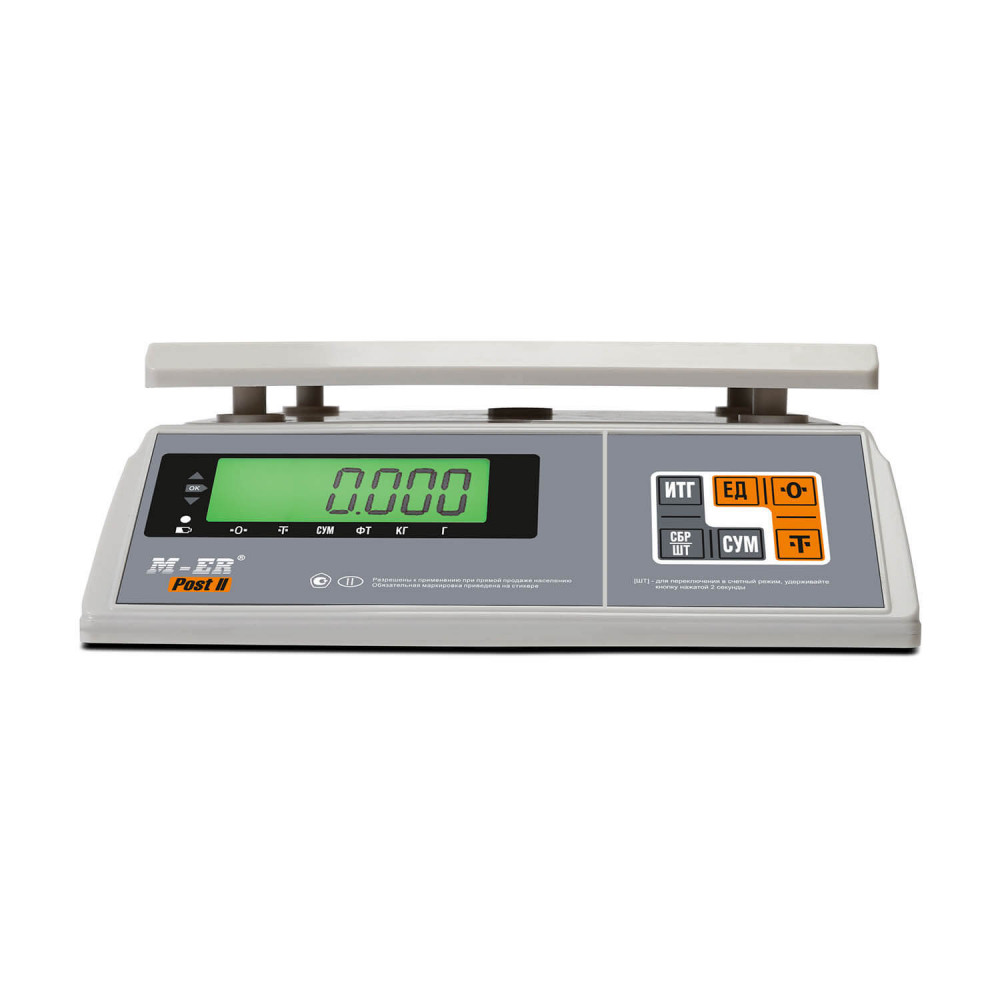

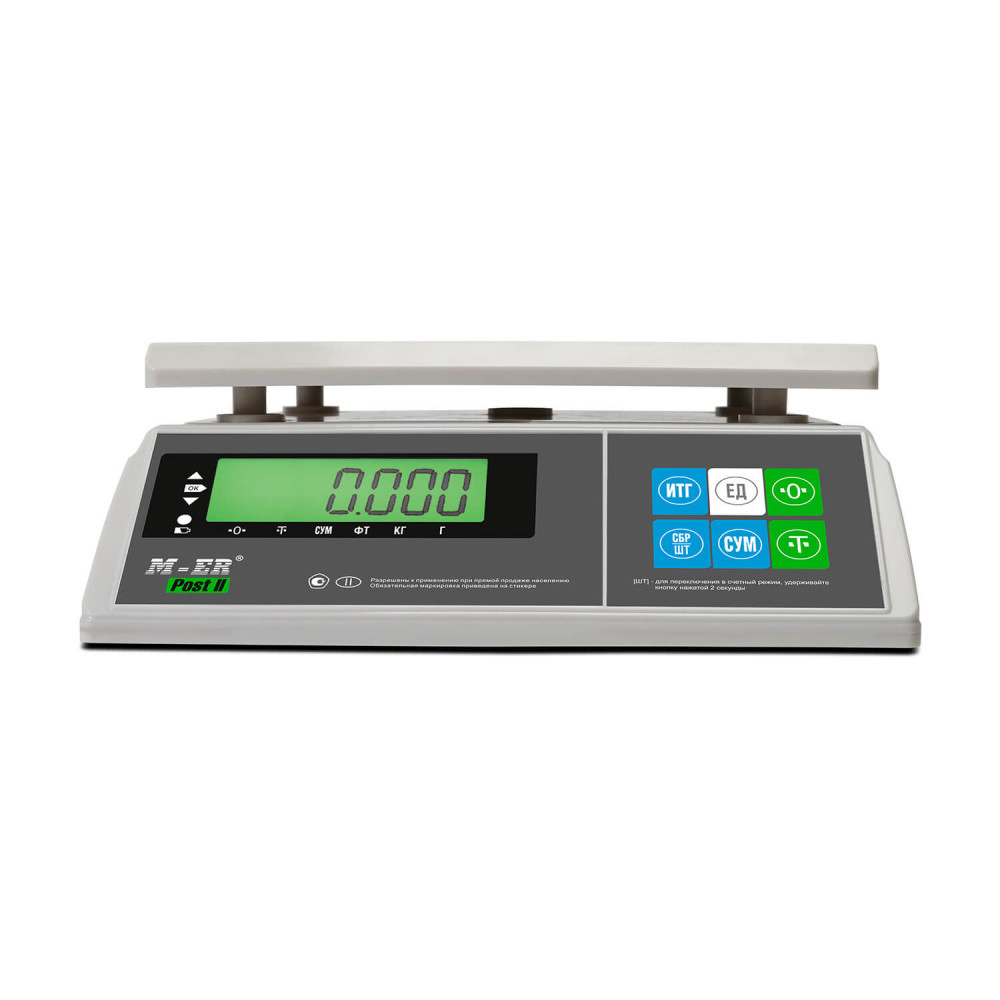

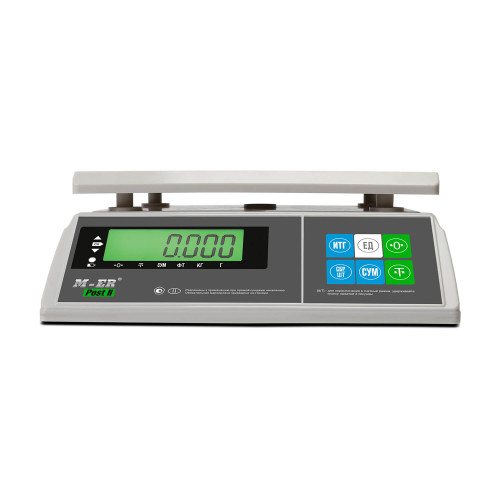

These scales from the M-ER 326 AFU line are equipped with an LCD display and USB interface. The model is available in several variants, differing in technical specifications. The maximum weighing limit for the M-ER 326 AFU-32.1 "Post II" LCD USB-COM model is 32 kg, while the minimum limit is 50 g. The division price is 1 g.
All modifications implement the following functions:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- Tare weight consideration;
In some models, there are 2 additional modes: comparator and piece weighing. If you need weighing scales with extended functionality, please specify this when placing your order. We will select a modification with the required technical specifications.
Operating Rules
The main advantage of the M-ER 326 AFU-32.1 "Post II" LCD USB-COM is its high (II) accuracy class. However, models from this line have other merits as well. Here are the main advantages of the design, electronics, and software:
- Three available units of measurement: grams, kilograms, pounds.
- Intuitive button values on the control panel.
- Compact housing dimensions: 265*290*110 mm. Platform size: 255*205 mm.

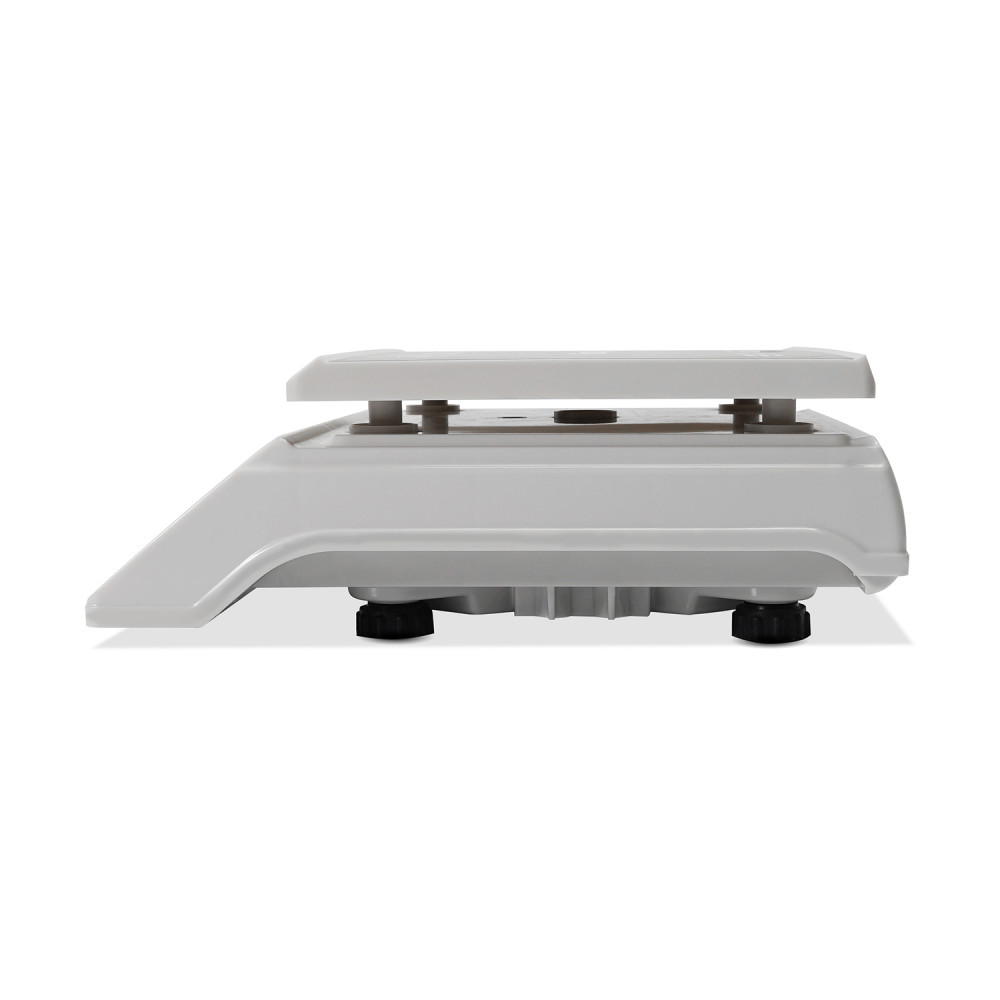

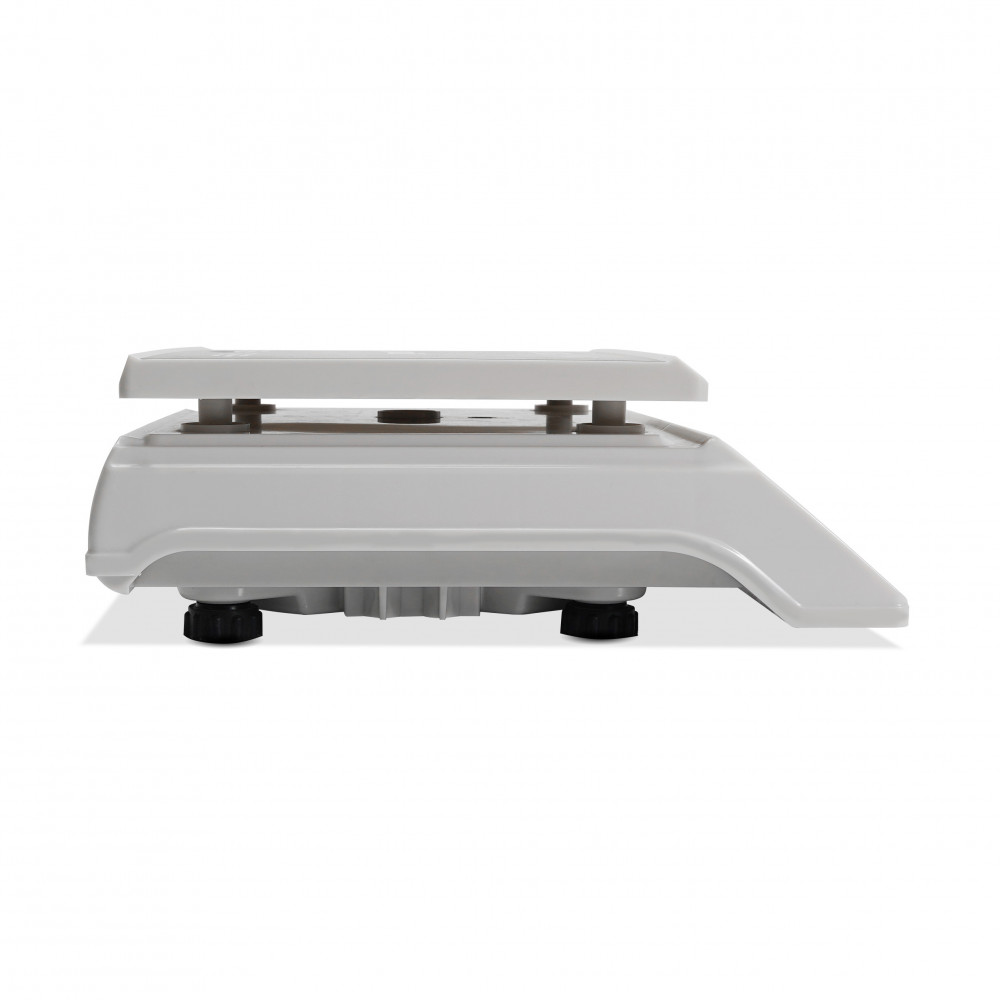

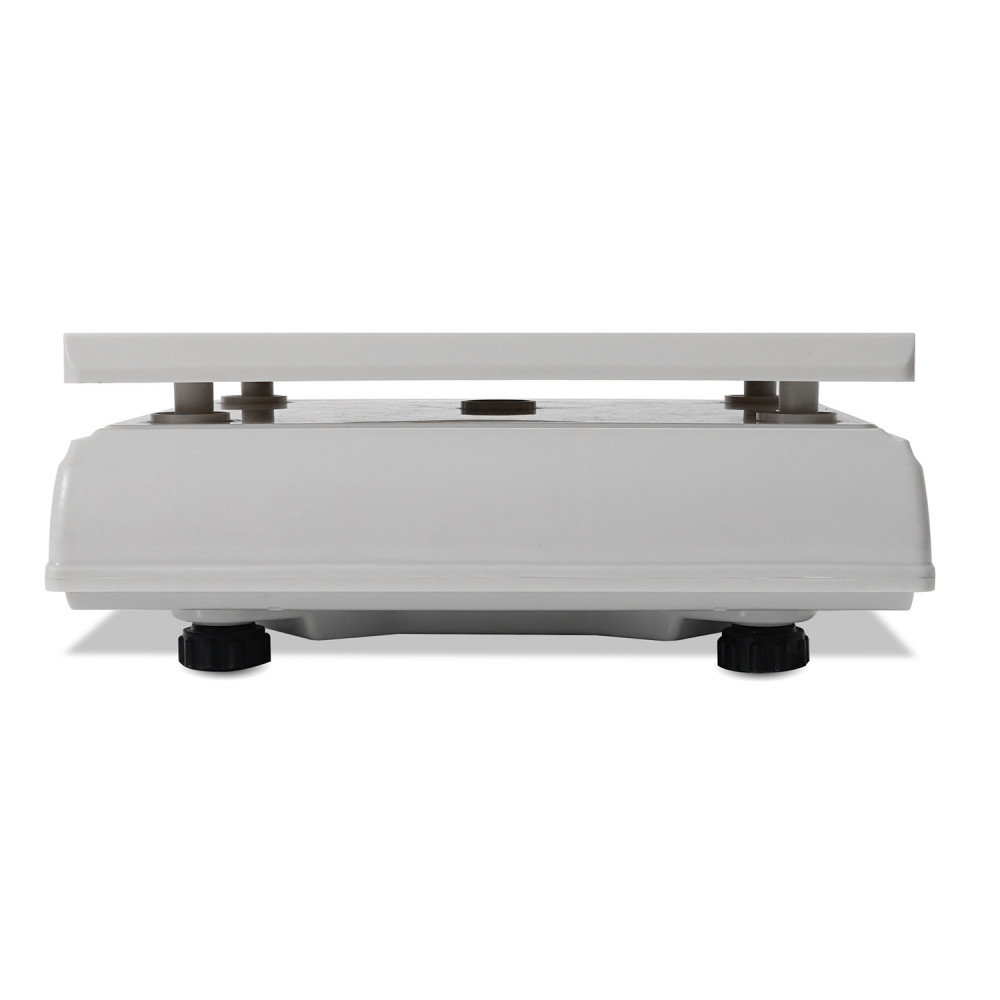

- Height-adjustable supports located on the bottom side.
- Increased character sizes on the LCD display (9*21 mm or 11*21 mm).

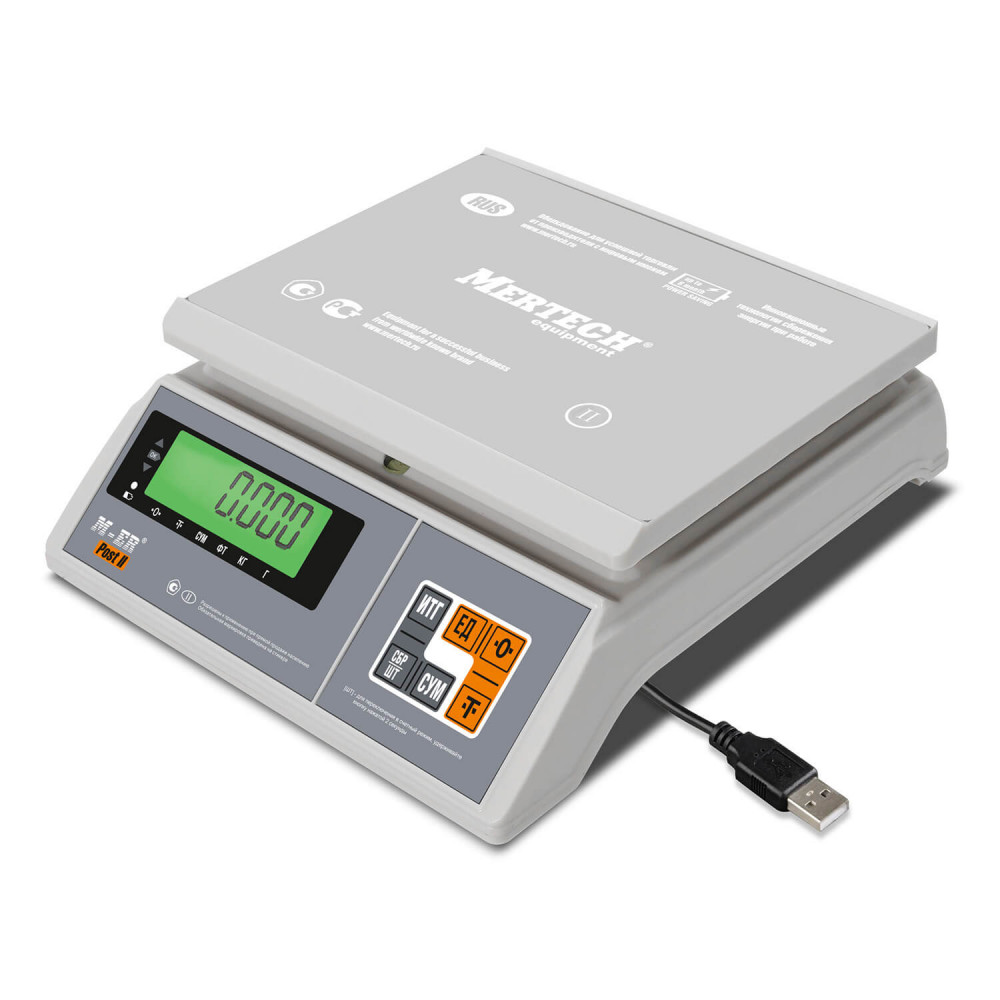

- Connection to the POS system via USB-COM interface.
The housing is made of durable ABS plastic. The frame is powder-coated and resistant to corrosion. The device can be used outdoors. There is protection for the electronics against dust and moisture. Temperature fluctuations from +10°C to +40°C do not affect measurement accuracy.
Place an Order
You can buy the M-ER 326 AFU-32.1 "Post II" LCD USB-COM at a low price. We sell weighing equipment at manufacturer prices. Models from the M-ER 326 AFU-32.1 "Post II" LCD USB-COM line are always in stock. Delivery of goods is carried out within Baku or across Azerbaijan. To purchase the weighing scales, please submit a request on the website.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 1 gr |
| Minimum weight | 50 gr |
| Number of keys | 6 |
| Platform size | 255x205 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Changing the stabilization speed | Yes |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For EVOTOR, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | 10… +40 |
| Display type | LCD |
|---|---|
| Character size | 9*21 |
| Number of indication digits | 6 |
| Character size, mm | 9*21; 11*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Weight with platform | 2.1 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265*290*110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
