| Type of scalesPacked, portioned | Discreteness1 gr | Minimum weight50 gr |
| Number of keys6 | Weighing limit32 kg | Platform size255x205 mm |
| ExecutionTabletop | VerificationYes | Accuracy classHigh (II) |

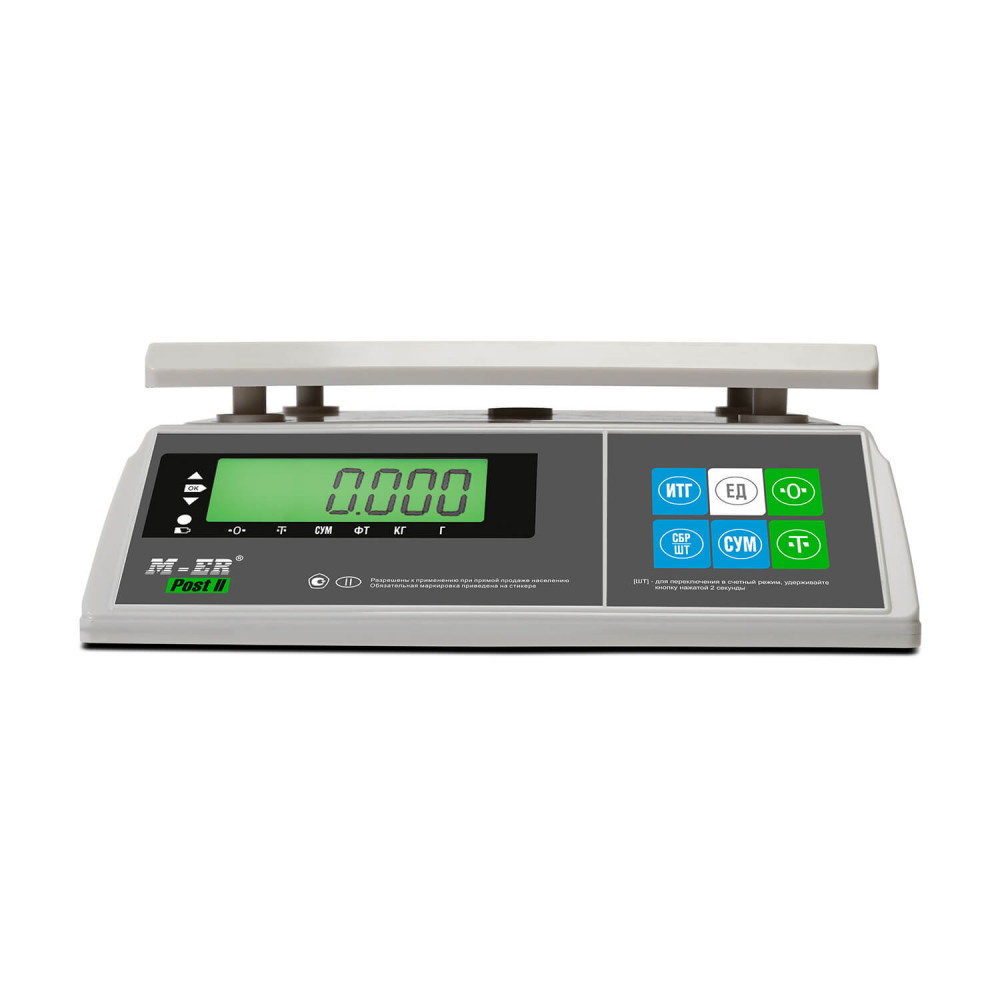

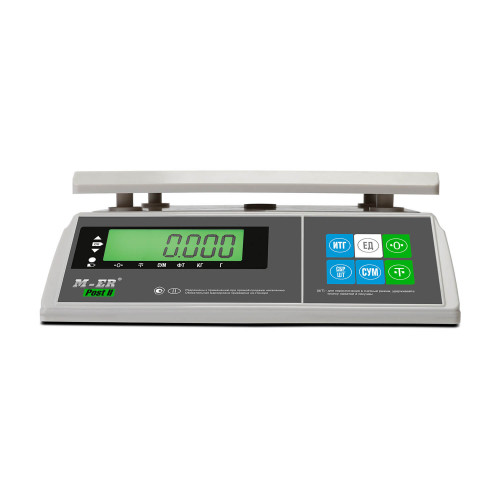

This product is currently undergoing redesign. The appearance of the product, including color, may slightly differ from what is shown in the photograph. Any discrepancy between the actual product's appearance and the images on the website does not indicate a defect in the product's quality.

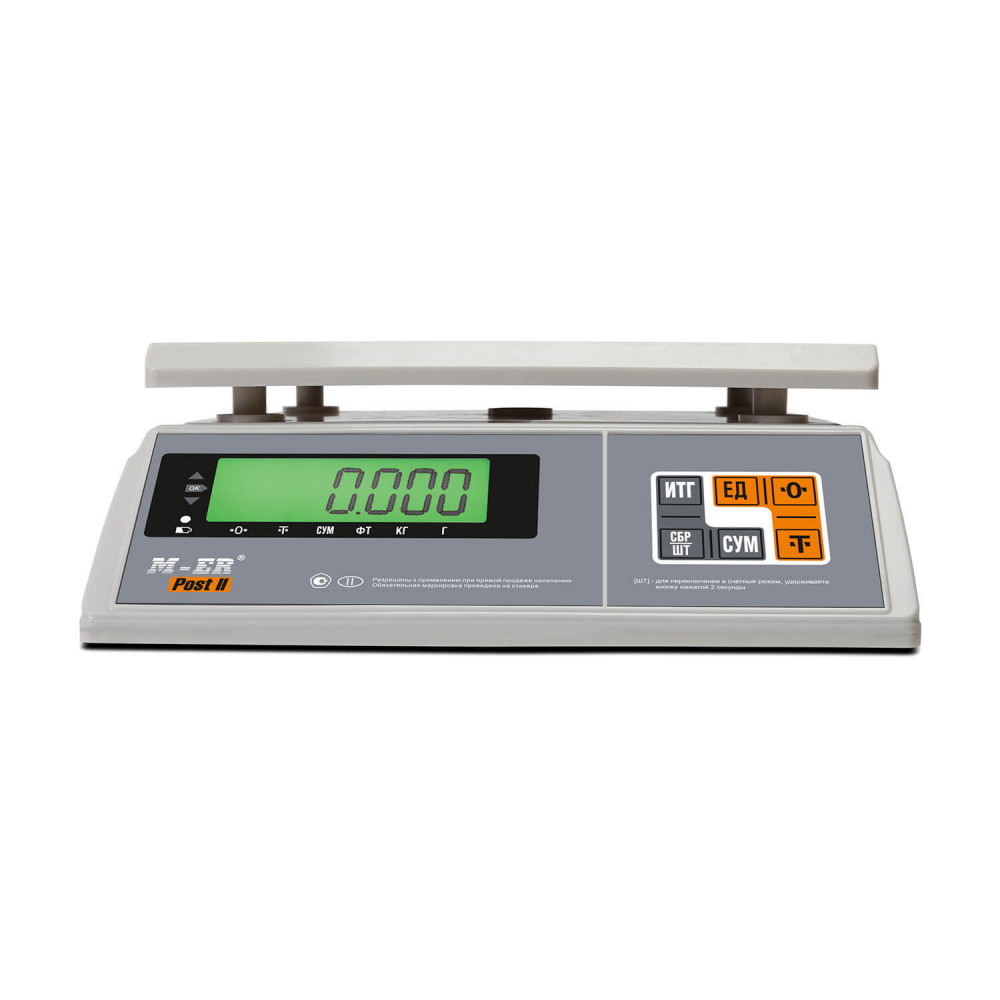

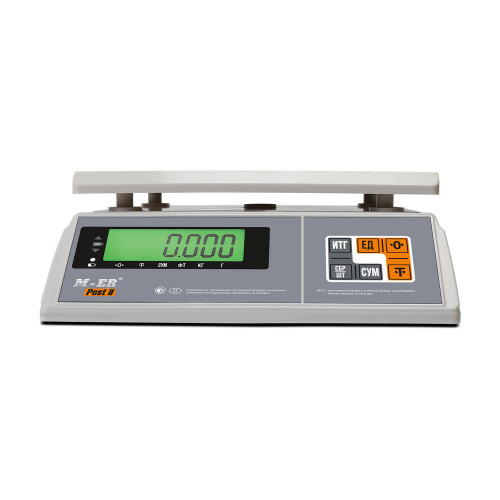

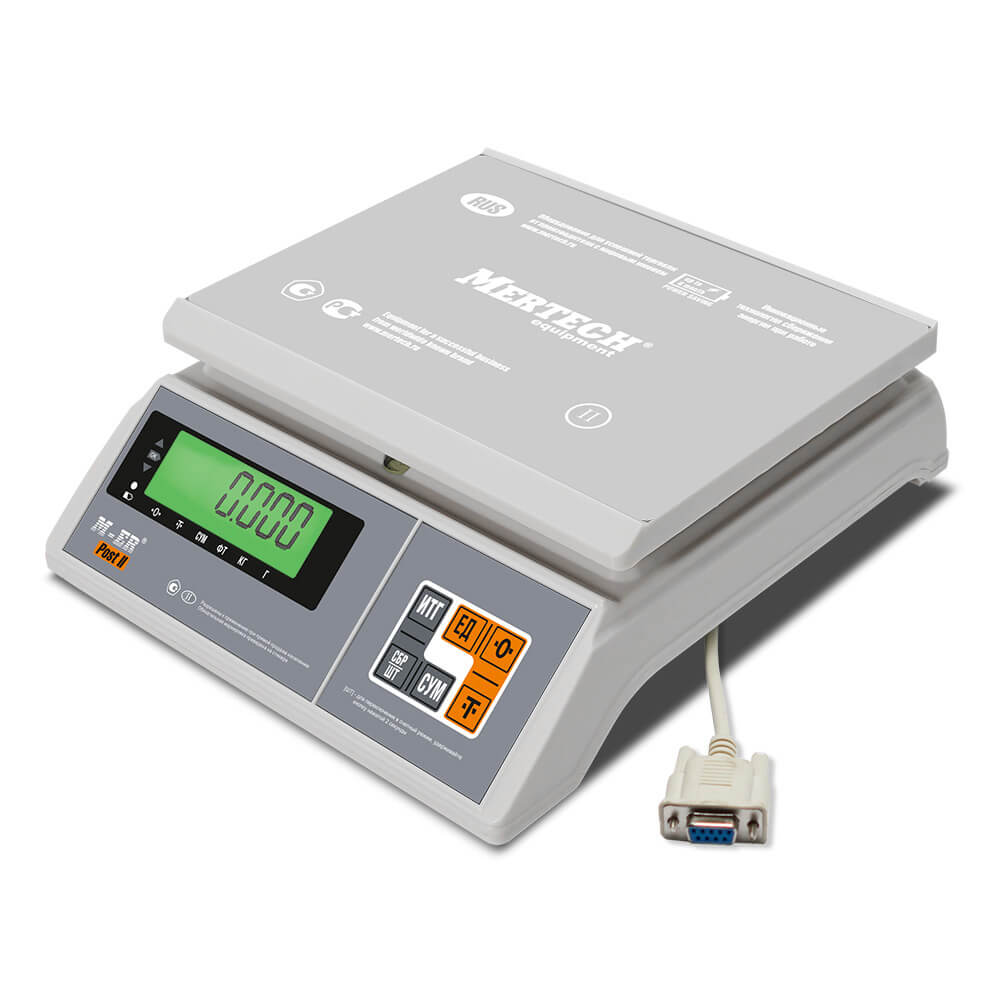

The model M-ER 326 AFU-32.1 "Post II" LCD RS-232 features improved metrological characteristics. These are class II precision weighing scales that can be used as laboratory scales. The stated characteristics are confirmed by state verification. The model has a certificate confirming its accuracy class according to GOST.
Design Features

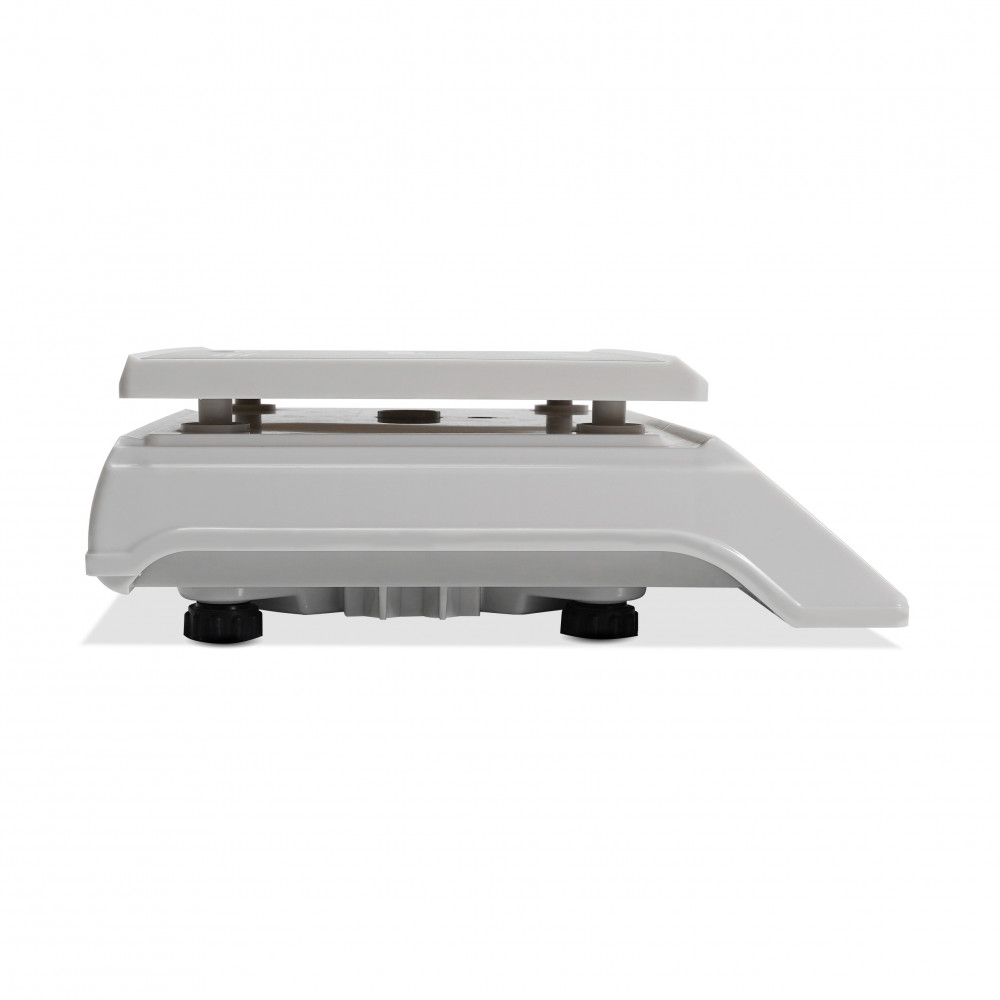

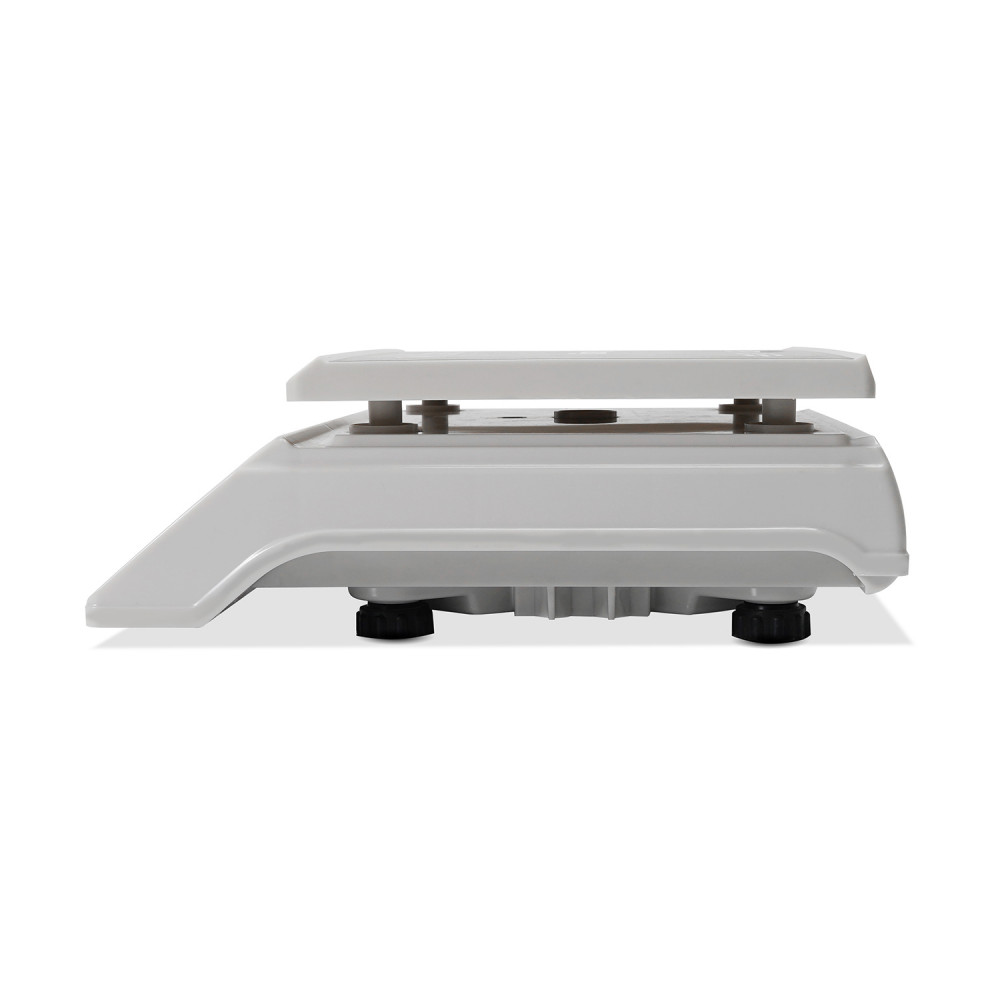

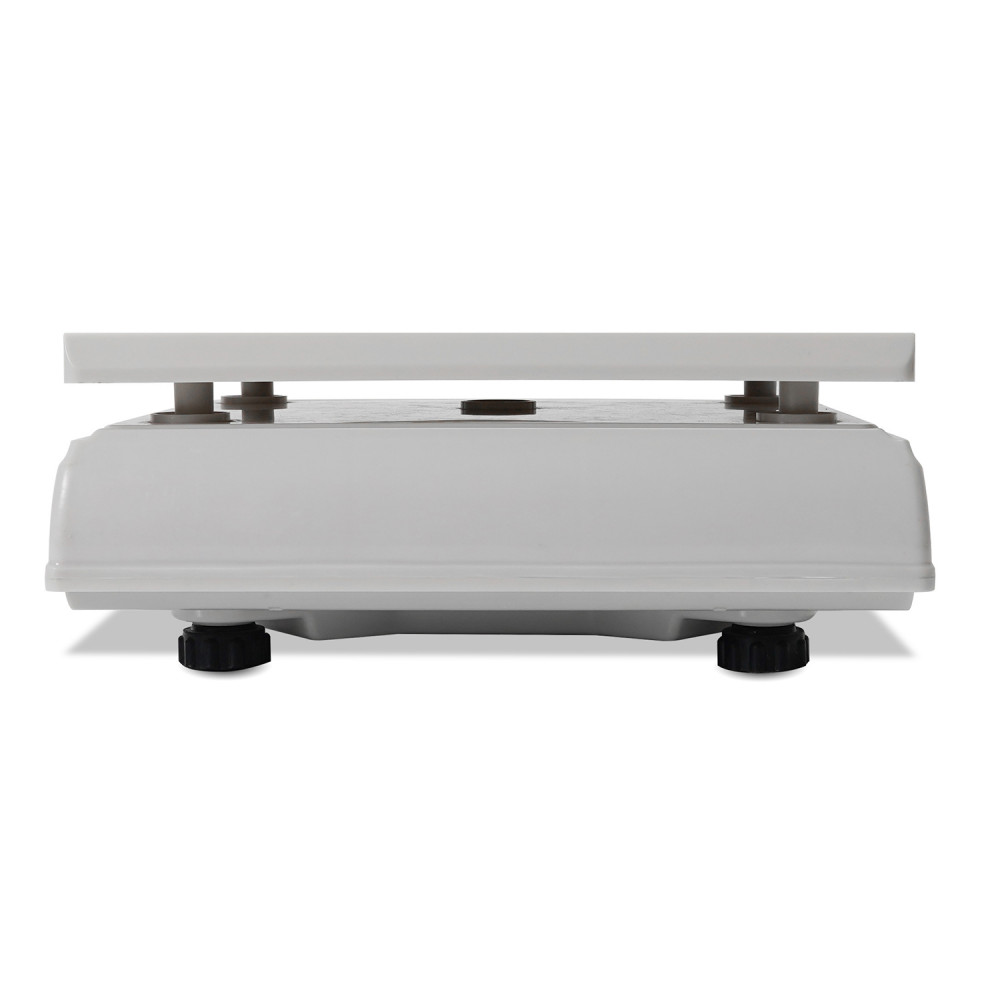

The small device will not take up much space on the workstation. Dimensions of the casing: 265*290*110 mm. Platform size: 255*205 mm. Weight of the device: 2.5 kg. The M-ER 326 AFU-32.1 "Post II" LCD RS-232 model is used as control scales in trade. It is used in jewelry salons and workshops. It is also utilized for research purposes.
Several operating modes are available for users:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- Tare weight accounting;
The M-ER 326 AFU-32.1 "Post II" LCD RS-232 scales are available in several versions. They differ in their maximum weighing limit. On this page, the scales have a weighing range from 50 grams to 32 kilograms with a division price of 1 gram. Measurement and calculation results are displayed on the LCD screen.
Operating Rules
The M-ER 326 AFU-32.1 "Post II" LCD RS-232 model has the following advantages:
- Simple and intuitive interface. Ergonomic control panel.
- Support for 3 units of measurement: grams, kilograms, pounds.
- The casing is made of high-strength ABS plastic.
- Increased digit size on the LCD display (9*21 mm or 11*21 mm).
- Platform stabilization. Adjustable height supports.

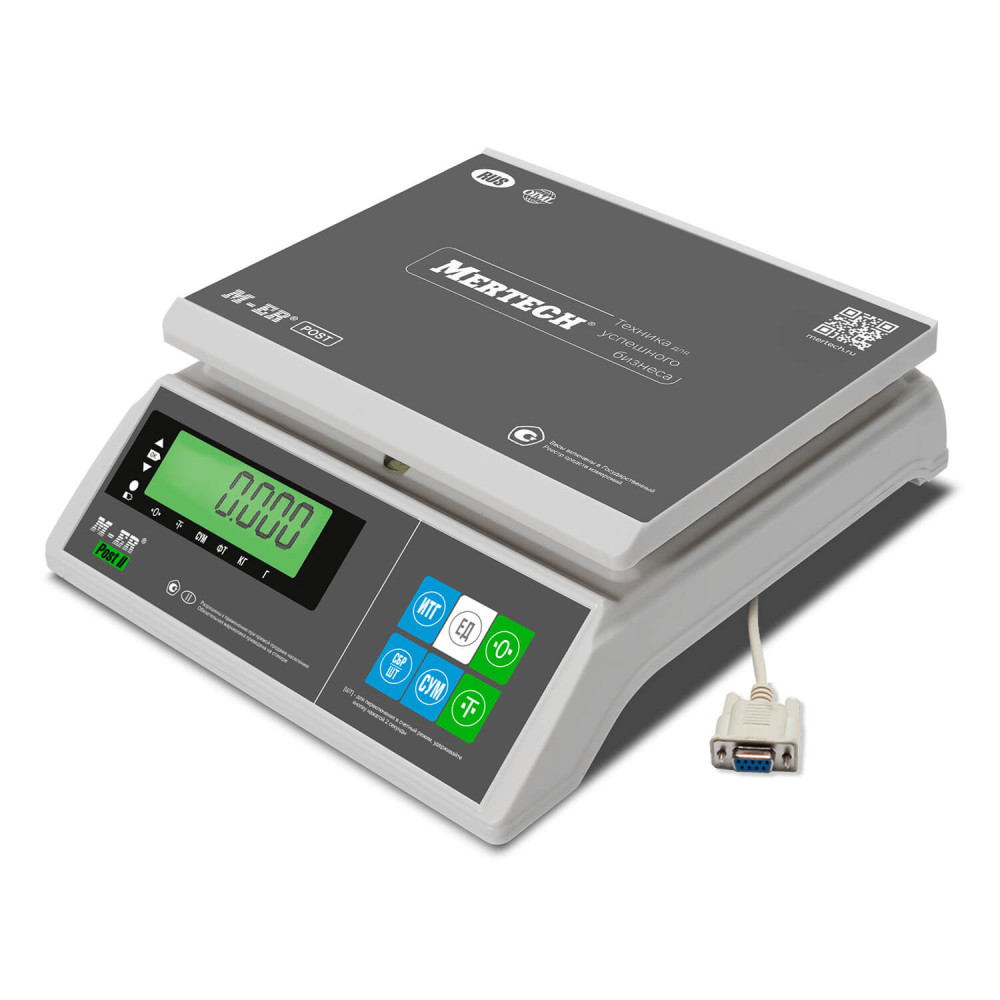

- RS-232 interface for connection to POS computers.
Operation in heated and covered premises is permitted. Operating temperature range: from +10 to +40 degrees Celsius. The package includes only a protective dust cover. The device operates from the electrical network. The power adapter is included in the kit.
Place Your Order
You can purchase the M-ER 326 AFU-32.1 "Post II" LCD RS-232 weighing scales at a low price directly from the manufacturer. Models from this line are always in stock. Delivery of orders is carried out across Baku or to any city in Azerbaijan. We guarantee fast and careful delivery of the product. Leave a request on the website or call us to place an order.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 1 gr |
| Minimum weight | 50 gr |
| Number of keys | 6 |
| Weighing limit | 32 kg |
| Platform size | 255x205 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 6 |
| Character size, mm | 9x21 |
| CAS-M (Active) | Yes |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS232 (DB-9F), length 2.7m |
|---|
| Weight with platform | 2.2 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265x290x110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
