| Type of scalesPacked, portioned | Discreteness0.1 gr | Minimum weight5 gr |
| Number of keys6 | Weighing limit3 kg | Platform size255x205 |
| ExecutionTabletop | VerificationYes | Accuracy classHigh (II) |
This product is currently undergoing redesign. The appearance of the product, including color, may vary slightly from that shown in the photograph. Discrepancies between the real product's appearance and the photos on the website do not indicate inferior product quality.

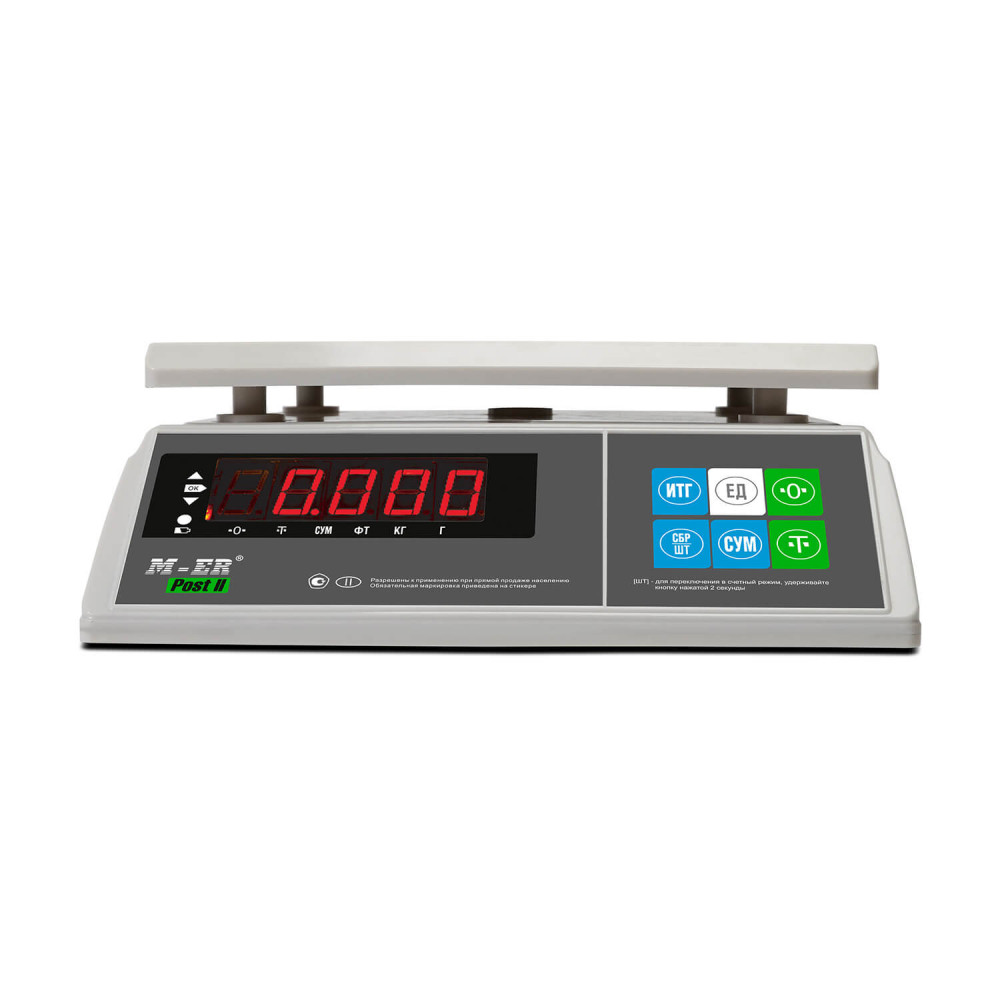

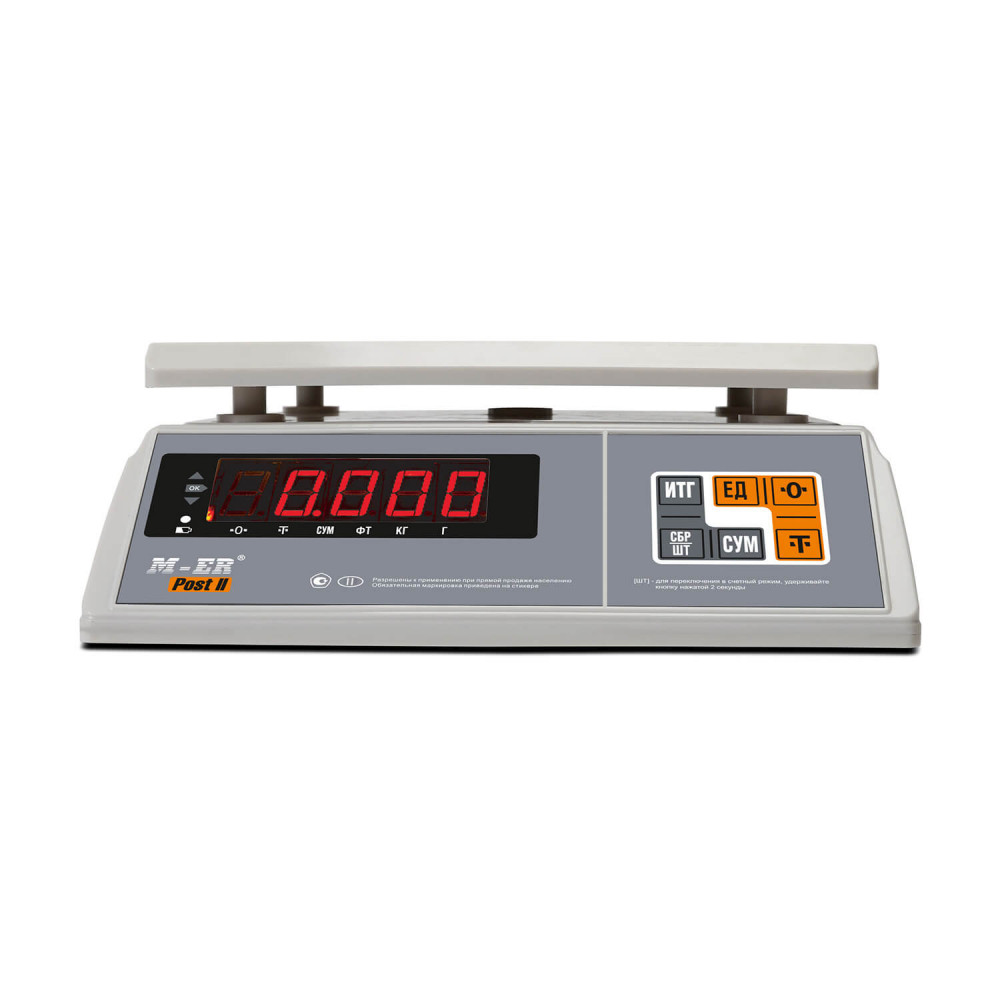

The M-ER 326 AFU-3.01 "Post II" LED USB-COM scales belong to the high (II) accuracy class. This model features improved metrological characteristics. It can be used not only for weighing and packaging goods but also as laboratory scales. The model has several variations. They differ in weighing limits, display type, and connection interface.
Design Features

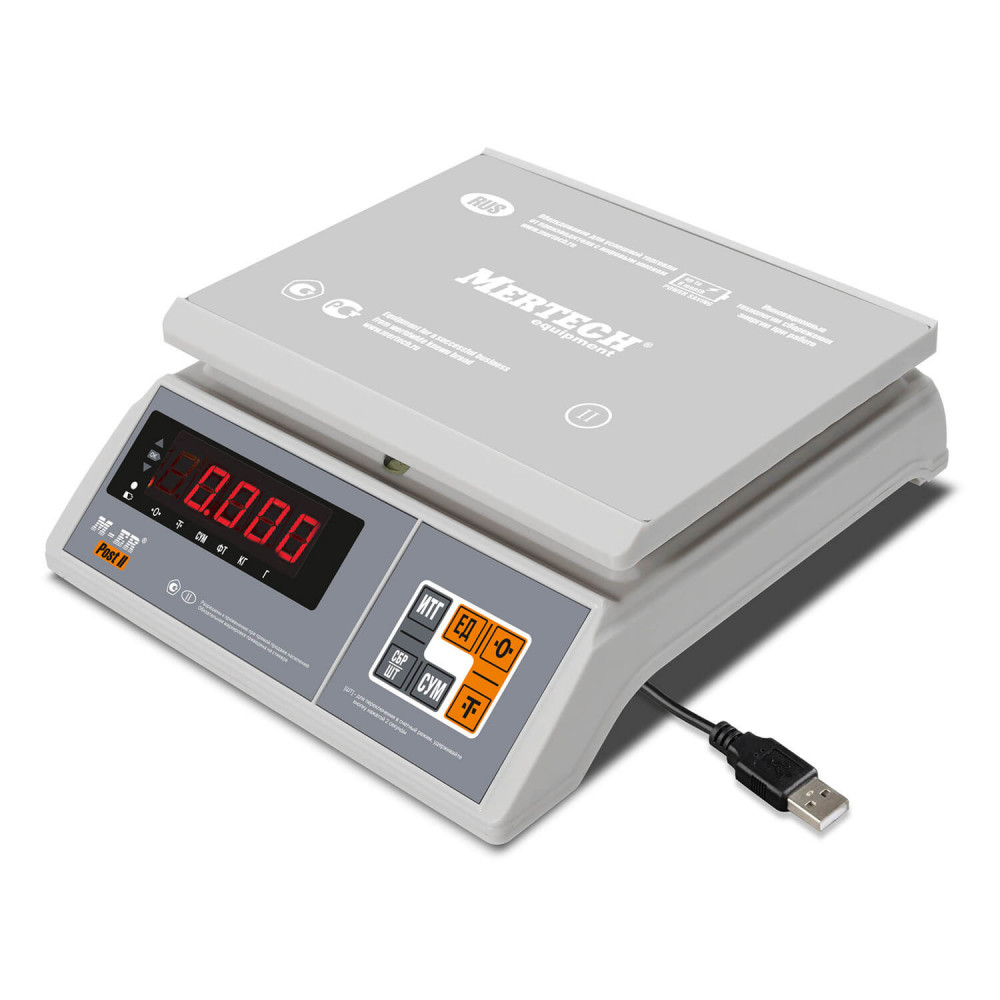

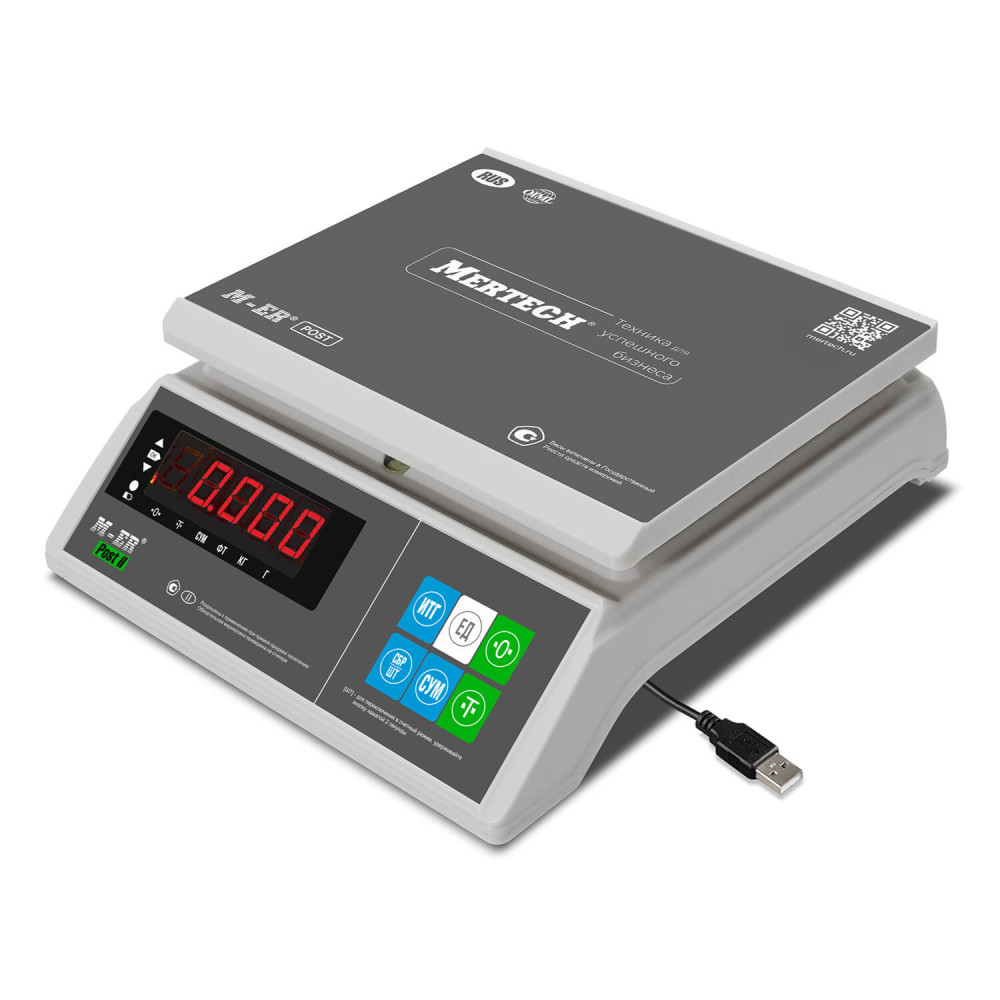

This page presents the M-ER 326 AFU-3.01 "Post II" LED USB-COM scales with an LED display and USB port. The catalog includes analogs with an LCD display and RS-232 interface. The maximum weighing limit can be from 3 kg, while the minimum is 5 g, with a readability of 0.1 g.
Available operation modes:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- Tare weight accounting;
The housing has compact dimensions: 265*290*110 mm. The width of the platform is standard: 255*205 mm. The case is made of durable plastic. The device can be used in any trading areas, including outdoors. Temperature fluctuations from +10°C to +40°C do not affect measurement results.
Operating Rules
The main advantage of the M-ER 326 AFU-3.01 "Post II" LED USB-COM is its II class accuracy (high). Similar devices are used in laboratories. The declared accuracy class has been confirmed during state calibration.
Other advantages of the model include:
- Simple and intuitive interface.
- Convenient membrane keyboard.
- Three units of measurement: grams, kilograms, pounds.
- Larger size indicators on the LED display.
- USB-COM interface for connection to POS systems.
- Compact size of the device.
- Adjustable height of supports.
In some modifications, 2 additional modes are available: piece and comparator. The piece mode allows you to determine the number of items in a batch. The comparator mode is necessary for laboratory calculations.
Place an Order
You can buy the M-ER 326 AFU-3.01 "Post II" LED USB-COM at the official MERTECH online store. We offer equipment at a low price set by the manufacturer. All models from the M-ER 326 line are available. Please specify the desired weighing limit, display type, and port when placing an order. Product delivery is available in Baku and throughout Azerbaijan. To purchase the commercial scales, leave a request on the website or call us.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 0.1 gr |
| Minimum weight | 5 gr |
| Number of keys | 6 |
| Weighing limit | 3 kg |
| Platform size | 255x205 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Changing the stabilization speed | Yes |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For EVOTOR, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | 10… +40 |
| Display type | LED |
|---|---|
| Character size | 11*20 |
| Number of indication digits | 6 |
| Character size, mm | 11*20 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Weight with platform | 2.15 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265*290*110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
