| Type of scalesPacked, portioned | Discreteness0.1 gr | Minimum weight5 gr |
| Number of keys6 | Weighing limit3 kg | Platform size255x205 |
| ExecutionTabletop | VerificationYes | Accuracy classHigh (II) |

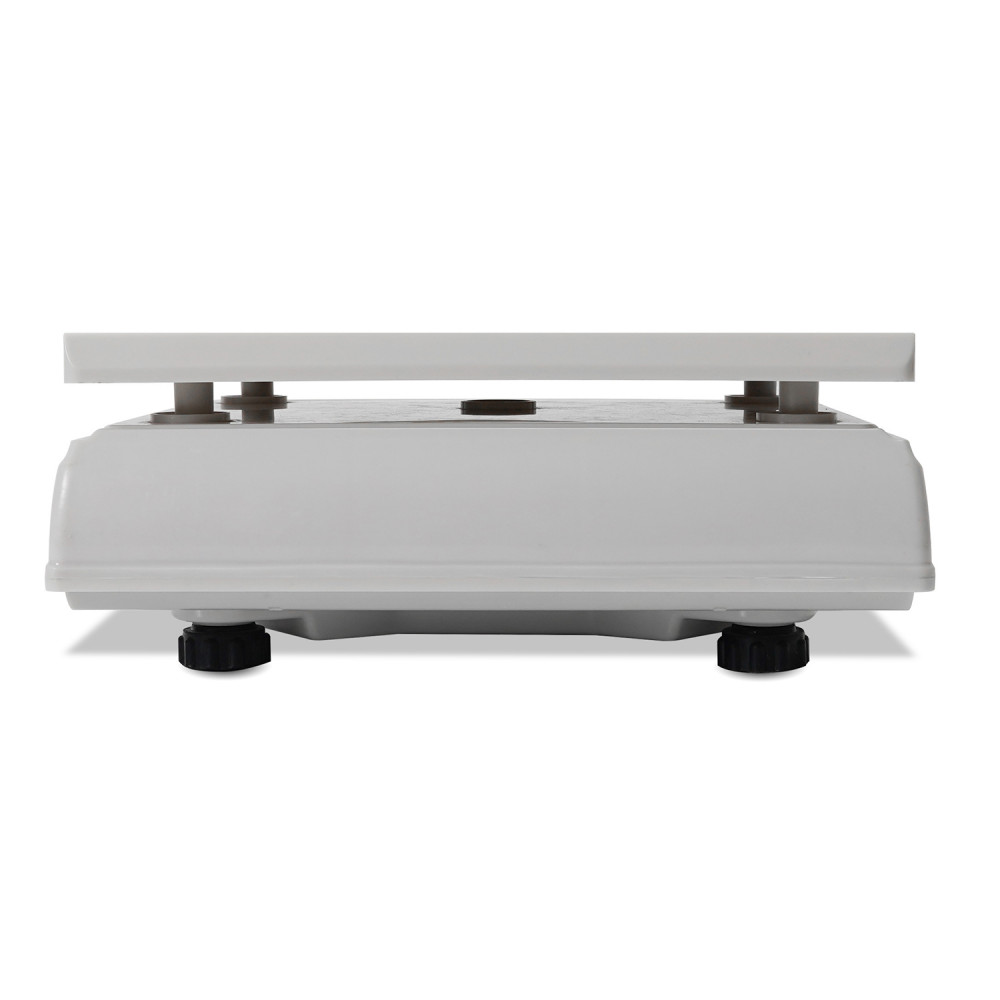

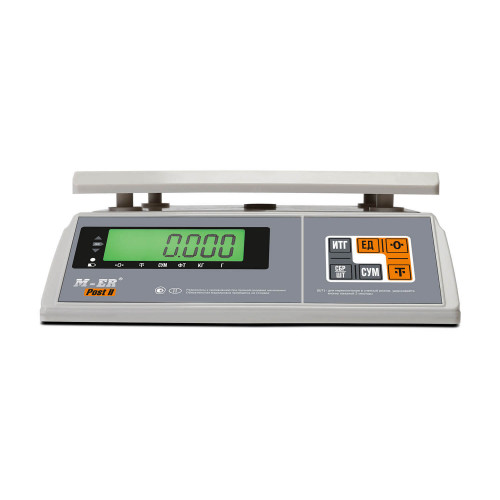

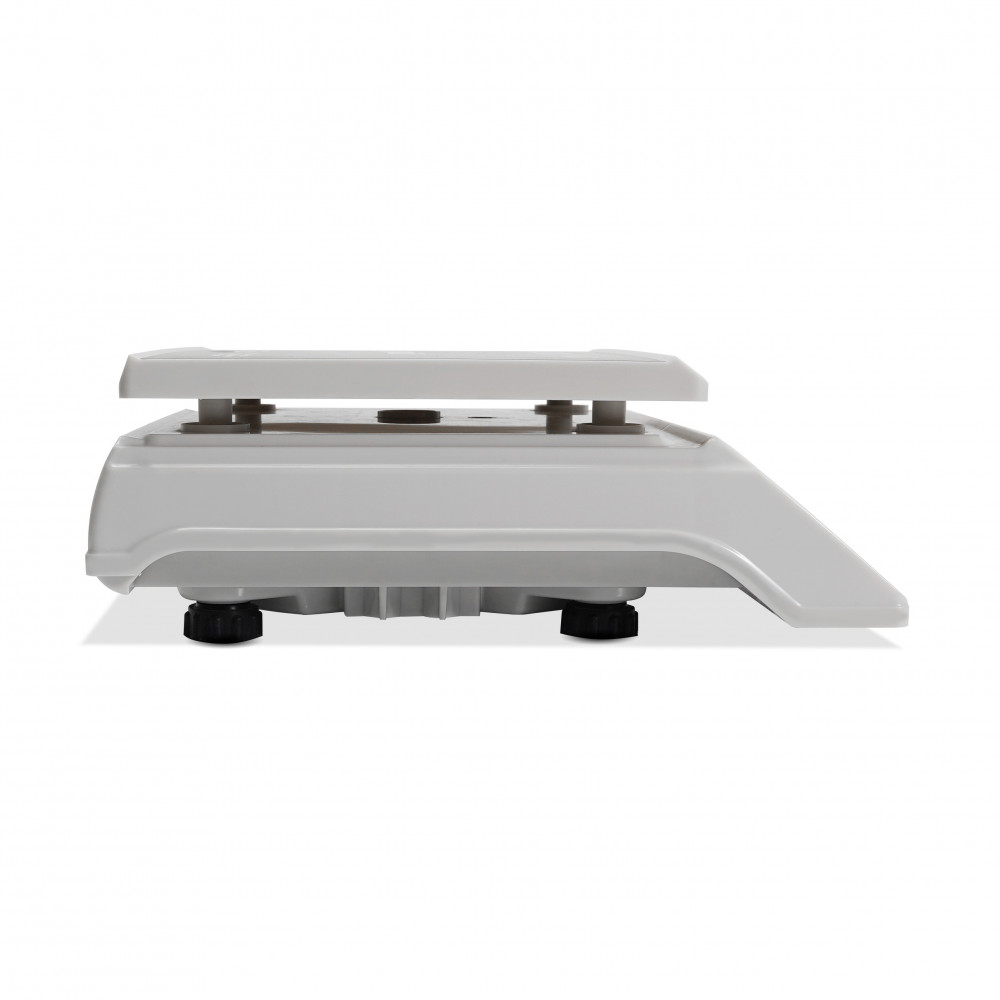

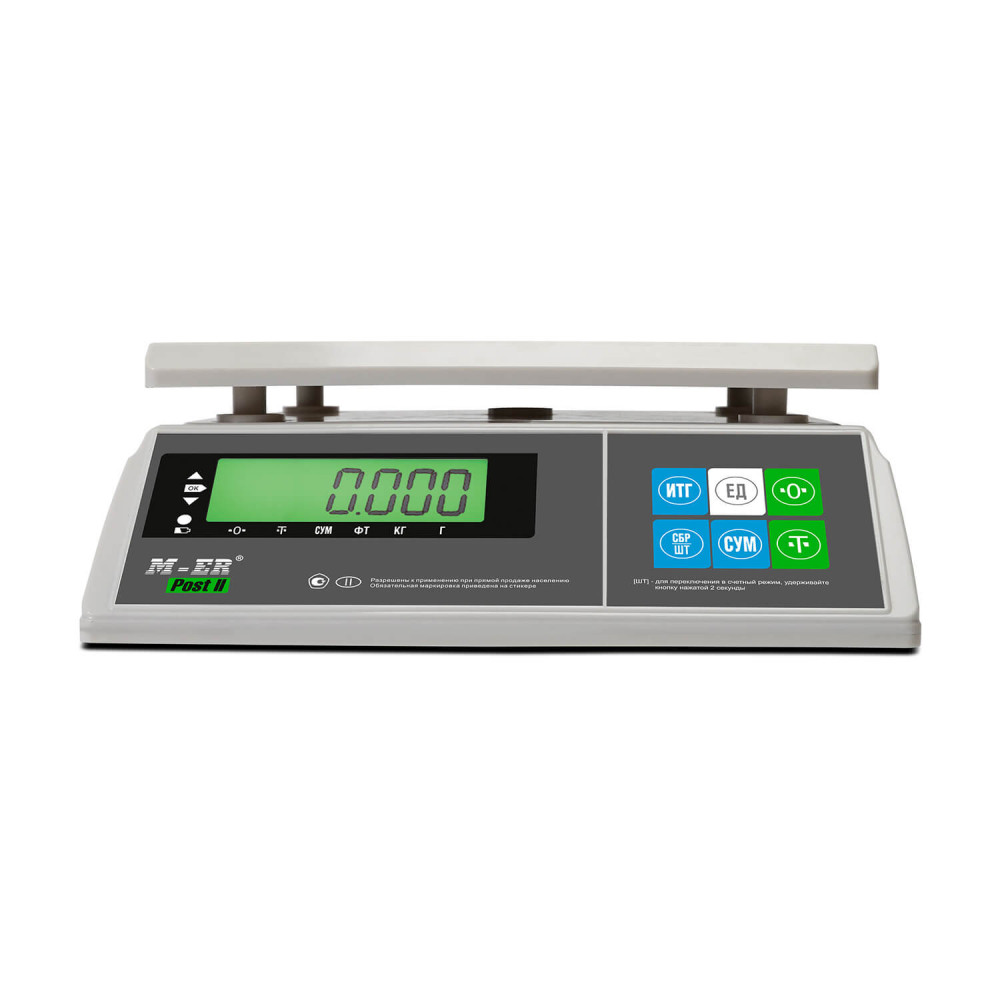

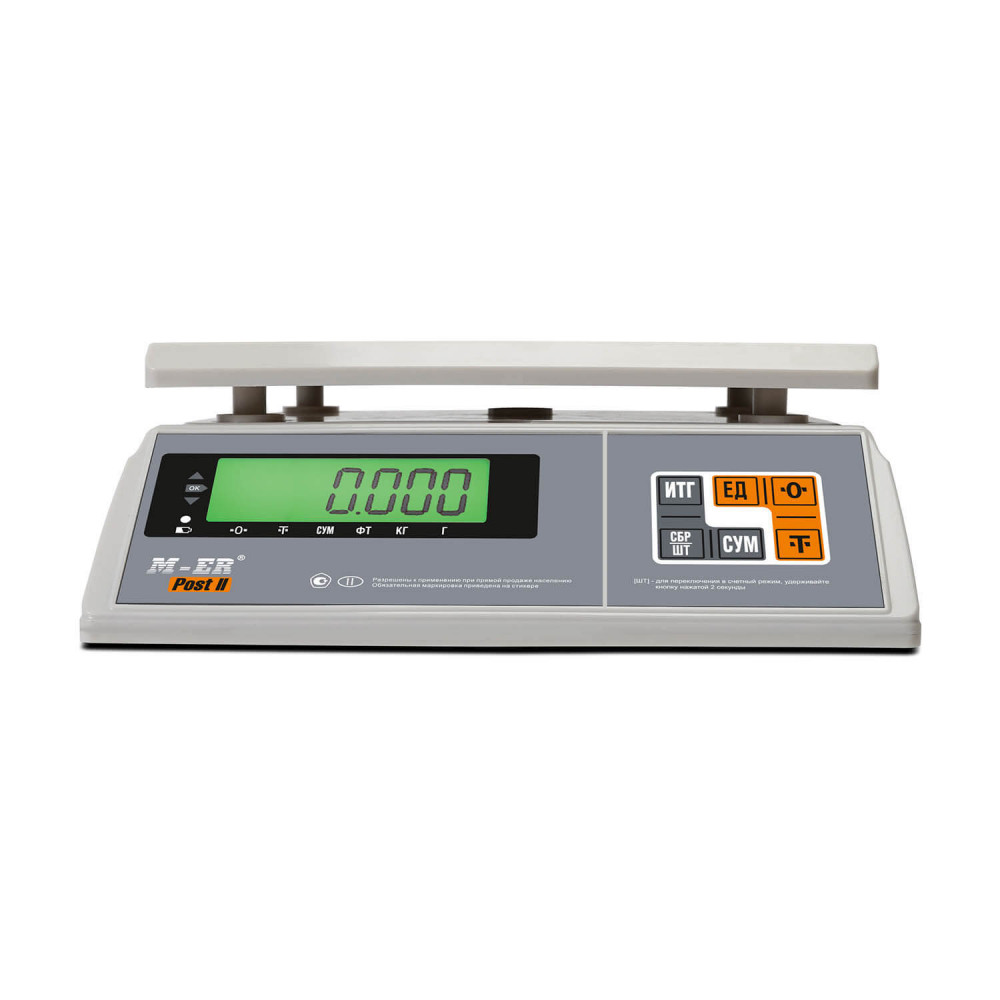

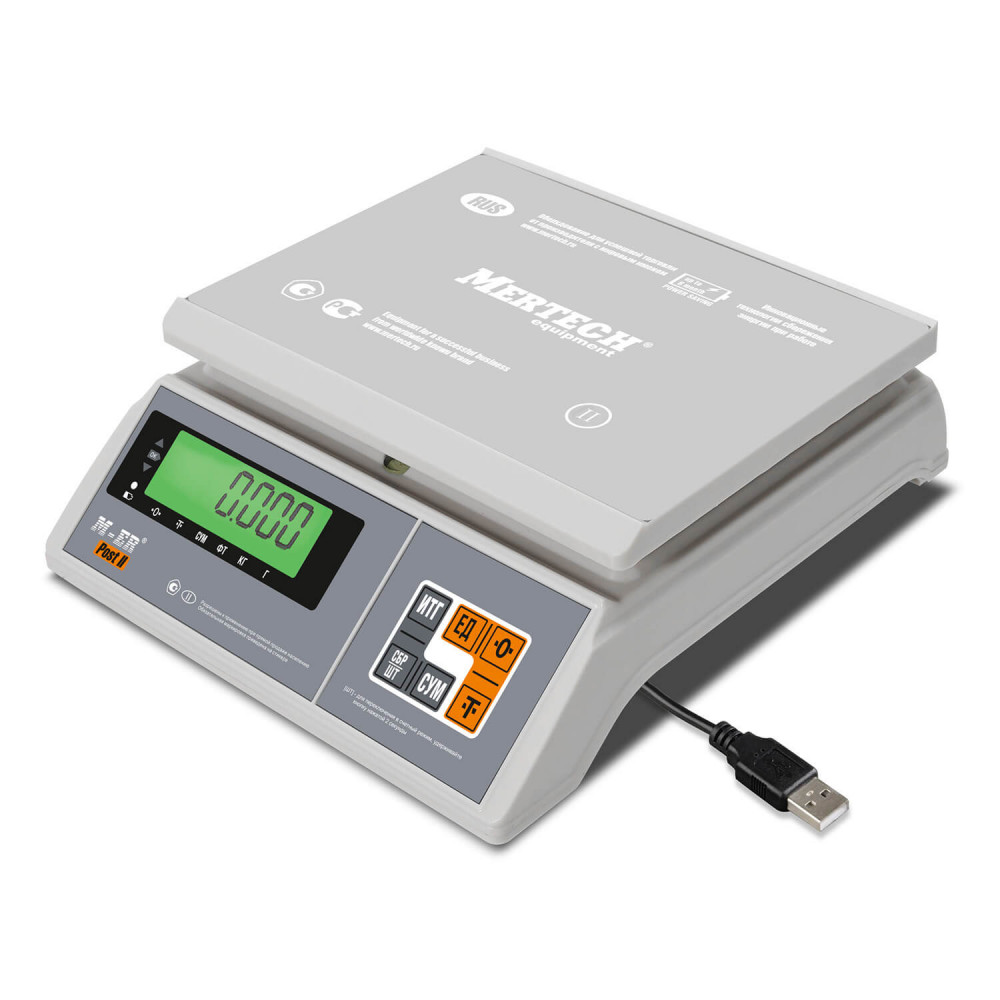

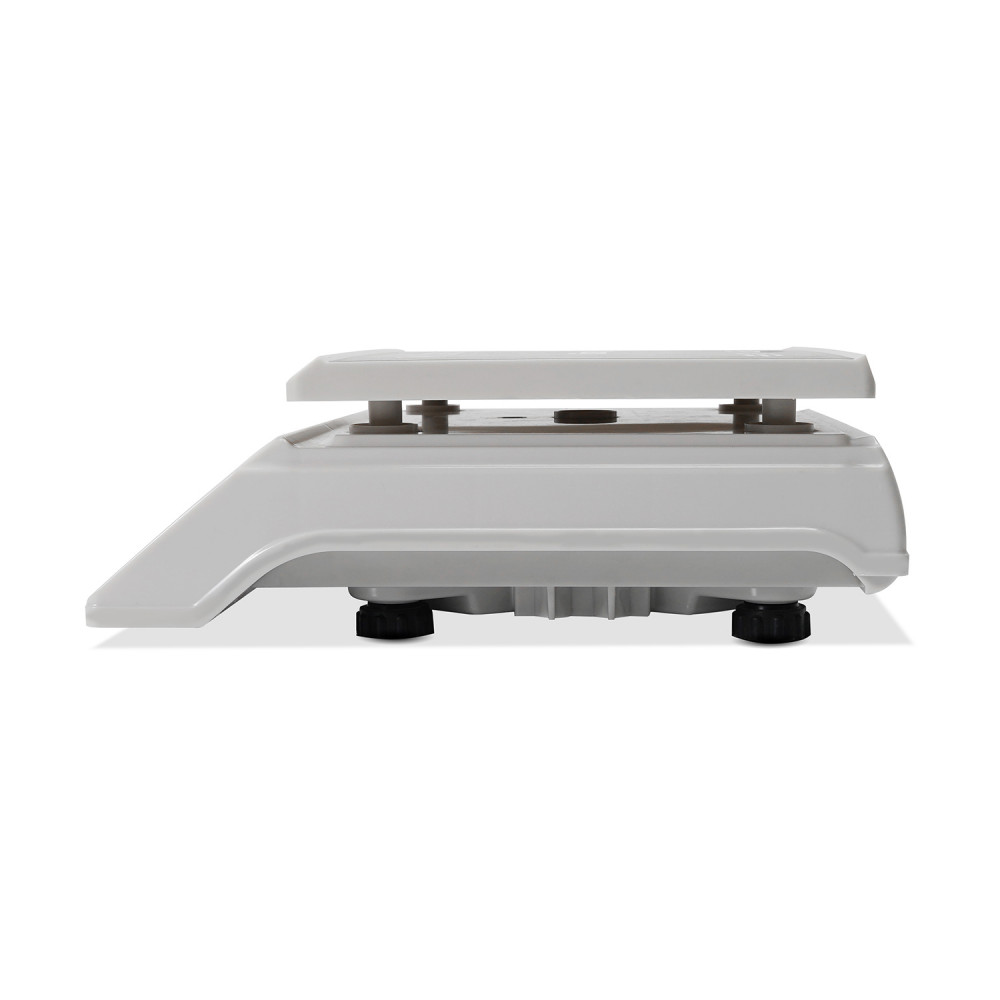

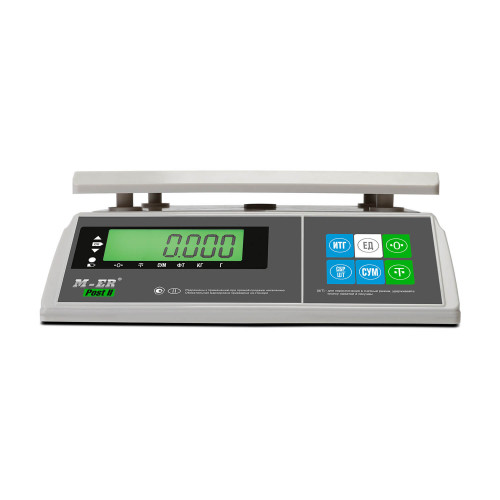

This product is currently being redesigned. The appearance of the product, including color, may differ slightly from what is shown in the photograph. Discrepancies between the actual product and the photos on the site do not indicate improper quality of the product.

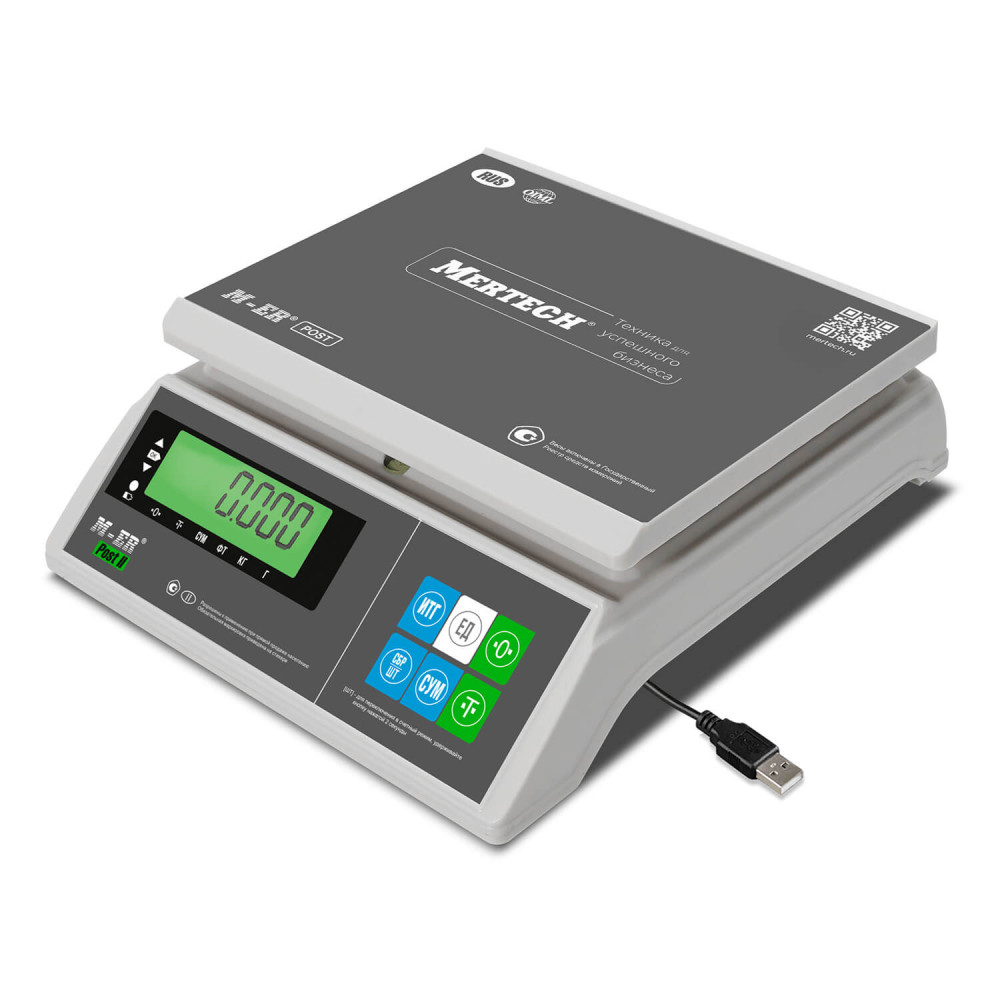

The M-ER 326 AFU-3.01 "Post II" LCD USB-COM scales belong to the high (II) class of accuracy. Models from this line can be used as laboratory scales. They feature improved metrological characteristics. The declared accuracy class is confirmed by a state verification certificate.
Design Features
These scales from the M-ER 326 AFU line are equipped with an LCD display and USB interface. The model is available in several versions. They differ in technical specifications. The maximum weighing capacity of the M-ER 326 AFU-3.01 "Post II" LCD USB-COM model is 3 kg. The minimum limit is 5 g. The division value is equal to 0.1 g.
All modifications include the following functions:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- Tare weight accounting;
Some models have 2 additional modes: comparator and piece weighing. If you need weighing scales with extended functionality, please specify this when placing your order. We will select a modification with the required technical characteristics.
Operating Rules
The main advantage of the M-ER 326 AFU-3.01 "Post II" LCD USB-COM is its high (II) accuracy class. However, models from this line also have other advantages. Here are the main benefits of the design, electronics, and software:
- Three available units of measurement: grams, kilograms, pounds.
- Intuitive button labeling on the control panel.
- Compact dimensions: 265*290*110 mm. Platform size: 255*205 mm.
- Height-adjustable feet on the bottom side.
- Increased symbol size on the LCD display (9*21 mm or 11*21 mm).
- Connection to POS system via USB-COM interface.
The body is made of durable ABS plastic. The frame is coated with powder paint and is corrosion-resistant. The device can be used outdoors. There is protection for the electronics from dust and moisture. Temperature fluctuations from +10°C to +40°C do not affect measurement accuracy.
Place an Order
You can purchase the M-ER 326 AFU-3.01 "Post II" LCD USB-COM at a low price. We sell weighing equipment at manufacturer prices. Models from the M-ER 326 AFU-3.01 "Post II" LCD USB-COM line are always in stock. Delivery of goods is carried out within Baku or throughout Azerbaijan. To buy the weighing scales, please submit an application on the website.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 0.1 gr |
| Minimum weight | 5 gr |
| Number of keys | 6 |
| Weighing limit | 3 kg |
| Platform size | 255x205 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Changing the stabilization speed | Yes |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For EVOTOR, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | 10… +40 |
| Display type | LCD |
|---|---|
| Character size | 9*21 |
| Number of indication digits | 6 |
| Character size, mm | 9*21; 11*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Weight with platform | 2.1 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265*290*110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
