| Type of scalesPacked, portioned | Discreteness0.1 gr | Minimum weight5 gr |
| Number of keys6 | Weighing limit3 kg | Platform size255x205 mm |
| ExecutionTabletop | VerificationYes | Accuracy classHigh (II) |

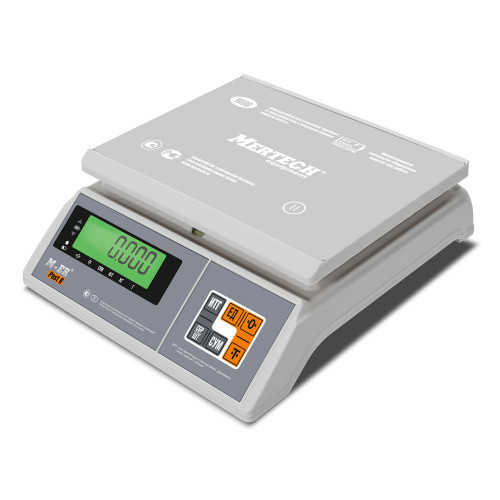

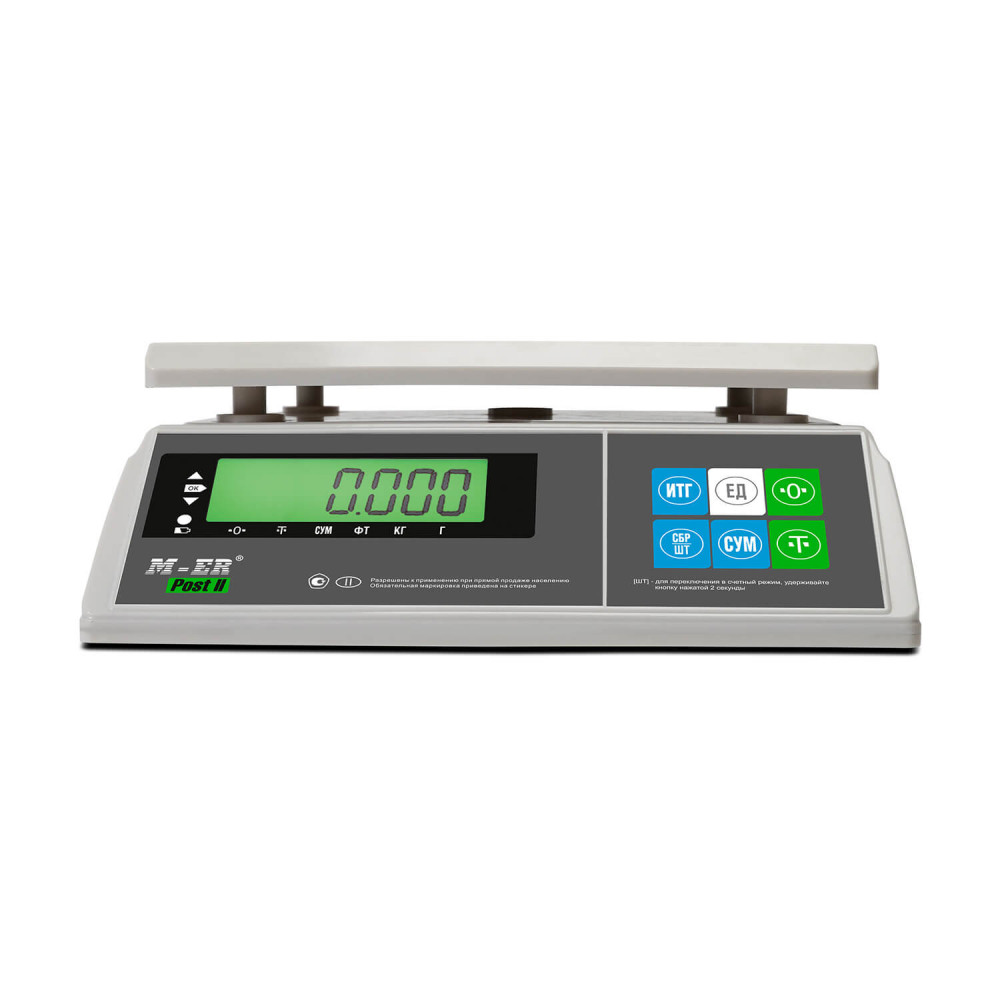

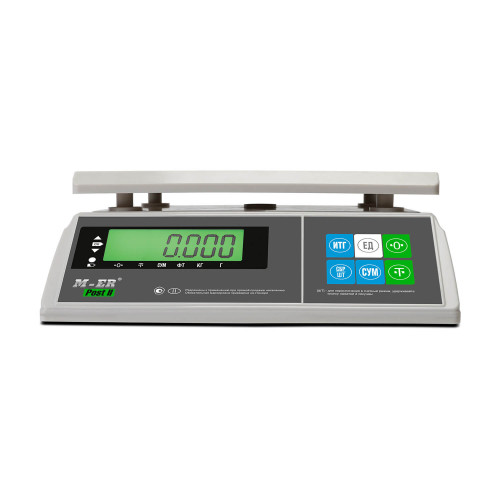

This product is in the redesign phase. The appearance of the product, including color, may slightly differ from what is shown in the photo. A mismatch between the actual product's appearance and the photos on the website is not an indicator of inadequate product quality.
The M-ER 326 AFU-3.01 "Post II" LCD RS-232 model has improved metrological characteristics. These are class II precision weighing scales. They can be used as laboratory scales. The declared characteristics are confirmed by state verification. The model has a certificate confirming the accuracy class according to GOST.
Design Features
This small device will not take up much space on your desk. Body dimensions: 265*290*110 mm. Platform size: 255*205 mm. Device weight: 2.5 kg. The M-ER 326 AFU-3.01 "Post II" LCD RS-232 model is used as control scales in trade. It is used in jewelry salons and workshops. It is also used for scientific research purposes.
Several operating modes are available for users:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Weighing result;
- Tare weight accounting;
The M-ER 326 AFU-3.01 "Post II" LCD RS-232 scales are available in several options. They differ by maximum weighing limits. This page features scales with a weighing range from 5 grams to 3 kilograms and a price division of 0.1 grams. Measurement and calculation results are displayed on an LCD screen.
Operating Rules
The M-ER 326 AFU-3.01 "Post II" LCD RS-232 model has the following advantages:
- Simple and intuitive interface. Ergonomic control panel.
- Support for 3 units of measurement: grams, kilograms, pounds.
- The body is made of high-strength ABS plastic.
- Increased digit size on the LCD screen (9*21 mm or 11*21 mm).
- Platform stabilization. Adjustable height supports.

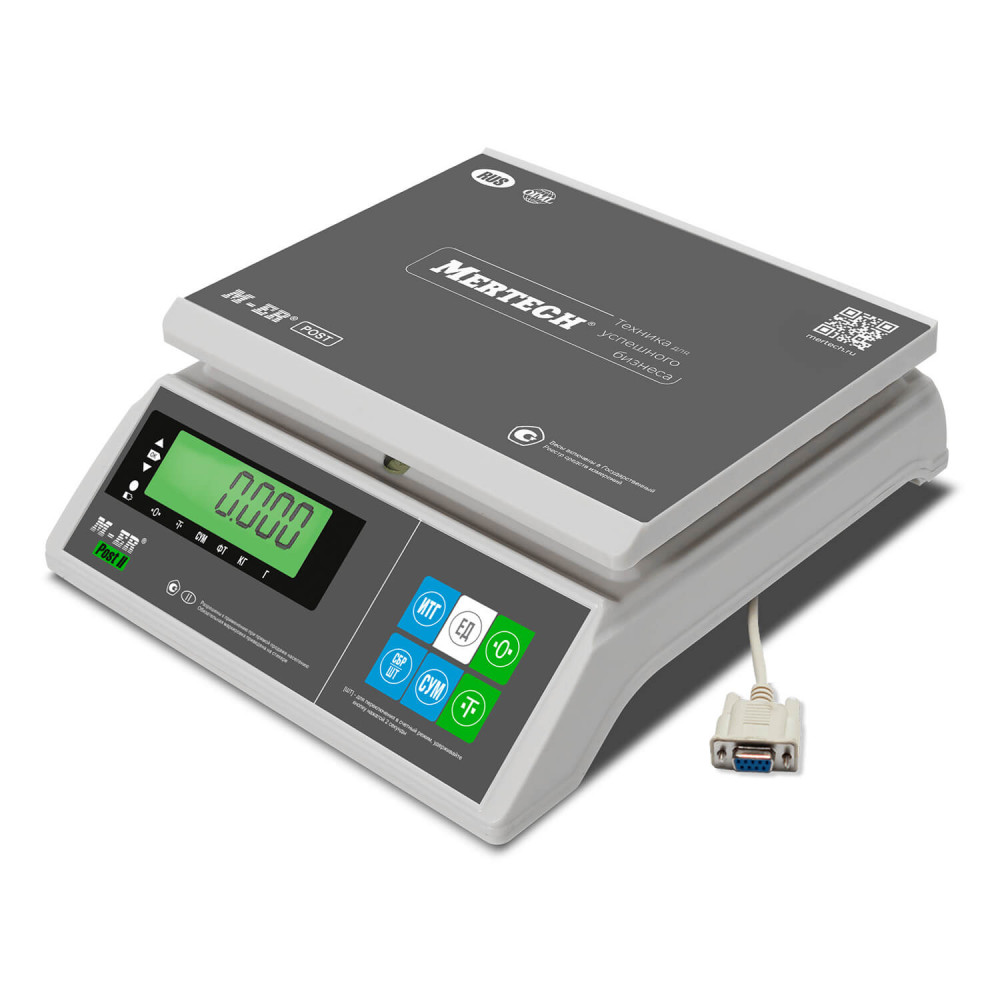

- RS-232 interface for connection to a POS computer.
Operation is allowed in heated and covered premises. Operating temperature range: from +10 to +40 degrees Celsius. The package only includes a protective dust cover. The device operates from the electrical grid. A power adapter is included in the set.
Place an Order
You can purchase the M-ER 326 AFU-3.01 "Post II" LCD RS-232 weighing scales at a low price directly from the manufacturer. Models from this line are always in stock. Order delivery is carried out within Baku or to any city in Azerbaijan. We guarantee fast and careful delivery of the product. Submit an application on the website or call us to make a purchase.
| Type of scales | Packed, portioned |
|---|---|
| Discreteness | 0.1 gr |
| Minimum weight | 5 gr |
| Number of keys | 6 |
| Weighing limit | 3 kg |
| Platform size | 255x205 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Printing labels | No |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40°C without condensation |
| Atmospheric pressure | 630...800 mm Hg (84...106.7 kPa) |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 6 |
| Character size, mm | 9x21 |
| CAS-M (Active) | Yes |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS232 (DB-9F), length 2.7m |
|---|
| Weight with platform | 2.2 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265x290x110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust film, Warranty card, Operation manual |
|---|
-
