| Type of scalesPacking, Portioned | Discreteness1 gram | Minimum weight50 g |
| Number of keys6 | Weighing limit15 kg | Platform size255x205 mm |
| ExecutionDesktop | VerificationYes | Accuracy classHigh (II) |
This product is currently under redesign. The product's appearance, including color, may differ slightly from those shown in the photo. The discrepancy between the appearance of the real product and the photos on the website is not an indicator of poor product quality.

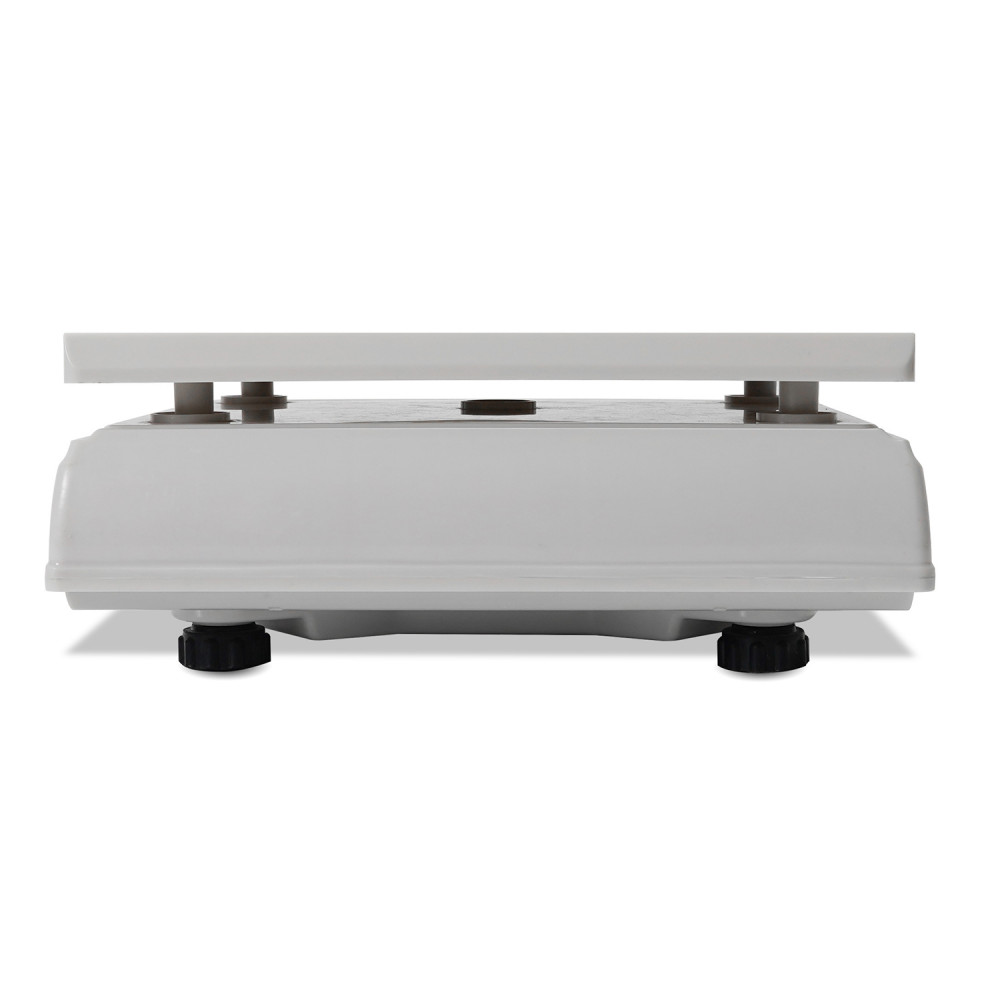

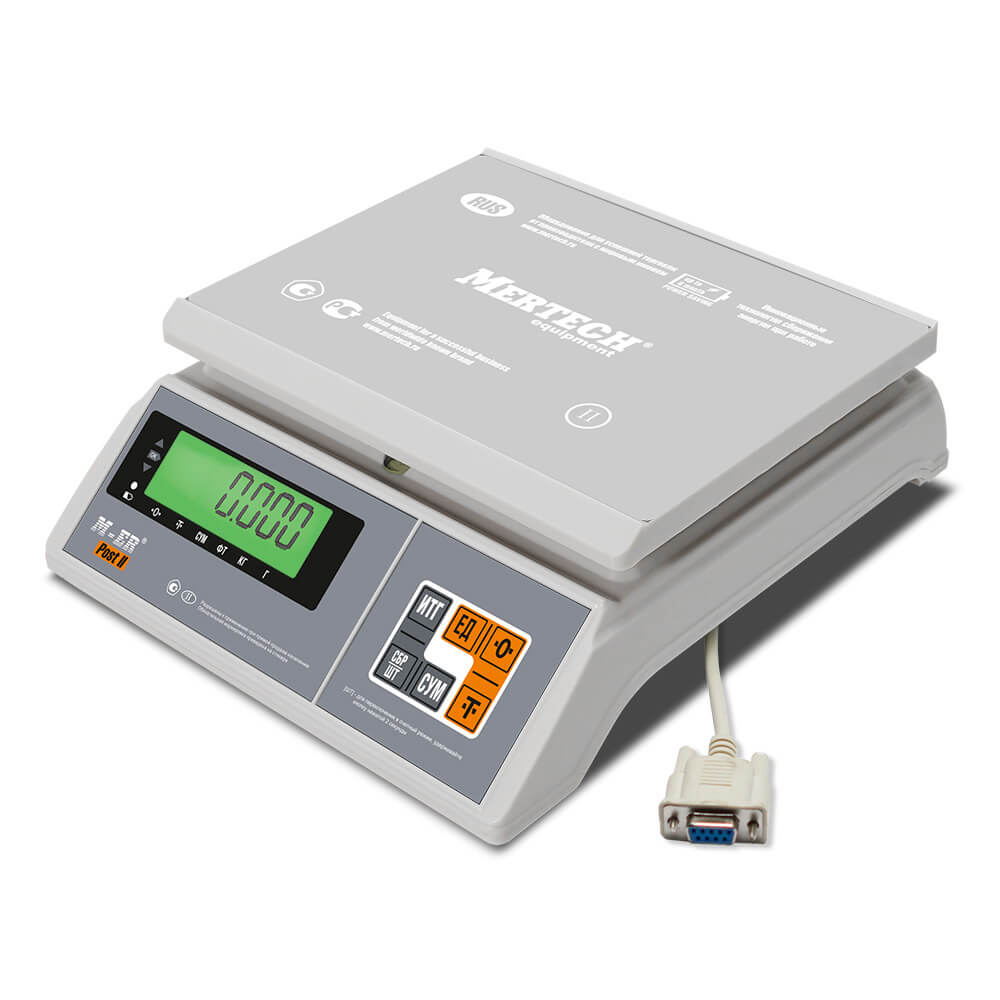

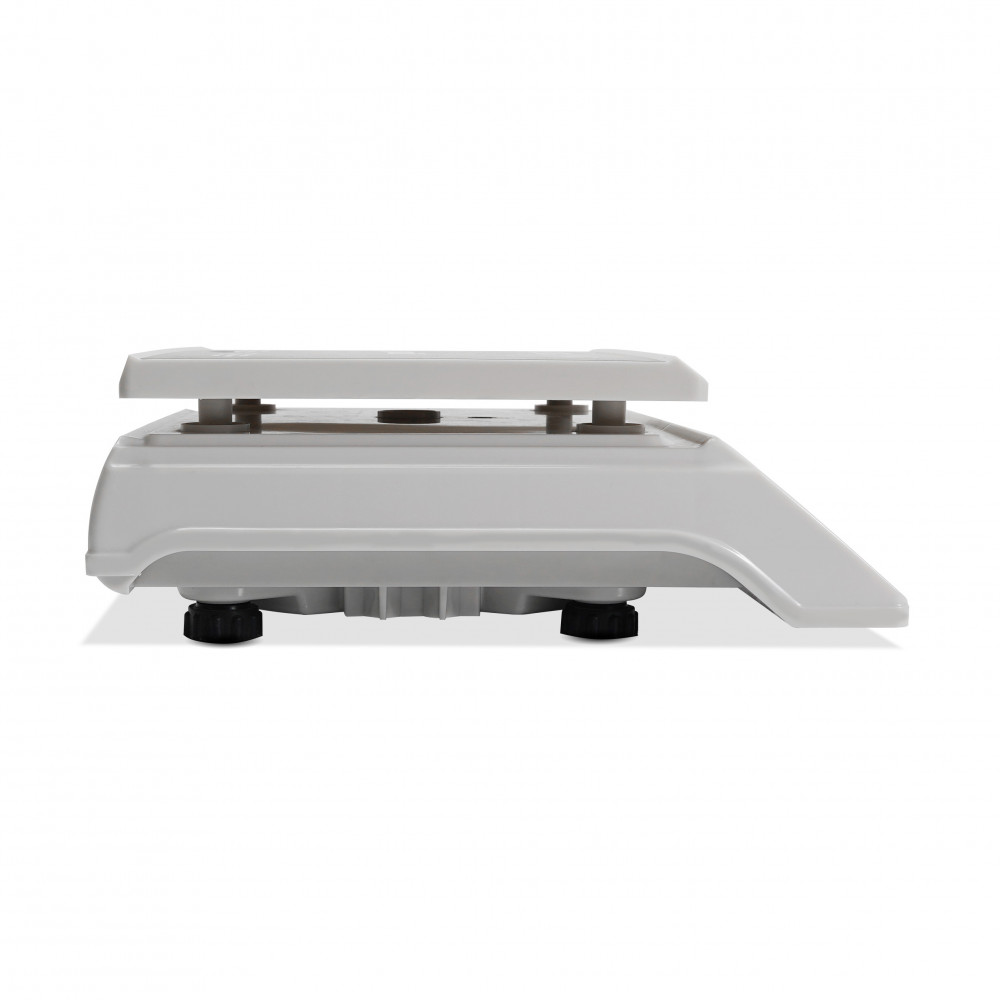

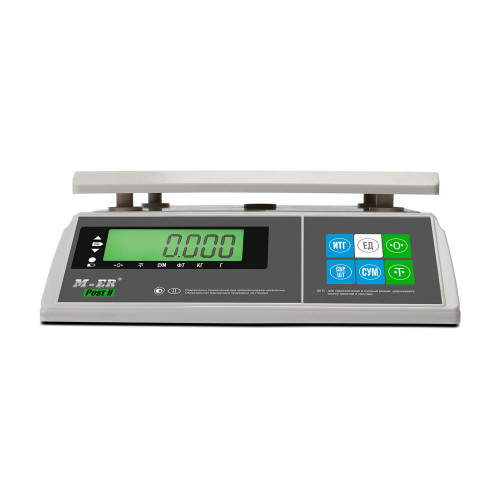

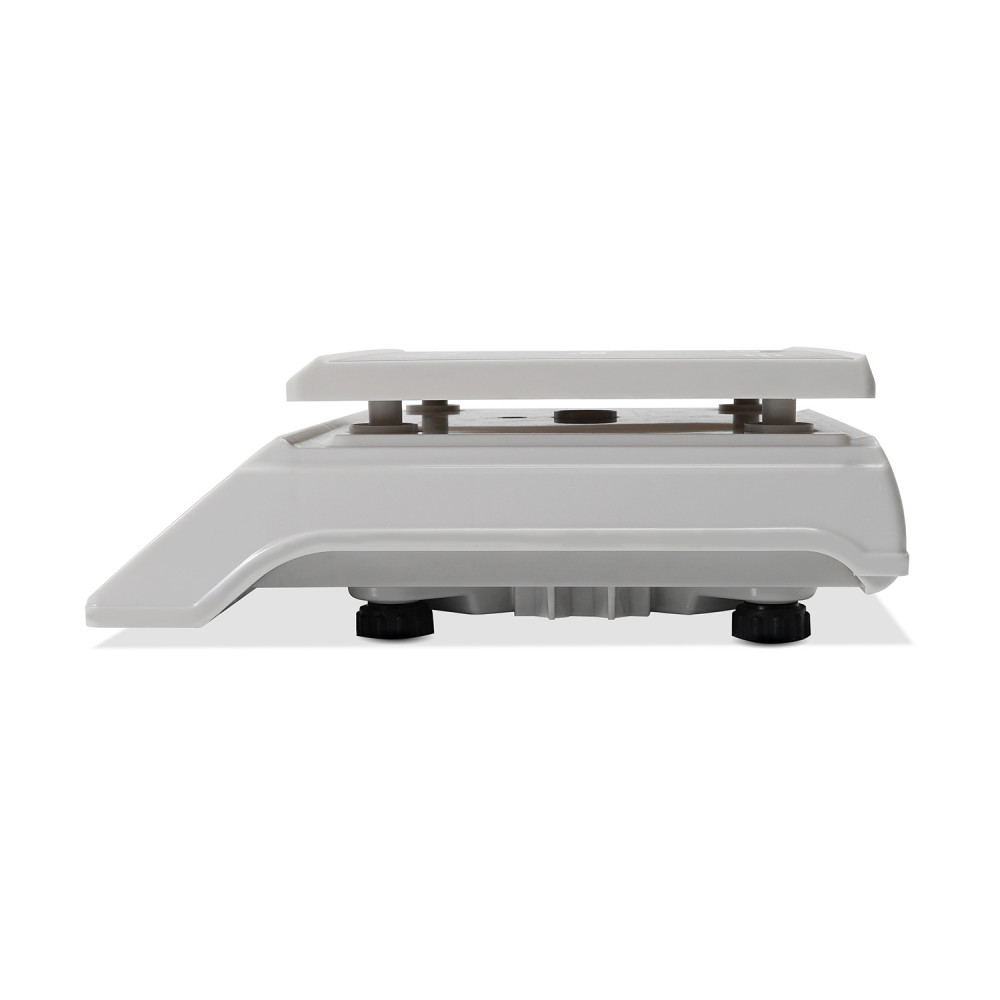

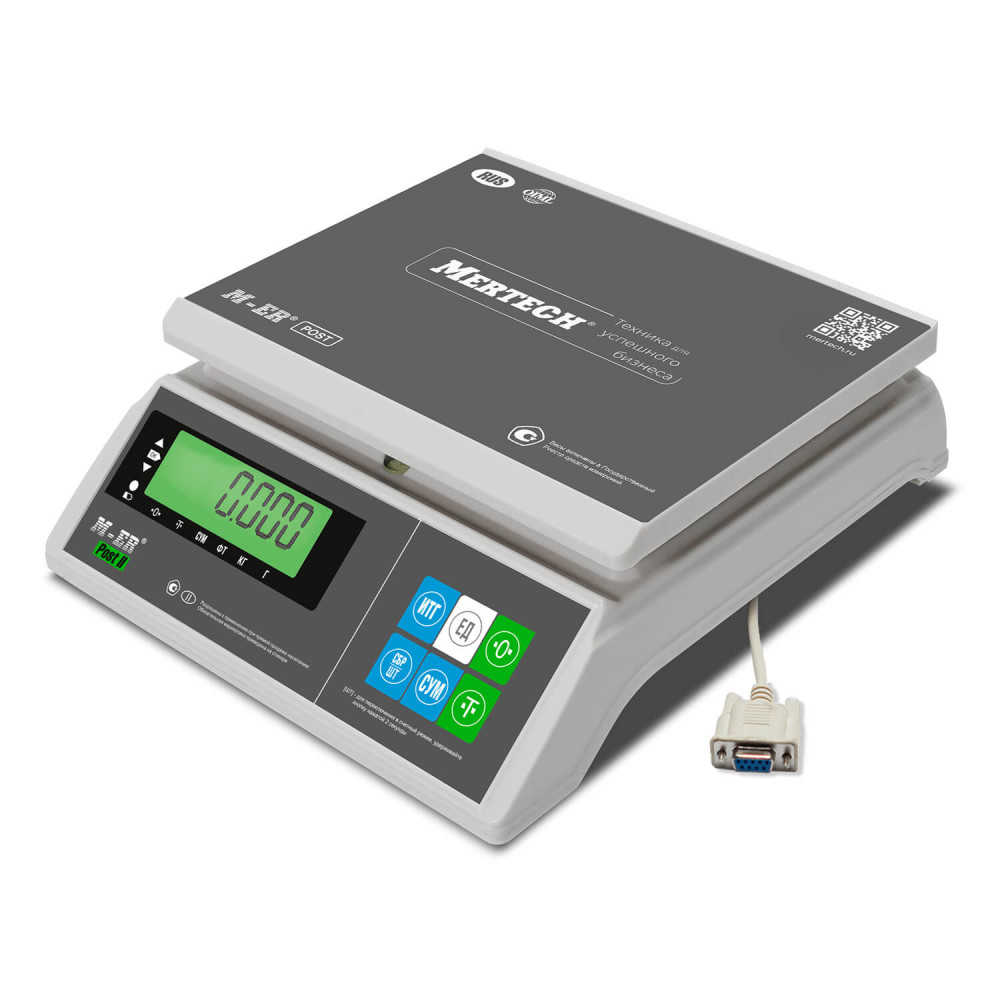

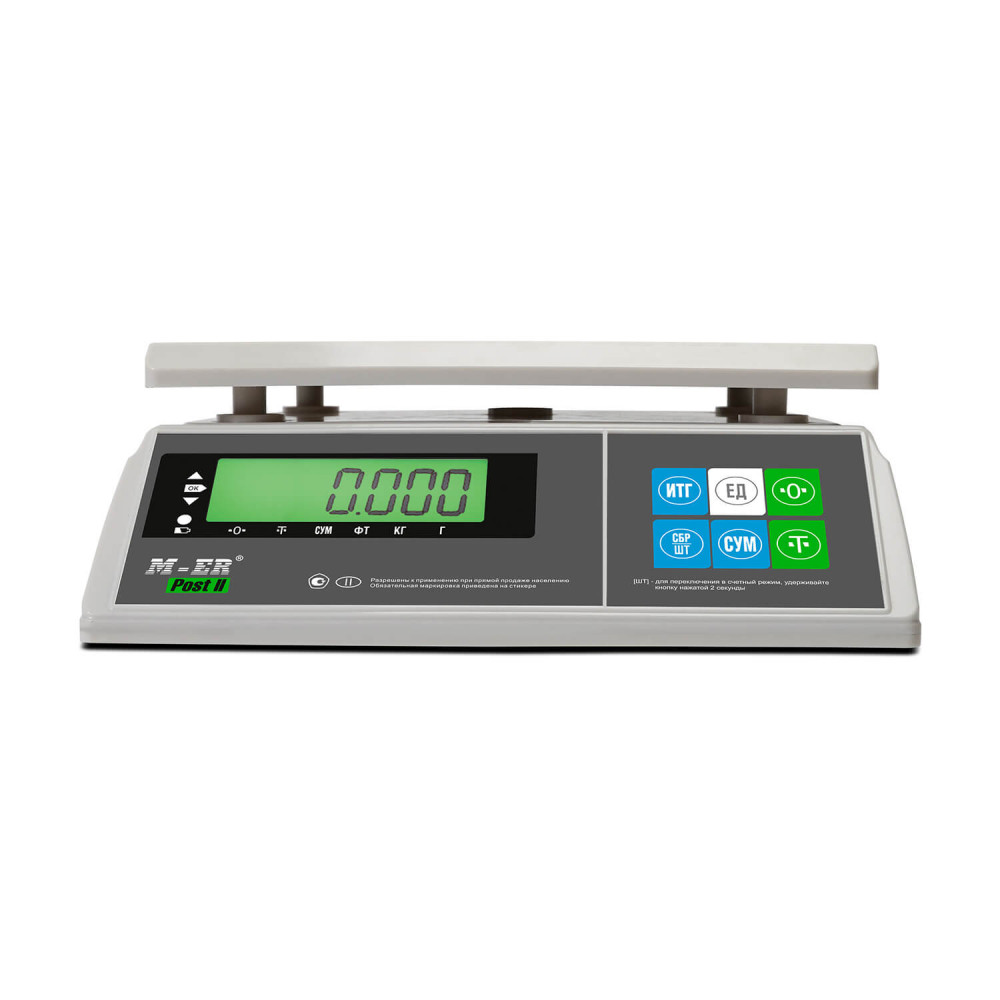

M-ER 326 AFU-15.1 "Post II" LCD RS-232 is a filling scale of high II accuracy class with improved metrological characteristics. The model is suitable not only for packing and control weighing, but also for more precise tasks, so it can be used as a laboratory scale. Compliance with the stated parameters is confirmed by state verification, and the accuracy class is certified by a certificate according to GOST.
Design features
The scales are made in a compact desktop format and do not take up much space on the work surface. The case size is 265×290×110 mm, the platform size is 255×205 mm, and the device weight is 2.5 kg. Due to these dimensions, the model is convenient to use in trade, jewelry salons, workshops and in research work.
Several operating modes are available to the user:
- simple weighing;
- comparator mode;
- summation mode;
- displaying the weighing result;
- accounting for the weight of the container.
The M-ER 326 AFU-15.1 "Post II" LCD RS-232 range is available in several versions with different weighing limits. This page contains a model with an operating range from 50 g to 15 kg and a division price of 1 g. The measurement and calculation results are displayed on an LCD display.
Operating rules
The M-ER 326 AFU-15.1 "Post II" LCD RS-232 combines precision, user-friendliness and reliable design. Among the main advantages of the model are:
- intuitive interface and ergonomic control panel;
- Support for three units of measurement: grams, kilograms and pounds;
- The case is made of durable ABS plastic;
- enlarged numbers on a 9x21 mm or 11x21 mm LCD display;
- platform stabilization system and height-adjustable supports;
- RS-232 interface for connection to a POS computer.
The scales are designed to work in indoor heated rooms. The permissible operating temperature range is from +10 to +40 °C. A dust film is provided for protection, and power is supplied from the mains via the adapter included in the delivery package.
Place an order
You can buy packing scales M-ER 326 AFU-15.1 "Post II" LCD RS-232 at the manufacturer's price. The models of this line are supported in stock and are available with delivery in Moscow and other cities of Russia. To place an order, leave a request on the website or contact us by phone.
| Type of scales | Packing, Portioned |
|---|---|
| Discreteness | 1 gram |
| Minimum weight | 50 g |
| Number of keys | 6 |
| Weighing limit | 15 kg |
| Platform size | 255x205 mm |
| Execution | Desktop |
| Verification | Yes |
| Accuracy class | High (II) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transmission mode |
|---|---|
| Printing labels | No |
| Energy saving mode | Yes |
| Calibration | External |
| Tare sampling range | The whole range |
| Units of measurement | G; kg; ft; oz (optional) |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years old |
|---|---|
| Applications of scales | For connecting to 1C, For a store, For hardware, For connecting to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food, For catering |
| Battery | 4V-4.5A |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 80% at 40 °C without condensation of moisture |
| Atmospheric pressure | 630...800 mmHg (84...106.7 kPa) |
| Operating temperature | +10...+40 |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 6 |
| Character size, mm | 9x21 |
| CAS-M (Active) | Yes |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS232 (DB-9F), length 2.7m |
|---|
| Weight with platform | 2.2 kg |
|---|---|
| Overall dimensions (WxDxH), mm | 265x290x110 |
| Platform material | Plastic |
| Body material | Plastic |
| Weight | 2.5 kg |
| Keyboard type | Membrane |
| Overload protection | No |
| Corrosion protection | Galvanization |
| Moisture protection | Dust film |
| Adjustable supports | Yes |
| Platform shape | Rectangular |
| Equipment | Power adapter, length 1.4m, Platform, Dust cover, Warranty card, Instruction manual |
|---|
-
