317 ₼
| Printer classMobile | Print speed100 mm/sec | Print typeThermo |
| Print area width, mm48 | Print head resource50 km | Print Resolution203 dpi |
| Flash memory4 Mb | RAM memory64 KB | Printing protocolESC/POS |
The MERTECH HM-E200 mobile thermal receipt printer is designed for courier delivery. This model is characterized by its small size and convenient attachment to the belt. The compact thermal printer is convenient to carry around the city. The terminal quickly connects to mobile devices via Bluetooth connection. It is suitable for any trade area.
Advantages of the model
The MERTECH HM-E200 thermal printer has the following advantages:
- Fast integration with devices running on Windows, Android, and iOS operating systems.
- The battery power is enough to print 500 receipts. The battery charge is enough for a work shift.
- The MERTECH HM-E 200 is used as a stationary or mobile printer. There are two interfaces available for connection: Bluetooth; USB + Micro USB.
- The case is made of impact-resistant ABS plastic with rubber inserts. The device can withstand a fall from a height of up to 1.5 m.
- The Easy Load function allows you to replace the receipt tape in 10 seconds. Prompt replacement reduces the order processing time. The client receives his receipt quickly.
- There are loops on the body for easy attachment to the belt.
The HM-E200 prints barcodes and QR codes in high resolution. According to the new amendments to Federal Law No. 54, a QR code must be placed on a paper receipt. When scanning the code, the buyer should see the electronic receipt.
Technical specifications
MERTECH produces high-quality trading equipment. The HM-E200 mobile printer will allow you to improve the courier delivery service. The model has a simple interface. Anyone can quickly learn how to manage it.

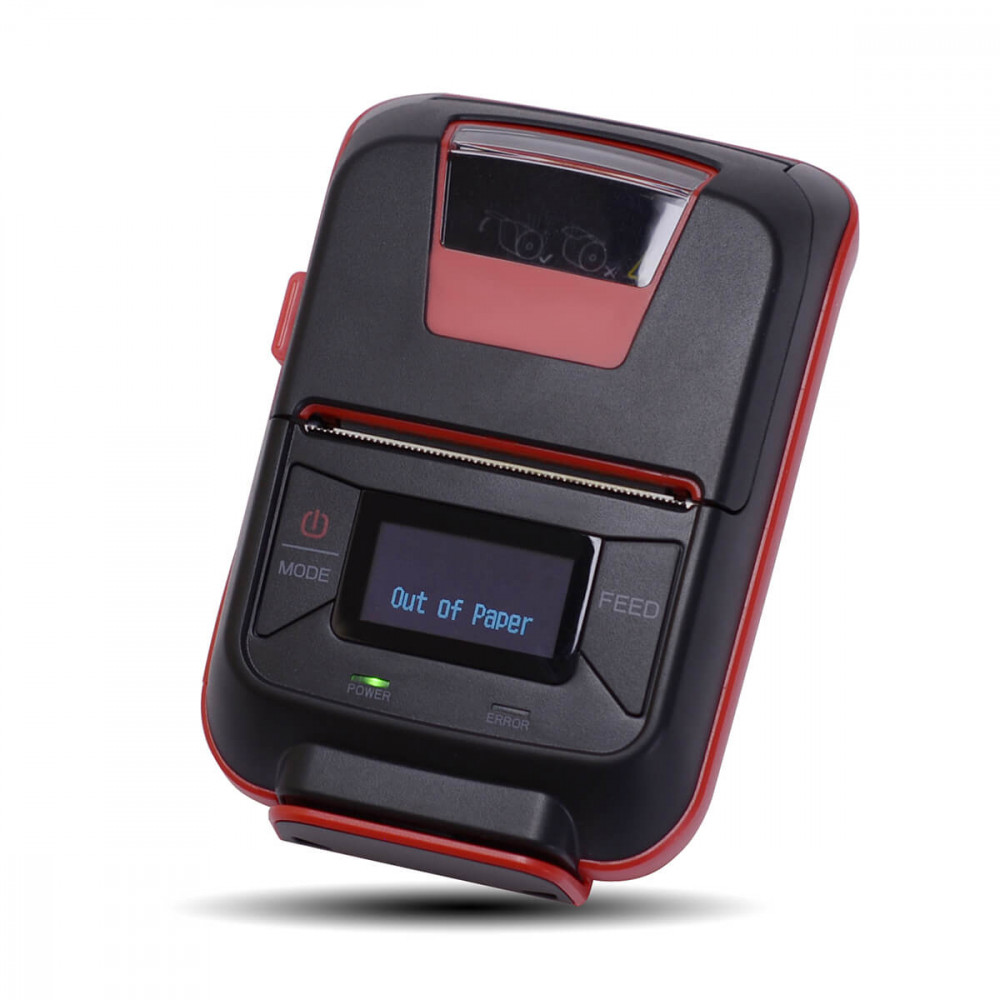

There is an information display on the front panel. It outputs data about the operation of the system in lines. The display shows the availability of a network connection, the battery charge level, and the availability of a cash register for printing. Two LED indicators are located under the main display. They show the battery level and print status.
LED indicators allow you to better control your work. According to the test results, the light indicators turned out to be more informative than the labels on the display. Therefore, in case of malfunctions, a double indication is provided.
The attached instructions contain a detailed description of the printer settings and menu options. The instructions describe many additional functions and parameters. However, if you have any questions about setting up and operating the device, you can contact the MERTECH support service.
| Printer class | Mobile |
|---|---|
| Print speed | 100 mm/sec |
| Print type | Thermo |
| Print area width, mm | 48 |
| Print head resource | 50 km |
| Print Resolution | 203 dpi |
| Flash memory | 4 Mb |
| RAM memory | 64 KB |
| Printing protocol | ESC/POS |
| Battery | 7.4 V, 1300 mA |
| Поддержка СЭУАП | Yes |
|---|---|
| Cutter | No |
| Resource of the cutter | No |
| Built-in sensors | The presence of paper, Lid opening, Gap, Black mark |
| External holder | No |
| OS support | Windows XP/ Vista/ 7/ 8/ 10; Linux; Mac |
| Supported fonts | Chinese GBK 16x16, 24x24 dots, Alphanumeric ASCII 9x17, 12x24 Dots, 47 Encodings |
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 |
| EasyLoad | Yes |
| Supported 2D barcodes | QR Code, PDF417 |
| EGAIS support | yes |
| Sleep mode | Yes |
| Receipt tape rewind function | Yes |
| Print QR code | Yes |
| Bartender Support | yes |
| Guarantee | 2 years old |
|---|---|
| Resistance to external influences | IP42 |
| Battery | 1300 mAh Li-ion |
| Storage temperature | -30°C - 60°C |
| Battery charging time | 2 hours |
| Nutrition | DC 5V, 1A |
| Permissible humidity | 25 - 85% (operation); 5 - 95% (storage) |
| Operating temperature | -5 - 50°C |
| Drop test | It can withstand multiple falls from a height of 1.5 m. |
| Works on one battery charge | Up to 14 hours |
| Paper width, mm | 58 mm |
|---|---|
| Paper thickness, mm | 0.053 - 0.13 mm |
| Roll diameter, mm | up to 40 mm |
| Printing material | Receipt Feed |
| Display type | LCD Display (OLED) |
|---|---|
| Number of points | 128*64 |
| Interfaces | USB, Bluetooth |
|---|
| Battery capacity | 1300 mA |
|---|
| Color | black, red |
|---|---|
| Overall dimensions (WxDxH), mm | 126,9*84,4*50,6 mm |
| Weight | 0.234 kg |
| Quantity in masterbox, pcs | 12 |
|---|---|
| Box dimensions, mm | 180*170*55 |
-
