| Thermal head resource50 km | Printer classMobile | Print speed127 mm/sec |
| Print Resolution203 dpi | Flash memory128 Mb | RAM memory4 Mb |
| Printing protocolCPCL, ZPL, TSPL, EPL | Battery7.4 V, 3300 mAh | Recommended print volume per dayup to 5,000 labels per day |

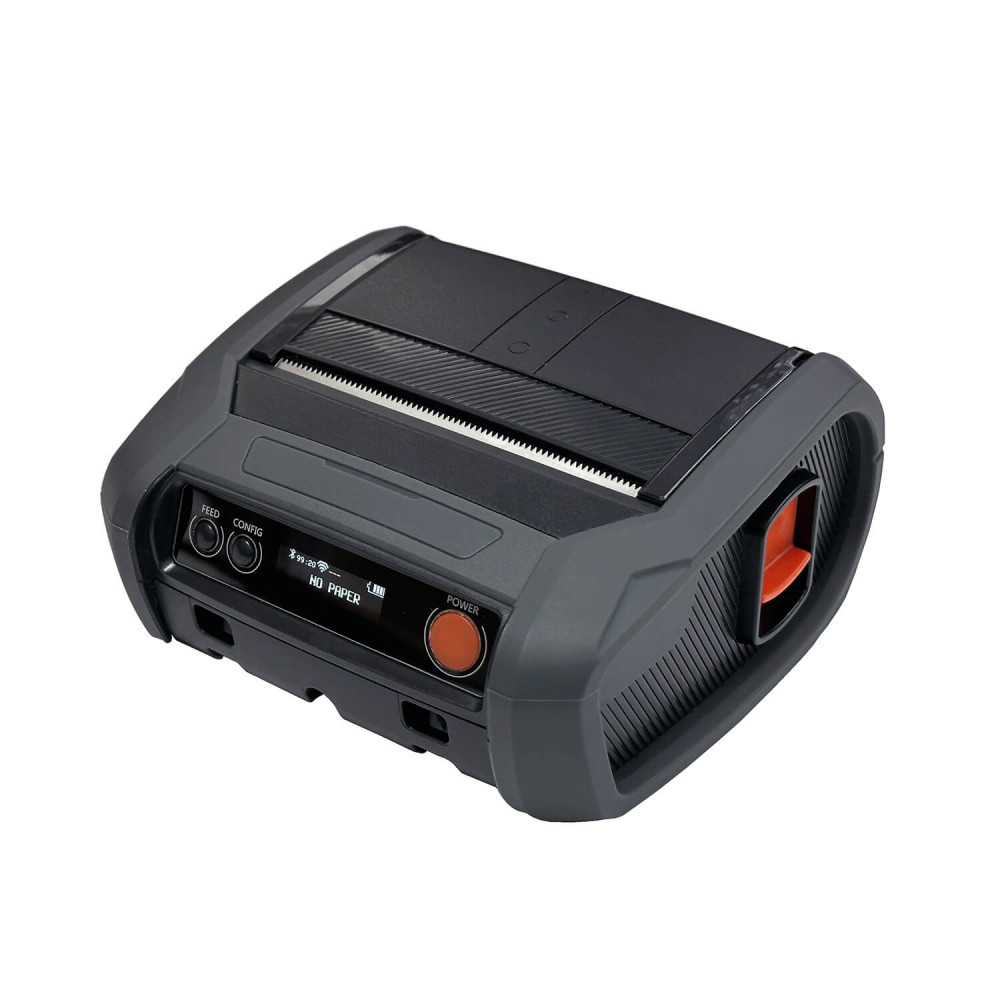

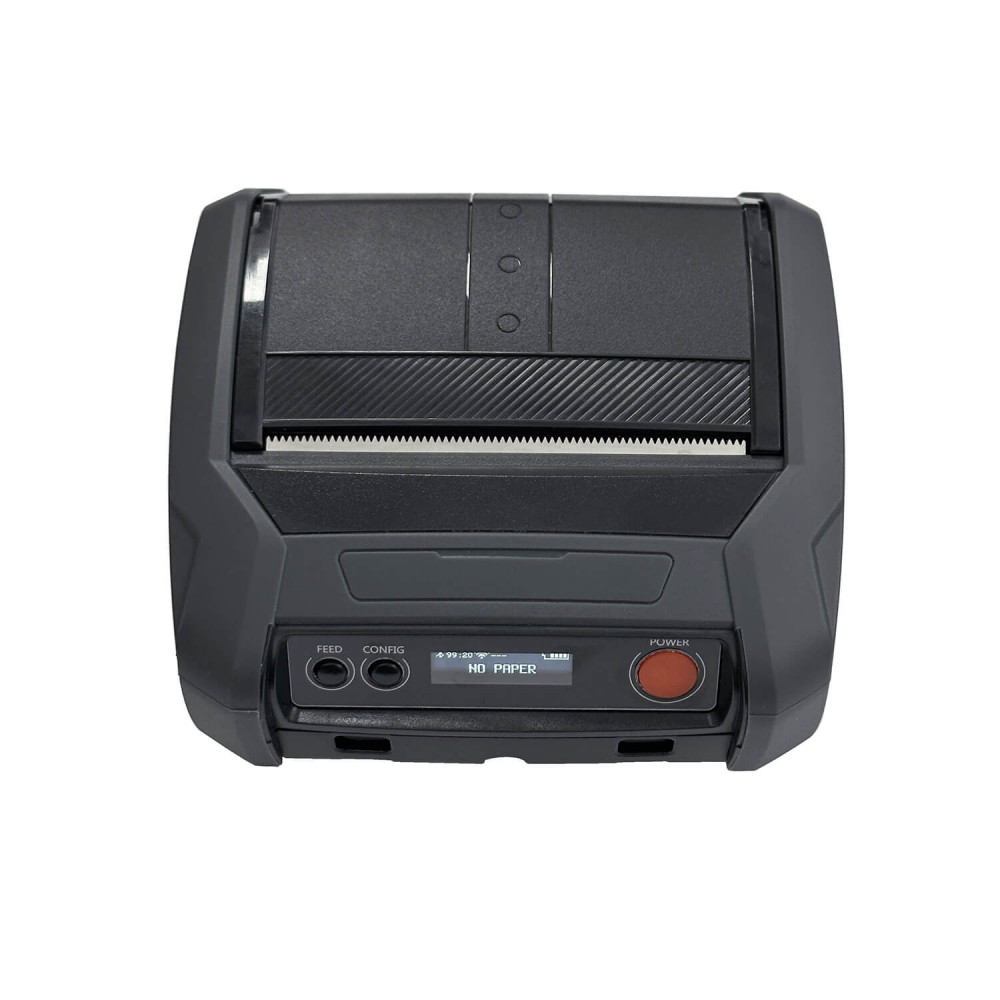

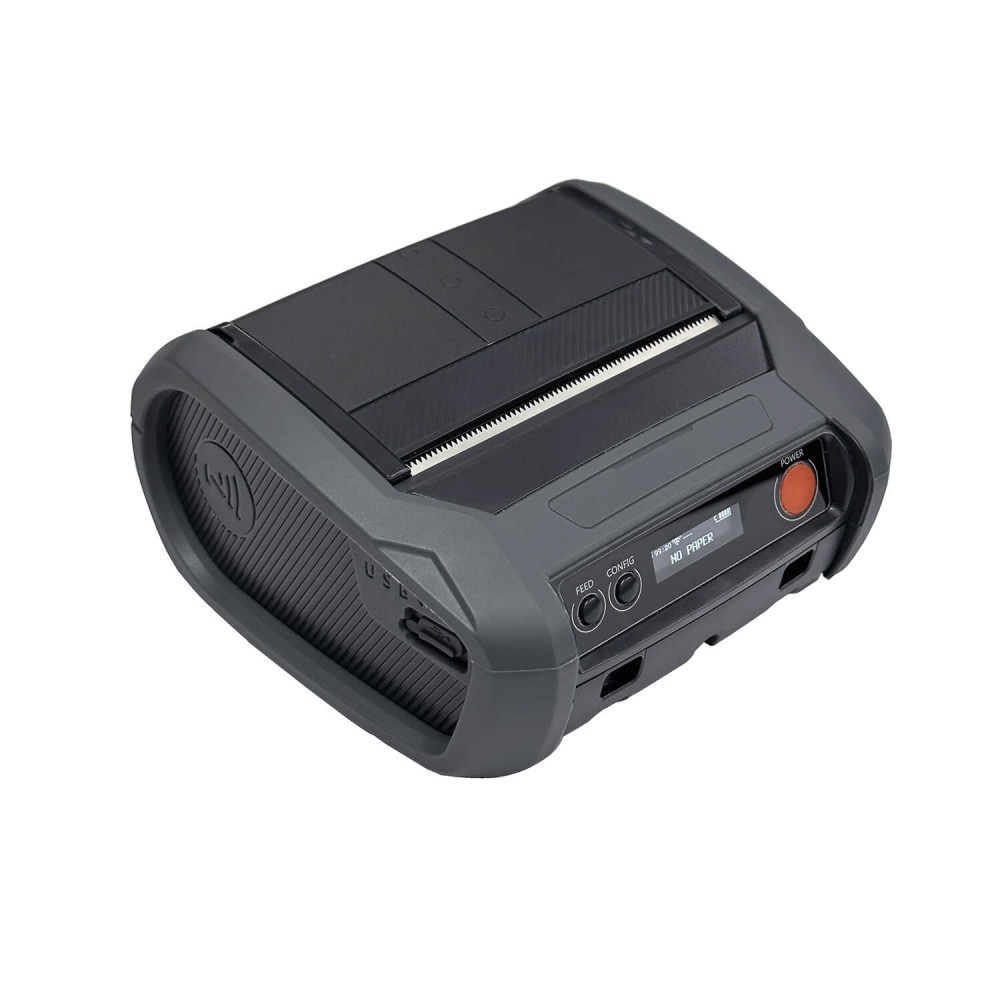

The MERTECH GAMMA mobile printer opens up the possibility of printing receipts and labels anytime, anywhere. The compact mechanism simplifies business processes in trade, logistics, warehousing and HoReCa. You can use the thermal printer in a sales area, warehouse, cafe or restaurant, courier service, and other business areas.
Advantages of the model
The MERTECH GAMMA thermal printer has a reliable mechanism. The thermal printing head is designed for 50 km of tape. The mobile printer can print up to 5,000 labels per shift. The machine can print up to 150m receipts or labels without stopping. The status of the device is shown by an LCD display of 128*96 dots.
The mobile printer prints popular linear barcodes. The device supports printing two-dimensional barcodes PDF417, QR Code and DataMatrix. Marking codes for the "Honest Mark" and excise stamps for the USAIS can be printed on the thermal printer. The printing process is accompanied by light and sound signals. The device has an intuitive interface.
The operation is controlled by a system of 6 sensors. The mechanism automatically detects the printing material. The device is powered by an energy-intensive battery. One hundred percent battery charge lasts up to 14 hours. To save battery, a sleep mode is provided, which is activated if the user does not give a command for a long time.
Specifications
The MERTECH GAMMA thermal printer prints receipts and labels quickly. Due to the large amount of memory, the device works without delay. You can load your own fonts into memory.
Model Characteristics:
- Protocol support: CPCL, ZPL, TSPL.
- RAM memory: 4 MB.
- Flash memory: 128 MB.
- Speed: 127 mm/sec.
- Text and image resolution: 203 DPI.
- Media width: 20-80 mm.
- Working area width: 20-72 mm.
- Material thickness: 0.053-0.15 mm.
- Compatible rolls: no more than 50 mm.
- Battery life: 3300 mAh.
- Full charge time: up to 3 hours.
The mobile printer can be connected to computers with the Windows 7-10 operating system. Wi-Fi, Bluetooth and BLE are used for data transmission. You can connect the device to a computer and charge the battery via the USB type-c port.
Durability and convenience
The case is based on a sturdy and stable metal frame. The external elements are made of rubber, plastic and polycarbonate. The small device is convenient to hold in your hand and carry with you, it easily fits in your pocket.
To order a MERTECH GAMMA printer at the lowest price, leave a request on the website.
| Thermal head resource | 50 km |
|---|---|
| Printer class | Mobile |
| Print speed | 127 mm/sec |
| Print Resolution | 203 dpi |
| Flash memory | 128 Mb |
| RAM memory | 4 Mb |
| Printing protocol | CPCL, ZPL, TSPL, EPL |
| Battery | 7.4 V, 3300 mAh |
| Recommended print volume per day | up to 5,000 labels per day |
| Ability to download fonts | Yes |
|---|---|
| Поддержка СЭУАП | Yes |
| Cutter | No |
| Resource of the cutter | No |
| Built-in sensors | The presence of paper, Lid opening, Gap, Black mark, TRN Detection, Temperature detection |
| External holder | No |
| OS support | Driver: Windows 7, 8, 10 |
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 |
| Supported 2D barcodes | PDF417, QR Code, DataMatrix |
| EGAIS support | Yes |
| Sleep mode | Yes |
| Print QR code | Yes |
| Automatic paper type detection | Yes |
| Automatic calibration | Yes |
| Resistance to external influences | IP42 |
|---|---|
| Storage temperature | -20°C ~ +70°C |
| Battery charging time | up to 3 hours |
| Nutrition | DC 5V, 1A |
| Permissible humidity | 10 - 85% (operation); 5 - 90% (storage) |
| Operating temperature | -10°C ~ +50°C |
| Drop test | It can withstand multiple falls from a height of 1.5 m. |
| Works on one battery charge | Up to 14 hours |
| Continuous print volume when operating on a single full charge | 150 meters |
| Paper width, mm | from 20 to 80 mm |
|---|---|
| Paper thickness, mm | 0.053 - 0.15 mm |
| Roll diameter, mm | up to 50 mm |
| Printing material | Thermal labels or receipt tape |
| Paper installation type | Adjustable holder |
|---|
| Display type | LCD Display (OLED) |
|---|---|
| Number of points | 128*96 |
| Interfaces | USB type-c, Wi-Fi 2.4/5 Ghz 802.11 b/g/n/r (WEB WPA/WPA2 personal), Bluetooth version 4.2 BLE |
|---|
| Battery capacity | 3000 mAh |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black, Grey |
| Overall dimensions (WxDxH), mm | 115x115x58 |
| Body material | Metal + Rubber + PC (platinum + polycarbonate) |
| Weight | 0.386 kg |
| Quantity in masterbox, pcs | 20 pcs |
|---|---|
| Equipment | Printer, USB Type-C Cable, Battery, Power Supply, Short instructions, Warranty Card, Packaging |
| Print width, mm | 20-72 mm |
|---|
-
