| Printer classMobile | Print speed80 mm/sec | Print typeDirect thermal printing |
| Print Resolution203 dpi | Flash memory256 Mb | Printer typeLabel printer |
| RAM memory32 Mb | Printing protocolCPCL and ZPL | Battery7.4V, 1800mAh |

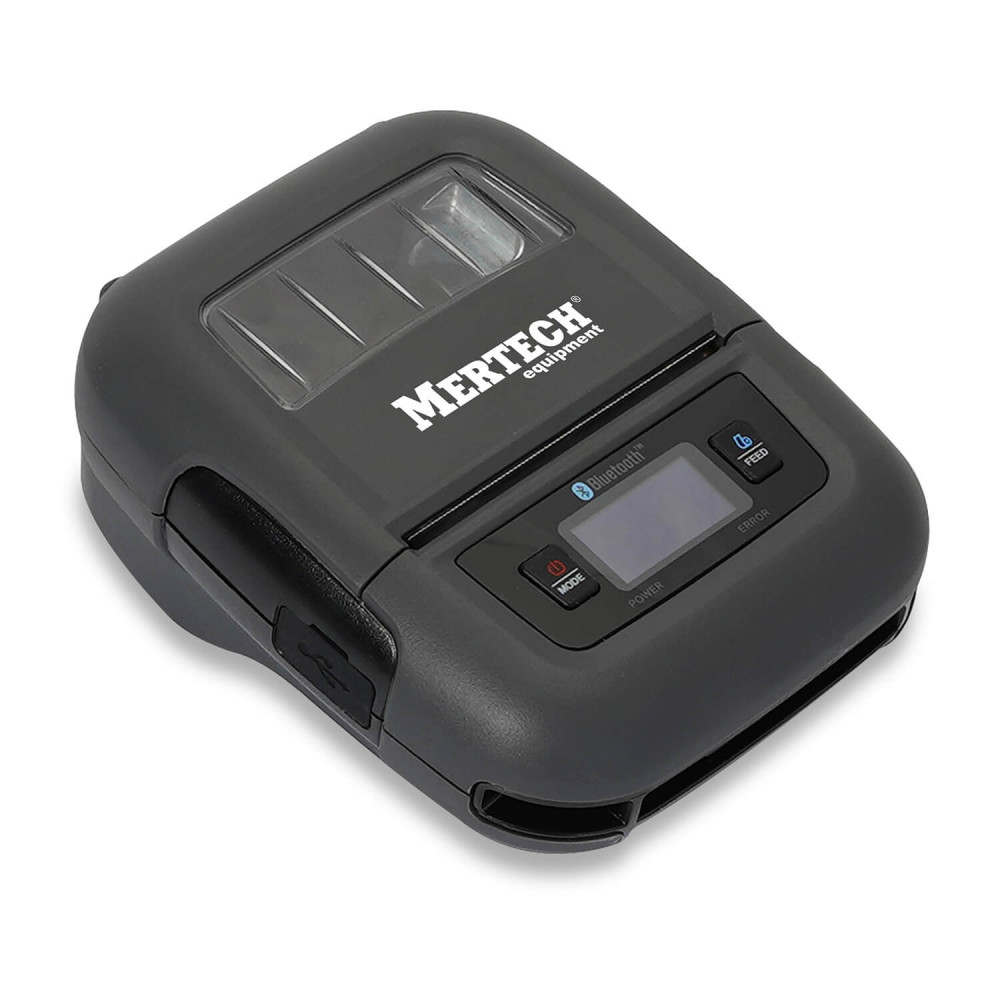

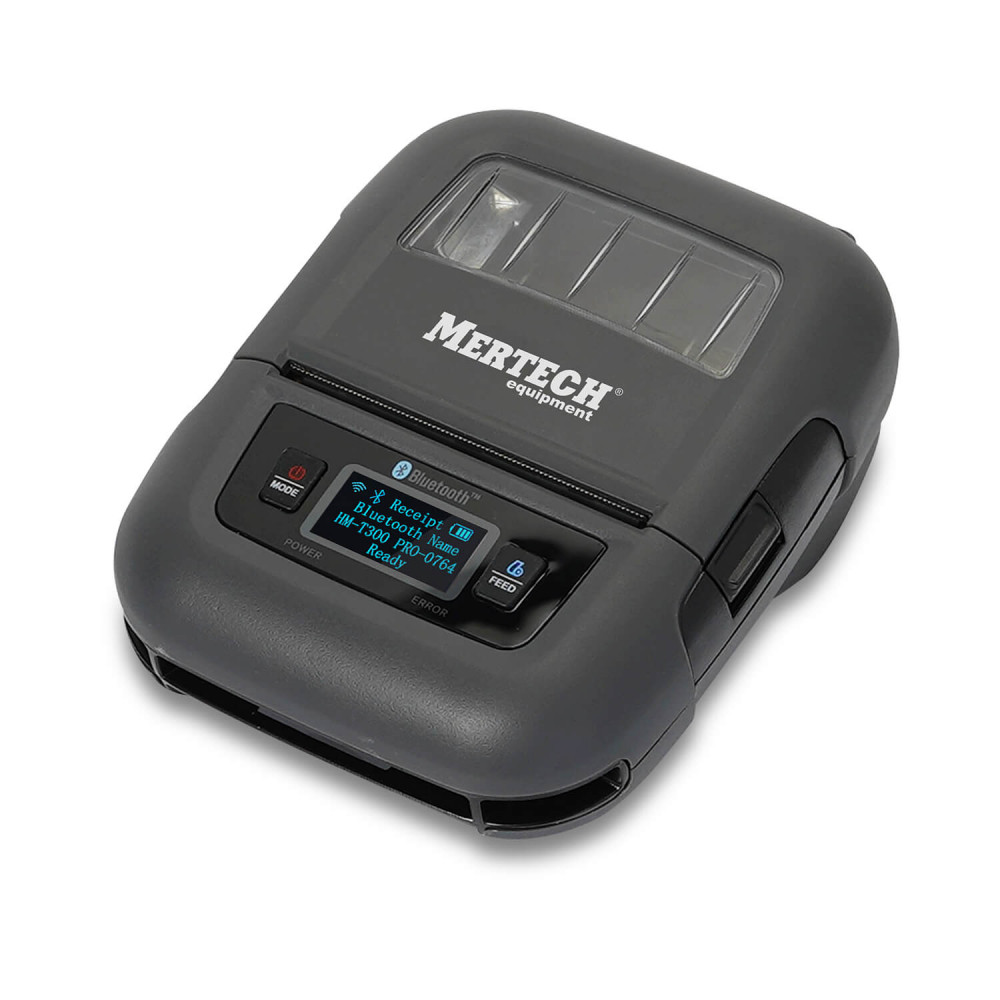

The MERTECH ALPHA mobile printer is designed for printing labels or cash receipts. This small and lightweight device is convenient to carry from one place to another. The thermal printer is suitable for conducting inventory in stores or warehouse complexes. It supports integration with 1C and is suitable for working with any category of products.
Advantages of the Model

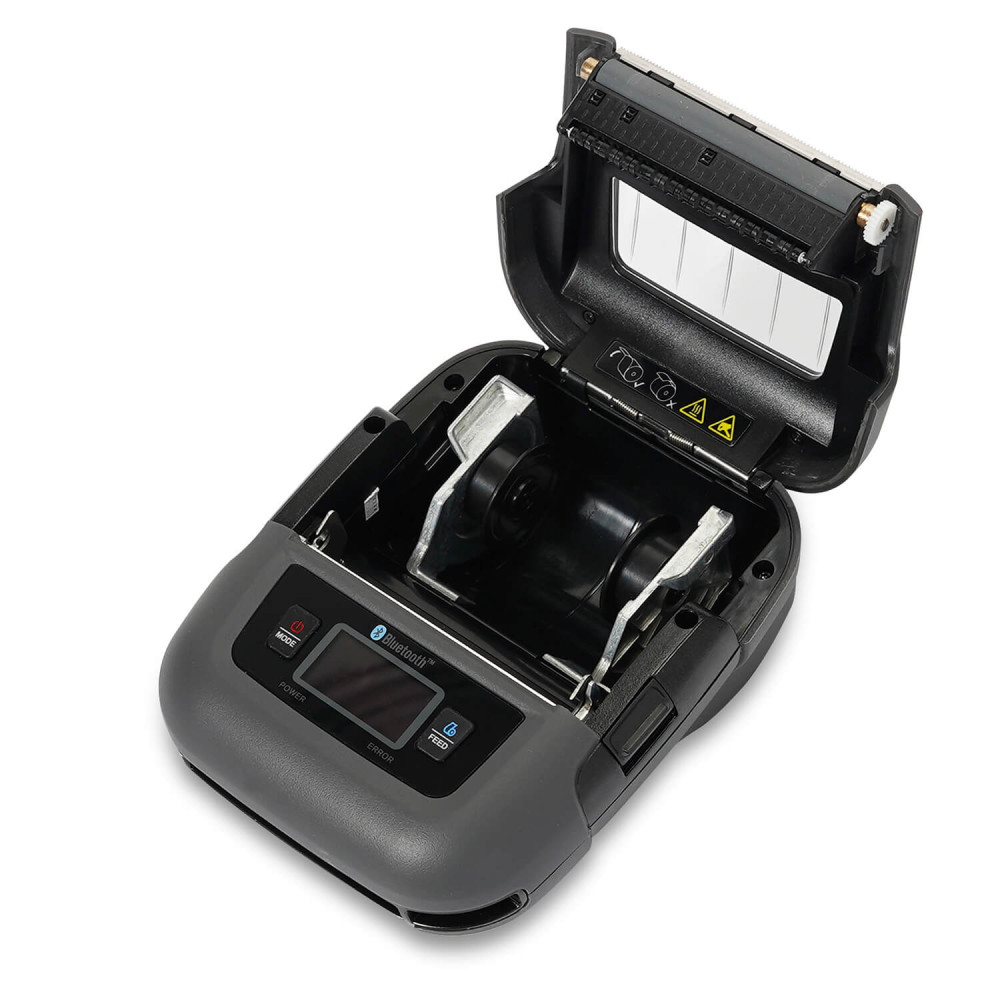

The MERTECH ALPHA operates using thermal printing technology. Thermal labels or receipt rolls with a diameter of 57 mm are required for printing. The thermal printer supports a set of basic fonts, printing of the most popular linear codes, and two-dimensional codes PDF417 and QR.

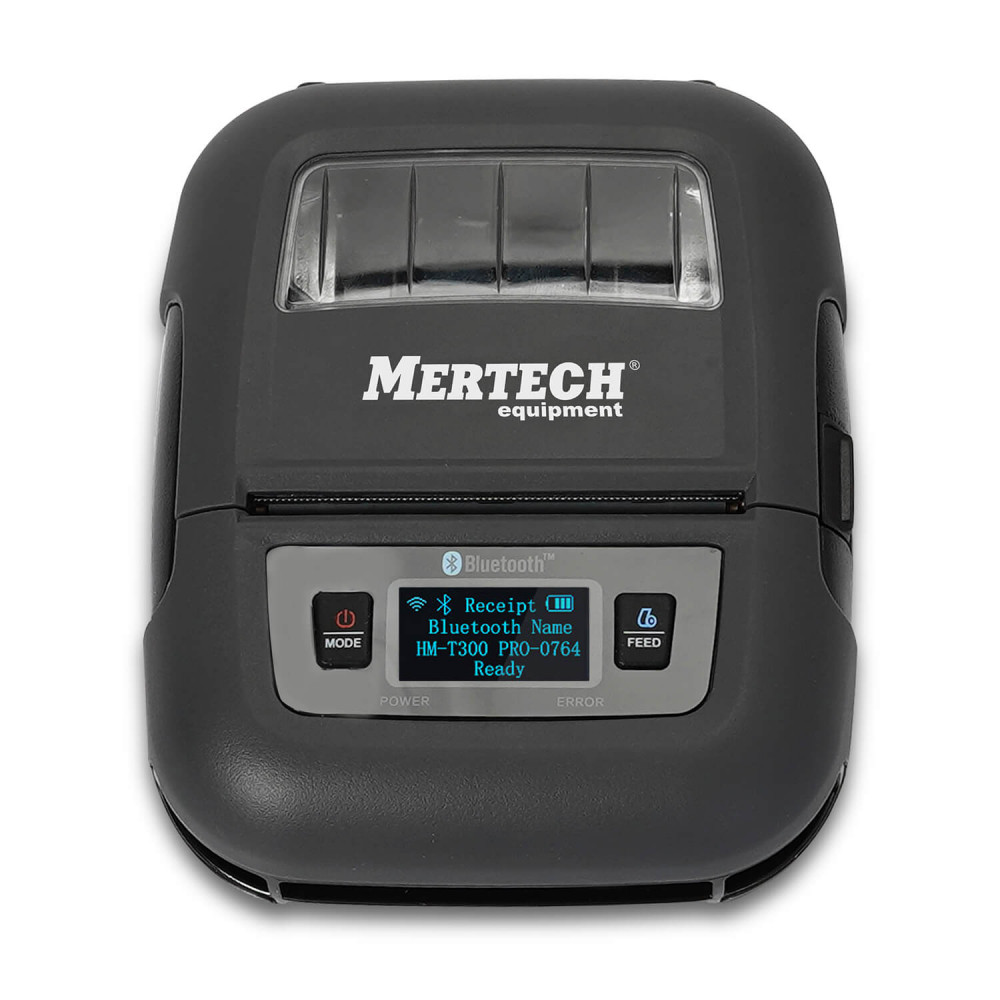

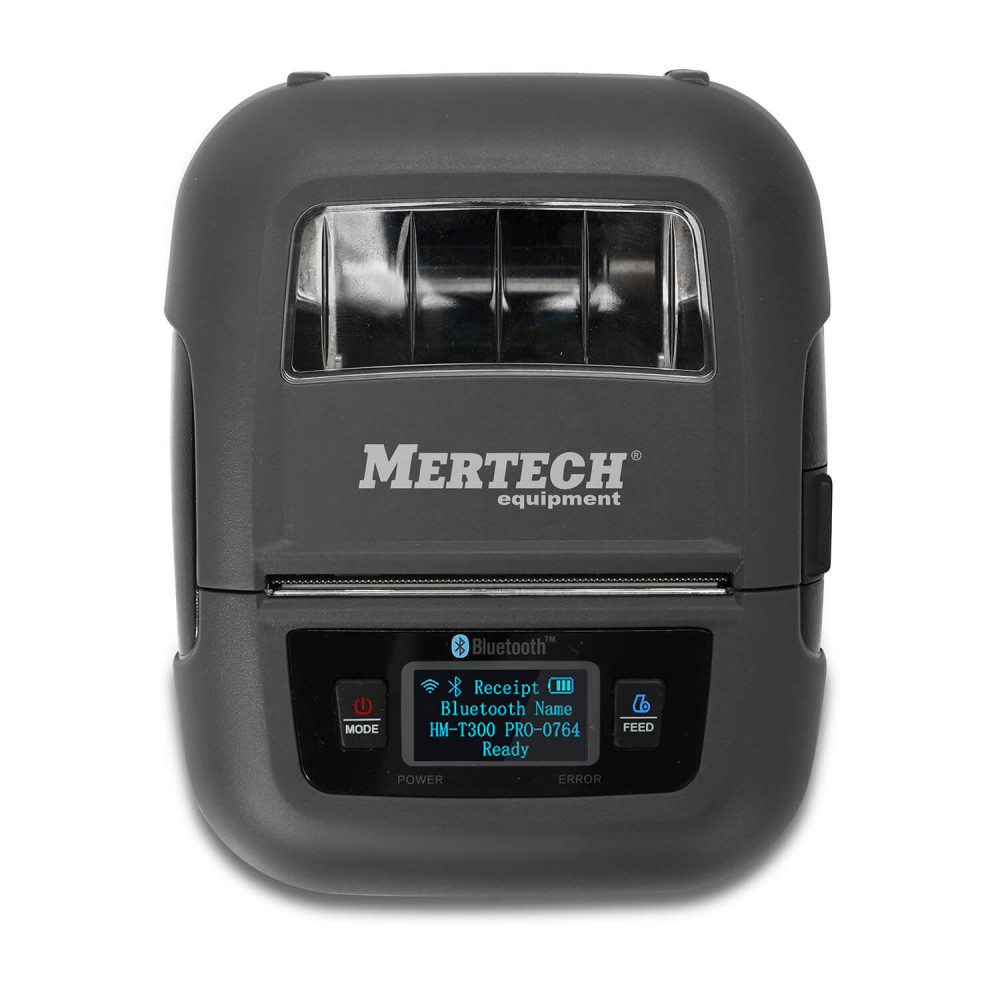

The thermal printing process is controlled by a sensor system. The design includes sensors for ribbon presence, open cover, black mark and gap detection, TRN detection, and print head temperature. The thermal printer has a quick ribbon feeding function. The liquid crystal display helps to monitor the workflow.
The device supports connection to a base at a distance of up to 100 meters. The battery charge lasts for 14 hours. Charging the battery from 0 to 100% takes 2 hours. To save power, the device automatically goes into sleep mode when the user does not provide commands for a long time.
Technical Specifications
The MERTECH ALPHA mobile printer is suitable for printing sticky labels in volumes of up to 5000 pieces per work shift. The design features and reliable components ensure long and stable operation of the mechanism. The warranty for the printer is valid for 2 years.
Model specifications:
- Connection protocol: TPSL and ZPL.
- Thermal printing speed: 80 mm/sec.
- Resolution: 203 DPI.
- Ribbon width: 55-80 or 37-63 mm.
- Print width: up to 72 mm.
- OLED display 128*96 mm.
- Flash memory: 256 MB.
- RAM: 32 MB.
- Battery: 2000 mAh.
The printing device connects to computers with Windows from 2000 to 10 and to smartphones with iOS. Connection interfaces used include: USB, Wi-Fi, Bluetooth.
Design Features
The MERTECH ALPHA thermal printer features a stylish and modern design. The body panels are made of durable materials: metal, rubber, plastic, polycarbonate. Conveniently located buttons are provided for managing the work.

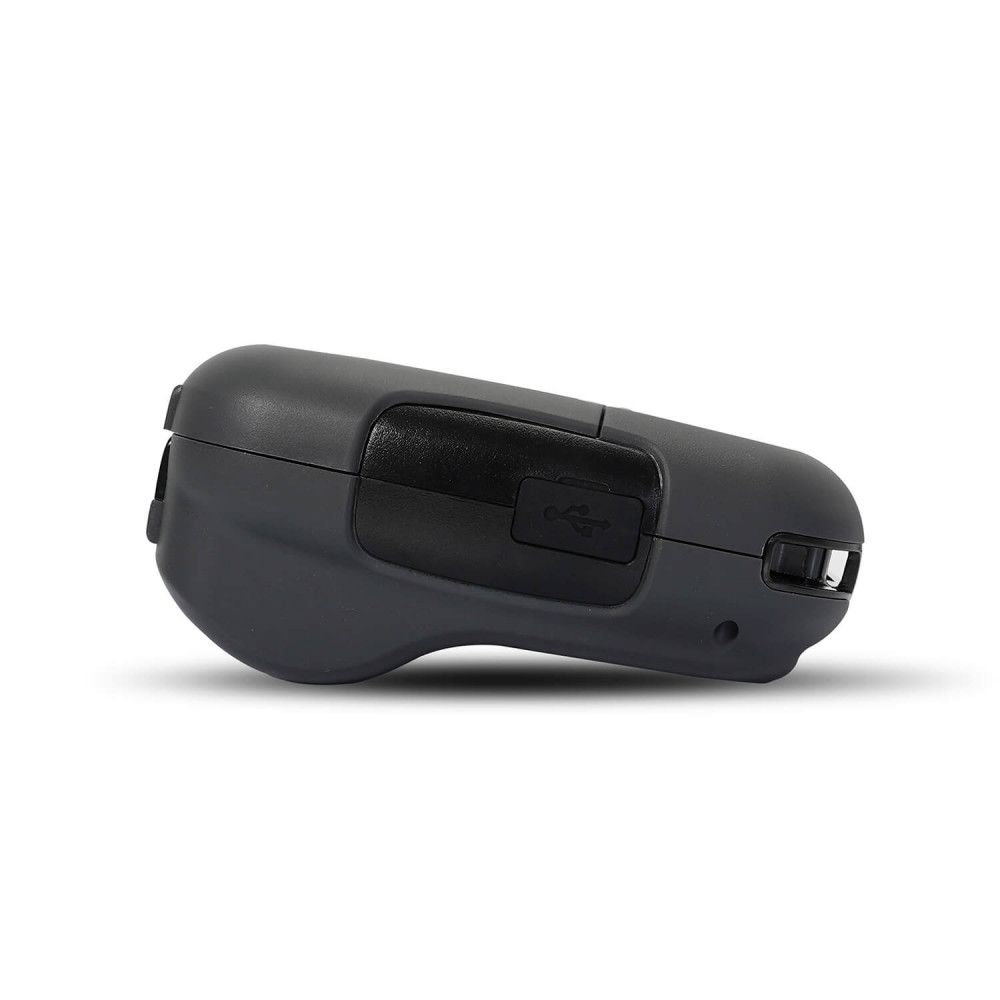

The body has dimensions of 150x120x70 mm and weighs 630 grams. The printer can be attached to a belt to prevent accidental falls. Crash tests show that the body withstands falls from a height of up to 150 cm.
You can order the MERTECH ALPHA thermal printer at a low price on the official website of the MERTECH company. After placing an order, the equipment will be delivered to any point in Azerbaijan.
| Printer class | Mobile |
|---|---|
| Print speed | 80 mm/sec |
| Print type | Direct thermal printing |
| Print Resolution | 203 dpi |
| Flash memory | 256 Mb |
| Printer type | Label printer |
| RAM memory | 32 Mb |
| Printing protocol | CPCL and ZPL |
| Battery | 7.4V, 1800mAh |
| Opening hours | Until 2:00 pm |
| Recommended print volume per day | 5000 labels |
| Поддержка СЭУАП | Yes |
|---|---|
| Cutter | No |
| Built-in sensors | Paper presence, Lid opening, Gap, Black mark, TRN detection, Temperature detection |
| External holder | No |
| OS support | HPRT Driver: Windows 7, 8, 10. Linux, Mac; SDK: Android, iOS |
| Supported fonts | Chinese GBK 16x16, 24x24 dots Alphanumeric ASCII 9x17, 12x24 dots Encodings 35 |
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 |
| EasyLoad | Yes |
| Supported 2D barcodes | PDF417, QR Code |
| Sleep mode | Yes |
| Receipt tape rewind function | Yes |
| Print QR code | Yes |
| Guarantee | 2 years |
|---|---|
| Resistance to external influences | IP42 |
| Applications of the printer | For 1C, For inventory, For shoe marking, For warehouse, For marking |
| Storage temperature | -10°C ~ +65°C |
| Battery charging time | 2 hours |
| Nutrition | DC 5V, 1A |
| Permissible humidity | 10 - 85% (operation); 5 - 90% (storage) |
| Operating temperature | 0°C ~ +55°C |
| Drop test | Withstands multiple drops from a height of 1.5 m |
| Paper width, mm | from 55 to 80 (or from 37 to 63) |
|---|---|
| Paper thickness, mm | 0.053 - 0.15 |
| Roll diameter, mm | up to 58 |
| Printing material | Thermal labels or receipt tape |
| Display type | LCD display (OLED) |
|---|---|
| Permission | 128*96 |
| Interfaces | USB, Bluetooth, Wi-Fi |
|---|
| Battery capacity | 1800 mAh |
|---|
| Printer frame material | Metal |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 150x120x70 |
| Body material | Metal + rubber + PC (plastic + polycarbonate) |
| Weight | 0.63 kg |
| Gross weight, g | 920 |
|---|---|
| Equipment | Printer, Micro-USB cable, Battery, Power supply, Belt clip, Quick start guide, Warranty card, Packaging |
| Print width, mm | 72 |
|---|
-
