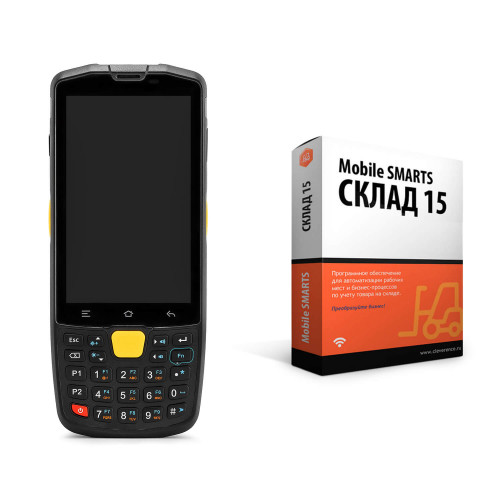

MERTECH Seuic AutoID Q9C kit with software "Warehouse 15"
The MERTECH Seuic AutoID Q9C kit with the Warehouse 15 software is a ready—made solution for automation of warehouse and commodity accounting operations. It is suitable for shops, warehouses, restaurants, delivery services and other enterprises where it is important to quickly read barcodes, reduce errors and speed up staff work. The Warehouse 15 software is designed to automate warehouse operations using TSD and helps speed up acceptance, shipment, inventory, movement and other operations.
What is included in the package
- MERTECH Seuic AutoID Q9C Data Acquisition Terminal;
- The software "Warehouse 15" for working on TSD.
Advantages of the MERTECH Seuic AutoID Q9C terminal
- 2D scanner for recognizing all major types of barcodes;
- Marking and USAIS support;
- 13 MP camera with autofocus and flash for clear code reading;
- 27-button backlit keyboard;
- IP67 enclosure protection;
- Operating temperature -20 °C to +50 °C;
- Android 10.0 operating System;
- Up to 14 hours of operation without recharging;
- Power Bank function for charging other devices;
- Customizable virtual scan button on the touch screen.
Technical specifications
- 4" Touch Screen with Corning Gorilla Protective Glass;
- RAM: 2 GB;
- Built-in memory: 16 GB;
- Supports microSD memory card up to 32 GB;
- Wireless Interfaces: Bluetooth, BLE 5.0, Wi-Fi;
- Navigation: GPS, Beidou, GLONASS;
- USB port for connection and charging;
- The full charge time is about 3.5 hours.
Warehouse 15 Software Features
Warehouse 15 is a software for automating work in a warehouse using TSD. It allows you to read barcodes from boxes, packages and pallets, supports work with various product categories, and also contains ready-made integrations with 1C configurations.:Enterprise and connectors for different accounting systems — from Excel to SAP. After installation, 14 warehouse operations on TSD and more than 48 ready-made business processes are available for exchange with accounting systems. :contentReference[oaicite:1]{index=1}
What tasks does the kit solve?
- Accelerates the acceptance, shipment, inventory, assembly and movement of goods;
- Reduces the number of employee errors when performing operations;
- Improves accounting accuracy;
- Simplifies the work with labeled products;
- Allows you to get up-to-date information about the availability of goods, their location and the status of orders.;
- Reduces the need to constantly return to the computer for data entry;
- It helps to analyze and optimize warehouse processes.
Why choose this kit?
MERTECH Seuic AutoID Q9C with Warehouse 15 software is a convenient and reliable kit for businesses that need a ready—made tool for warehouse automation and labeling. The terminal provides fast barcode reading even in intensive mode, and the software provides ready-made business processes and integrations for quick implementation without complicated configuration.
| Scanning module | 2D image |
|---|---|
| operating system | Android 10.0 |
| Flash memory | 16GB |
| RAM memory | 2Gb |
| Sensor type | Industrial |
| Slots | Micro SD Card, 32GB SDHC compatible |
| Minimum barcode contrast | 20% |
| PC connection interface | USB Type-C with OTG support |
| Sensors | G-sensor, proximity sensor, gyroscope, electronic compass, light sensor |
| CPU | MTK 8-core 8*2.0GHz |
| Touch panel | Capacitive, Corning Gorilla glass |
| Supported 1D barcodes | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. |
|---|---|
| Supported 2D barcodes | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. |
| EGAIS support | Yes |
| Sound and visual indication during scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| NFC | ISO 15693, ISO 14443 A/B (without encryption protocol), ISO 14443 A with encryption protocol (Mifare one S50, S70 and its compatible cards) |
| GMS support | No |
| Scanner model | SEUIC X3-HD |
|---|
| Guarantee | 2 years old |
|---|---|
| Resistance to external influences | IP67 |
| Storage temperature | -40°C ~ +60°C |
| Battery charging time | BP - 3.5 hours |
| Battery life on one charge | 14 hours |
| Permissible humidity | 5% ~ 95% |
| Operating temperature | -20°C ~ +50°C |
| Drop test | It can withstand multiple falls from a height of 1.8 m. |
| GPS | GPS, Beidou, GLONASS, Galileo |
|---|---|
| Cellular (WWAN) | 2G/3G/4G |
| Display type | Touch screen |
|---|---|
| Diagonal | 4,0 |
| Matrix type | IPS |
| Permission | WVGA, 800×480 |
| Battery capacity | 5200 mA |
|---|
| Buttons | Keyboard 27 buttons, backlit, Power supply (lock screen) button, Volume up/down, brightness up/down, scan |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 160*66,3*16.2 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 250 g |
| Equipment | TSD, 5V/2A Adapter, USB type C Cable, Strap, Instruction, Warranty Card, Packaging |
|---|
| Wi-Fi (WLAN) | 2.4G/5G Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v/w |
|---|
| Camera | 13 Megapixels, with autofocus and flash |
|---|
-
