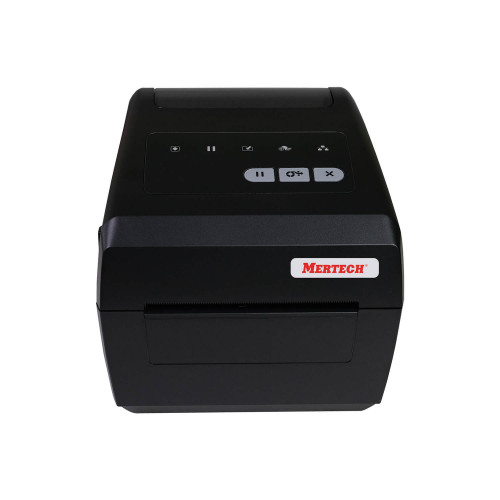

MERTECH LP4 ZENITH Label Printer
383 ₼
MERTECH LP4 ZENITH Label Printer
Popular
Specification
| Thermal head resource50 km | Printer classDesktop | Print speedup to 152 mm/sec |
| Print typeDirect thermal printing | Print area width, mmfrom 25 to 108 | Print Resolution203 dpi |
| Flash memory128 Mb | Printer typeLabel Printer | RAM memory32 Mb |
Shipping Information
Enter a delivery address
Description
The MERTECH LP4 ZENITH is a direct thermal desktop printer for intensive daily work in retail, warehouse, logistics and marketplaces. The device prints up to 152 mm/s, the recommended daily volume is up to 10,000 labels, and the thermal head has a life of 50 km. The printer is compatible with key drivers and software, supports USAIS and QR code printing, connects via USB and Ethernet, and confidently works with a wide range of materials.
Advantages of the printer
- High performance: Speeds of up to 152 mm/s and a daily load of up to 10,000 labels are available for streaming printing without queues.
- Ready for labeling: QR code printing, USAIS support and "Fair Sign" scenarios (shoes, alcohol, textiles, etc.).
- Flexible formats: print width from 25 to 108 mm; label length from 10 to 250 mm — for tasks from narrow labels to full-size labels.
- Compatibility without surprises: TSPL, ZPL and DPL protocols simplify migration and integration; works with Marking.Simply, BarTender and 1C.
- Stability and quality: 203 dpi for clear barcodes and text; built-in sensors for lumen, black mark (adjustable) and head opening.
- Multilingual printing: support for extended code pages (Windows-1250...1258, ISO-8859-1/2/3/4/5/6/8/9/15, PC437, etc., as well as DBCS 932/936/949/950) for international logistics.
- Minimum downtime: EasyLoad for fast refueling, Tape rewinding and Feed function — fast calibration and smooth unwinding.
- Flexibility in materials: self-adhesive thermal labels, black label, receipt tape; thickness 60-250 microns; rollers up to Ø127 mm, 0.5"/1" sleeve.
- Network and workstations: USB for local printing and Ethernet for network access from multiple PCs/cash registers.
- Reliability from design to service: 50 km head life, 2-year warranty, audible and visual status indication.
Main Features
- Class and type of printing
- Desktop label printer, direct thermal printing, resolution 203 dpi.
- Speed and Resource lt;dd;Up to 152 mm/s; recommended volume — up to 10,000 labels/day; thermal head life — 50 km.
- Printing Area lt;dd;Width 25-108 mm; length 10-250 mm; material support width 25.4–118 mm.
- Materials lt;dd;Thermal labels, black label, receipt tape; thickness 0.06–0.25 mm (60-250 microns); roll diameter up to 127 mm; sleeve 0.5" (12.7 mm) / 1" (25.4 mm); external holder is optional.
- Compatibility and Protocols lt;dd>TSPL + ZPL + DPL; Windows 7/8/8.1/10/11 OS support; Software compatibility Marking.Simply, BarTender, 1C, marketplaces (Ozon, Wildberries) and cash solutions (including EVOTOR).
- Barcodes lt;dd>1D: Code 39/93/128 (UCC/A/B/C), Codabar, Interleaved 2 of 5, EAN-8/13/128, UPC-A/E, MSI, GS1 DataBar, etc. 2D: QR, DataMatrix, PDF417, Aztec, Maxicode.
- Printing Functions
- QR code printing, USAIS support, Font loading, EasyLoad, Tape Rewinding function, Feed function.
- Memory lt;dd;Flash 128 MB, RAM 32 MB — for storing fonts, logos and templates, stable printing of long queues.
- Sensors lt;dd;Lumen sensor, black mark sensor (adjustable), head opening sensor — accurate calibration and protection against feed errors.
- Interfaces lt;dd;USB, Ethernet — local and network printing.
- Power Supply lt;dd;Input: AC 100-240 V, 2.0 A, 50/60 Hz; Output: DC 24 V, 2 A (48 W); power supply cable length — 2.5 m.
- Operation and Storage lt;dd;Operation: +5...+40 °C, humidity 25-85%; storage: -20...+50 °C, humidity 10-90%.
- Equipment lt;dd;Printer, USB cable, power supply, warranty card, packaging.
- Other lt;dd;gt;Support for extended code pages (Windows-1250...1258, ISO-8859-1/2/3/4/5/6/8/9/15, PC437, etc.; DBCS 932/936/949/950); audio and visual indication.
Housing and materials
The body and frame are made of durable black ABC plastic, which is resistant to everyday loads and has a neat appearance in the shopping area. Compact dimensions 175×160×219 mm and a weight of 1.65 kg allow you to place the device in any workplace without redevelopment. Sound and light indications promptly inform about the printer status, simplifying the work of operators.
The design is focused on easy maintenance: quick access to feed paths, EasyLoad roll loading, accurate label position sensors and black label adjustment minimize defects and downtime.
Buy with delivery
Order the MERTECH LP4 ZENITH on the manufacturer's website and get a reliable label printing solution ready to work with labeling and marketplaces. Fast delivery throughout Russia, integration advice and assistance in the selection of consumables are available. Place an order now — optimize printing processes and reduce transaction costs in the coming days.
Specifications MERTECH LP4 ZENITH Label Printer
Technical parameters
| Thermal head resource | 50 km |
|---|---|
| Printer class | Desktop |
| Print speed | up to 152 mm/sec |
| Print type | Direct thermal printing |
| Print area width, mm | from 25 to 108 |
| Print Resolution | 203 dpi |
| Flash memory | 128 Mb |
| Printer type | Label Printer |
| RAM memory | 32 Mb |
| Printing protocol | TSPL+ZPL+ DPL |
| Recommended print volume per day | 10,000 labels |
| Print area length, mm | 10 - 250 |
Functional capabilities
| Ability to download fonts | Yes |
|---|---|
| Label Separator | No |
| Supported code pages | PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) |
| Tape rewind function | Yes |
| Cutter | No |
| Resource of the cutter | No |
| Built-in sensors | lumen, black mark (adjustable), head opening |
| External holder | Yes (optional) |
| OS support | Windows 7/ 8/ 8.1/ 10/ 11 |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8,EAN-13, EAN-128,UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, GS1 DataBar |
| EasyLoad | Yes |
| Supported 2D barcodes | PDF417, Maxicode, DataMatrix, QR Code, Aztec |
| EGAIS support | Yes |
| Feed function | Yes |
| Print QR code | Yes |
| Bartender Support | Yes |
Operating parameters
| Guarantee | 2 years old |
|---|---|
| Applications of the printer | For 1C, For OZON, For Inventory, For Shoe labeling, For Warehouse, For Labeling, For Marketplace, For EVOTOR, For Wildberries |
| Storage temperature | -20°C ~ +50°C |
| Nutrition | Input: AC 100-240 V, 2.0 A, 50/60 Hz Output: DC 24V, 2A 48W |
| Permissible humidity | 25 - 85% (operation); 10 - 90% (storage) |
| Operating temperature | +5°C ~ +40°C |
| Network adapter cable length (m) | 2,5 |
Printing material
| Roll core diameter | 0.5(12.7mm)/ 1 (25.4mm) |
|---|---|
| Paper thickness, mm | 0.06 - 0.25 (60 microns - 250 microns) |
| Material width (min/max), mm | 25.4 mm - 118 mm |
| Roll diameter, mm | up to 127 |
| Printing material | Self-adhesive thermal labels, black label, receipt tape |
Interfaces
| Interfaces | USB, Ethernet |
|---|
Frame
| Printer frame material | ABC plastic |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 175×160×219 |
| Body material | ABC plastic |
| Weight | 1.65 kg |
Equipment
| Quantity in masterbox, pcs | 4 pcs |
|---|---|

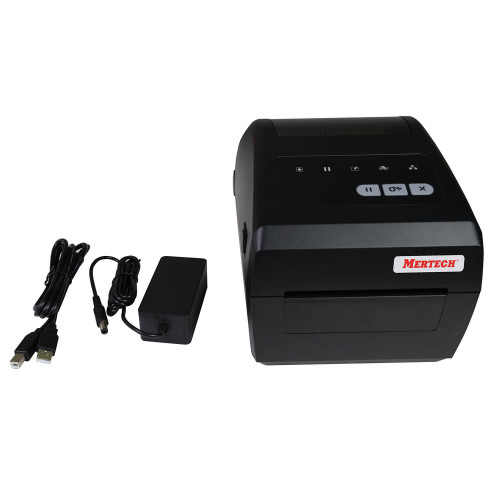

| Equipment | Printer, USB interface connection cables, Power supply, Warranty Card, Packaging |
