MERTECH 2320 P2D Handheld Barcode Scanner USB RS232 Emulation, black

MERTECH 2320 P2D USB is a wired handheld 2D barcode scanner for shops, warehouses, pharmacies, pick-up points and other enterprises with intensive turnover. The model quickly reads linear and two-dimensional codes, supports operation with the Honest SIGN and USAIS systems, and is suitable for connection to cash and commodity accounting programs.

The MERTECH 2320 is equipped with a modern 2D Image module with a resolution of 640 × 480 pixels and a high-performance A7 architecture chip. The scanner performs up to 100 readings per second, recognizes codes from a distance of up to 370 mm, supports USB-HID and USB-COM, works with Data Matrix for an "Honest Sign" and is highly resistant to loads: the trigger resource is 5 million triggers, and the case can withstand 50 drops on concrete from a height of 2 meters.

Fast reading of complex barcodes

The MERTECH 2320 uses an updated A7 architecture chip, providing faster and more accurate barcode decoding. According to the results of MERTECH's internal tests, the time from pressing the trigger to confirming the readout has been reduced by 25-27%: processing 100 products takes about 150 seconds instead of 200 seconds for previous-generation solutions.

The scanner confidently recognizes barcodes even in an awkward position relative to the label. The sensitivity is up to ±65° in tilt, ±60° in deviation and 360° in rotation. The operator needs less time to accurately aim the scanner, which is especially noticeable when working with a large number of products.

2D Image module for marking and USAIS

The scanning module has a resolution of 640 × 480 pixels and processes up to 100 scans per second. The MERTECH 2320 reads common linear formats UPC, EAN, Code 128, Code 39, Code 93, Code 11, GS1 DataBar, Interleaved 2 of 5 and others, as well as two-dimensional PDF417, MicroPDF417, Data Matrix, QR Code, MicroQR, Aztec, Maxicode and Hanxin.

Data Matrix support allows you to use the device to work with labeled products in the Honest SIGN system. The scanner is also suitable for the USAIS and can be used for the sale of alcohol, footwear, tobacco products, perfumes and other categories of goods with mandatory labeling.

The minimum contrast of the recognized barcode is 20%, and the minimum resolution is 3.9 mil. The maximum reading range reaches 370 mm and depends on the size and density of the specific code.

Antireflect® backlight

The Antireflect® illumination system with a temperature of 3500 K helps to scan barcodes from glare and complex surfaces. The scanner confidently works with labels on packages and other media where light reflection can make it difficult to read normally.

The coverage angle is 40° horizontally and 32° vertically. Due to the wide scanning field and high sensitivity to the barcode position, the operator does not need to accurately align the device relative to the label every time.

Automatic scanning

The MERTECH 2320 supports automatic reading. When using the appropriate mode, the scanner can recognize the attached barcodes without constantly pressing the trigger. This is convenient at the checkout, when packing orders, and at workplaces where the operator needs to perform other actions with the product at the same time.

After successful decoding, the device confirms the operation with an audible and visual indication.

Connecting to yandex. Checkout and computer

The wired connection ensures stable data transmission without the need to monitor the battery charge or the status of the wireless connection. The scanner supports USB-HID and USB-COM emulation. For wired versions, it is also possible to work via RS-232.

USB-HID allows you to use the scanner as a keyboard input device: the read data is automatically transferred to the active field of the program. USB-COM is suitable for software that needs to be exchanged via a virtual serial port.

Flexible configuration of the functionality using control barcodes simplifies the preparation of the scanner for a specific workplace and the software used.

The main advantages of MERTECH 2320

The model combines high-performance electronics, a robust housing and the capabilities necessary for intensive daily operation.:

• modern chip with A7 architecture;
• read speed up to 100 scans per second;
• scanning range up to 370 mm;
• The resolution of the scanning module is 640 × 480 pixels;
• support for 1D and 2D barcodes;
• working with Data Matrix, Fair Sign, and USAIS;
• Antireflect® 3500K backlight system;
• USB-HID and USB-COM interfaces;
• automatic scanning mode;
• recognition of codes from complex surfaces;
• trigger resource of up to 5 million triggers;
• housing with IP54 protection;
• resistance to 50 drops from a height of 2 m;
• The manufacturer's warranty is 3 years.

Durable and lightweight housing

The MERTECH 2320 case is made of a combination of ABS plastic and polycarbonate. These materials ensure the device's resistance to intensive use and mechanical stress. The IP54 degree of protection helps to protect the internal components from dust and splashes.

According to the results of the Drop test, the scanner can withstand 50 drops on a concrete surface from a height of 2 m or multiple falls from a height of 1.5 m. The trigger resource is designed for 5 million triggers.

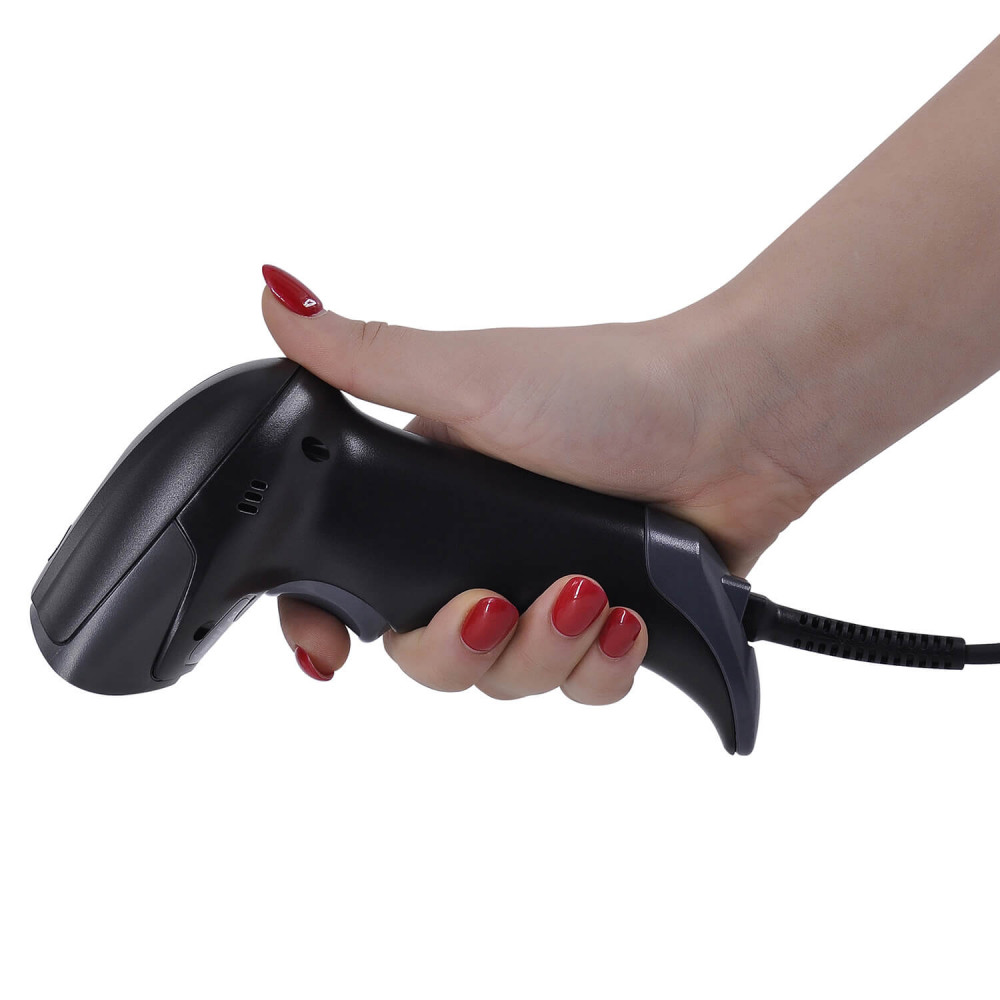

At the same time, the device weighs only 132 g. Overall dimensions are 170 × 95 × 70 mm, so the scanner is convenient to hold in your hand and use during a long work shift.

Operating over a wide temperature range

The MERTECH 2320 is designed for operation at temperatures from -20 to +50 °C and relative humidity up to 95%. The storage temperature ranges from -40 to +70 °C. Such parameters allow the device to be used not only in sales halls, but also in warehouses, acceptance areas and other areas with difficult operating conditions.

Scope of application

The MERTECH 2320 P2D USB is suitable for shops, warehouses, pharmacies, pick-up points and other businesses. The scanner can be used for accepting and shipping goods, conducting inventory, picking orders, working at the checkout, accounting for products and reading mandatory labeling codes.

The model is suitable for working with 1C, VLSI, EVOTOR, EGAIS and the Honest SIGN system, and the wired connection makes it a convenient solution for stationary workplaces with a high load.

Equipment

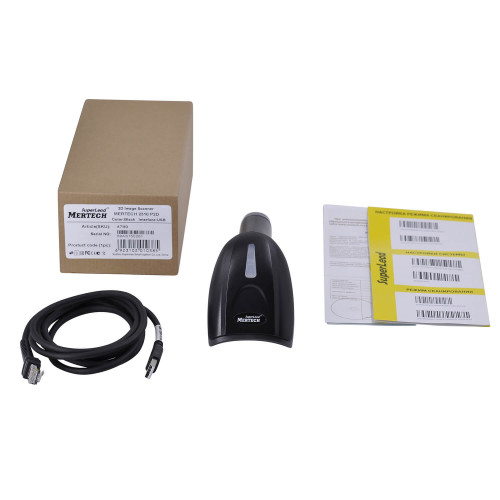

The package includes a MERTECH 2320 P2D scanner, a 205 cm long USB Type-A interface cable, instructions, warranty card and packaging.

Buy MERTECH 2320 P2D USB

You can buy a MERTECH 2320 P2D USB black handheld barcode scanner on the MERTECH manufacturer's website. The model is suitable for automation of trade, warehouse and work with mandatory labeling. The equipment is officially guaranteed for 3 years.
