Marking kit for TSD MERTECH MovFast S45, art. 10011 (credit with transmission, case, glass, strap) + BY DataMobile

Marking kit for TSD MERTECH MovFast S45, art. 10011 + BY DataMobile

The MERTECH MovFast S45 GRIP labeling kit is a ready—made solution for automating warehouses, stores, pick-up points, production, logistics, and field work. The hardware includes a data acquisition terminal with a built-in pistol grip, a data transfer case, a protective case, glass and a strap. The software part is provided by the DataMobile software with the "Labeling" module.

The kit combines a secure MERTECH MovFast S45 GRIP with a non-removable pistol grip, a high-performance 2D scanner, a charging and data exchange credl, protective accessories and DataMobile software. When ordering, you can choose the Standard or Online edition with the "Labeling" module and a 12-month subscription. The solution is suitable for acceptance, inventory, picking and shipping of goods, as well as for working with the Honest Sign system, USAIS and commodity accounting programs.

A ready-made solution for intensive scanning

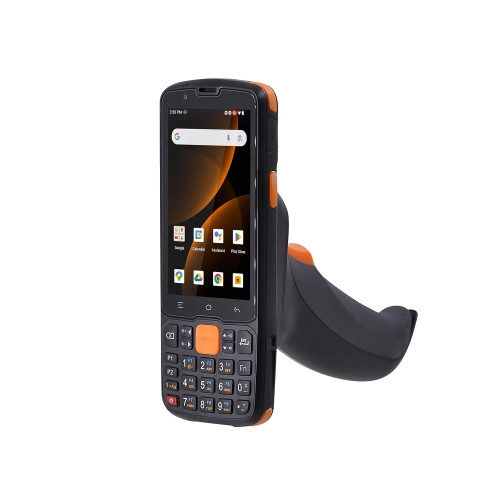

The MERTECH MovFast S45 GRIP features a built-in pistol grip, which is an extension of the body. It does not require a separate installation, does not detach during operation and cannot be lost. The scan button is located under the operator's finger, so the employee can quickly process a large number of items during a shift.

The pistol form is especially convenient when accepting supplies, taking inventory, selecting orders and shipping products. The terminal is suitable for reading codes from packages, boxes, pallets, product labels and documents. The ergonomic design helps to reduce the strain on the hand during constant scanning.

DataMobile Software Options

Two editions of DataMobile are available for the kit. Both come with a Tagging module and a 12-month subscription.:

• DataMobile Standard + Marking, 12 months. — a basic solution for the acceptance, release and movement of goods, inventory, verification of product information and work with documents of the commodity accounting system. Data exchange is performed offline at the user's initiative via Wi-Fi or a wired connection.;
• DataMobile Online + Labeling, 12 months. — an expanded version with real-time data exchange, teamwork with documents, obtaining up-to-date information from the commodity accounting system, displaying images of goods and generating new barcodes on the TSD. If the connection is lost, the app allows you to continue working offline.

The DataMobile Standard version is designed for basic warehouse and sales floor operations. DataMobile Online complements the basic functions with the possibilities of online exchange with the accounting system and collaboration of employees with documents.

Working with labeled products

The Labeling module extends the capabilities of DataMobile and is designed to account for products with Data Matrix codes. The program breaks down the labeling code into its individual components, helps identify products and automate operations with goods traceable through the Honest Mark system.

The solution is also suitable for accounting of alcoholic beverages according to the requirements of the Unified State Register of Medical Sciences. The module can be used when working with shoes, clothing and textiles, medicines, tobacco products, perfumes, tires, packaged water and other labeled product categories.

The scanning module

The MERTECH MovFast S45 GRIP has an E4 2D scanner with 2700K white backlight. The module recognizes popular linear and two-dimensional barcodes, including Data Matrix, QR Code and PDF417. The reading range reaches 40 cm, and the wide viewing angle of 42° × 27° helps to point the device at the label faster.

The scanner works with barcodes with a contrast ratio of 20% or more and is suitable for reading codes from packages, boxes, pallets, documents and device screens. This speeds up the processing of goods and reduces the number of repeated scanning attempts.

Performance and management

The terminal runs Android 11 and is equipped with an eight-core MTK processor, 3 GB of RAM and 32 GB of internal memory. This configuration is suitable for working with warehouse accounting, trade, logistics, and mandatory labeling applications.

A four-inch touchscreen and a physical keyboard are used to enter information. An employee can work with documents, open product cards, check balances, and confirm transactions using both a touchpad and buttons. This is convenient when working with gloves and in conditions where it is difficult to use only the screen.

The terminal has a 13 MP rear camera, a 2 MP front camera, slots for two NanoSIMS and the ability to install a memory card. The device can be used both inside the company and when performing field operations.

Communication and data transmission

The MERTECH MovFast S45 GRIP supports Wi-Fi, Bluetooth, and 2G, 3G, and 4G mobile networks. An employee can work with the accounting system in the sales area, in the warehouse, in the acceptance and shipment area, or outside the company.

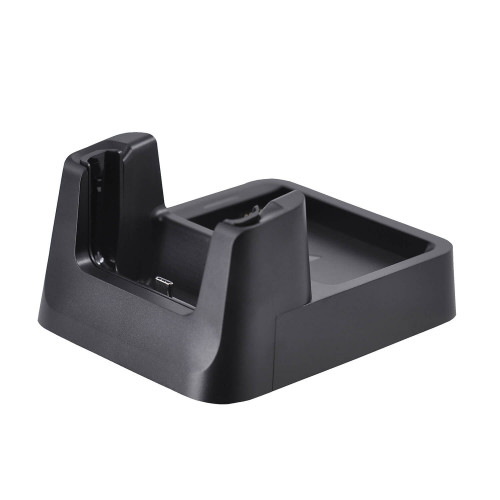

A USB Type-C port is provided for wired connection. The data transfer credl performs two tasks at once: it charges the terminal and provides information exchange with the computer. After the operation is completed, the device can be installed in the slot without manually connecting the cable.

Offline operation

The 5100 mAh battery provides up to 14 hours of operation without recharging. It takes about three hours to fully restore the charge. The terminal supports hot battery replacement: a backup power source allows you to replace the main battery without disconnecting the device and losing data.

The credl helps to recharge the terminal between work operations and keep it ready for the next shift.

Case protection and accessories

The MERTECH MovFast S45 GRIP enclosure is protected according to the IP65 standard and is designed to work in dusty rooms and high-load conditions. The terminal can withstand multiple falls from a height of up to 1.5 m.

The case helps protect the case from bumps and damage, the glass protects the display from scratches and scuffs, and the strap reduces the risk of accidentally dropping the device. The kit allows you to prepare the terminal for intensive operation without a separate selection of accessories.

What tasks is the kit suitable for?

The kit is suitable for receiving and shipping goods, inventory, picking orders, moving products, checking prices and balances, working with labeled goods and accounting for alcohol according to the Unified State Register of Administrative Divisions. It can be used in warehouses, shops, pick-up points, distribution centers, manufacturing and logistics companies.

The combination of an integrated pistol grip, a high-performance scanner and a DataMobile helps to speed up the work of employees, reduce manual entry errors and ensure timely transmission of information to the accounting system.

Equipment

The hardware part of the kit includes the MERTECH MovFast S45 GRIP Android 11, 3GB/32GB with a non-removable pistol grip, a data transfer case, a protective case, glass and a strap. The software part depends on the chosen variation: DataMobile Standard or DataMobile Online with the Tagging module and a 12-month subscription.

Buy MERTECH MovFast S45 kit with DataMobile

You can buy a marking kit based on the MERTECH MovFast S45 TSD on the MERTECH company's website. Choose the appropriate edition of DataMobile, leave a request to clarify the cost and order a ready-made solution for automating inventory accounting with delivery across Russia.
