| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Weighing limit32 kg | Platform size280*235 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

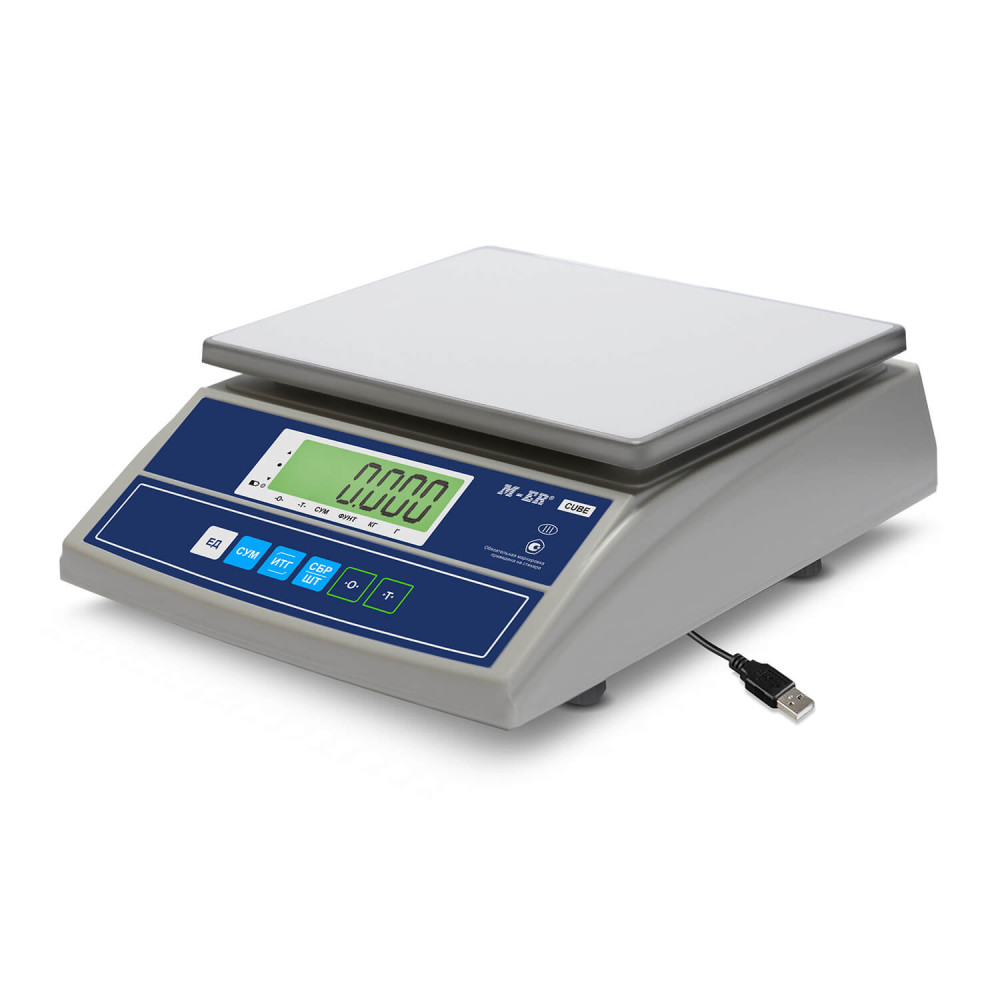

The MERTECH 326 AF line features classic scales for weighing goods. They have a reliable design and a practical interface. The M-ER 326 AFL-32.5 "Cube" with USB-COM LCD has a wide platform. The maximum weighing limit of the scales is 32 kg, the minimum is 100 g, and the increment is 5 g. The results are displayed on a six-digit LCD screen. A USB port is provided for data transfer to the POS system.
Design Features
The M-ER 326 AFL scales have a wide platform that accommodates large batches of goods. The dimensions of the device are 325*260*120 mm. The size of the weighing platform is 280*235 mm. For comparison, the standard dimensions are 260*325*120 mm, and the platform size is 255*210 mm.
In the MERTECH catalog, there are several modifications of the M-ER 326 AFL-32.5 "Cube" with USB-COM LCD. They differ in the maximum weighing limit, which can be 6, 15, or 32 kg. All models have the same functionality.
Available operating modes:
- Simple weighing;
- Comparator mode;
- Summation mode;
- Counting mode;
- Tare weight accounting;
Results are transmitted to the POS system and added to the receipt. The device can operate at a point without a POS system.
Model Advantages
The M-ER 326 AFL scales belong to Class III accuracy. This is a medium level of accuracy suitable for weighing goods. Models from the 326 AFL line undergo state certification. Test results confirm the declared specifications.
The advantages of the model include:
- Three measurement units are available: kilograms, pounds, and grams.
- Increased character size on the LCD display (8*21 mm).
- The weighing platform is made of stainless steel.
- Metal components of the body are covered with double galvanization.
- The underside has supports whose height can be adjusted.
The device is suitable for outdoor trading. Temperature variations from -10°C to +40°C will not affect measurement results. A dust cover protects the body from moisture and dust ingress.
Place an Order
You can buy the M-ER 326 AF (L) scales at a low price directly from the manufacturer. Models from this line are always in stock. We sell equipment without retail markup. We deliver orders within Baku or send them to regions of Azerbaijan. Delivery times and costs depend on the recipient's address. To place an order, call us or leave a request on the website.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Weighing limit | 32 kg |
| Platform size | 280*235 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Operating modes | Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transfer mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Gr; kg; ft |
| Self-diagnosis mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For hardware, For EVOTOR, For connection to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food products |
| Verification | Yes |
| Nutrition | 5.8V - 0.5A |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of indication digits | 6 |
| Character size, mm | 8*21 |
| Interfaces | USB |
|---|
| Overall dimensions (WxDxH), mm | 325*260*120 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic |
| Weight | 3.2 kg |
| Keyboard type | Membrane |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | Dust and moisture-proof cover |
| Adjustable supports | Yes |
-
