| Printer classDesktop | Print speedup to 180 mm/sec | Print typeDirect thermal printing |
| Print area width, mmup to 72 | Print head resource50 km | Print Resolution203 dpi |
| Flash memory4 Mb | Printer typeLabel printer | RAM memory8 Mb |

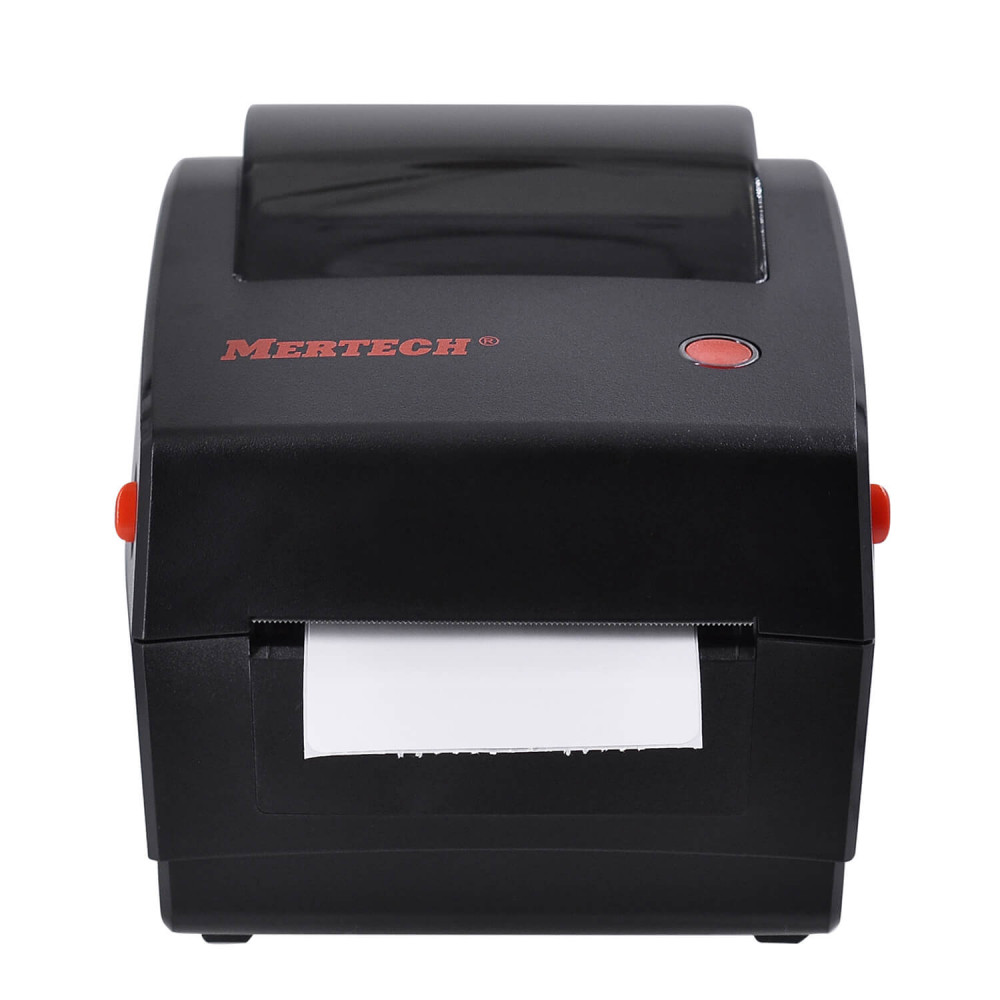

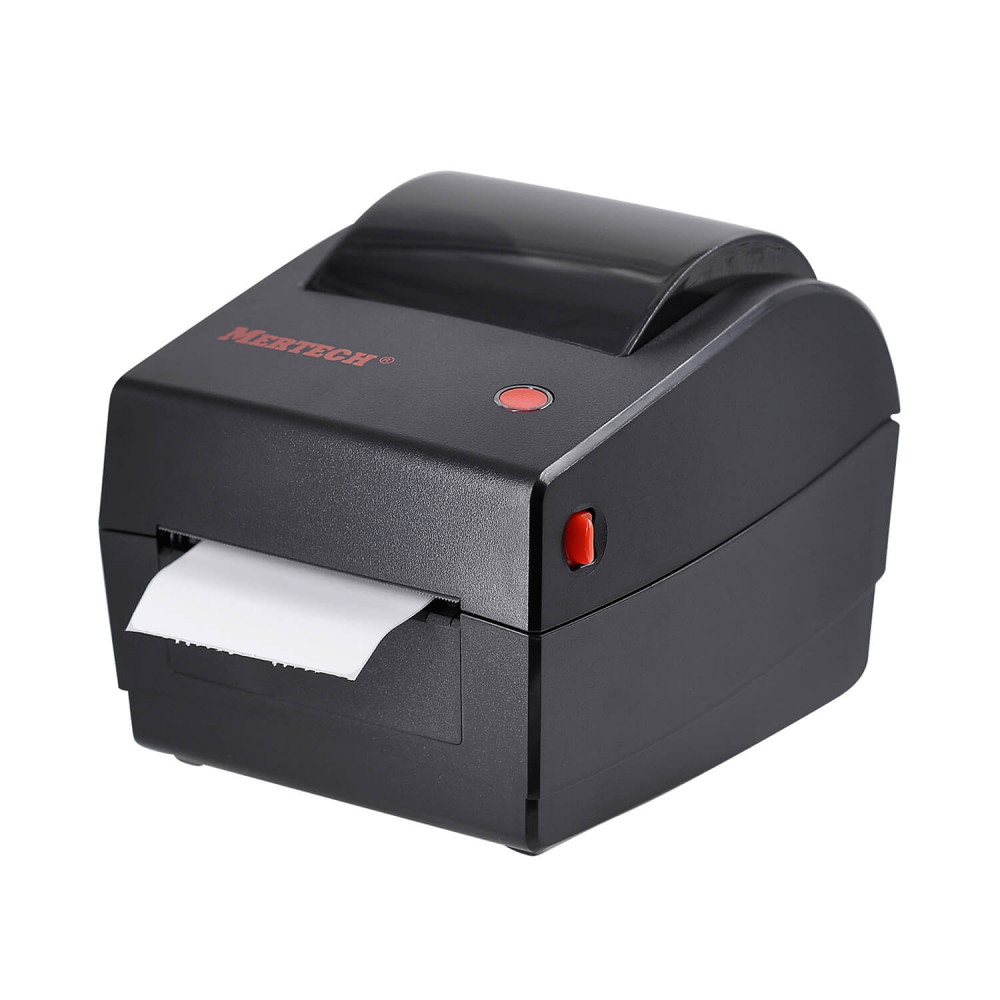

The MERTECH DT80 thermal printer quickly prints sticky labels. The printing speed reaches 180 mm/sec. The device works with all popular barcode formats, including QR Code and PDF417. It can be used to work with networked systems, to prepare goods for sale, and for other purposes.
Advantages of the Model
The desktop printer performs direct thermal printing. It requires a roll of self-adhesive labels to operate. No other consumables are needed, making the cost per label minimal. Up to 7,000 labels can be printed in a workday. The warranty period is 2 years.

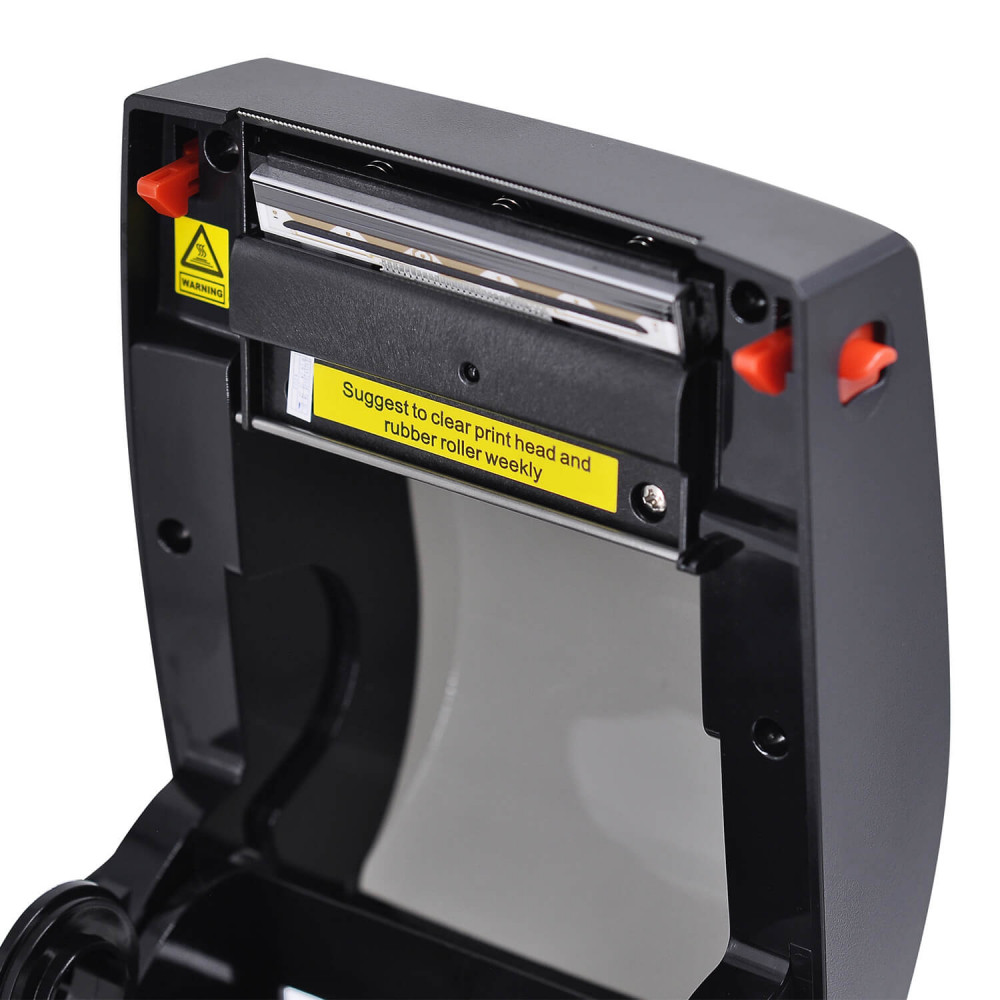

Inside the mechanism, there is a print head with a durability resource of 50 km. The printing process is controlled by a system of 5 sensors. The frame and body are made of durable plastic. The mechanism operates at temperatures of 5-40°C and humidity levels of 30-85%. The desktop model weighs 1 kg.
The thermal printer connects to computers running Windows 7-10 and Linux. By default, a USB port is used. Ethernet connection is also possible. The printer is managed using the ZPL protocol. Users can manage templates and upload their own fonts.
Specifications
The main specifications of the model are:
- Printing speed: up to 180 mm/sec.
- Resolution: up to 203 DPI.
- Working area width: up to 72 mm.
- Working area length: up to 300 mm.
- Flash memory: 4 Mb.
- RAM: 8 Mb.

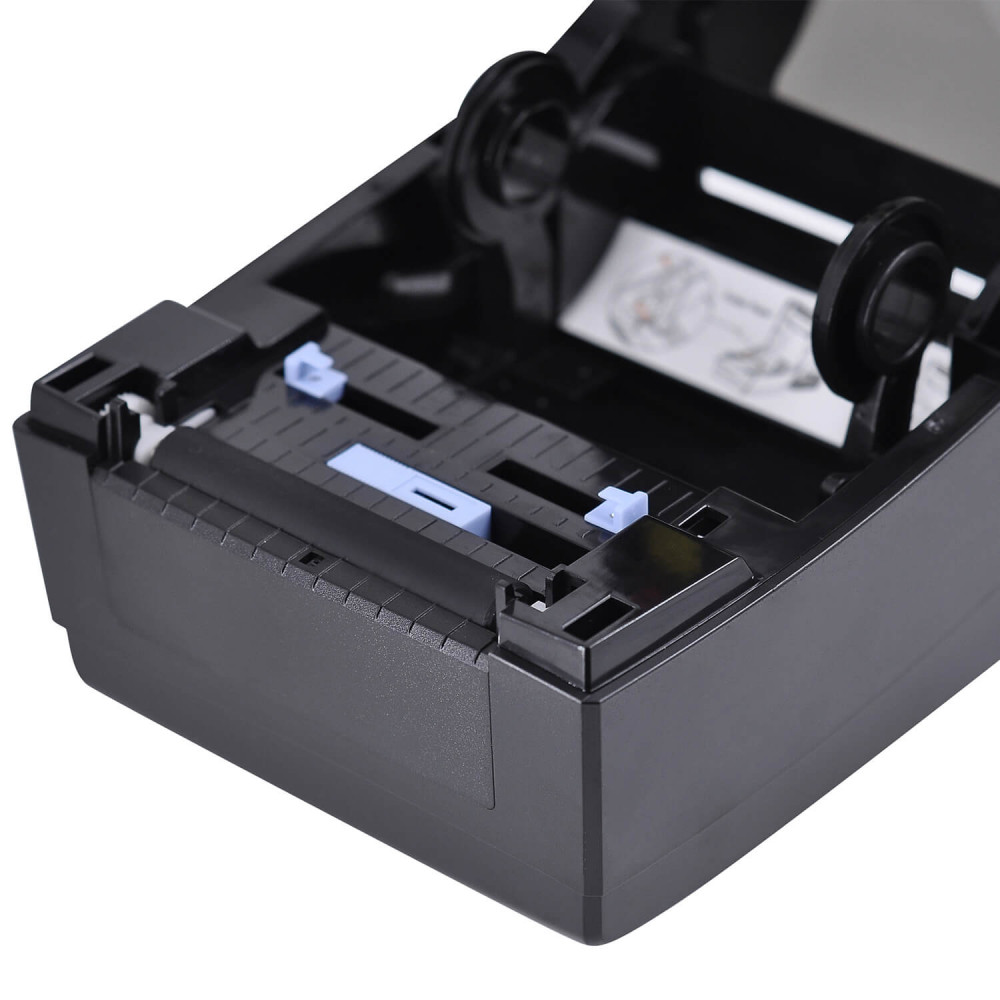

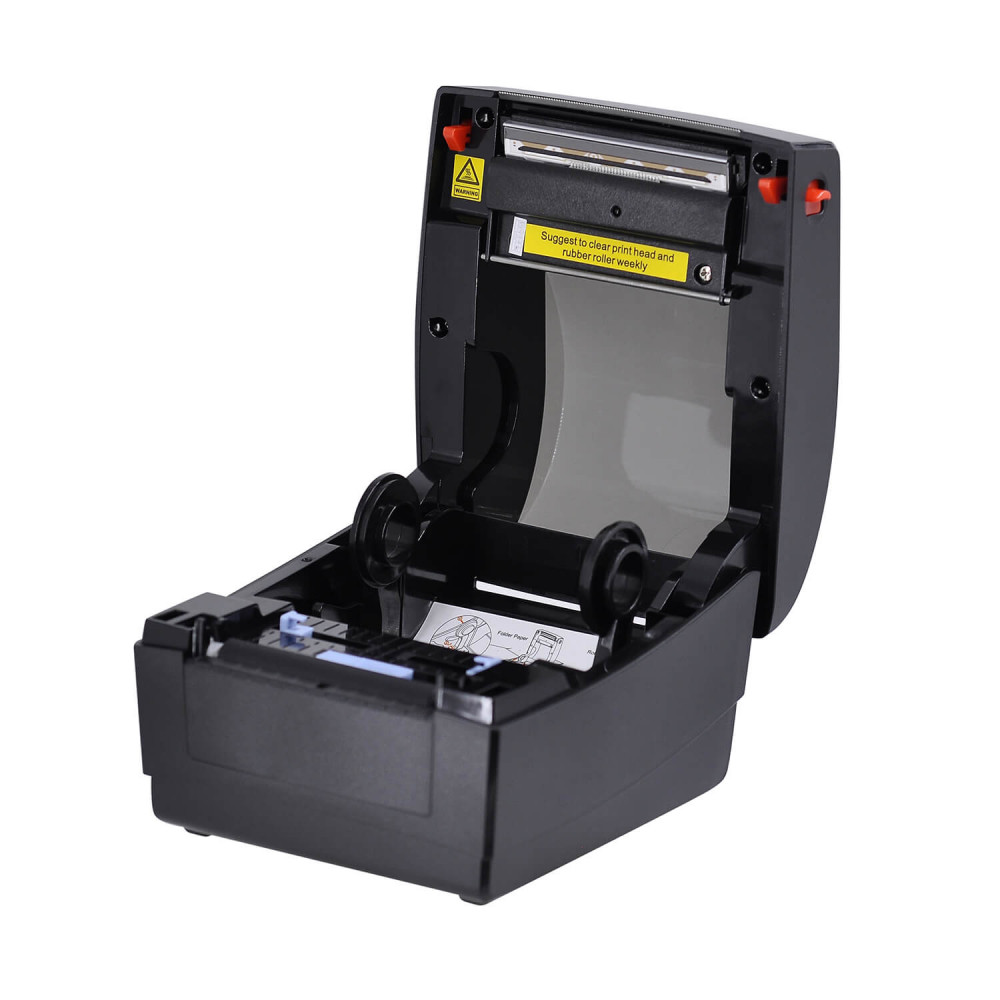

Thermal labels with a thickness of 60-140 microns are suitable for use. Compatible ribbon width: 2-8 cm. Rolls with a diameter of up to 10 cm can be inserted into the compartment. Roll replacement is quick thanks to the Easy Load method. A holder for larger rolls, sold separately, can be installed on the body.
On the MERTECH website, you can order thermal printers at a low price. We will deliver the equipment to any location in Azerbaijan. To purchase printers, leave a request on the website.
| Printer class | Desktop |
|---|---|
| Print speed | up to 180 mm/sec |
| Print type | Direct thermal printing |
| Print area width, mm | up to 72 |
| Print head resource | 50 km |
| Print Resolution | 203 dpi |
| Flash memory | 4 Mb |
| Printer type | Label printer |
| RAM memory | 8 Mb |
| Printing protocol | ZPL |
| Recommended print volume per day | 7,000 labels |
| Print area length, mm | 20 - 300 |
| Ability to download fonts | Yes |
|---|---|
| Label Separator | No |
| Supported code pages | CP437,CP850,CP852,CP860,CP863,CP865,CP866,CP866 Cyrilliec #2, WPC1250，WPC1251，WPC1252，WPC125 |
| Tape rewind function | Yes |
| Поддержка СЭУАП | Yes |
| Cutter | No |
| Built-in sensors | Paper present, Lid open, Label gap, Print head temperature, Black marks, Ribbon end |
| External holder | Yes (optional) |
| OS support | Windows 7/ 8/ 8.1/ 10/ 11 |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39, 39C, I25, Code 93, ITF25, EAN128, Code 128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5 MSIC, ITF14, EAN14, CODE11, POST |
| EasyLoad | Yes |
| Supported 2D barcodes | QR code |
| Feed function | Yes |
| Print QR code | Yes |
| Bartender Support | No |
| Guarantee | 2 years |
|---|---|
| Applications of the printer | For 1C, For OZON, For inventory, For shoe labeling, For warehouse, For labeling, For marketplace, For EVOTOR, For Wildberries |
| Storage temperature | -10°С ~ +50°С |
| Nutrition | DC 12V, 2.5A |
| Permissible humidity | 30 - 85% (operation); 10 - 50% (storage) |
| Operating temperature | 5 - 40°C |
| Network adapter cable length (m) | 2,2 |
| Paper thickness, mm | 0.06 - 0.14 (60 µm - 140 µm) |
|---|---|
| Material width (min/max), mm | 20mm - 80mm |
| Roll diameter, mm | up to 100 |
| Printing material | Self-adhesive thermal labels |

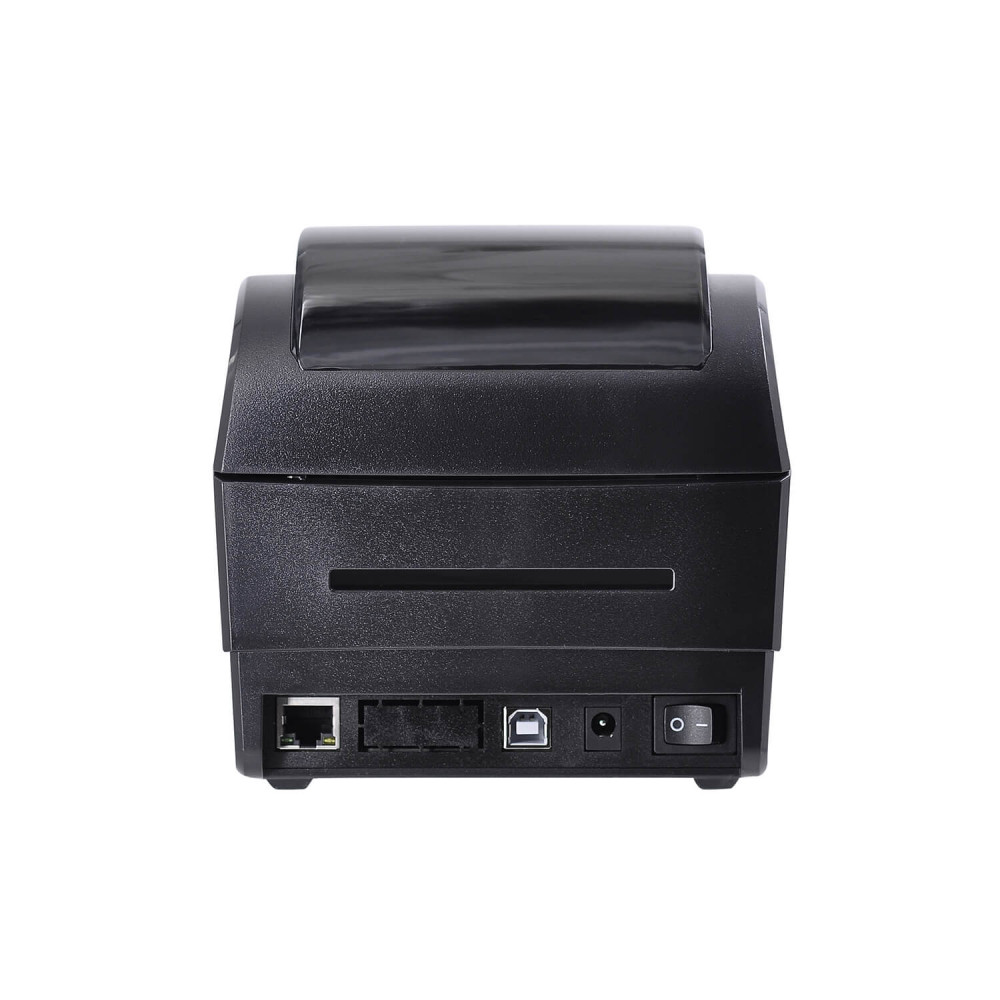

| Interfaces | USB, Ethernet |
|---|
| Printer frame material | ABC - plastic |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 179*151*142 |
| Body material | ABC plastic |
| Weight | 1 kg |

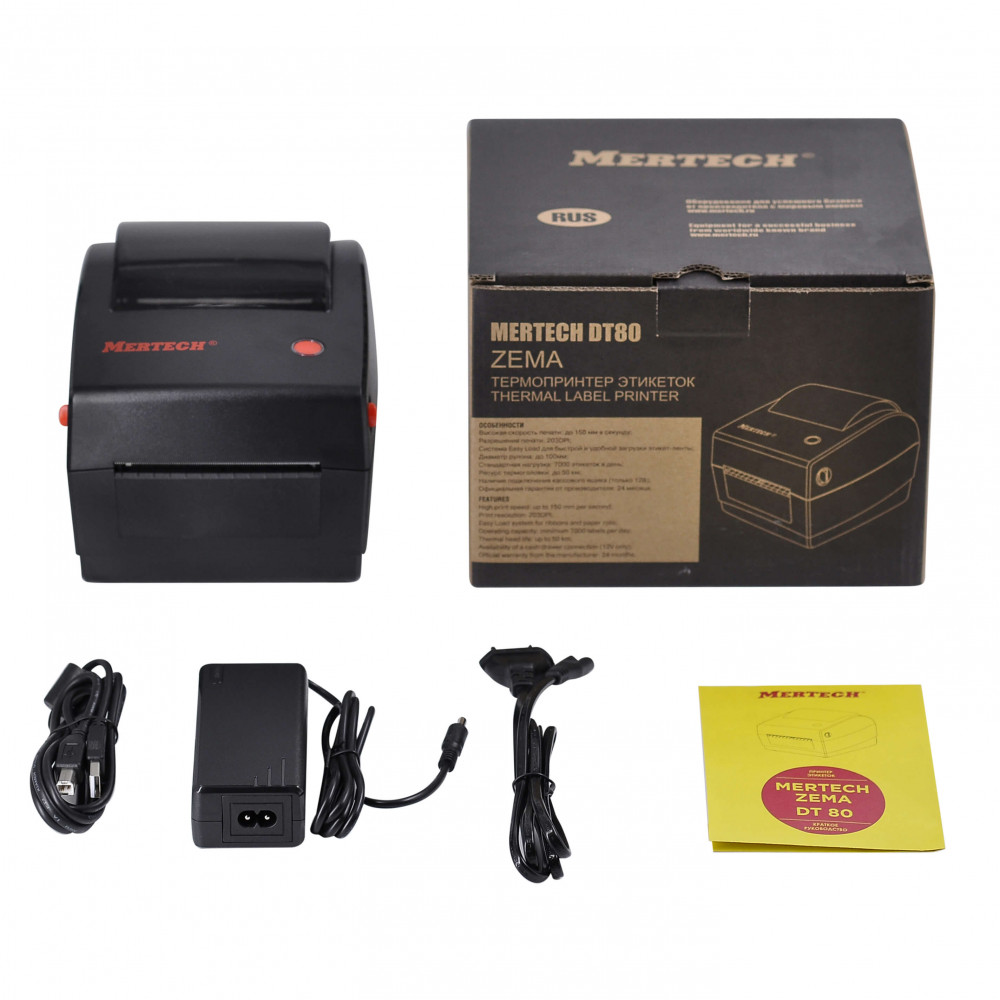

| Equipment | Printer, USB interface connection cables, Power supply, Warranty card, Packaging |
|---|
-
