| Thermal head resource50 km | Printer classDesktop | Print speedup to 150 mm/sec |
| Print typeDirect thermal printing | Print area width, mmup to 56 | Print head resource50 km |
| Print Resolution203 dpi | Flash memory4 Mb | Printer typeLabel printer |

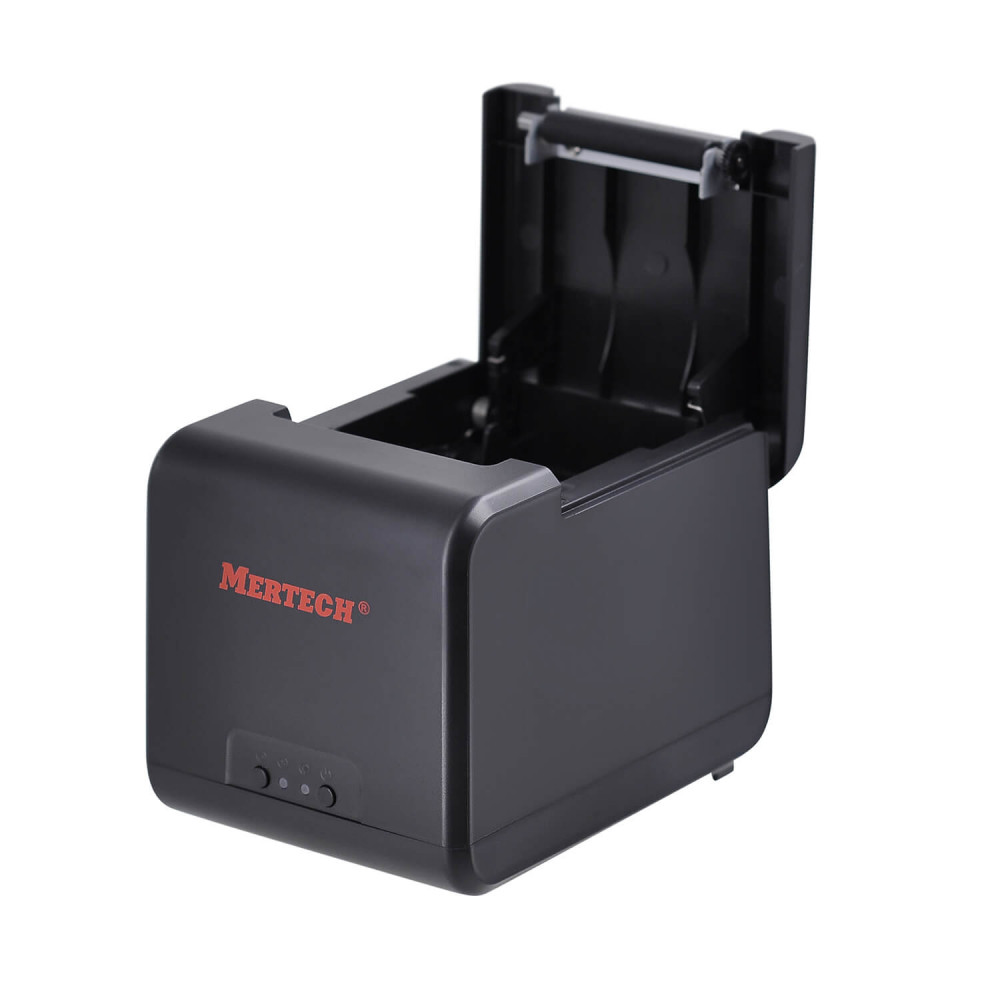

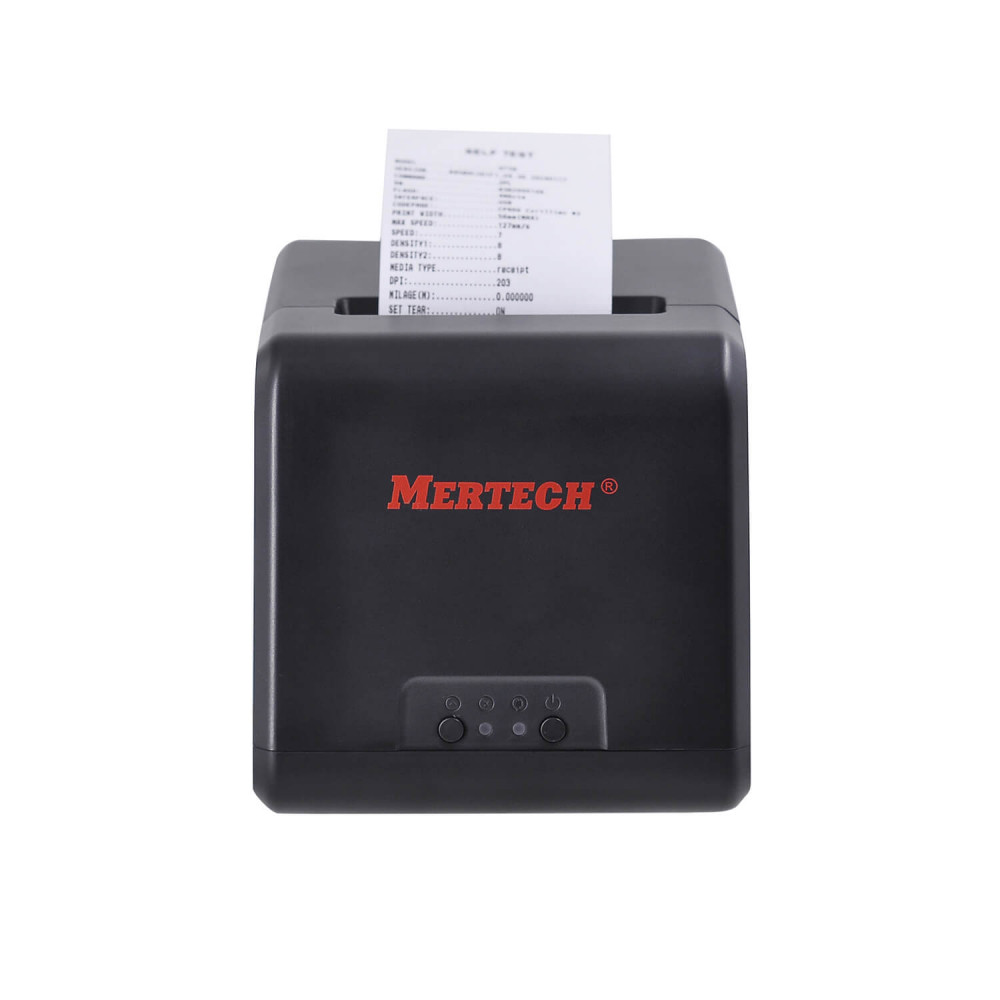

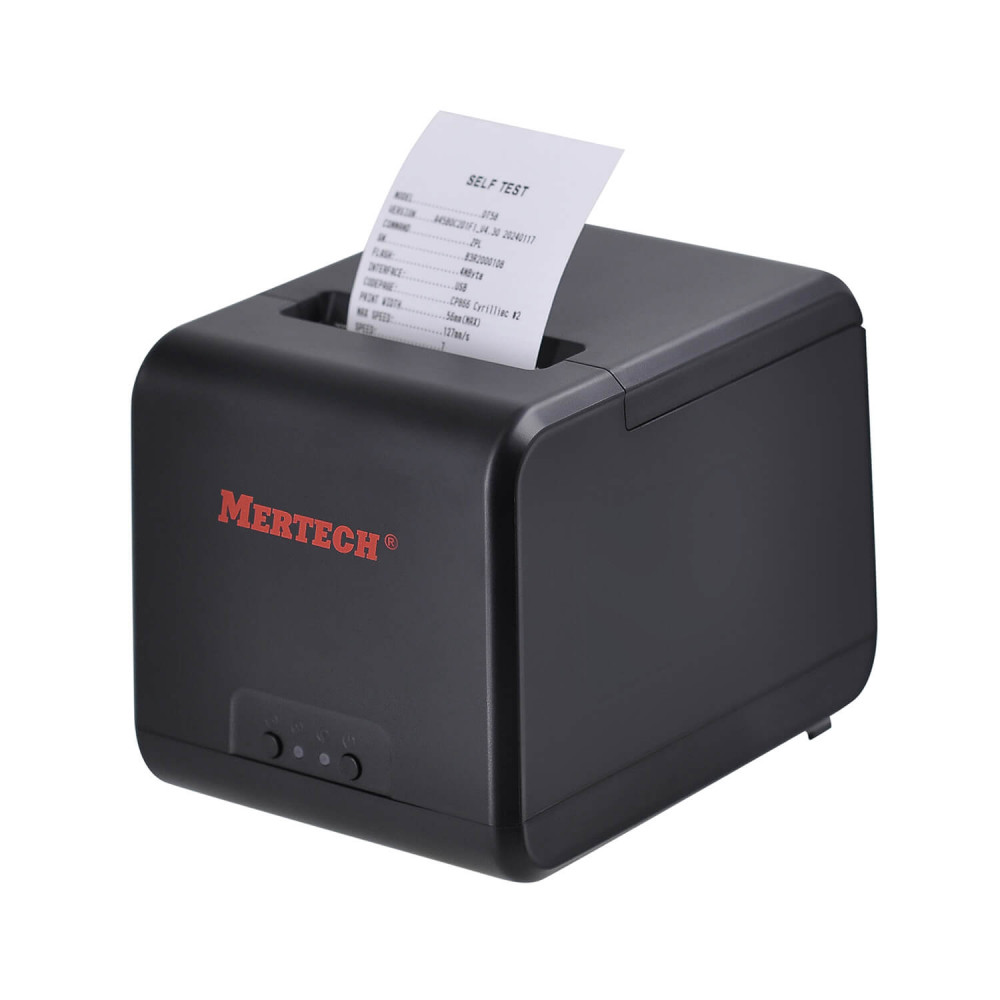

The MERTECH DT58 thermal printer is suitable for printing self-adhesive thermal labels. It prints texts and images at a resolution of 203 DPI. The label printer prints all popular barcode formats, including QR Code and PDF417. It is suitable for printing excise stamps for SEUAP.
Model Advantages
The desktop printer operates on the principle of direct thermal printing. It has a print head with a durability of 50 km. The printing mechanism works quickly. The thermal printer can print up to 5,000 labels per day; exceeding this amount is not recommended.

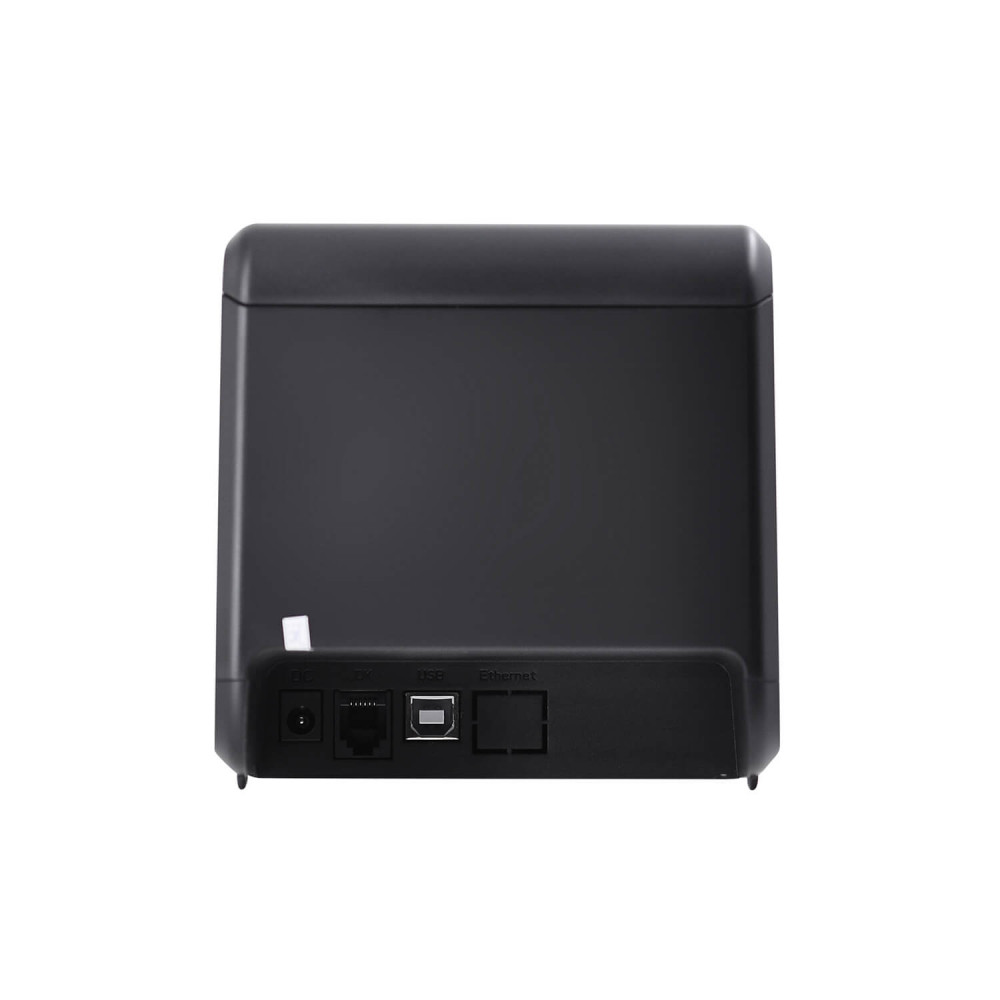

The device's condition is monitored by four sensors. The operation is accompanied by sound and light signals. Users can upload fonts for label printing. The device connects to a computer via USB cable. The ZPL protocol is used to manage the operation. A cash drawer can be connected to the device via the RJ12 port.
The housing of the device is made of durable ABS plastic. The lightweight plastic frame reduces the weight of the device. The desktop thermal printer weighs only 730 grams. The enclosure's protection level allows it to operate at temperatures of 5-40°C and humidity levels of 30-85%. As the manufacturer, we provide a 2-year warranty.
Specifications
Main specifications of the model:
- Protocol: ZPL.
- Speed: up to 150 mm/sec.
- Resolution: up to 203 DPI.
- Working area width: up to 56 mm.
- Working area length: up to 300 mm.
- Flash memory: 4 Mb.
- RAM: 4 Mb.
- Interfaces: USB, RJ12 (cash drawer).

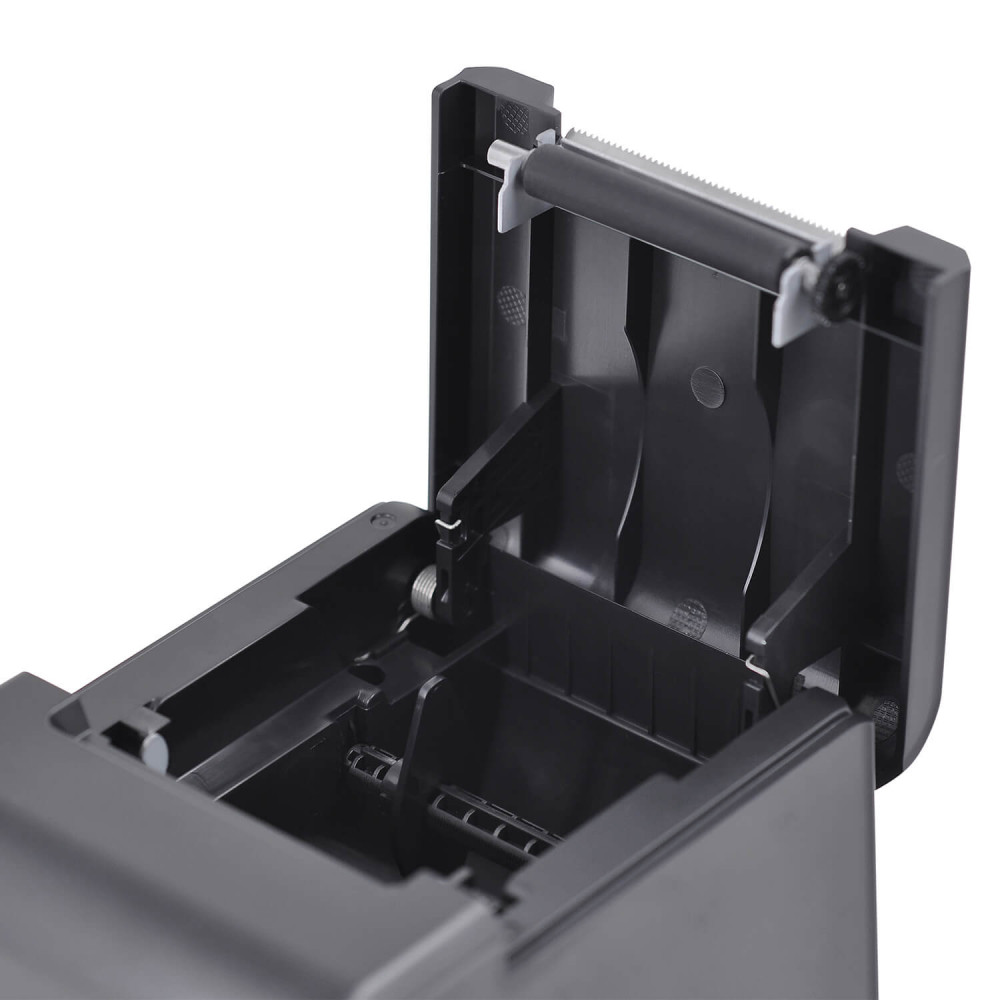

Sticky labels with a thickness of 60-140 microns are suitable for operation. The suitable ribbon width is 20-60 mm. Compatible roll diameter: up to 8 cm. Ribbon replacement occurs in a matter of seconds due to the Easy Load system.
You can buy thermal printers at the lowest price on the MERTECH website. Delivery is made to any location in Azerbaijan. Leave a request to purchase printers for printing thermal labels.
| Thermal head resource | 50 km |
|---|---|
| Printer class | Desktop |
| Print speed | up to 150 mm/sec |
| Print type | Direct thermal printing |
| Print area width, mm | up to 56 |
| Print head resource | 50 km |
| Print Resolution | 203 dpi |
| Flash memory | 4 Mb |
| Printer type | Label printer |
| RAM memory | 4 Mb |
| Printing protocol | ZPL |
| Recommended print volume per day | 5,000 labels |
| Print area length, mm | 20 - 300 |
| Ability to download fonts | Yes |
|---|---|
| Label Separator | No |
| Supported code pages | CP437,CP850,CP852,CP860,CP863,CP865,CP866,CP866 Cyrilliec #2 WPC1250，WPC1251，WPC1252，WPC125 |
| Tape rewind function | Yes |
| Поддержка СЭУАП | Yes |
| Cutter | No |
| Resource of the cutter | No |
| Built-in sensors | Paper present, Lid open, Label gap, Print head temperature, Ribbon end |
| External holder | No |
| OS support | Windows 7/ 8/ 8.1/ 10/ 11 |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39, 39C, I25, Code 93, ITF25, EAN128, Code 128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5 MSIC, ITF14, EAN14, CODE11, POST |
| EasyLoad | Yes |
| Supported 2D barcodes | QR code |
| Feed function | Yes |
| Print QR code | Yes |
| Bartender Support | No |
| Guarantee | 2 years |
|---|---|
| Applications of the printer | For 1C, For OZON, For inventory, For shoe labeling, For warehouse, For labeling, For marketplace, For EVOTOR, For Wildberries |
| Storage temperature | -10°С ~ +50°С |
| Nutrition | DC 12V, 2A |
| Permissible humidity | 30 - 85% (operation); 10 - 50% (storage) |
| Operating temperature | 5 - 40°C |
| Network adapter cable length (m) | 2 |
| Paper thickness, mm | 0.06 - 0.14 (60 µm - 140 µm) |
|---|---|
| Material width (min/max), mm | 20mm - 60mm |
| Roll diameter, mm | up to 80 |
| Printing material | Self-adhesive thermal labels |
| Interfaces | USB, RJ12 (cash drawer) |
|---|
| Printer frame material | ABC plastic |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 152*115*120 |
| Body material | ABC plastic |
| Weight | 730 gr |

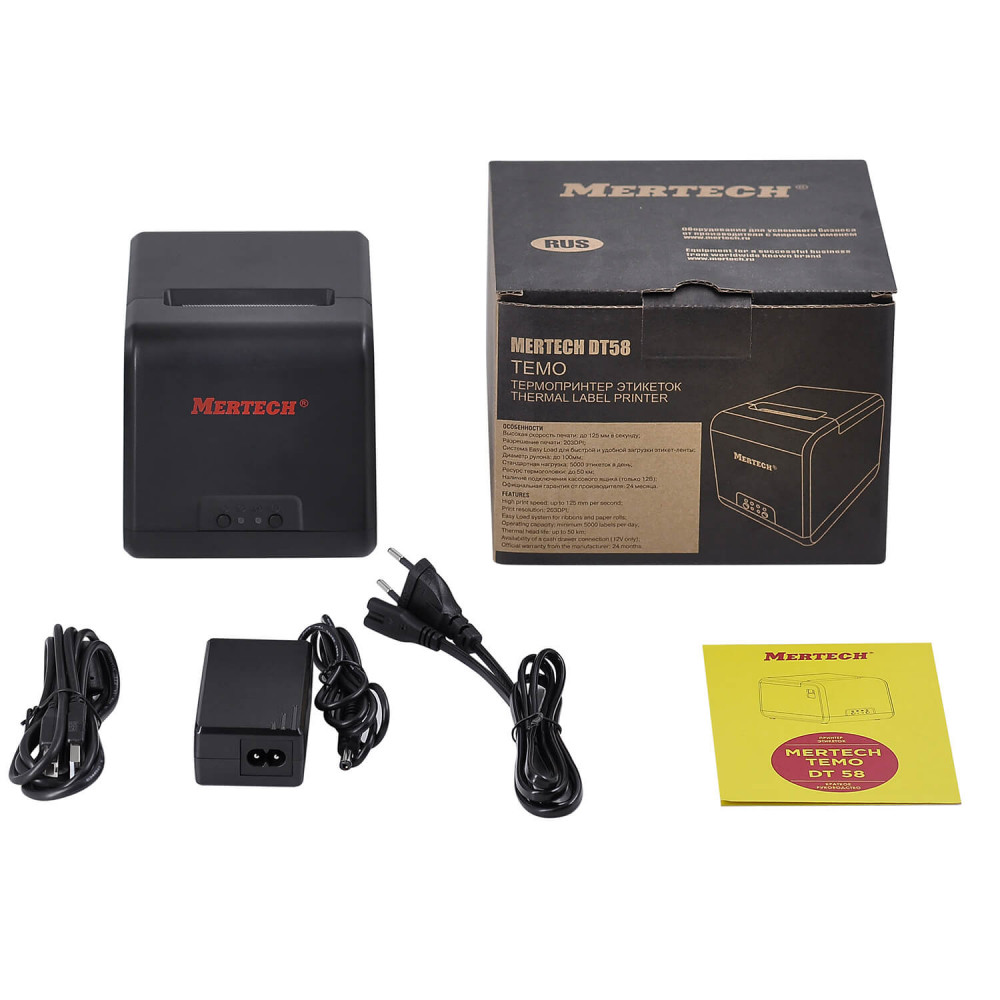

| Equipment | Printer, USB interface connection cables, Power supply, Warranty card, Packaging |
|---|
-
