| Belt width (min/max), mm33,8 - 110 | Bushing diameter, mm0.5 inches (12.7 mm) | Roll winding length, mup to 100 m |
| Thermal head resource50 km | Printer classDesktop | Print speed127 mm/sec |
| Print typeThermal transfer | Print area width, mm20-108 | Print Resolution203 dpi |

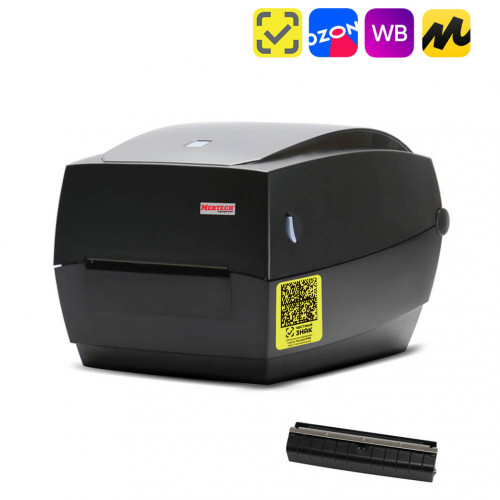

The MERTECH TERRA NOVA TLP100 thermal transfer printer is designed for printing receipts and labels. It performs thermal transfer printing and thermal printing. The device prints on synthetic, textile, paper tapes, receipt thermal tape and labels. The model has a practical design, a modern mechanism, and an extended interface board.
Advantages of the model
MERTECH TERRA NOVA TLP100 from MERTECH has the following advantages:
- The print speed is 127 mm per second. The resolution is 203 DPI.
- Printing of all known barcodes (including PDF417 and QR codes).
- Easy Load system for fast loading of ribbon or label tape.
- Service life: up to 10,000 labels or receipts per day.
- Three interfaces for connection to the POS system: USB, Ethernet, RS232C.
- Meets the requirements of FGIS, USAIS and the Honest SIGN system
- Low noise level: up to 50 DB (no louder than human speech).
There is an intelligent system board inside the device. It supports two printing protocols. This is the TSPL protocol from TSC. And Zebra's ZPL protocol. The system board is compatible with the BARTENDER printing software. This software is from Seagull Scientific.
Technical specifications
The NOVA TLP100 printer is compact in size. Case length 240 mm. The width is 198 mm. The height is 171 mm. The device will not take up much space on the desktop. The device is suitable for any line of business. It can be used in shops, pharmacies, markets, warehouses, offices.
The model is equipped with four sensors: a fixed transmitting sensor; an adjustable reflecting sensor; sensors for the end of the tape and the position of the thermal head. In case of errors, sound and light indications are activated.
Acceptable label length: 15-1200 mm. Ribbon length is up to 100 m. This printer can print labels with a gap, hole, black mark or continuous labels. Accepts a ribbon based on wax, resin, or wax + resin. (The type of material affects the quality of transmission of texts and images).
The 1C Enterprise 7.7 and 8.0 software, as well as the BARTENDER program, are suitable for management. The drivers are suitable for Windows computers. The kit includes a power adapter, label tape and ribbon, instructions and warranty card.
| Belt width (min/max), mm | 33,8 - 110 |
|---|---|
| Bushing diameter, mm | 0.5 inches (12.7 mm) |
| Roll winding length, m | up to 100 m |
| Thermal head resource | 50 km |
| Printer class | Desktop |
| Print speed | 127 mm/sec |
| Print type | Thermal transfer |
| Print area width, mm | 20-108 |
| Print Resolution | 203 dpi |
| Flash memory | 16 Mb |
| Printer type | Label Printer |
| RAM memory | 32 Mb |
| Printing protocol | TSPL, ZPL and EPL |
| Recommended print volume per day | 10,000 labels |
| Ribbon type | Wax-based; wax- and resin-based; resin-based |
| Print area length, mm | 15-1200 mm |
| CPU | NUC976 |
| Ability to download fonts | Yes |
|---|---|
| Label Separator | Yes (optional) |
| Supported code pages | PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) |
| Tape rewind function | Yes |
| Cutter | Yes (optional , the cutter life is 1 million) |
| Built-in sensors | Paper Availability, Lid Opening, Label Gap, Printhead Temperature, Black Marks, Tape Termination |
| External holder | Yes (optional) |
| OS support | Windows 7/ 8/ 10, Linux, MacOS |
| Sound and visual indication | Yes |
| Supported 1D barcodes | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock |
| EasyLoad | Yes |
| Supported 2D barcodes | PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code |
| EGAIS support | Yes |
| Feed function | Yes |
| Print QR code | Yes |
| Bartender Support | Yes |
| Guarantee | 2 years old |
|---|---|
| Applications of the printer | For 1C, For OZON, For Inventory, For Shoe labeling, For Warehouse, For Labeling, For Marketplace, For Textile Labels, For EVOTOR, For Wildberries |
| Storage temperature | -20°C ~ +50°C |
| Nutrition | 24 V / 2.5A |
| Permissible humidity | 90% |
| Operating temperature | 5 ~ 40°C |
| Network adapter cable length (m) | 1,5 |
| Roll core diameter | 0.5 inches (12.7mm), 1 inch (25.4mm), 1.5 inches (38.1 mm) |
|---|---|
| Maximum ribbon length | 100 m |
| Paper width, mm | 20 - 118 |
| Paper thickness, mm | 0.08 - 0.18 (80 microns - 180 microns) |
| Material width (min/max), mm | 118 |
| Roll diameter, mm | up to 127 |
| Printing material | Paper tapes; textile tapes; synthetic tapes; labels |
| Ribbon winding | OUT |
| Roll core width | 110 mm |
| Interfaces | USB + RS232, Ethernet |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 198*240*171 |
| Weight | 2.26 kg |
| Equipment | Power Adapter, Instruction, Warranty Card, Label Tape, Ribbon Tape |
|---|---|
| Separator | There are |
-
