| Belt width (min/max), mm33,8 - 110 | Bushing diameter, mm0.5 inches (12.7 mm) | Roll winding length, mup to 100 m |
| Thermal head resource50 km | Printer classDesktop | Print speed127 mm/sec |
| Print typeThermal transfer | Print area width, mm20-108 | Print Resolution203 dpi |

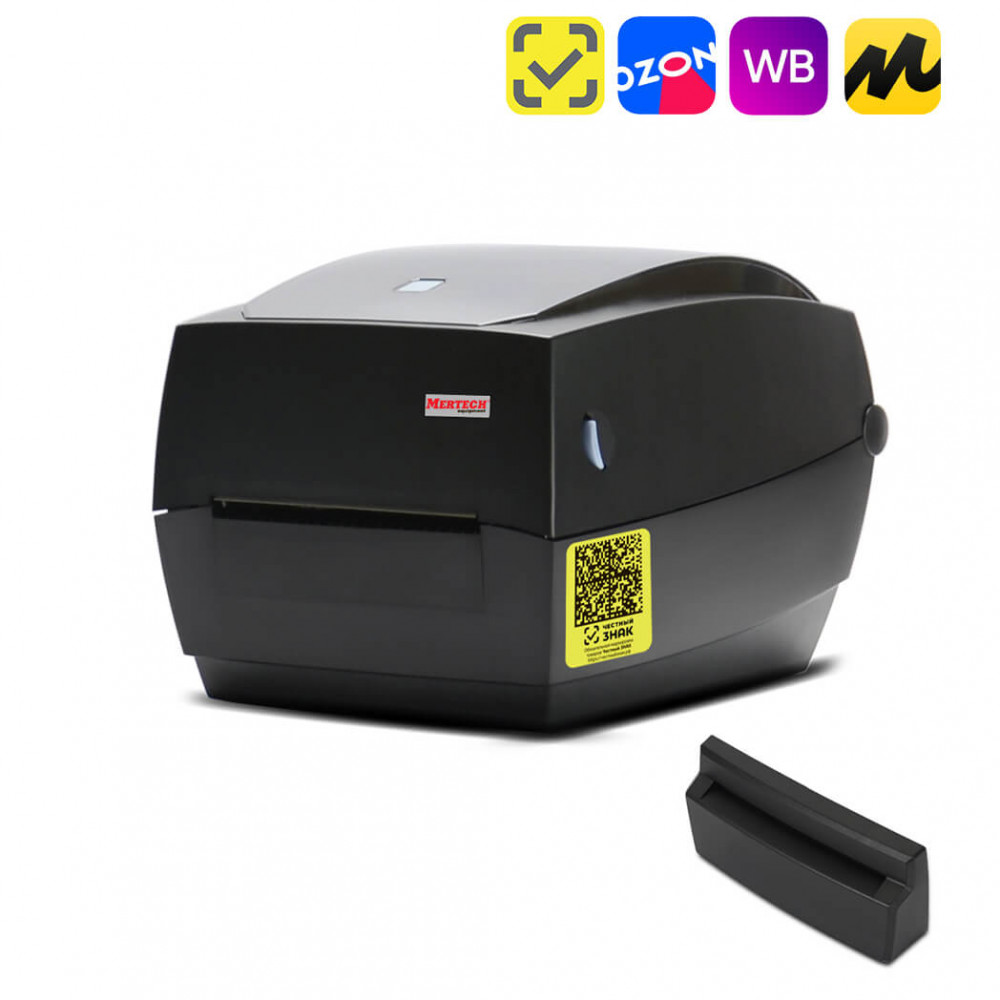

The kit consists of a thermal transfer printer and a cutting machine. The kit includes the MERTECH TLP100 TERRA NOVA printer. It is suitable for printing on paper, synthetic, textile tapes, and label tapes. For thermal transfer, a ribbon made of wax, resin, or a mixture of components can be used.
Printer Specifications
The TLP100 TERRA NOVA model is suitable for printing receipts at the checkout, for accounting for goods in a warehouse, and for controlling raw materials in production. The printer's design allows you to print 2D barcodes. The printer meets the requirements of FGIS, USAIS and the Honest SIGN system.
The main characteristics of the model:
- Speed: up to 127 mm/sec.
- Application length: 15 — 1200 mm.
- Application width: 25.4 — 106 mm.
- Resolution: up to 203 dpi.
- The NUC976 processor.
- Flash memory capacity: 16 megabytes.
- RAM memory capacity: 32 megabytes.
- Ribbon winding: up to 100 meters.
The device supports the standard ZPL and TSPL protocols. The design provides an EasyLoad quick belt replacement system. The built-in sensor system monitors the operation of the device. The operation process is accompanied by sound and light indications.
USB, Ethernet, and RS232 interfaces can be used to connect to the POS system. The presence of Ethernet allows you to send files to print from multiple computers. The software is included in the package. The Seagull BarTender program is used to manage templates. By MERTECH, Labeling makes it easier to work with DataMatrix codes.
Purpose of the cutter
A cutter is an accessory for neatly cutting media. The accessory with a built-in knife is mounted on the front panel. After printing the receipts, the operator quickly cuts the tape with one hand movement.
You can't cut sticky labels with a knife. The glue remains on the blade, which worsens the quality of the cuts. The blade does not require sharpening: the knife sharpens itself during operation. Blade life: 2,000,000 slices.
| Belt width (min/max), mm | 33,8 - 110 |
|---|---|
| Bushing diameter, mm | 0.5 inches (12.7 mm) |
| Roll winding length, m | up to 100 m |
| Thermal head resource | 50 km |
| Printer class | Desktop |
| Print speed | 127 mm/sec |
| Print type | Thermal transfer |
| Print area width, mm | 20-108 |
| Print Resolution | 203 dpi |
| Flash memory | 16 Mb |
| Printer type | Label Printer |
| RAM memory | 32 Mb |
| Printing protocol | TSPL, ZPL and EPL |
| Recommended print volume per day | 10,000 labels |
| Ribbon type | Wax-based; wax- and resin-based; resin-based |
| Print area length, mm | 15-1200 mm |
| CPU | NUC976 |
| Ability to download fonts | Yes |
|---|---|
| Label Separator | Yes (optional) |
| Supported code pages | PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5) |
| Tape rewind function | Yes |
| Cutter | Yes (optional , the cutter life is 1 million) |
| Built-in sensors | Paper Availability, Lid Opening, Label Gap, Printhead Temperature, Black Marks, Tape Termination |
| External holder | Yes (optional) |
| OS support | Windows 7/ 8/ 10, Linux, MacOS |
| Sound and visual indication | yes |
| Supported 1D barcodes | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock |
| EasyLoad | yes |
| Supported 2D barcodes | PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code |
| EGAIS support | Yes |
| Feed function | yes |
| Print QR code | yes |
| Bartender Support | yes |
| Guarantee | 2 years old |
|---|---|
| Applications of the printer | For 1C, For OZON, For Inventory, For Shoe labeling, For Warehouse, For Labeling, For Marketplace, For Textile Labels, For EVOTOR, For Wildberries |
| Storage temperature | -20°C ~ +50°C |
| Nutrition | 24 V / 2.5A |
| Permissible humidity | 90% |
| Operating temperature | 5 ~ 40°C |
| Network adapter cable length (m) | 1,5 |
| Roll core diameter | 0.5 inches (12.7mm), 1 inch (25.4mm), 1.5 inches (38.1 mm) |
|---|---|
| Maximum ribbon length | 100 m |
| Paper width, mm | 20 - 118 |
| Paper thickness, mm | 0.08 - 0.18 (80 microns - 180 microns) |
| Material width (min/max), mm | 118 |
| Roll diameter, mm | up to 127 |
| Printing material | Paper tapes; textile tapes; synthetic tapes; labels |
| Ribbon winding | OUT |
| Roll core width | 110 mm |
| Interfaces | USB + RS232, Ethernet |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 198*240*171 |
| Weight | 2.26 kg |
| Equipment | Power Adapter, Instruction, Warranty Card, Driver Disc, Label Tape, Ribbon Tape |
|---|
-
