| Scanning element2D image | operating systemAndroid 10 (without GMS) | Flash memory64GB Nand Flash |
| RAM memory4GB/6GB | Scanner resolution1280(h)х800(v)px | Scanning coverage angle42º(h)x27º(v) |
| Barcode SensitivityTilt ±55° / Rotate 360° / Roll ±60° | Sensor typeIndustrial | SlotsMicro SD (up to 128 GB), 2*NanoSIM |

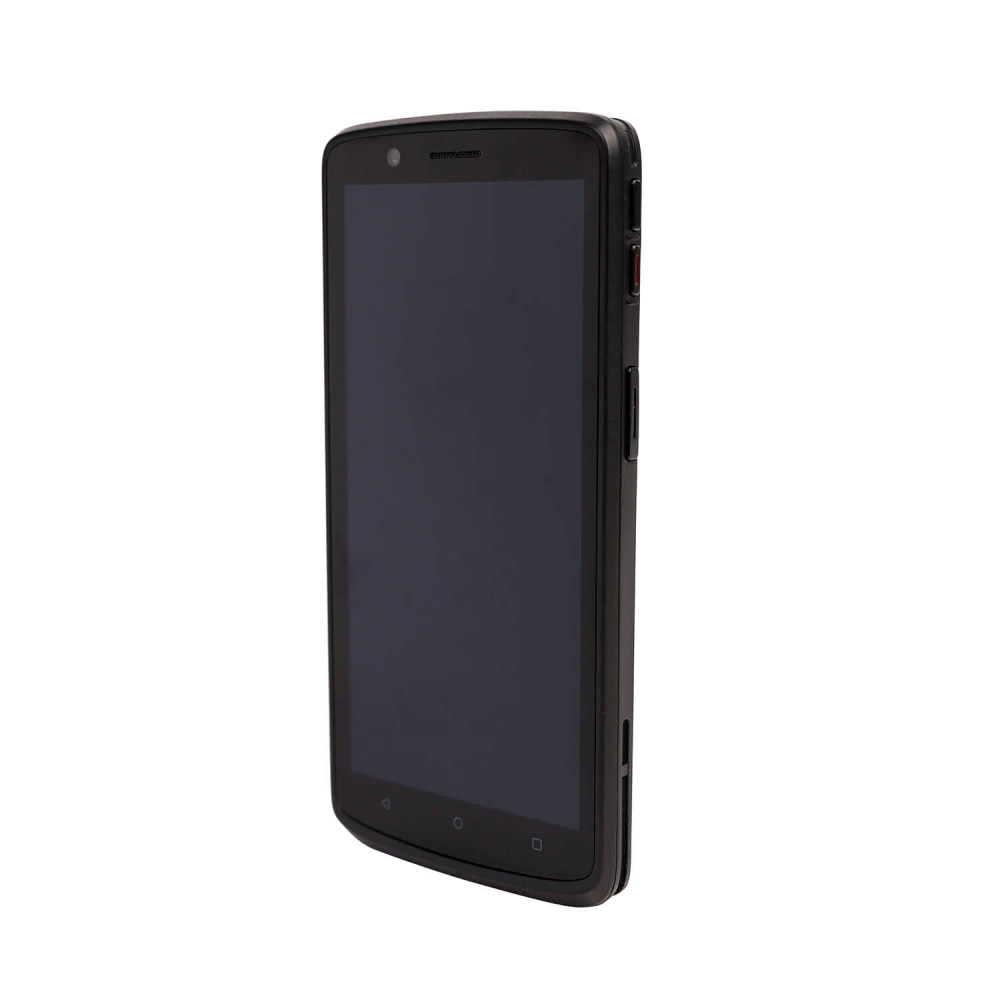

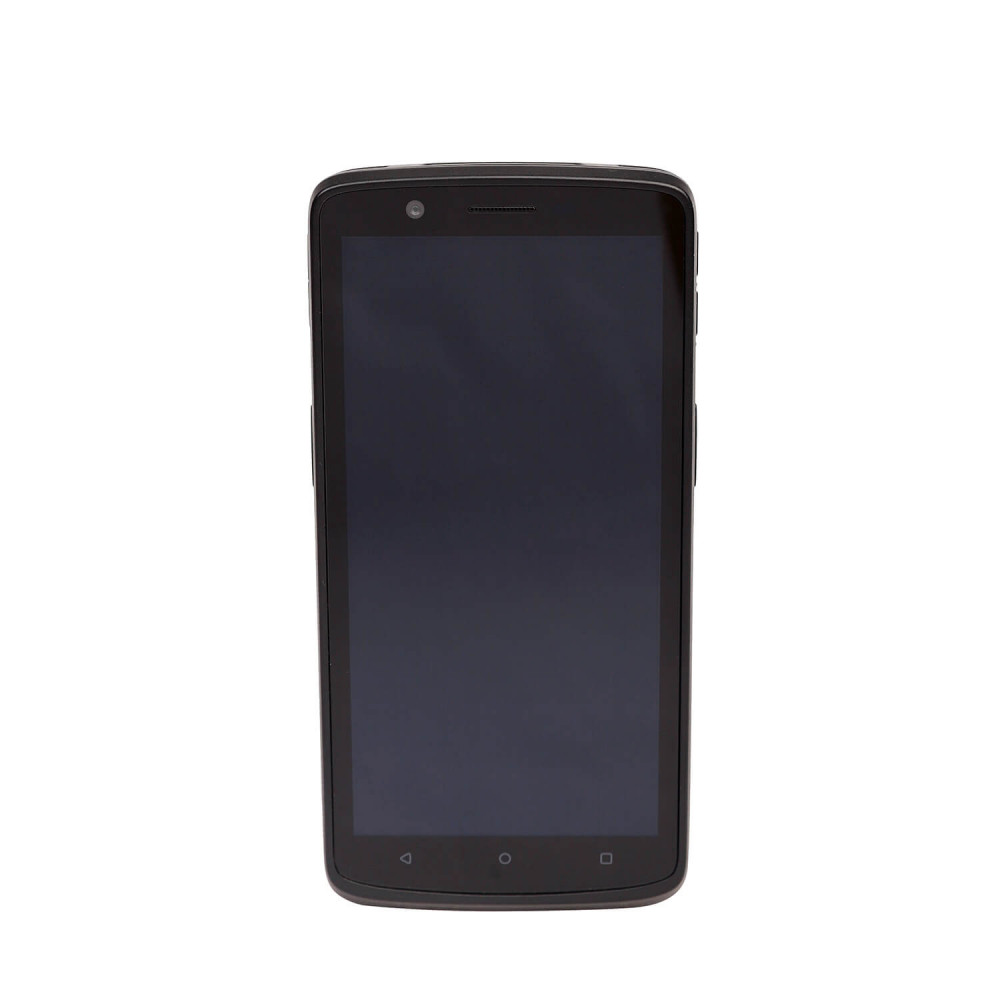

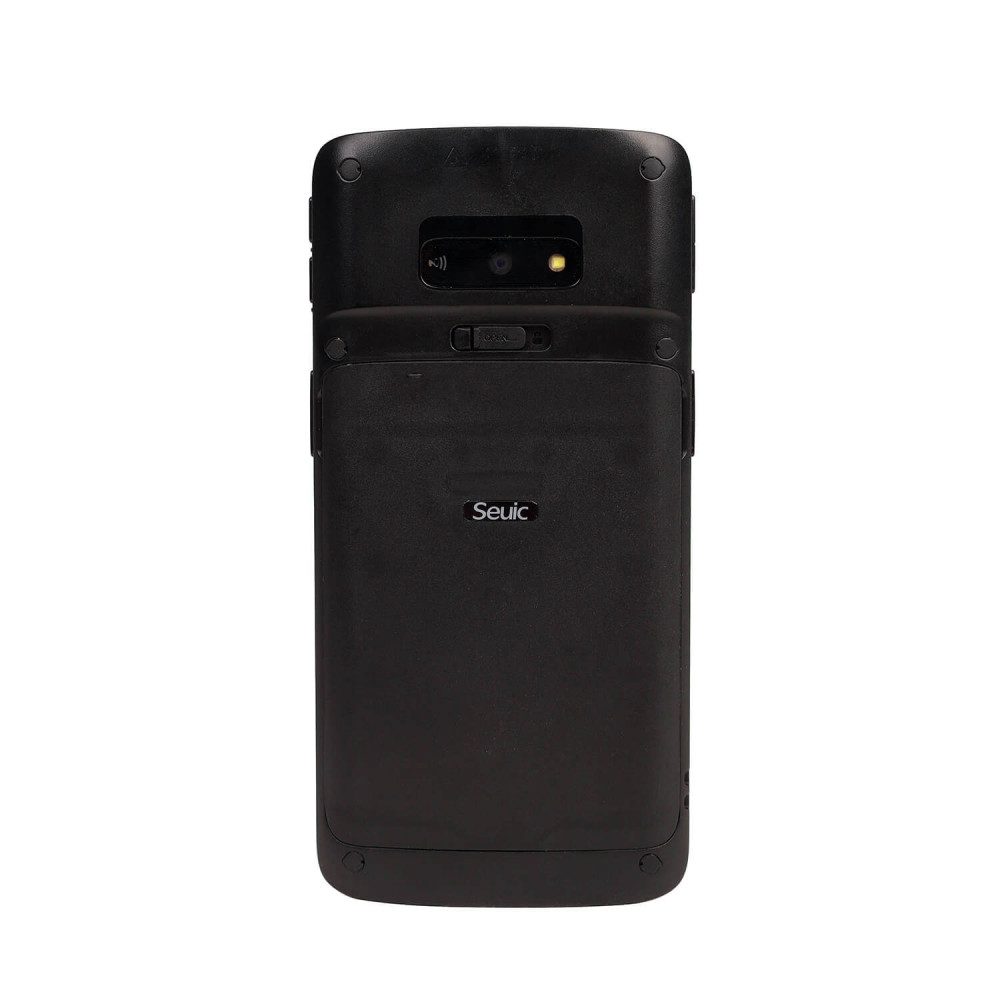

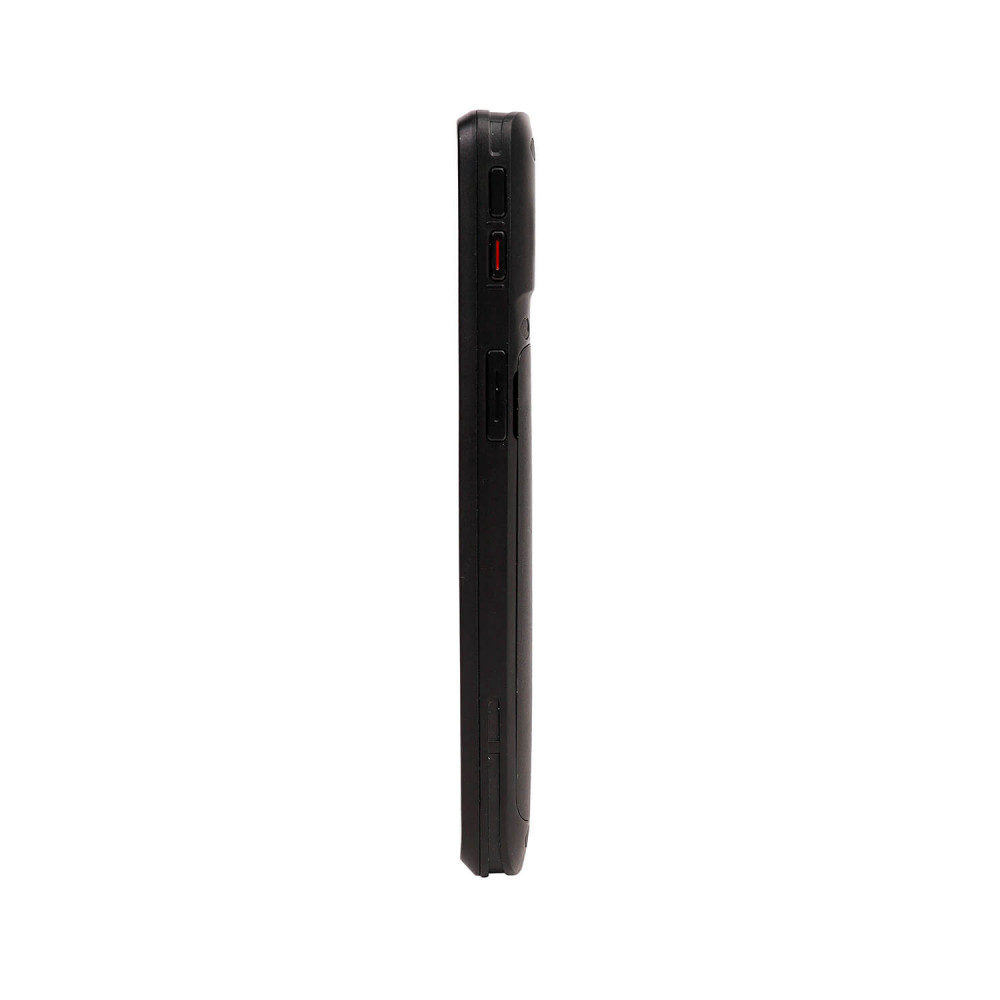

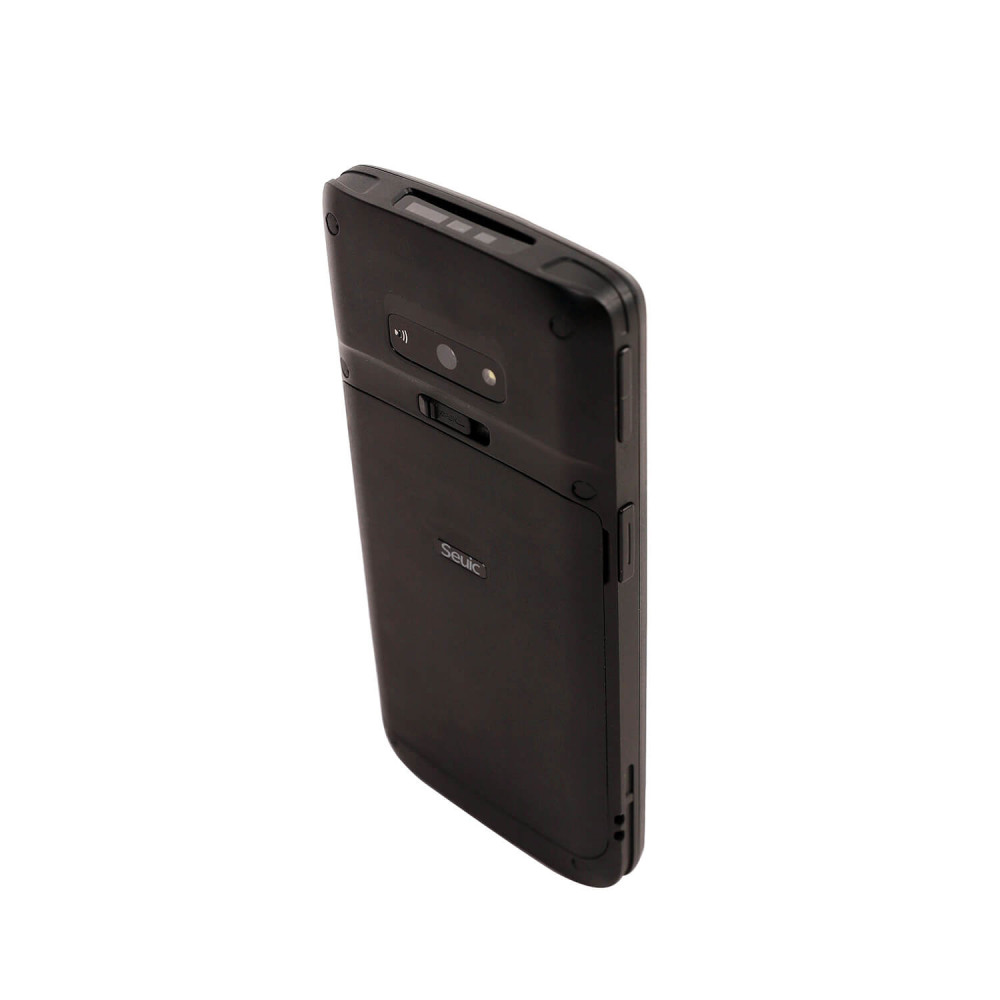

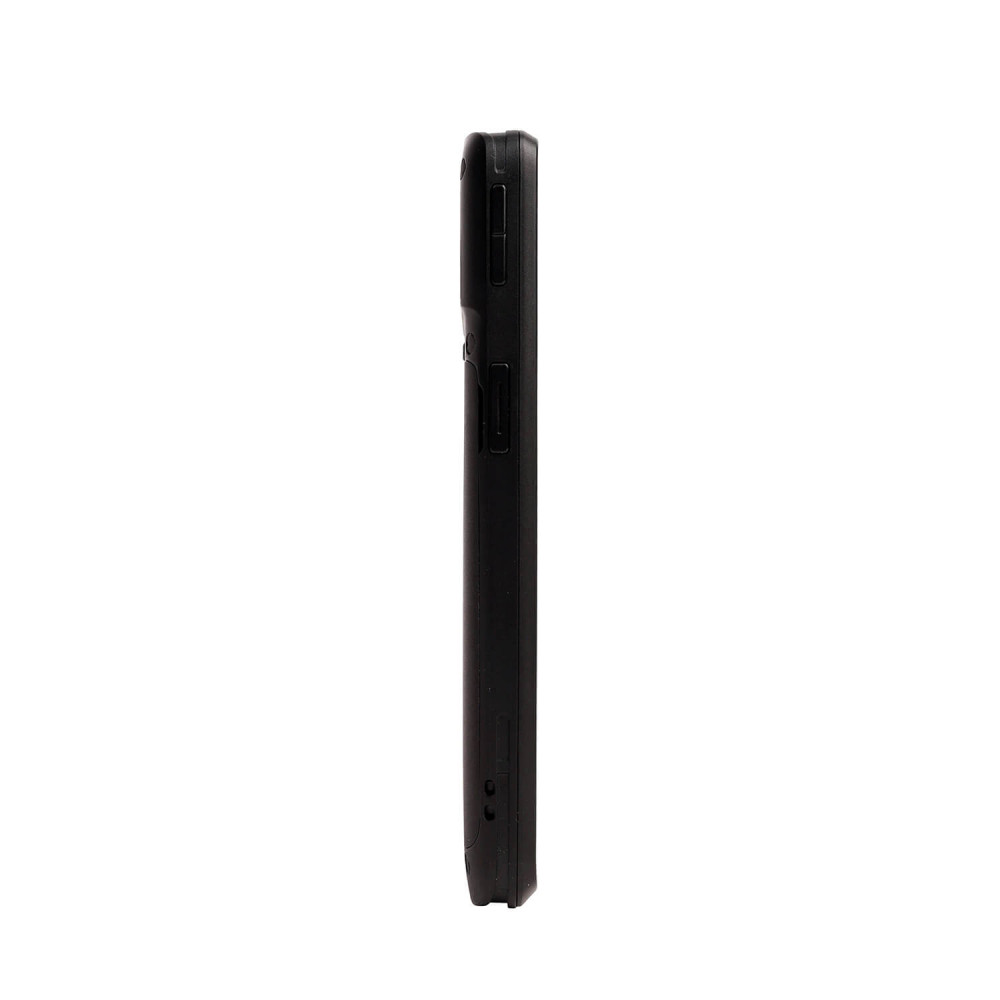

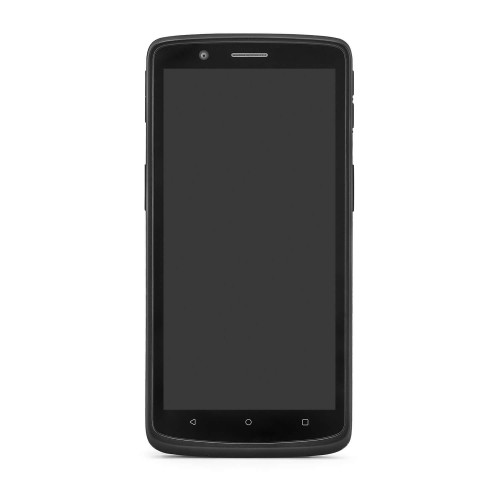

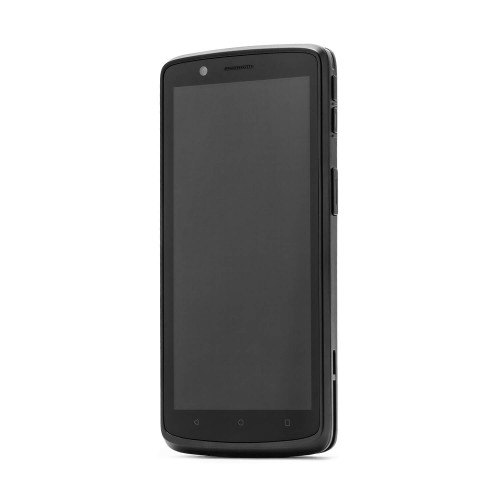

The MERTECH Seuic CRUISE GE2 data collection terminal is a modern and reliable device running on the Android 10 operating system. The powerful Qualcomm 6115 processor with 8 cores (4x2GHz + 4x1.8GHz CPU) ensures fast and uninterrupted operation of the terminal.
Design Features

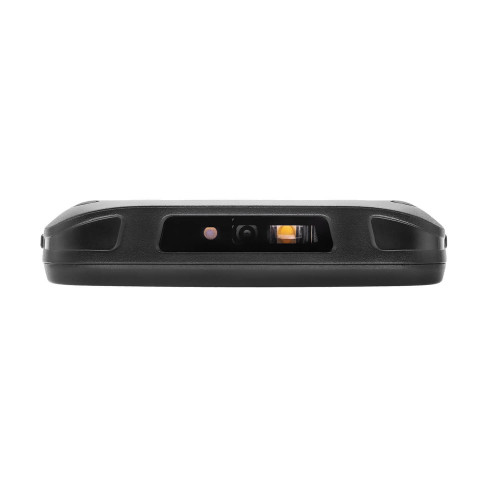

The device features a spacious 64 GB Flash memory and 4/6 GB RAM for quick data processing. The Seuic X3 2D image scanner with a resolution of 1280(h) x 800(v) Px and a field of view of 42°(h) x 27°(v) allows for fast and accurate barcode scanning. The minimum barcode contrast is 20%, ensuring reliable reading even at low print quality. The scanning range is from 65 to 640 mm for Code128 and from 30 to 300 mm for QR Code.

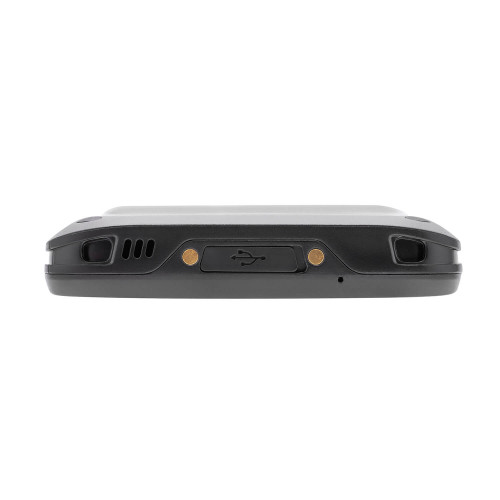

The terminal is equipped with a USB Type-C interface for PC connection, supporting OTG. The device has Micro SD slots (up to 128 GB) and 2*NanoSIM slots for expanded functionality and data transmission.
Advantages and Features
The touchscreen is made with durable Corning Gorilla glass, providing longevity and damage resistance. The terminal is equipped with light sensors, proximity sensors, a g-sensor, an e-compass, and a gyroscope, ensuring high accuracy in various conditions. Thanks to its industrial-grade sensor, the device is well-suited for use in manufacturing environments.
The device is protected against dust and temporary immersion in water according to the IP67 standard, making it ideal for use in high humidity or dusty environments.
The MERTECH Seuic CRUISE GE2 data collection terminal is a high-tech and user-friendly device that ensures fast and accurate data processing.
| Scanning element | 2D image |
|---|---|
| operating system | Android 10 (without GMS) |
| Flash memory | 64GB Nand Flash |
| RAM memory | 4GB/6GB |
| Scanner resolution | 1280(h)х800(v)px |
| Scanning coverage angle | 42º(h)x27º(v) |
| Barcode Sensitivity | Tilt ±55° / Rotate 360° / Roll ±60° |
| Sensor type | Industrial |
| Slots | Micro SD (up to 128 GB), 2*NanoSIM |
| Minimum barcode contrast | 20% |
| Keyboard | Virtual |
| PC connection interface | USB Type-C, OTG support |
| Sensors | Light sensor, proximity sensor, g-sensor, E-compass, gyroscope |
| CPU | Mediatek Helio P70, 8 cores 4x2GHz+4x1.8GHz CPU |
| Scanning range | Code128 65-640mm(20mil), QR Code 30-300mm(12.5mil) |
| Touch panel | Capacitive, Corning Gorilla glass |
| Поддержка СЭУАП | Yes |
|---|---|
| Sound and visual indication | Yes |
| Supported 1D barcodes | UPC/EAN, UPC/EAN, Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial2 of 5, Codabar, MSI, Code11 etc. |
| Supported 2D barcodes | PDF417, Micro PDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec etc. |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| NFC | Mifare ;ISO/IEC 14443 Type A/B; ISO15693 (13.56MHz) |
| Scanner model | Seuic X3 |
|---|---|
| Backlight | White, LED |
| Resistance to external influences | IP67 |
|---|---|
| Storage temperature | -40ºС - 70ºС |
| Battery charging time | from 3 hours |
| Battery life on one charge | until 16:00 |
| Application areas of TSD | For SEUAP, For warehouse, For 1C, For inventory, For marking |
| Nutrition | DC 5V 2A |
| Permissible humidity | 5% - 95% (non-condensing) |
| Operating temperature | -20ºС - 55ºС |
| Drop test | Withstands multiple drops from a height of 1.5 m |
| GPS | Beidou, GPS and GLONASS /A - GPS |
|---|---|
| Cellular (WWAN) | 4G/3G/2G |
| RFID | Via plug-in equipment |
| Display type | Sensory |
|---|---|
| Diagonal | 5.5'' |
| Matrix type | IPS |
| Permission | HD,1440x720 |
| Battery capacity | 5000 mA (6000 mAh) |
|---|

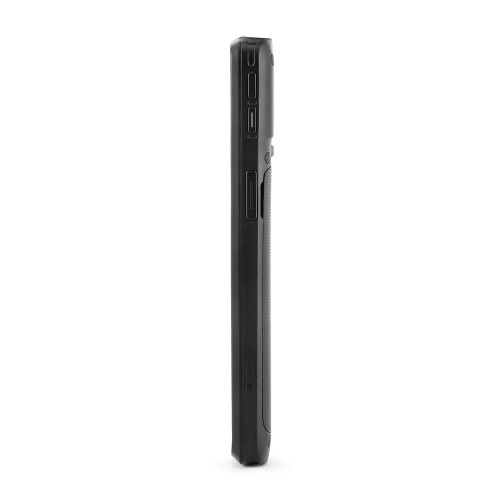

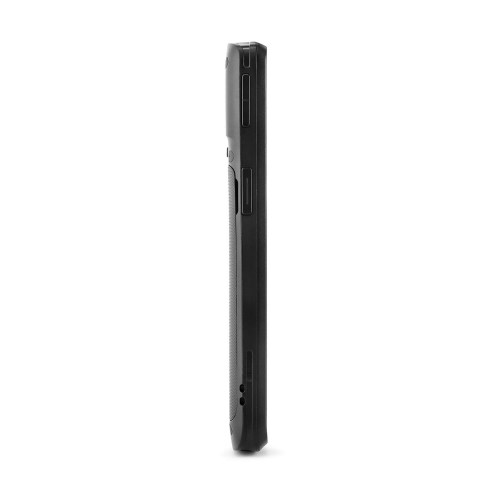

| Buttons | Power button (screen lock button), Volume up/down button, Scan button*2 |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 156*76*13.9/16.4 (6000 mAh) |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 255g/279g (6000mAh) |

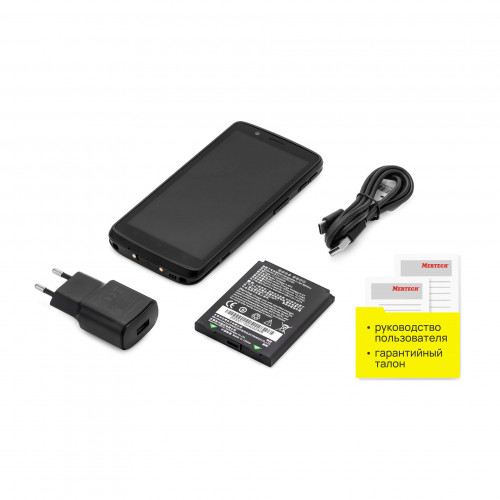

| Equipment | TSD, 5V/2A adapter, USB type C cable, Manual, Warranty card, Packaging |
|---|
| Wi-Fi (WLAN) | 2.4G&5G Support IEEE 802.11a/b/g/n/ac |
|---|---|
| Bluetooth (WPAN) | Bluetooth 4.2, BLE |

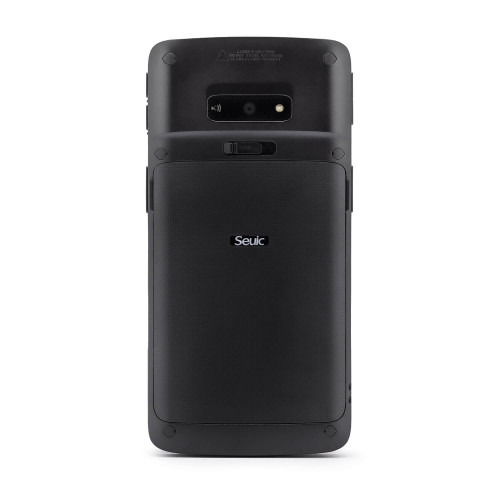

| Camera | Rear 13 MP, with autofocus and LED backlight / Front 5 MP with fixed focus |
|---|
-
