| Scanning module2D image | operating systemAndroid 10.0 Go | Flash memory8GB |
| RAM memory1GB | Scanner resolution1280(h)х800(v)px | Scanning coverage angle39º(h)x30º(v) |
| Barcode SensitivityTilt ±60° / Rotate 360° / Pivot ±60° | Minimum barcode contrast20% | KeyboardVirtual |
The device is designed for data collection using barcode scanning. The MERTECH S5 data collection terminal features a compact size and good build quality. It implements the most demanded functions for business automation.
Model Advantages
The MERTECH S5 data collection terminal has a simplified design and a basic set of features. We have included only the essentials to ensure an affordable price while maintaining reliability and functionality.
Model specifications:
- Android 10 Go OS.
- Power-efficient processor.
- 5-inch touchscreen diagonal.
- Fully functional scanning module.
- Compact body size.
- Removable battery.
- NFC support (with special software).
- Separate slots for 2 nanoSim, 1 MicroSD, and 1 SAM card.
The lightweight compact terminal is convenient to carry around. Its size is comparable to that of a smartphone: 144x73x16 mm. The device easily fits into a small pocket. The package includes a wrist strap for comfortable carrying and fall protection.
Technical Specifications

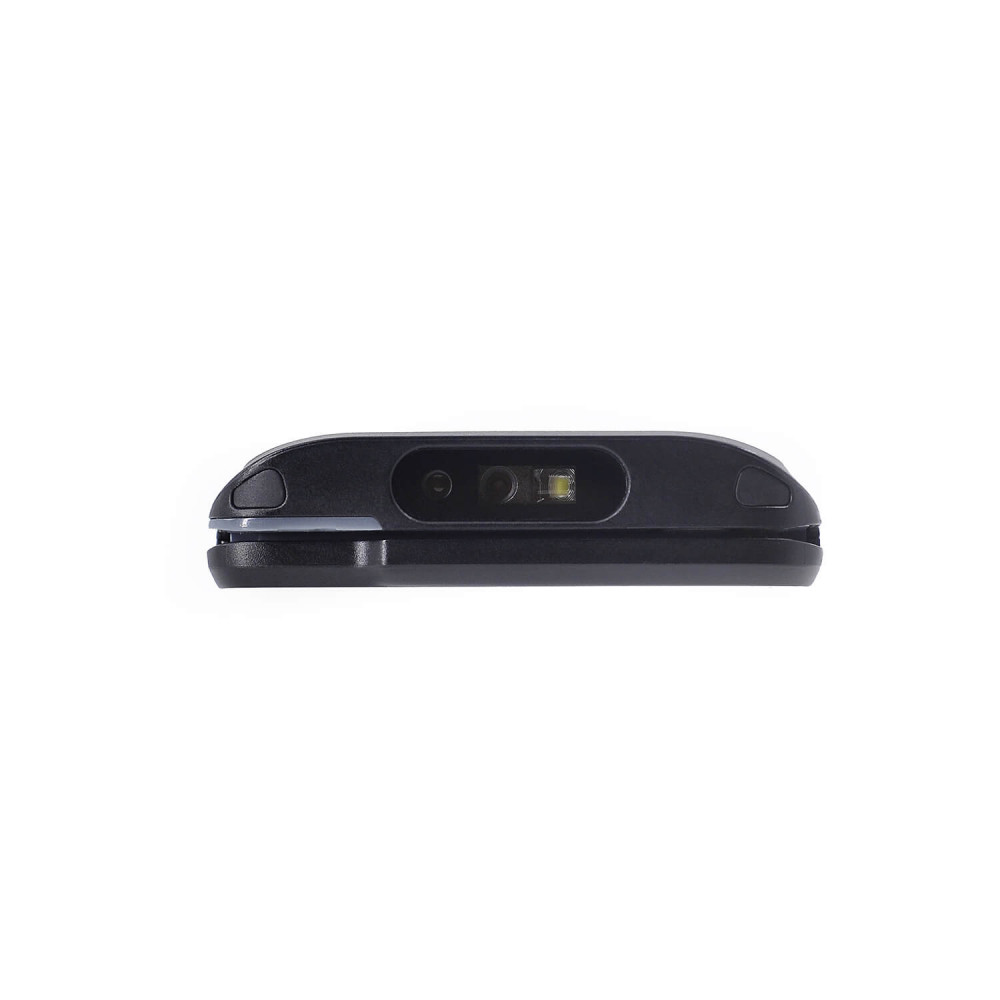

The MERTECH S5 terminal is equipped with a professional E3 Light scanning module. It uses a 5 MP camera with autofocus and white LED lighting to read barcodes. The built-in scanner recognizes all popular barcode types and can scan barcodes from complex surfaces.

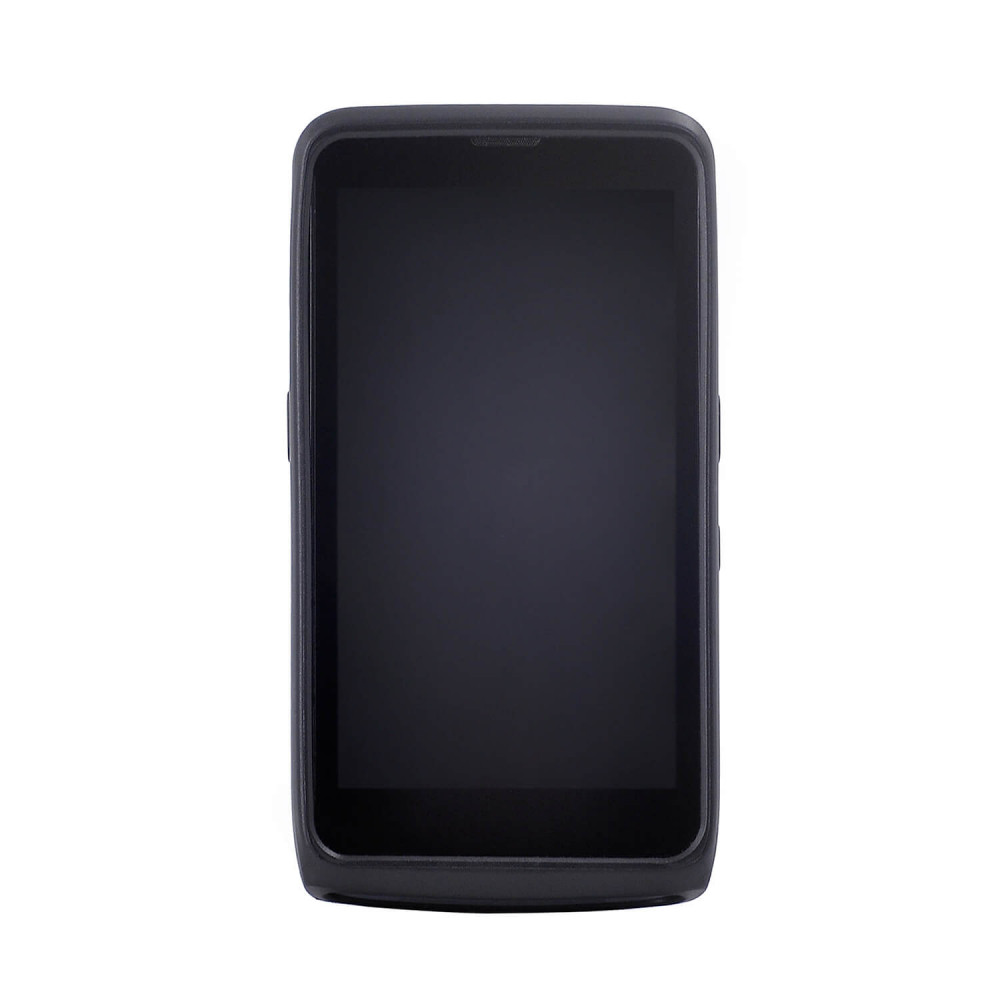

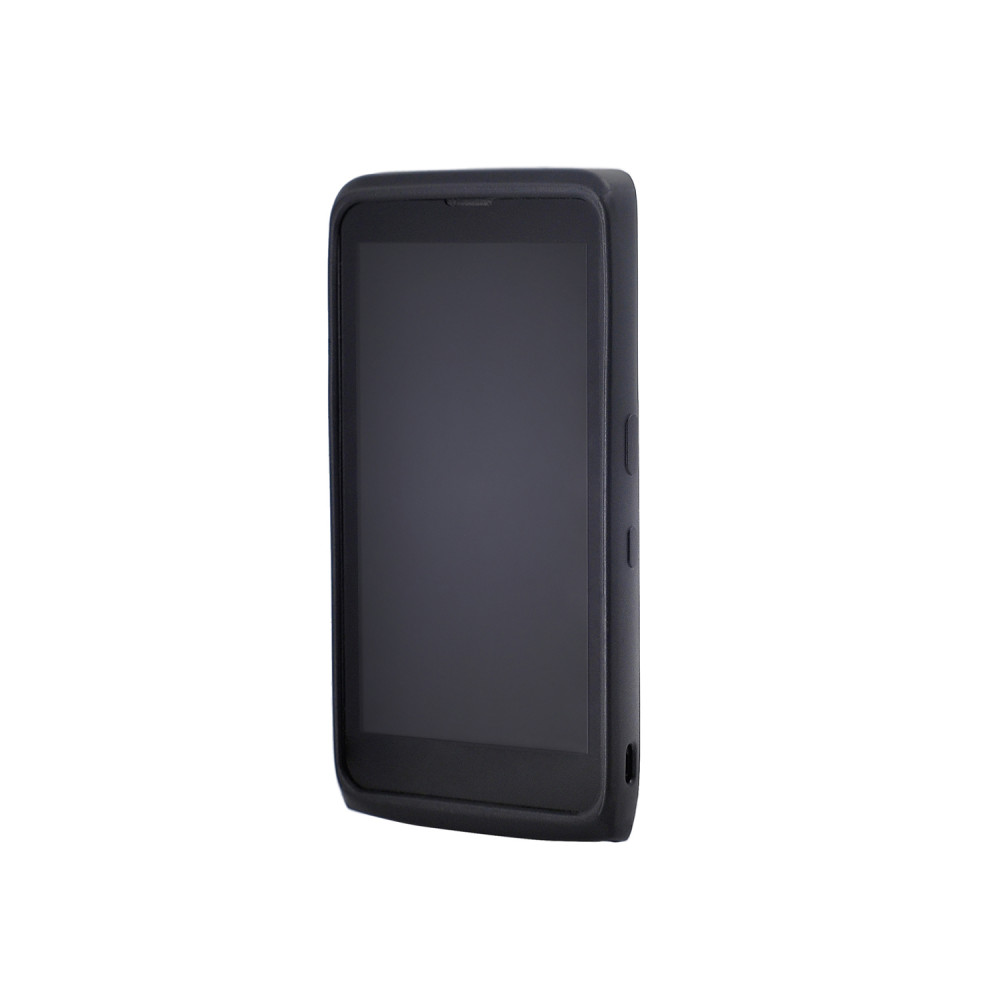

The 5-inch touchscreen simplifies document handling. The HD screen resolution of 720x1280 provides high image clarity. Information input is done via a virtual keyboard. The sensitive touchscreen quickly responds to touches.
The MERTECH S5 model features a wide range of interfaces. It supports internet connectivity via Wi-Fi, Bluetooth, as well as GPS and cellular communication up to 4G.
| Scanning module | 2D image |
|---|---|
| operating system | Android 10.0 Go |
| Flash memory | 8GB |
| RAM memory | 1GB |
| Scanner resolution | 1280(h)х800(v)px |
| Scanning coverage angle | 39º(h)x30º(v) |
| Barcode Sensitivity | Tilt ±60° / Rotate 360° / Pivot ±60° |
| Minimum barcode contrast | 20% |
| Keyboard | Virtual |
| PC connection interface | USB Type-C |
| Sensors | g-sensor |
| CPU | MTK 6761D' 4 cores 2.0 GHz CPU |
| Touch panel | Capacitive |
| Поддержка СЭУАП | Yes |
|---|---|
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar; MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Sound and visual indication during scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Scanner model | E3 Light |
|---|---|
| Backlight | White, LED |
| Guarantee | 2 years |
|---|---|
| Resistance to external influences | IP54 |
| Storage temperature | -20°С ~ +70°С |
| Application areas of TSD | For SEUAP, For warehouse, For 1C, For inventory, For marking |
| Nutrition | DC 5V 2A |
| Permissible humidity | 10% ~ 90% |
| Operating temperature | -10°C ~ +45°C |
| Drop test | Withstands multiple drops from a height of 1.5 m |
| GPS | Beidou, GPS and GLONASS /A - GPS |
|---|---|
| Cellular (WWAN) | 4G/3G/2G |
| Display type | Sensory |
|---|---|
| Diagonal | 5.0'' |
| Matrix type | IPS |
| Permission | HD,720x1280 |
| Battery capacity | 3000 mA |
|---|
| Buttons | Power button (screen lock button), Scan button*2 |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 144*73*16 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Equipment | TSD, Wrist strap, Case, 5V/2A adapter, USB type C cable, Manual, Warranty card, Packaging |
|---|
| Wi-Fi (WLAN) | IEEE 802.11 a/b/g/n/ac (2.4G/5G) |
|---|---|
| Bluetooth (WPAN) | Bluetooth 5.0 |
| Camera | 5 MP, with autofocus and LED backlight |
|---|
-
