Data collection terminal MERTECH MovFast S55 (Android 13, 8 Core, 4Gb/64Gb, E4-2D, Wi-Fi, 4G) (Item 9200)

The MERTECH MovFast S55 data collection terminal is suitable for automating the operations of warehouse complexes, retail stores, restaurant and hotel businesses, and service sector enterprises. A mobile terminal is needed for remote work with inventory management software. The use of a data collection terminal allows for the automation of routine operations, increased worker efficiency, and reduced business costs.

Each MERTECH MovFast S55 comes with pre-installed software that includes a free three-month trial period: Warehouse 15 and Store 15 from Cleverens. After the trial period, the current license can be extended or upgraded.

Advantages of the Model

The data collection terminal operates on the Android 13 platform. The current version of the operating system allows the installation of modern software for business automation.

Powerful electronics ensure fast operation of the equipment. The MERTECH MovFast S55 is equipped with a high-performance 8-core MTK MT8768 processor. The operation of the data collection terminal is monitored by a sensor system. The RAM is 4 GB, and the Flash memory is 64 GB (Nand Flash). The design includes a slot for a Micro SD card of up to 128 GB.

A USB Type-C cable is used for charging the battery and connecting to a PC. The design supports mobile networks LTE 2G/3G/4G and connections to wireless navigation systems including GPS, Beidou, GLONASS, and Galileo. Wireless connectivity via Wi-Fi and Bluetooth 5.0, BLE is also available.

Construction Features

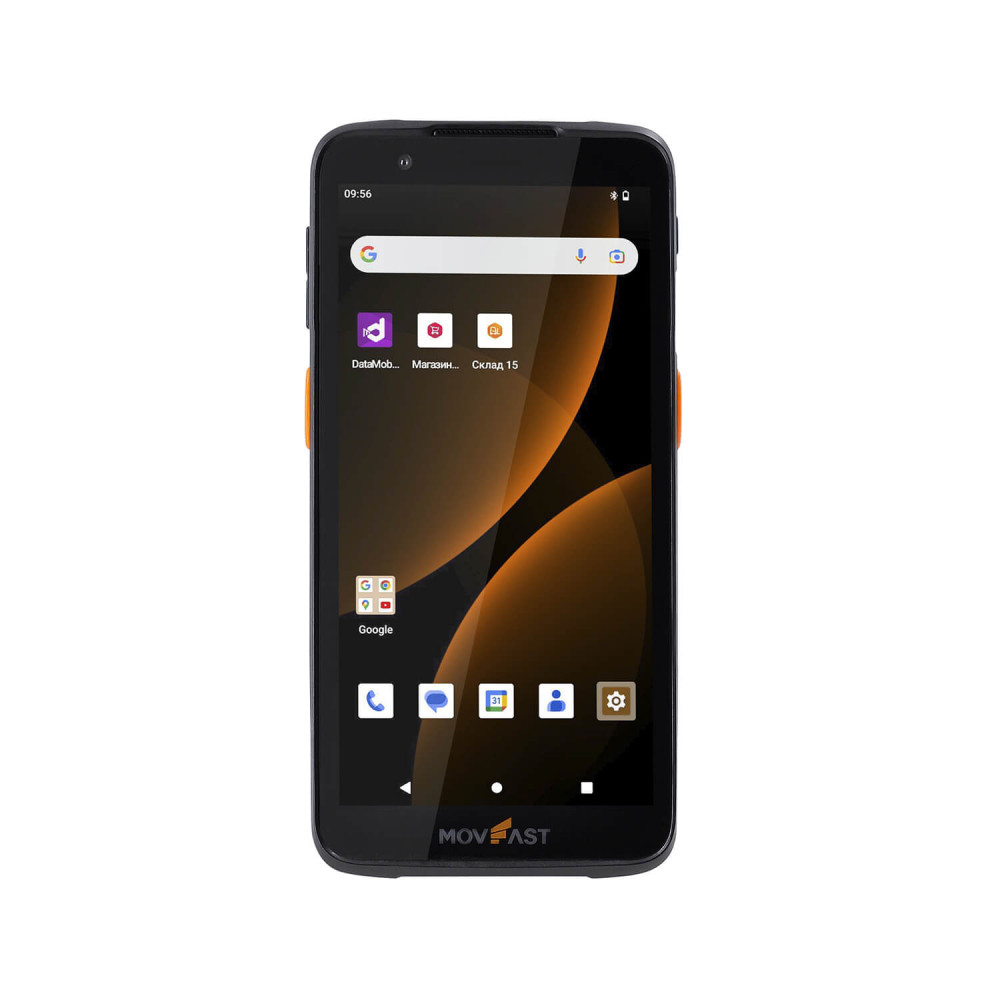

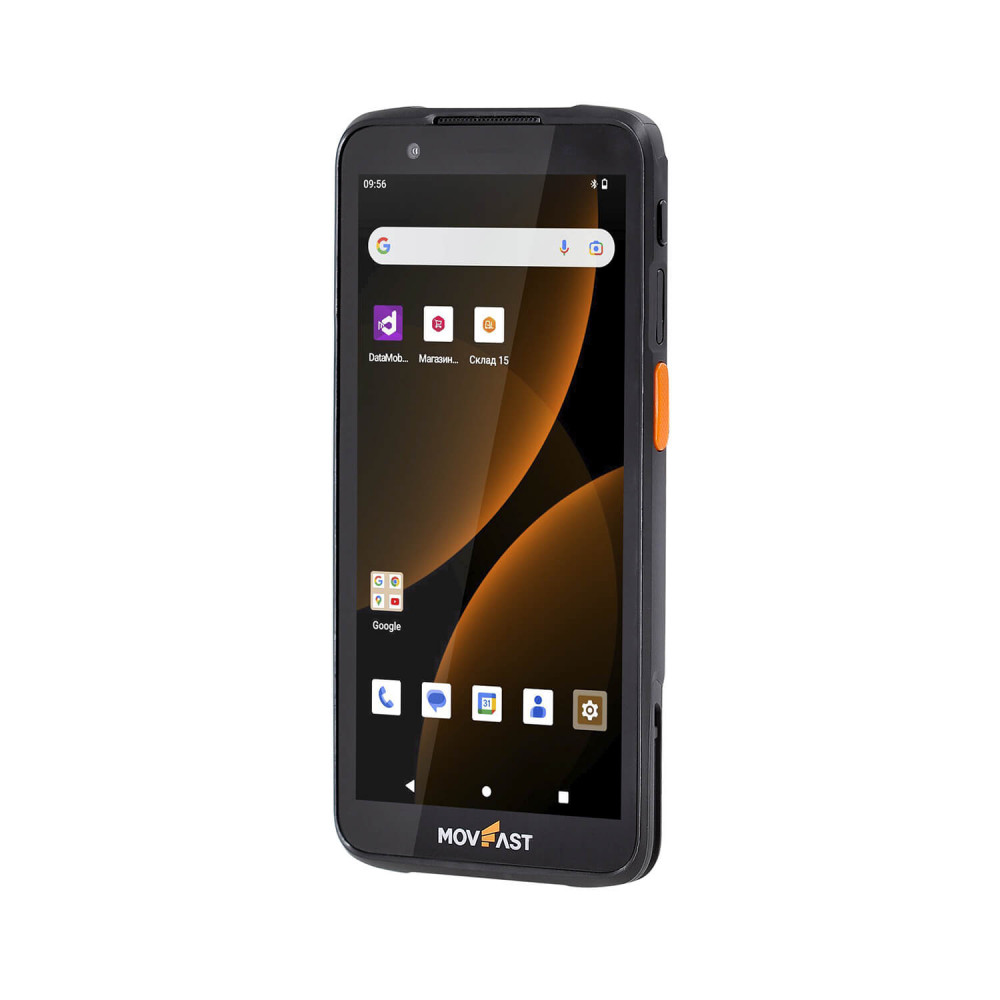

The MERTECH MovFast S55 data collection terminal has a design reminiscent of a smartphone. The touchscreen occupies a large portion of the front panel. The 5.5-inch display is based on an IPS matrix. The terminal has a rear camera with 13 MP and a front camera with 5 MP.

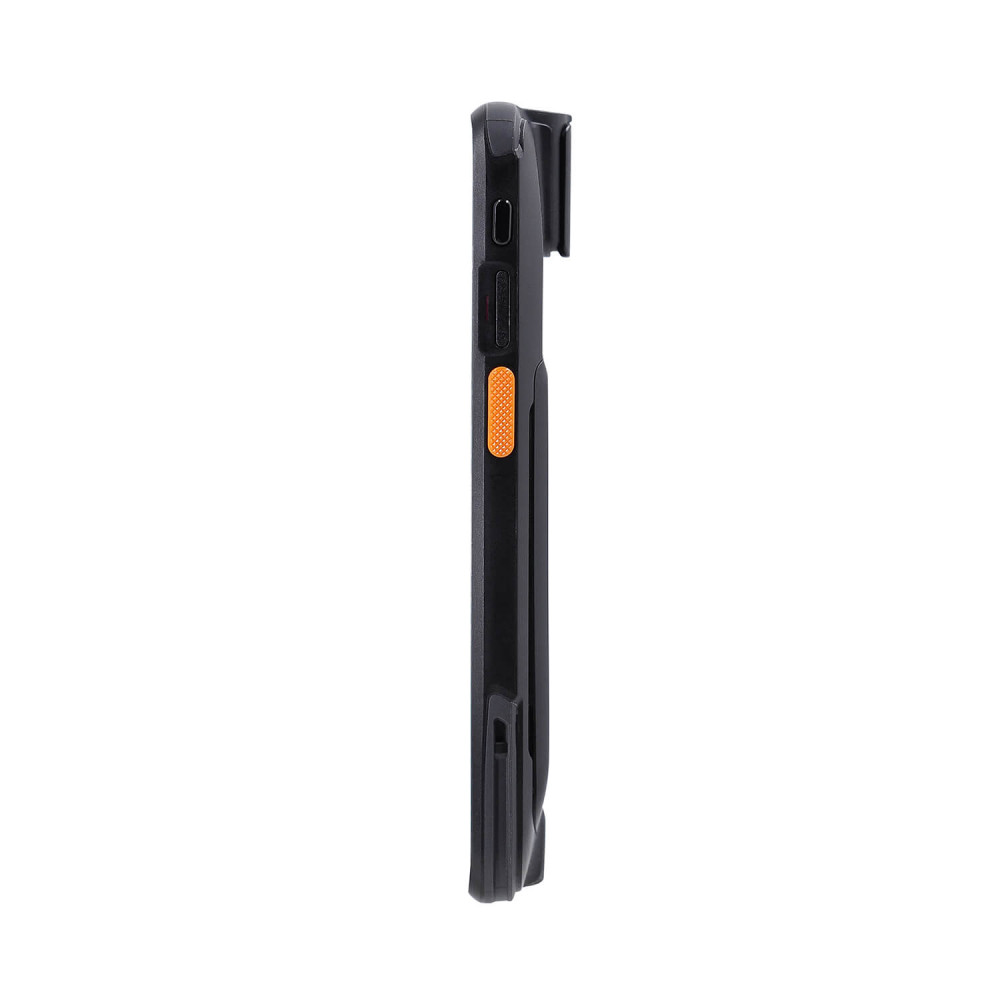

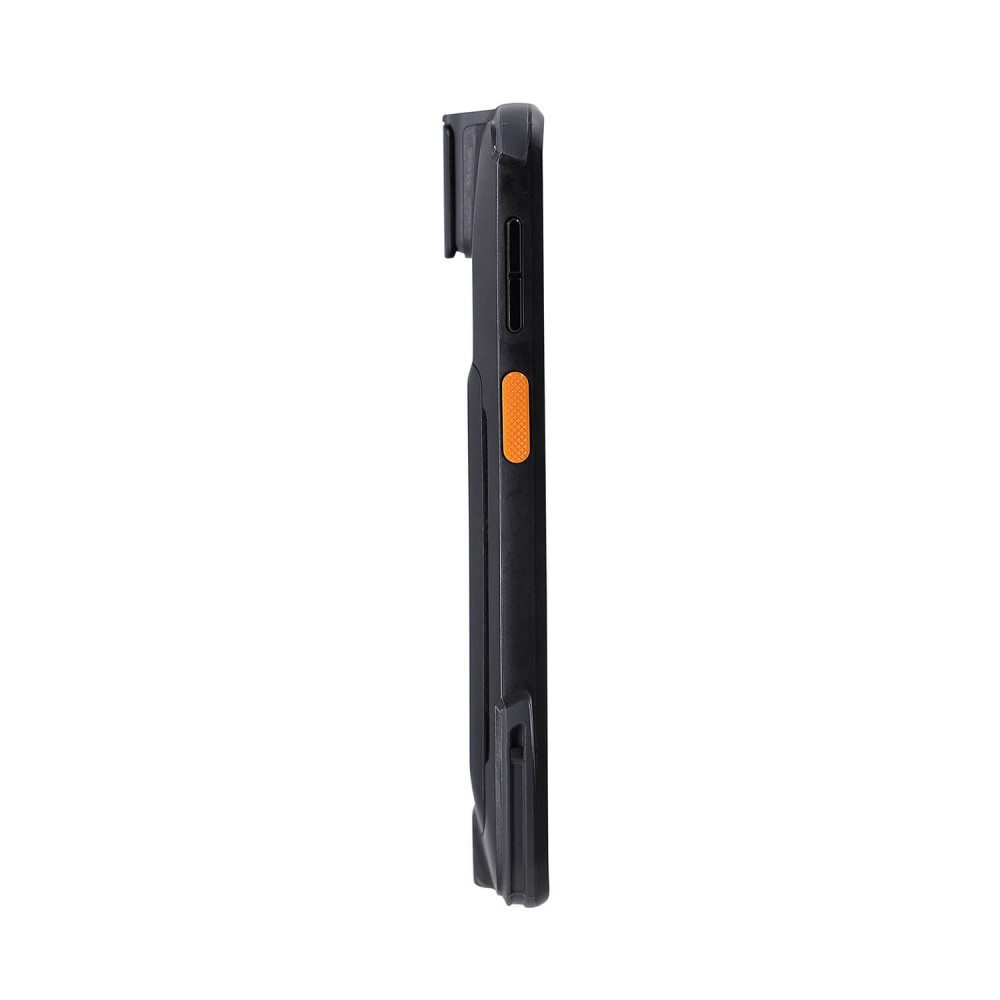

The control buttons are located at the bottom of the display and on the sides of the terminal. The design includes:

• a power and screen lock button;
• a volume control button;
• an additional programmable button;
• two scanning buttons;

The software includes a virtual keyboard. The industrial sensor is highly shock-resistant. For additional protection, the display is covered with Panda MN 228 glass.

The terminal's casing is made from shock-resistant plastic and polycarbonate. The device can withstand multiple drops from a height of 1.5 m. The casing's IP67 rating allows the data collection terminal to operate in high humidity and dusty environments. The device has dimensions of 153.9x73x13.8 mm and weighs 230 grams.

2D Scanner Specifications

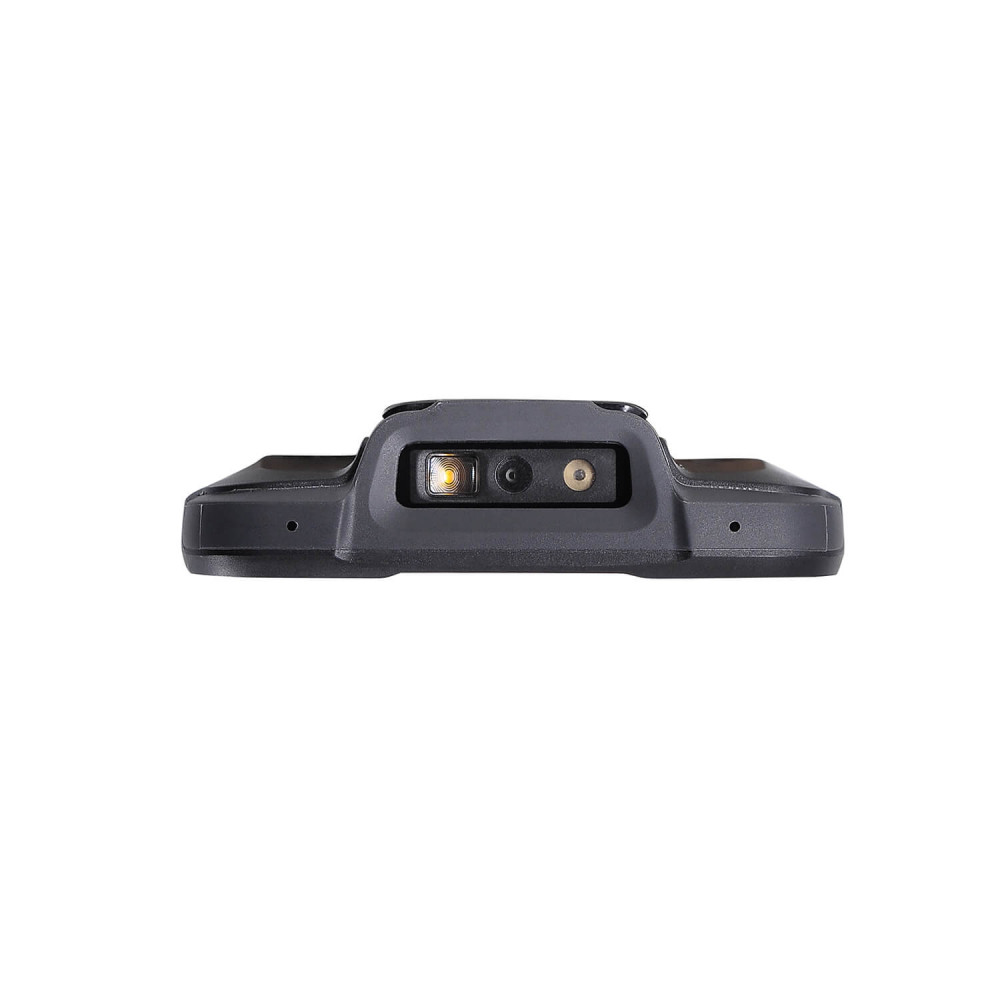

The MERTECH MovFast S55 is equipped with a 2D Image scanning module. The built-in scanner with a wide field of view accelerates the operator's work. The employee does not need to adjust the scanner's tilt or distance to the label for scanning to occur. The sensitive scanner recognizes codes on the first pass over the label.

The built-in scanner recognizes all popular 1D and 2D barcodes. The list of recognized codes includes PDF417, Data Matrix, and QR.

Scanning is possible even from complex surfaces. The data collection terminal recognizes labels with a contrast of at least 20%. The LED backlight activates during scanning. Labels can be scanned at any light level.

Battery

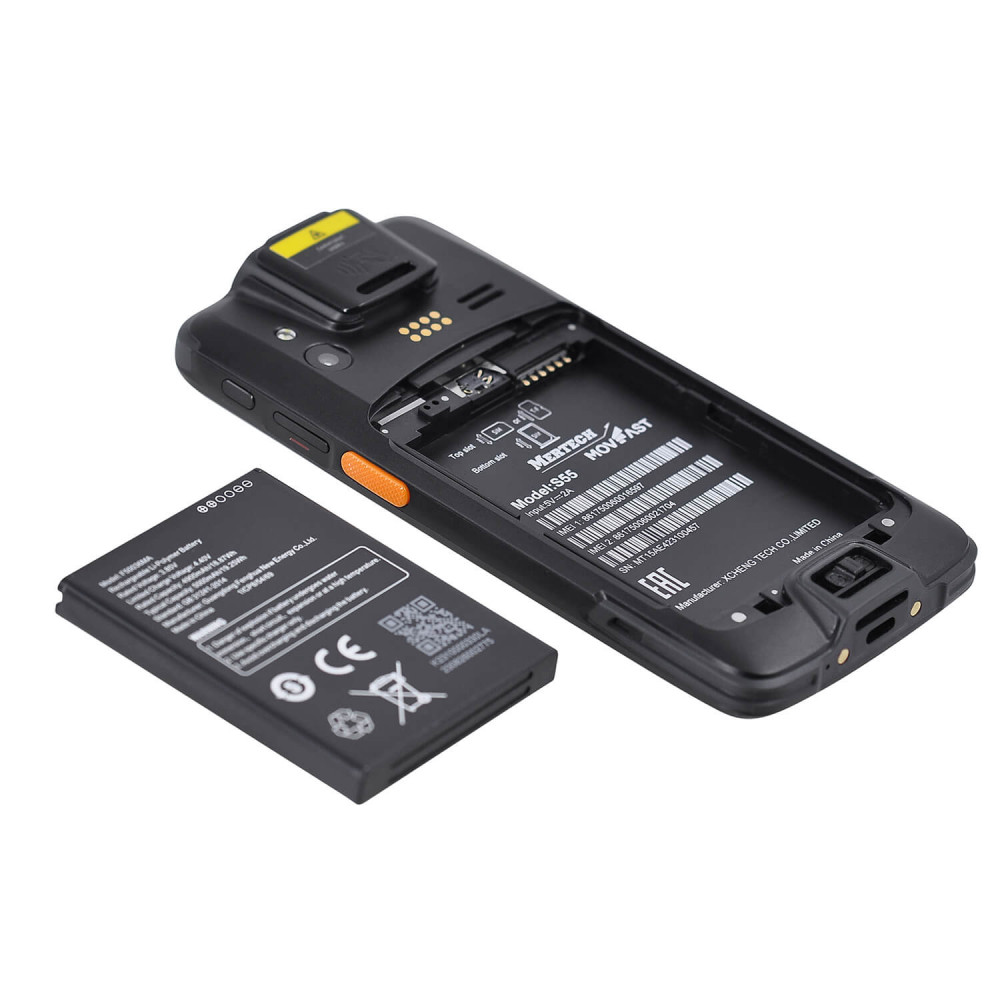

The MERTECH MovFast S55 comes with a 5000 mAh battery. After a full charge, the terminal operates for up to 14 hours. Charging to 100% takes about 3 hours. The design includes a backup battery that supports hot-swappable battery functionality. The main battery can be removed for replacement with a new one. During a hot swap, the device does not turn off, and all data remains in RAM.

Leave a request on the website to order the MERTECH MovFast S55 data collection terminal at the manufacturer’s price.
