| Scanning module2D image | operating systemAndroid 11 | Flash memory32 GB |
| RAM memory3 GB | Scanner resolution1280(h)х800(v)px | Scanning coverage angle42º(h)x27º(v) |
| Barcode SensitivityTilt ±60° / Rotate 360° / Pivot ±60° | Sensor typeIndustrial | SlotsMicro SD Card, 128GB SDHC compatible, 2*nanoSIM |

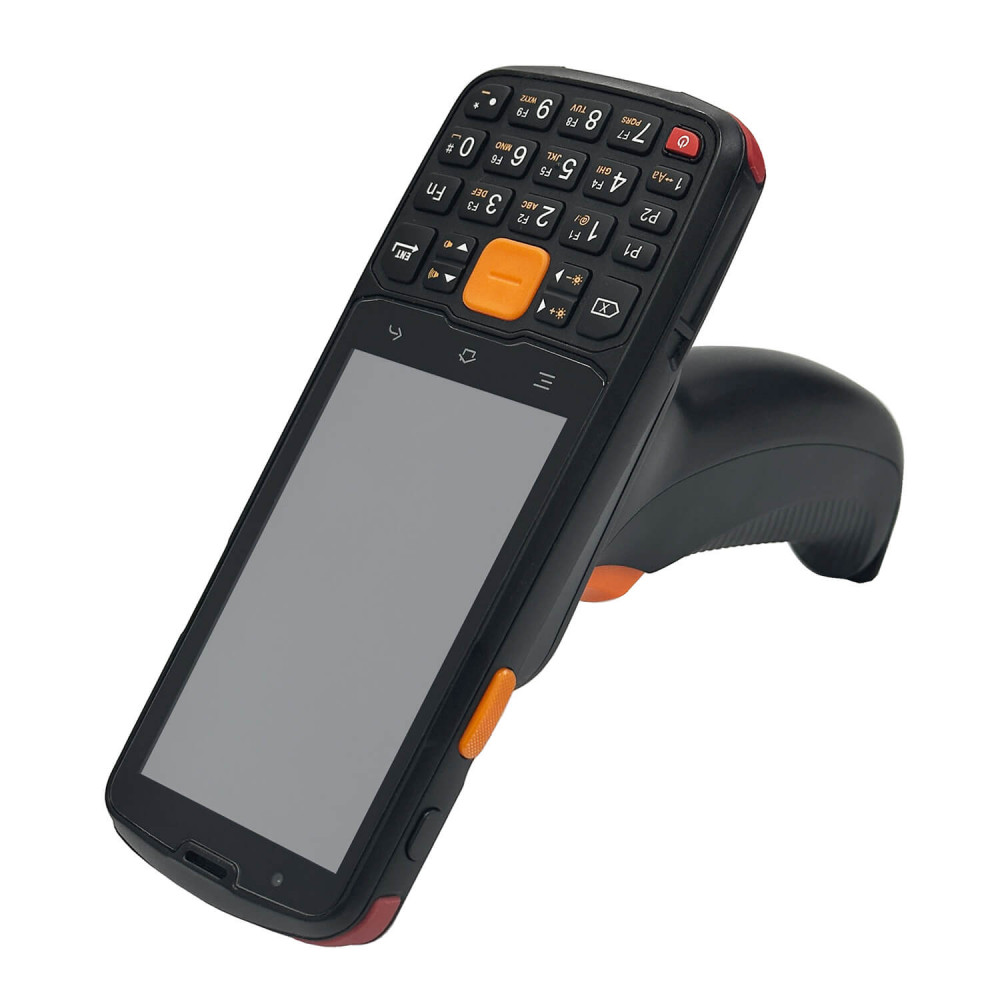

The MERTECH MovFast S45 GRIP data collection terminal has an unconventional shape. Its pistol grip is an extension of the body rather than a detachable accessory. This solution provides convenience for staff and accelerates work readiness. The terminal with a pistol grip is easy to hold, with the scanning button positioned under the operator's finger. The design of the device speeds up employee performance.
Main Characteristics
The built-in scanning module E4 features a white backlight of 2700K. A wide coverage angle of 42° by 27° allows labels to be recognized on the first attempt. Scanning is performed from a distance of up to 40 cm. The scanner responds to blurry barcodes with a contrast of more than 20%. The terminal recognizes all popular barcode formats, including Data Matrix, QR Code, and PDF417. The model is suitable for working with SEUAP and "Honest Sign".
Technical specifications:
- Octa-core processor MTK 8-core.
- Rear camera: 13 MP.
- Front camera: 2 MP.
- Flash memory: 32 GB.
- RAM: 3 GB.
- Platform: Android 11.

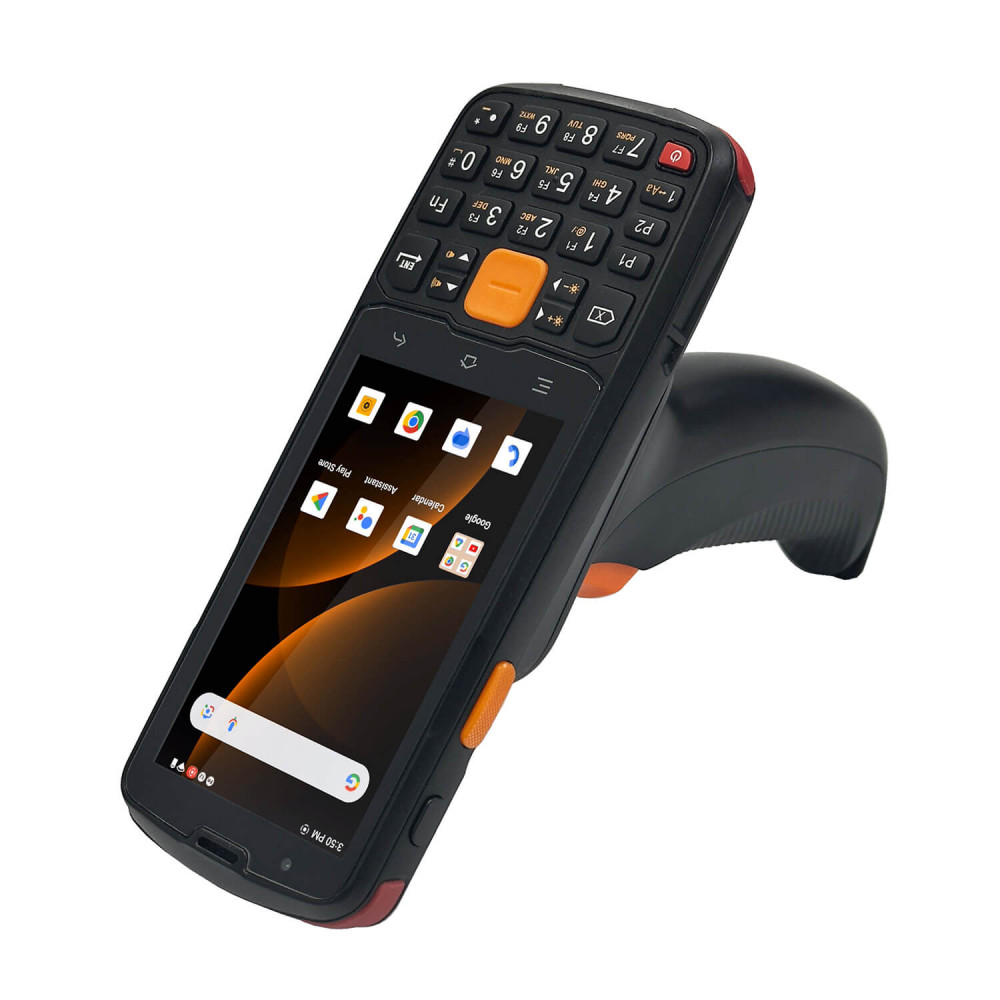

The input is performed using a touchscreen and a physical keyboard. The capacitive touch panel with a diagonal of 4 inches and a pixel density of 233 ppi ensures high image quality. A reliable protective glass is installed above the screen. The terminal withstands multiple drops from a height of up to 1.5 m.
Advantages of the Model
Terminals with a non-removable pistol grip are convenient to use. If the terminal is incorrectly secured to a removable handle, it may fall. Removable accessories can sometimes be lost during operation, leading to increased costs. The model with a pistol shape is free of these drawbacks.

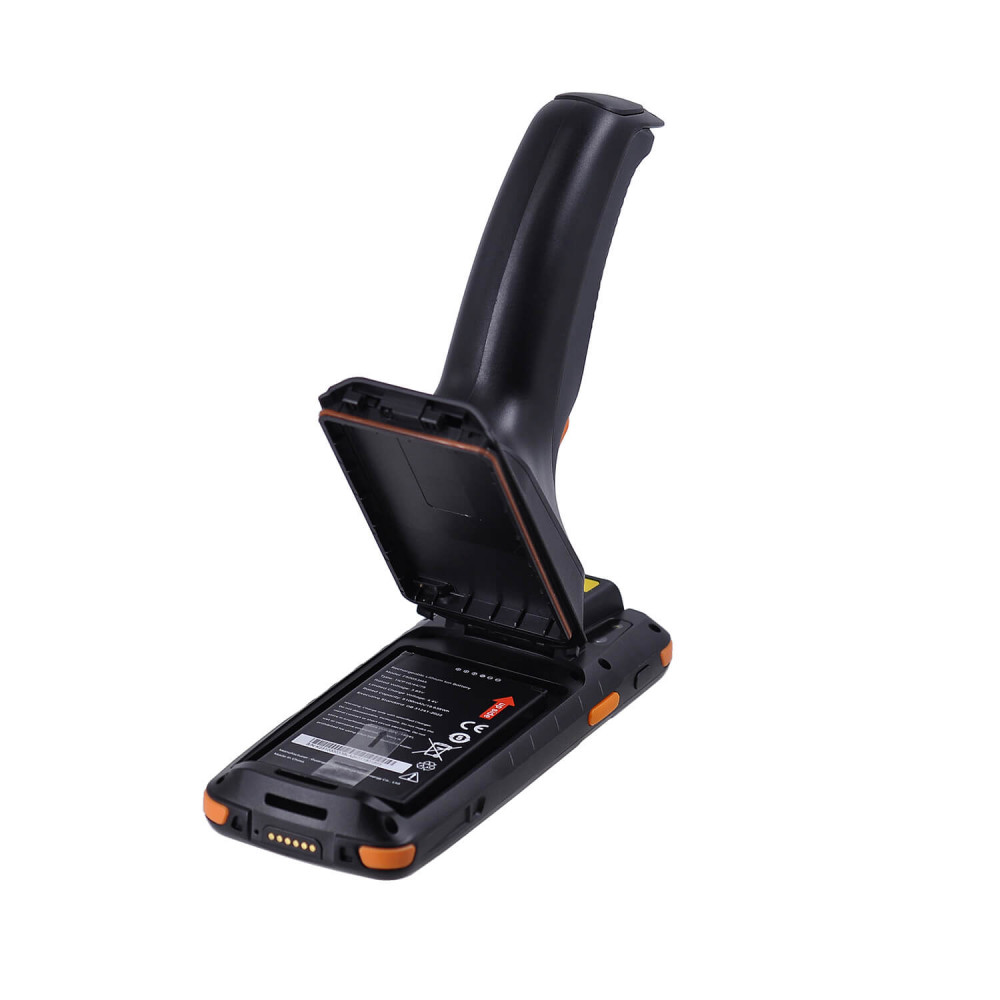

The MERTECH MovFast S45 GRIP connects to wireless networks via Wi-Fi and Bluetooth, and to mobile networks 2G-4G. The 5100 mAh battery provides up to 14 hours of operation in wireless mode. The terminal supports hot-swappable battery replacement with a backup power source. The battery charges from 0% to 100% in an average of 3 hours.
The base memory can be expanded. The terminal has slots for installing a Micro SD Card and SDHC up to 128 GB. Two nanoSIM cards can be installed for communication. For PC connectivity, there is a USB Type-C port. The enclosure protection class is IP65. The device is suitable for outdoor work or in unheated warehouses.
Place an Order
You can purchase the MovFast S45 GRIP terminal on the official MERTECH website. When placing an order on the site, low prices from the manufacturer are available. A beneficial discount system is in place for wholesale buyers. Leave a request to order the terminal with a pistol grip.
| Scanning module | 2D image |
|---|---|
| operating system | Android 11 |
| Flash memory | 32 GB |
| RAM memory | 3 GB |
| Scanner resolution | 1280(h)х800(v)px |
| Scanning coverage angle | 42º(h)x27º(v) |
| Barcode Sensitivity | Tilt ±60° / Rotate 360° / Pivot ±60° |
| Sensor type | Industrial |
| Slots | Micro SD Card, 128GB SDHC compatible, 2*nanoSIM |
| Minimum barcode contrast | 20% |
| Keyboard | Physical |
| PC connection interface | USB Type-C, OTG support |
| Sensors | G-sensor, proximity sensor, gyroscope, electronic compass, light sensor |
| CPU | MTK 8-core MT6762 8*2.0GHz |
| Touch panel glass | Panda MN 228 (equivalent to Corning Gorilla 3) |
| Scanning range | Code39 (20mil) 150-570mm, QR (15mil) 50-420 mm |
| Touch panel | Capacitive |
| Pixel density | 233 ppi |
| Поддержка СЭУАП | Yes |
|---|---|
| Supported 1D barcodes | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal |
| Supported 2D barcodes | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin |
| Sound and visual indication during scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| NFC | No |
| GMS support | No |
| Scanner model | E4 |
|---|---|
| Backlight | White, 2700K |
| Guarantee | 2 years |
|---|---|
| Resistance to external influences | IP65 |
| Storage temperature | -40ºС - +70ºС |
| Battery charging time | from 3 hours |
| Battery life on one charge | until 2:00 p.m. |
| Application areas of TSD | For SEUAP, For warehouse, For 1C, For inventory, For marking |
| Nutrition | DC 5V 2A |
| Permissible humidity | 5% - 95% |
| Hot swap battery | Yes |
| Operating temperature | -20ºС - +60ºС |
| Drop test | Withstands multiple drops from a height of 1.5 m |
| GPS | GPS, Beidou, GLONASS |
|---|---|
| Cellular (WWAN) | LTE 2G/3G/4G |
| RFID | No |
| Display type | Sensory |
|---|---|
| Diagonal | 4.0'' |
| Matrix type | IPS |
| Permission | WVGA, 800×480 |
| Brightness | Typical 450cd/m²；minimum: 400cd/m² |
| Battery capacity | 5100 mA |
|---|
| Buttons | Keyboard 23 buttons on the front side, Power button (screen lock button), Scan button *3 |
|---|---|
| Color | Black |
| Overall dimensions (WxDxH), mm | 160*68*140 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 370 gr |
| Fingerprint scanner | Optional |
| Wi-Fi (WLAN) | 2.4G/5G, IEEE 802.11 a/b/g/n/ac standards, 802.11 d/e/h/i/j/k/r/v/w protocols |
|---|---|
| Bluetooth (WPAN) | Bluetooth 5.0 (BLE support) |
| Camera | Rear: '13 MP, with autofocus and flash Front: 2 MP with fixed focus |
|---|
-
